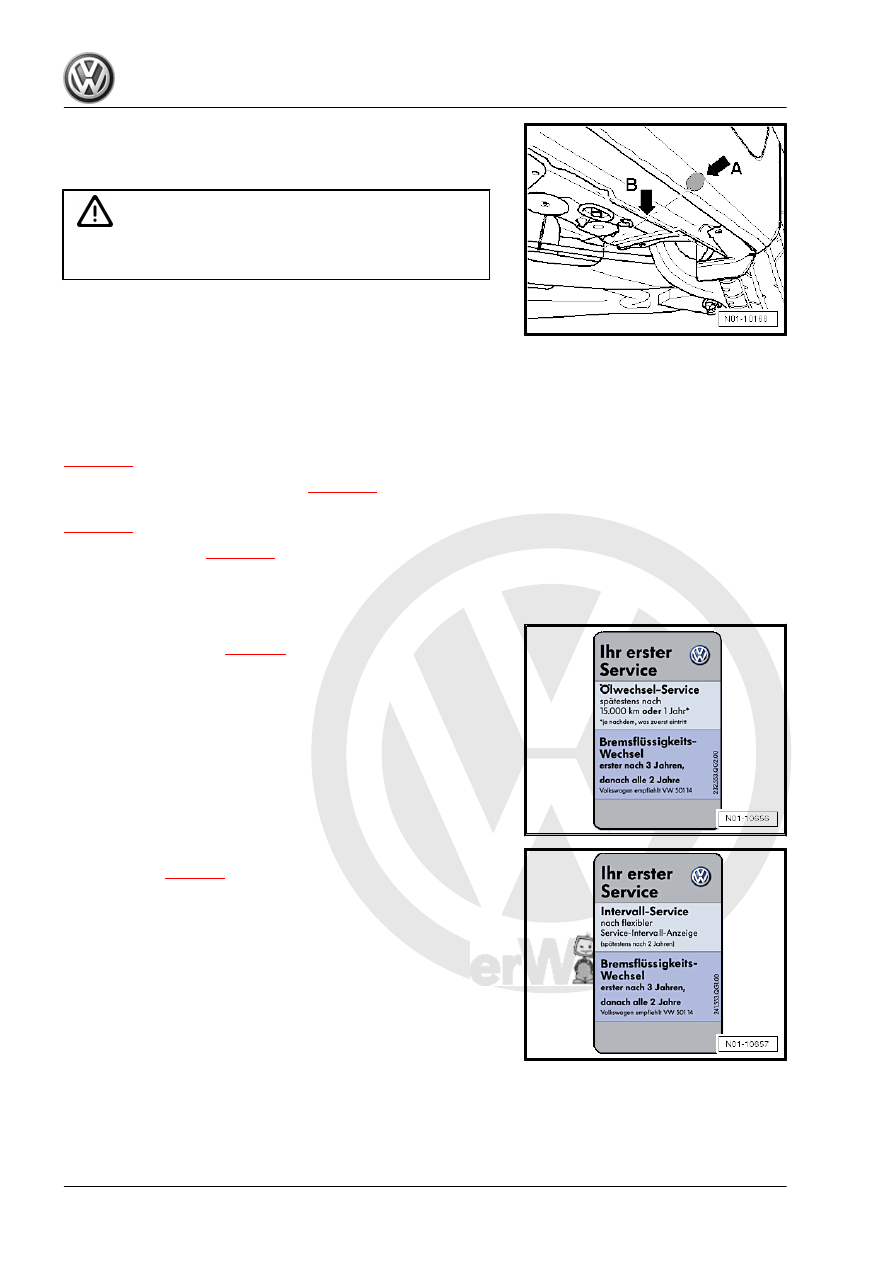

Rear lifting point:
– Position support plate, in area of side member marking

-arrow A-, at vertical reinforcement of floor pan -arrow B-.

WARNING

Ensure  that  side  member  reinforcement  seats  centrally  on

support plate of hoist mounting.

3.2

Sticker

In this chapter there are stickers which are valid for the German

market. The stickers determined for your country can be obtained

from your importer.
Attaching “Your first service” sticker (at delivery inspection)

⇒ page 30

 .

Attaching “Your next service” sticker

⇒ page 31

Attaching “data sticker” in customer service schedule

⇒ page 31

Attach hotline sticker

⇒ page 32

3.2.1

Attaching “Your first service” sticker (at

delivery inspection):

Sticker “Your first service - oil change service” for vehicles with

PR number “QG0/QG2”

⇒ page 8

Sticker “Your first service - interval service” for vehicles with PR

number “QG1”

⇒ page 7

Maintenance - Edition 11.2009

30

    3. General

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

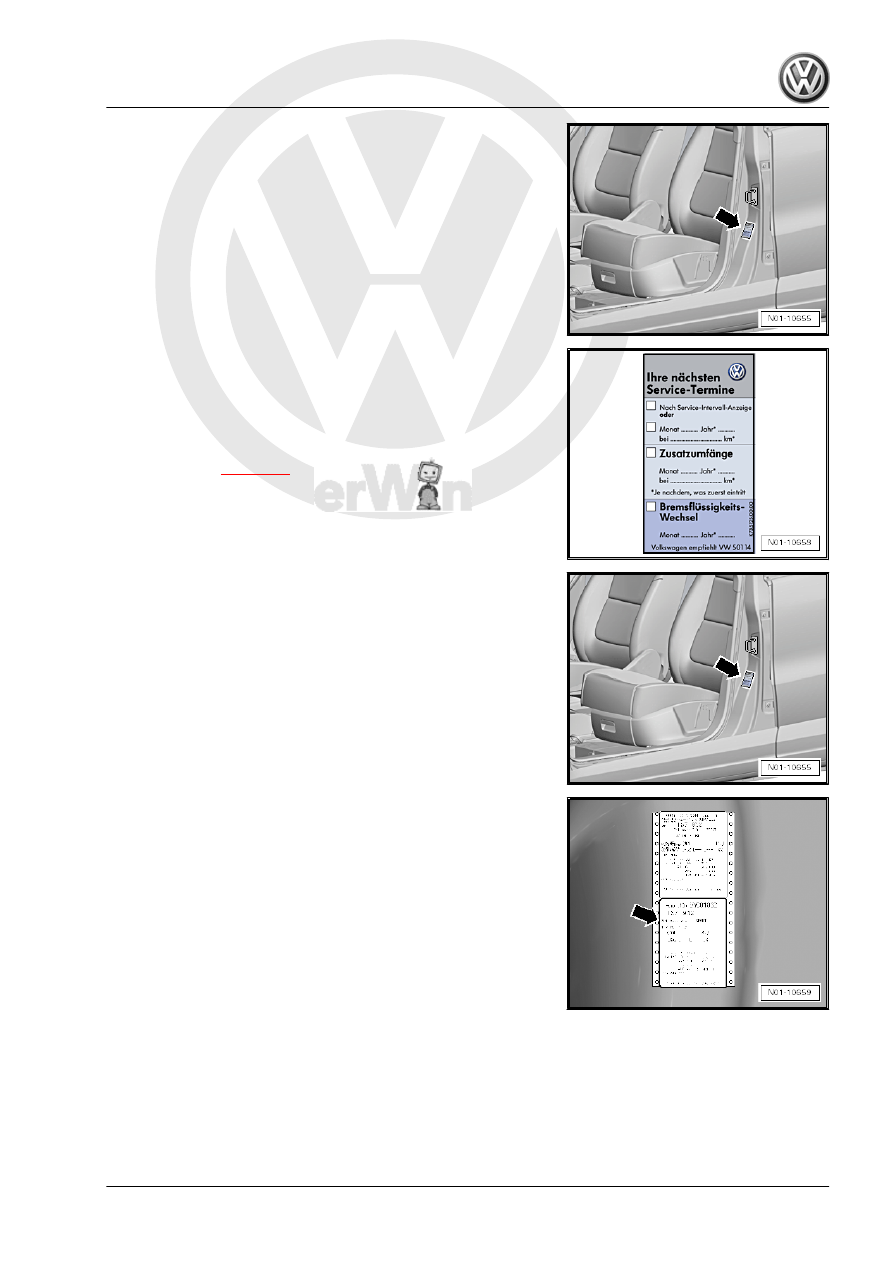

– Apply sticker on driver side door pillar (B-pillar) -arrow-; the

sticker is located on an instruction which is attached at front in

the vehicle wallet. Destroy the instruction after attaching the

sticker!

3.2.2

Attaching “Your next service dates”

sticker:

– “Your next service dates” sticker: Enter a cross in position for

next oil change service or inspection service (next service due)

and enter date and mileage

Service intervals

⇒ page 10

– Attach sticker to driver side door pillar (B-pillar) -arrow-.

3.2.3

Attaching “data sticker” in customer

service schedule:

– Attach the lower of the two data stickers -arrow- in the service

schedule.

Maintenance - Edition 11.2009

3. General

31

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

3.2.4

Attaching hotline sticker

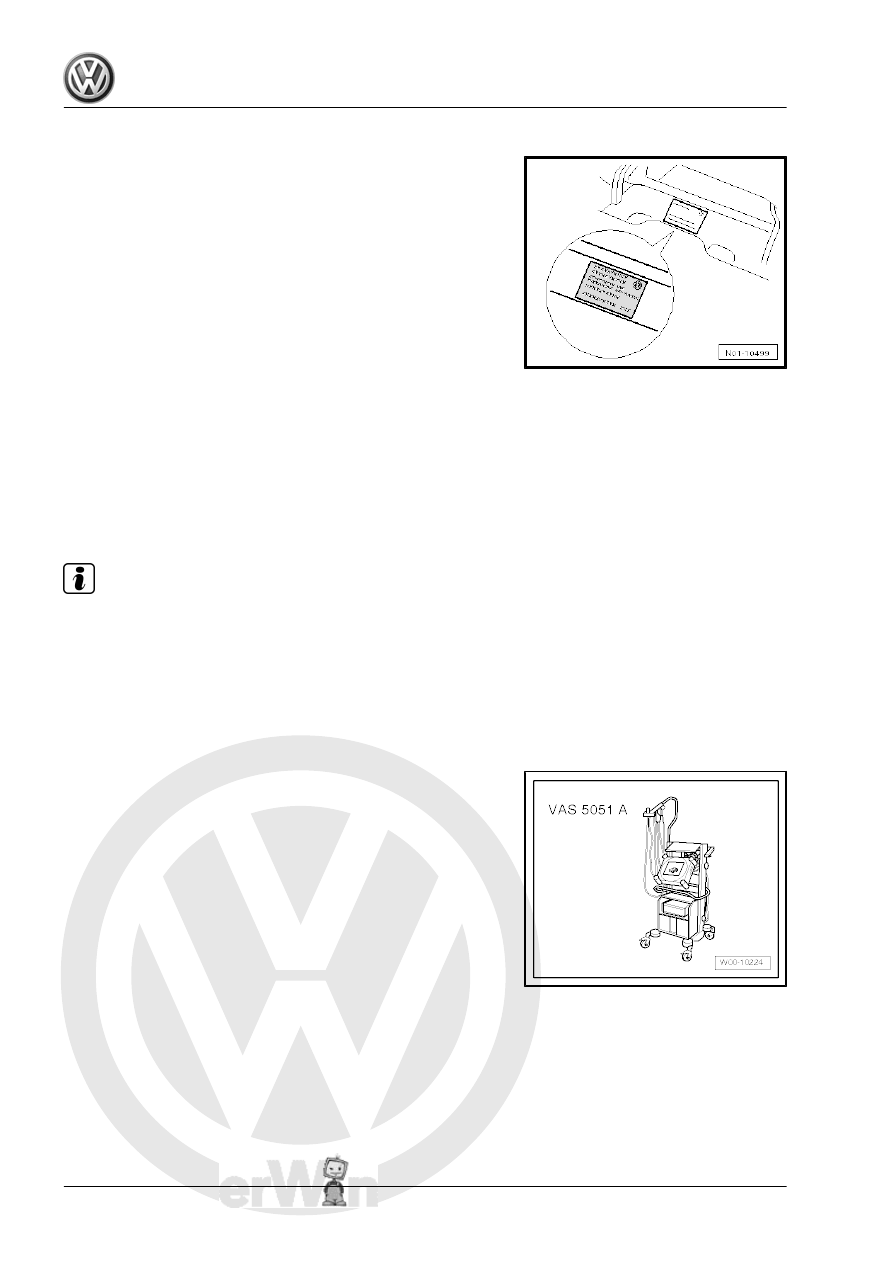

– Attach hotline sticker to the inside of glove box cover as

shown.

• Only valid for Germany

3.3

Entries in service schedule

If a component is changed which has a change interval prescribed

by the manufacturer, e.g. the toothed belt, the new change inter‐

val begins at the time the component is changed.
• Therefore it is very important, every time a component is

changed, to document this in the service schedule.

• This also applies to components which were changed before

the regular change interval.

Note

When using “Genuine parts kits” it must be taken into account

whether it is technically necessary to change all the compo‐

nents included in the genuine parts kits.

If more components are renewed than is technically necessa‐

ry, inform the customer before repair!

3.4

Connecting vehicle diagnostic tester

Special tools and workshop equipment required

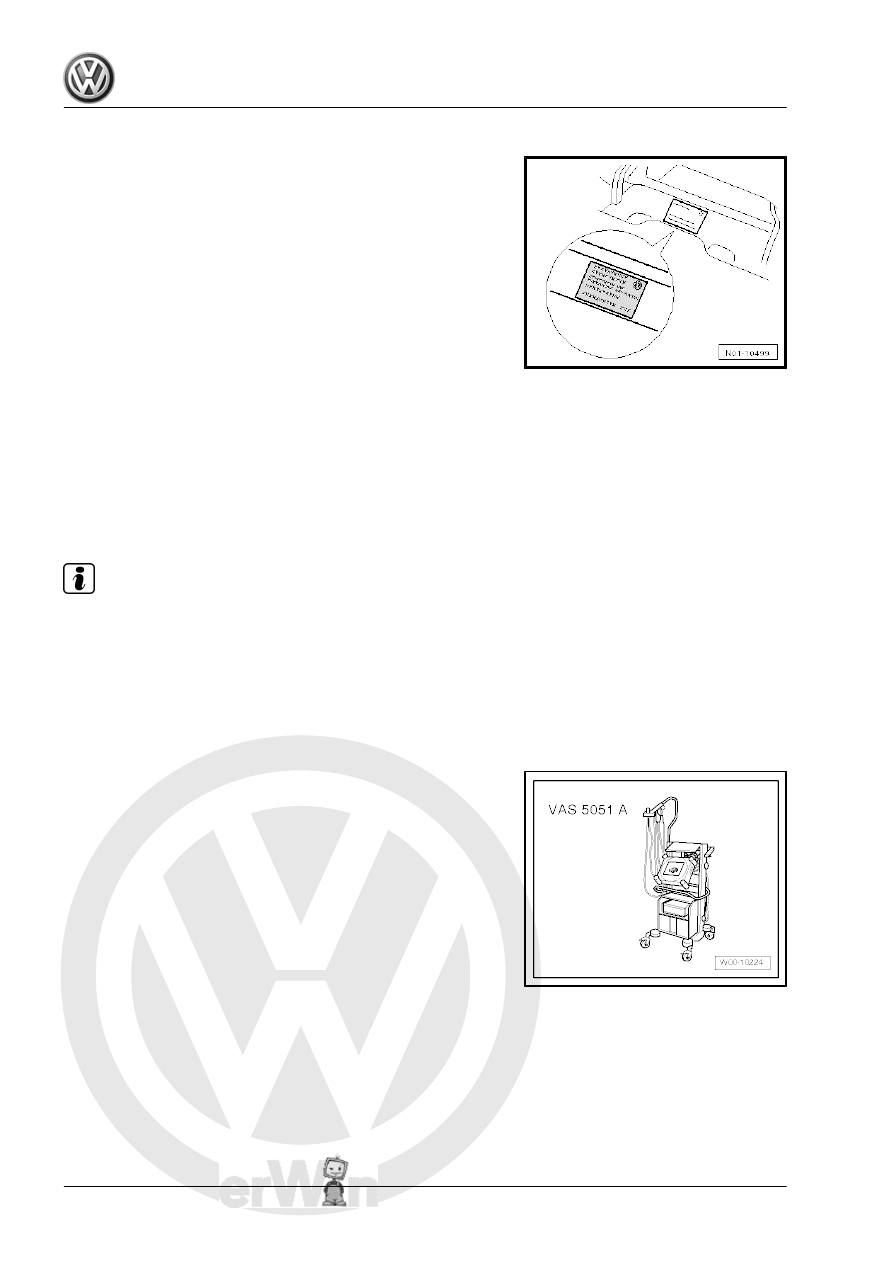

♦ Vehicle diagnostic, testing and information system -VAS 5051

A-

Maintenance - Edition 11.2009

32

    3. General

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

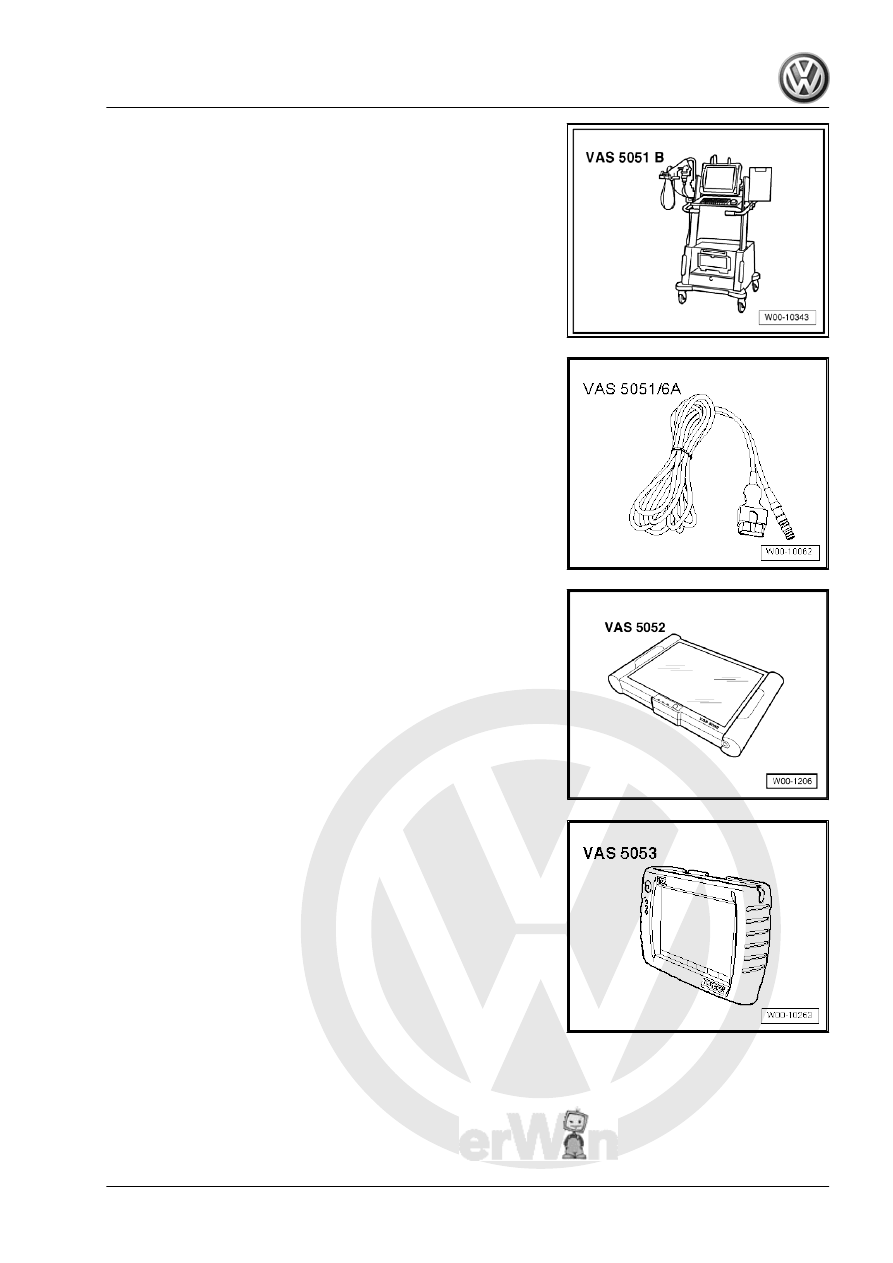

♦ Vehicle diagnostic, testing and information system -VAS
