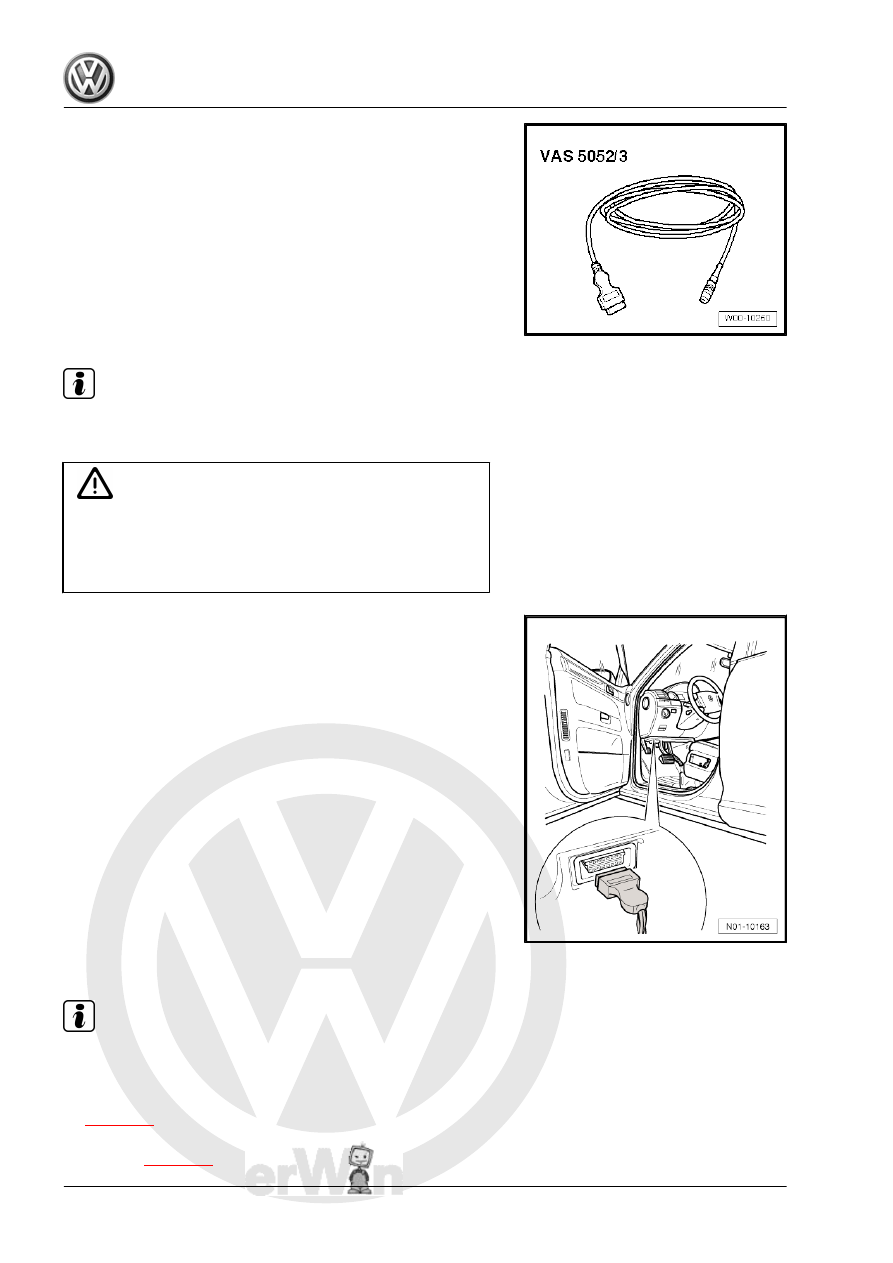

♦ Diagnostic cable -VAS 5052/3-

Note

Ensure that the selected vehicle diagnostic tester is only used

with the respective diagnostic cable.

WARNING

♦ Always secure testing and measuring equipment on the

rear seat during a road test.

♦ Only a passenger may operate these devices during a

drive.

– Carry out the following procedure:
– Connect diagnostic cable connector to diagnostic connection.
– Switch on vehicle diagnostic tester .
– Switch on ignition.
Now follow screen display to start desired functions.

3.5

Vehicle identification number

Note

Depending on vehicle equipment, the vehicle identification num‐

ber can be found at different places in the vehicle.

♦ Vehicle identification number on lower edge of windscreen

⇒ page 35

♦ Vehicle identification number on extension of longitudinal

member

⇒ page 35

Maintenance - Edition 11.2009

34

    3. General

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

♦ Vehicle identification number on suspension strut mounting

⇒ page 35

Location engine compartment

3.5.1

Vehicle identification number on lower

edge of windscreen

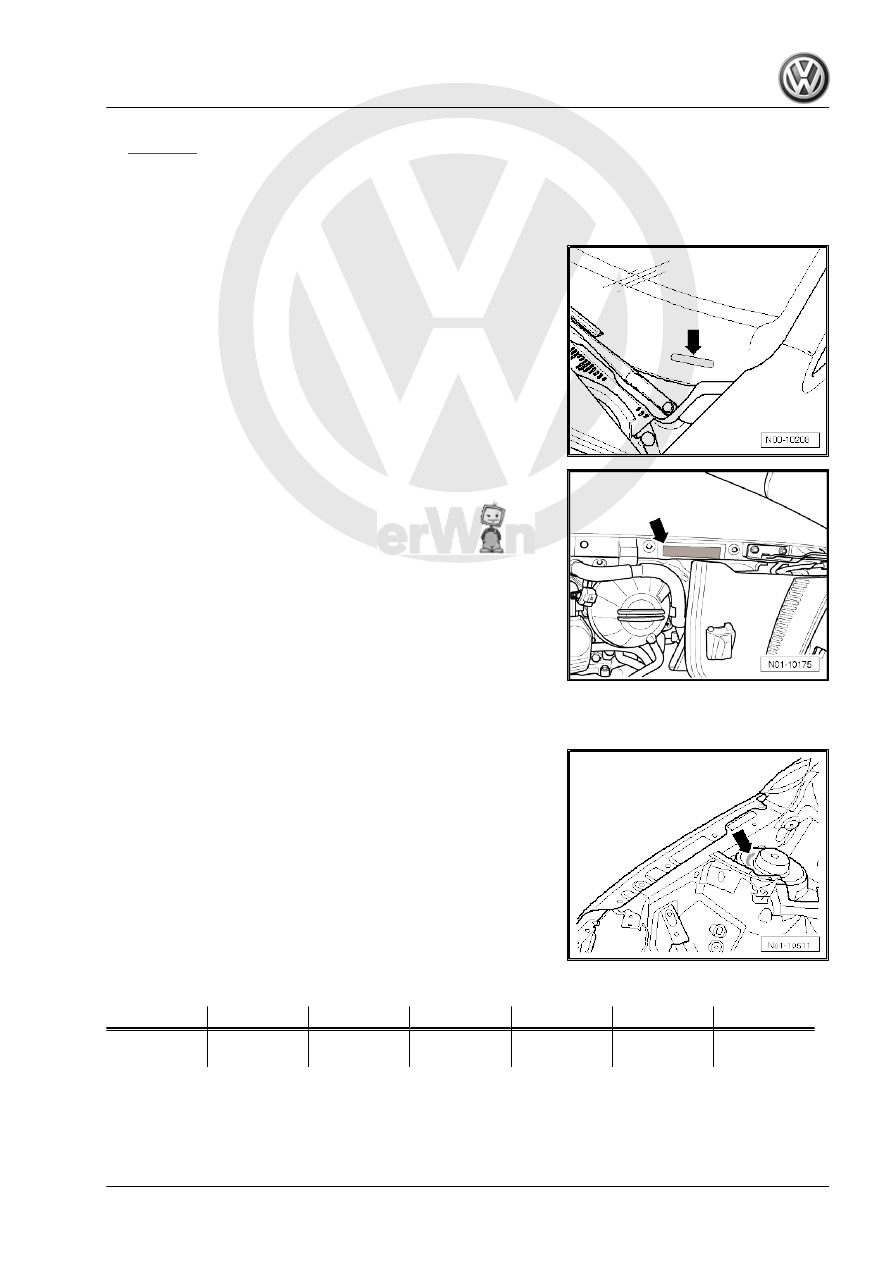

The vehicle identification number (chassis number) -arrow- is lo‐

cated on left-hand side of vehicle in windscreen near the wiper

mounting. It is visible from outside.

3.5.2

Vehicle identification number on exten‐

sion of longitudinal member

The vehicle identification number is located on the extension of

longitudinal member -arrow-.

3.5.3

Vehicle identification number on sus‐

pension strut mounting

The vehicle identification number is located on suspension strut

mounting, front right -arrow-.

3.5.4

Interpretation of vehicle identification number:

WVW

ZZZ

1K1

1)

/ 5M1

2)

Z

4

W

000 234

Manufactur‐

er's code

Filler charac‐

ters

Type

Filler charac‐

ters

Model year

2004

Production lo‐

cation

Serial number

1) Golf 2004▸
2) Golf Plus 2005▸

Maintenance - Edition 11.2009

3. General

35

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

3.6

Vehicle data sticker

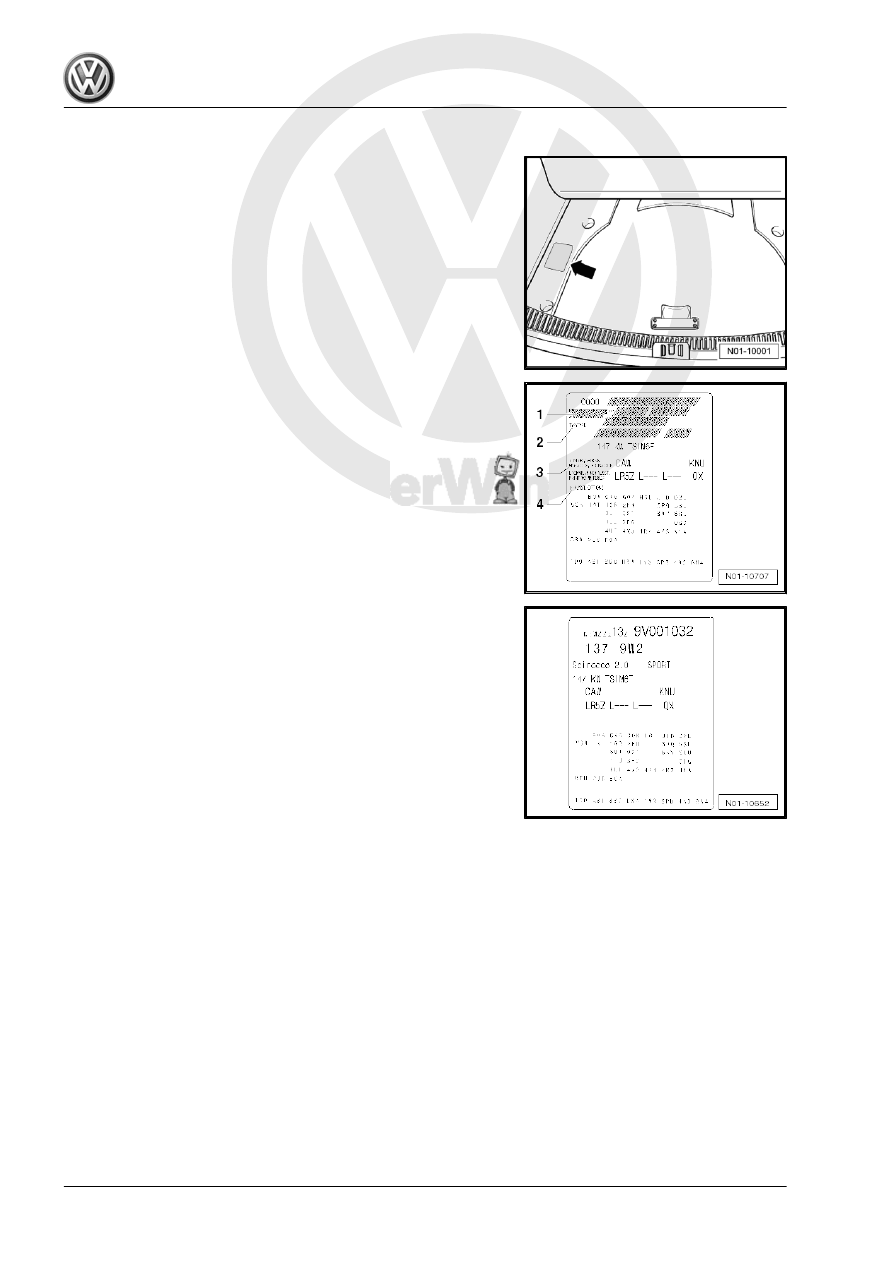

The vehicle data sticker -arrow- is located in rear of vehicle on the
