7.2

Removing

• Upper longitudinal member for wheel housing already re‐

moved

⇒ page 51

 .

– Separate original joint.
– Remove remaining material.

7.3

Installing

Note

The use of different types and different thicknesses of steel re‐

quires that one of the welding units (inverter) listed under Tools

must be used for proper spot welding

⇒ page 56

 .

7.3.1

Welding in

Replacement part

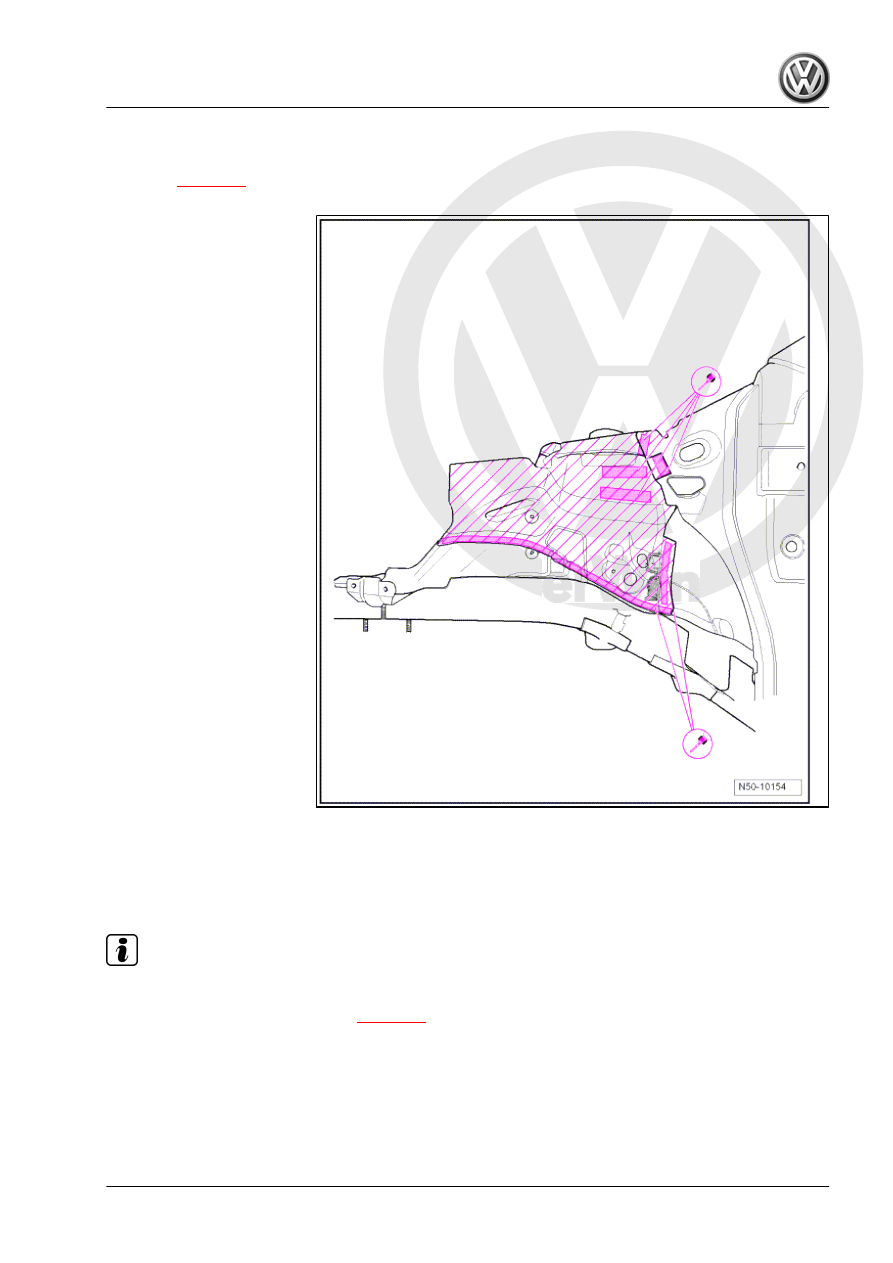

♦ Wheel housing
– Adapt new part with vehicle standing on its wheels or on align‐

ment bracket set and fix in position.

Body Repairs - Edition 06.2010

7. Renewing front wheel housing

57

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

– Check fit to other parts.

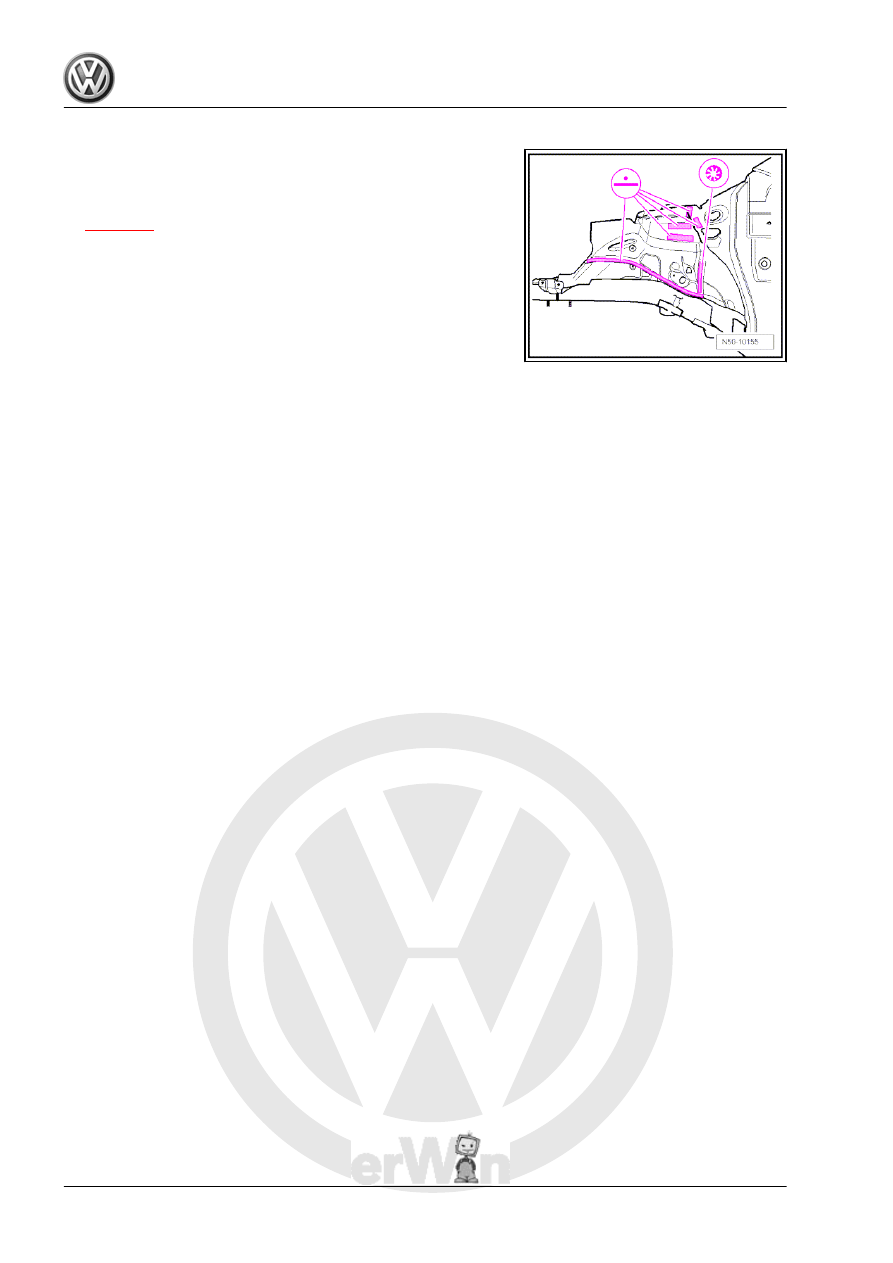

– Weld in wheel housing, SG plug weld seam.
– Weld in wheel housing, RP spot weld seam.
– Install upper longitudinal member for wheel housing

⇒ page 51

 .

Body Repairs - Edition 06.2010

58

     Rep. gr.50 - Body - front

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

RO: 50 79 49 50

8

Repairing threads for securing sub‐

frame (suspension subframe)

WARNING

Observe safety notes!

⇒ General Information; Body Repairs, General Body Repairs ;

Safety instructions

Note

The thread repair is described for the front left retaining bracket

for the subframe on this vehicle and the procedure, as appropri‐

ate, should be used for the other 3 retaining brackets.

Special tools and workshop equipment required
♦ Thread repair kit M12x1.5 -VAS 6058-
♦ Drill -VAS 6267-

Body Repairs - Edition 06.2010

8. Repairing threads for securing subframe (suspension subframe)

59

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

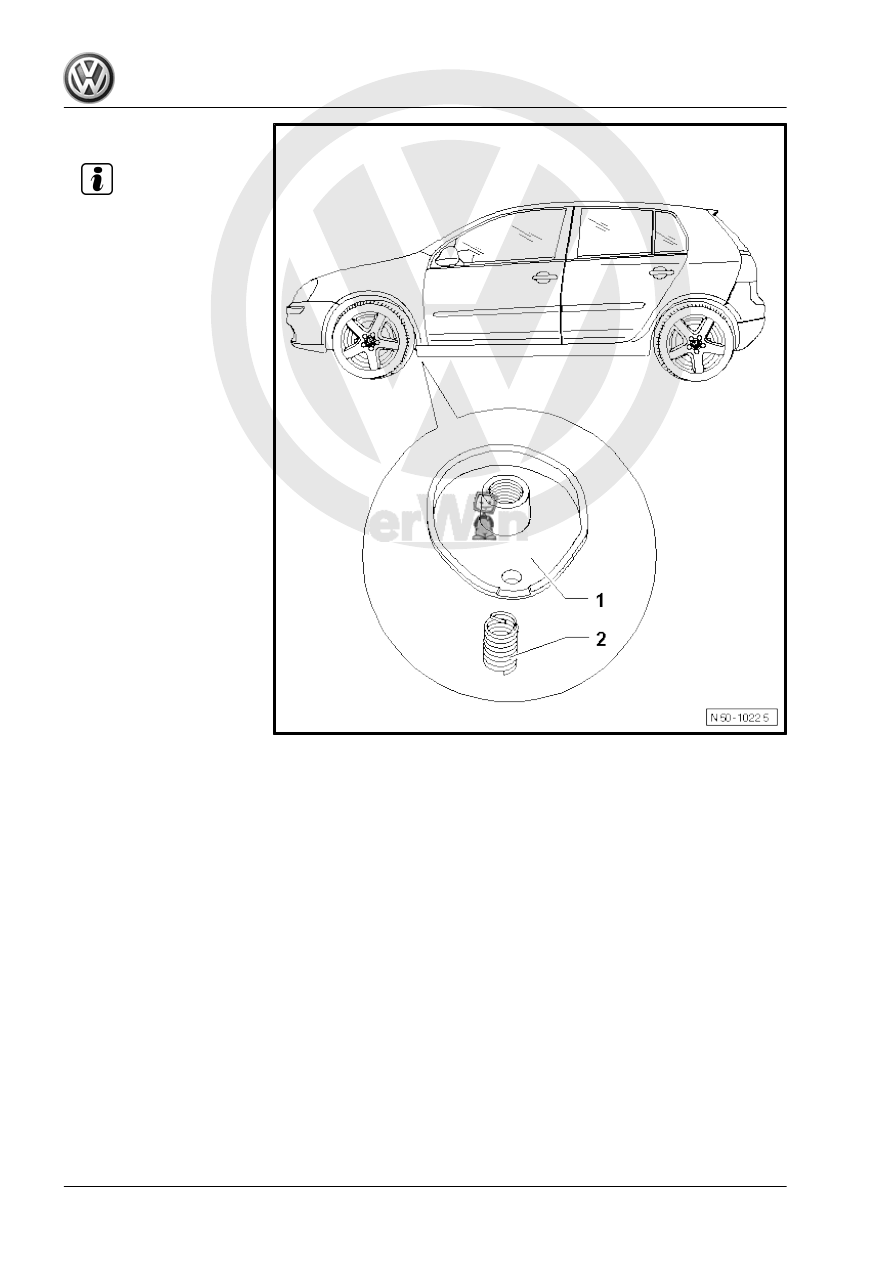

1 - Threaded plate (welded to

subframe retaining bracket)

Note

2 - Helicoil thread insert

Body Repairs - Edition 06.2010
