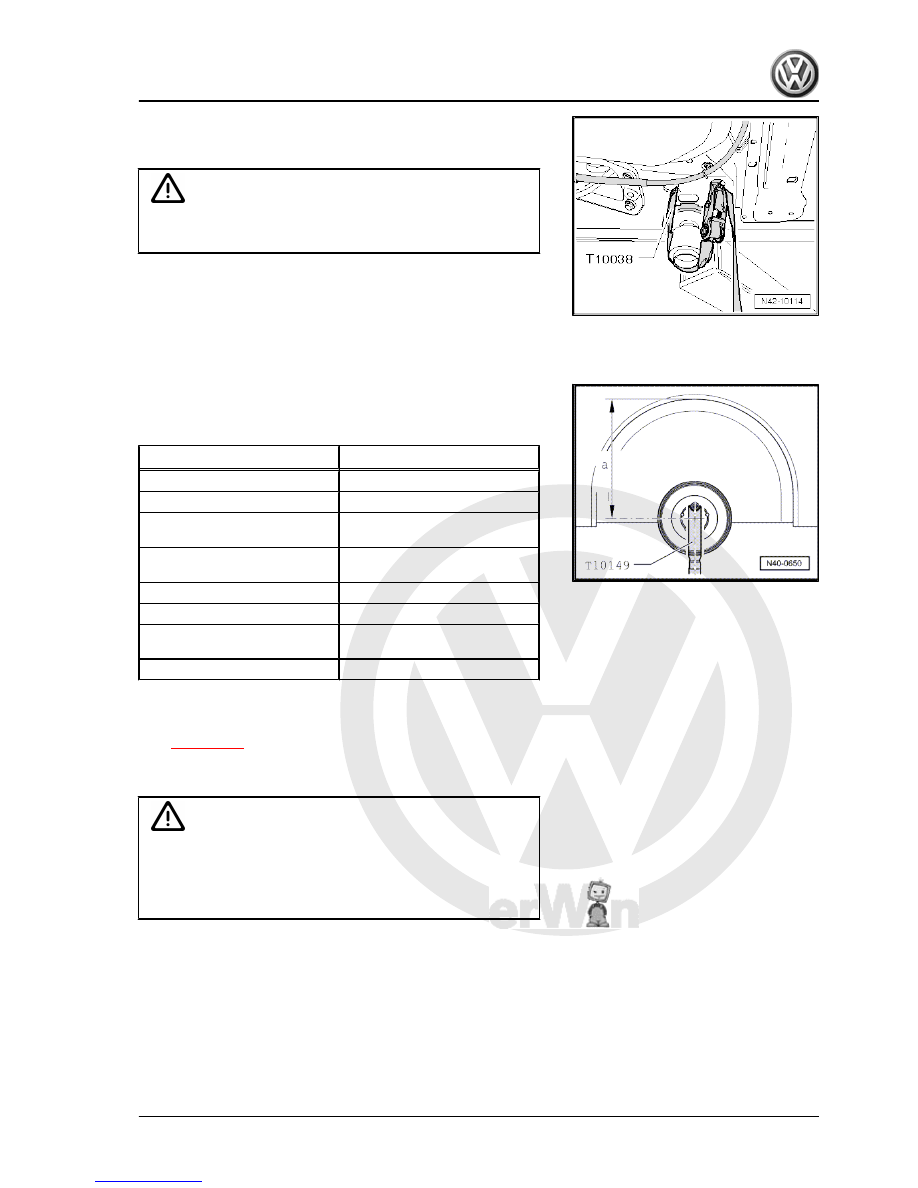

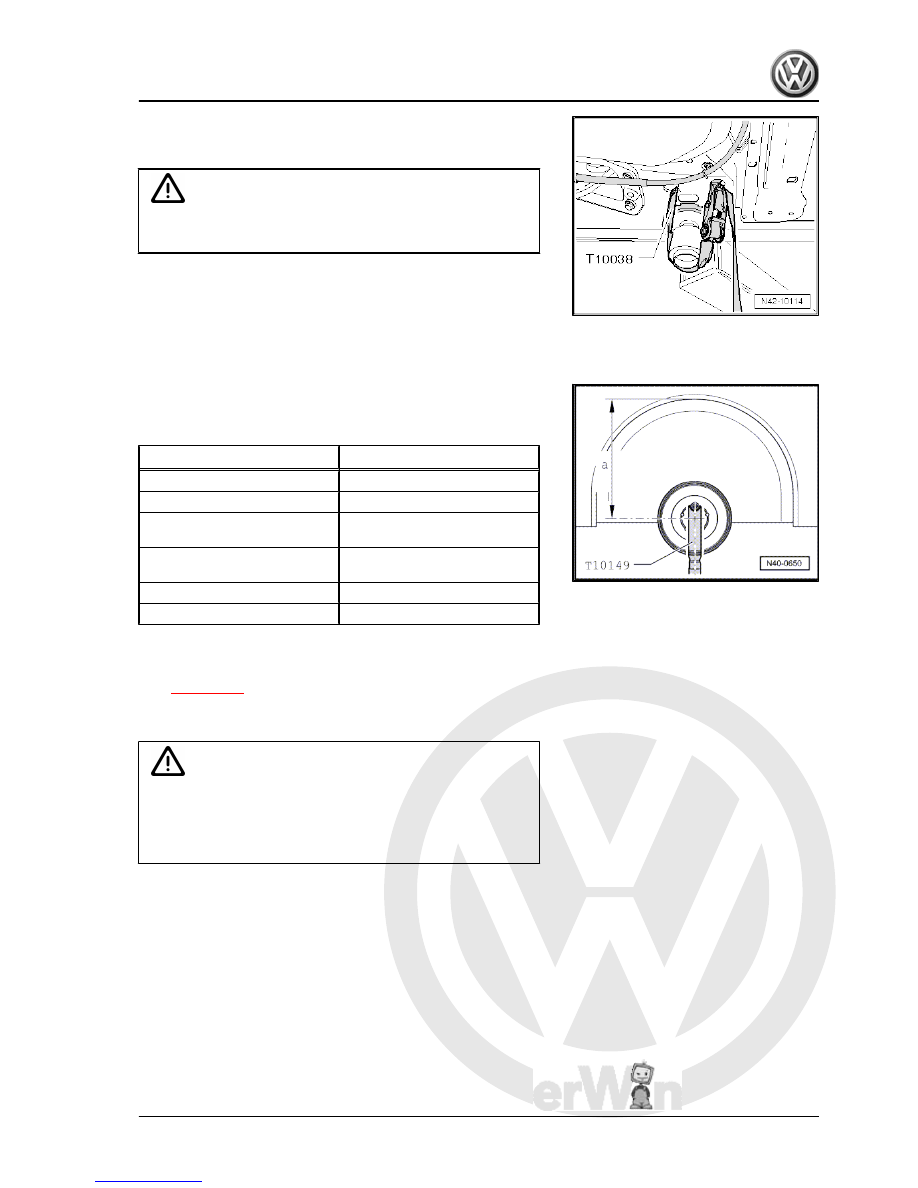

straps -T10038- .

WARNING

If the vehicle is not strapped down, there is a danger that the

vehicle will slip off the lifting platform!

– Turn wheel hub until one of the wheel bolt holes is at the top.
– Attach support -T10149- with a wheel bolt.
Threaded connections may be tightened only when dimension

-a- between the centre of wheel hub and lower edge of wheel

housing, measured before starting work, has been attained.

Measuring dimension -a-
The dimension -a- depends on the ride height of the installed run‐

ning gear:

Running gear

1)

Ride height -a- in mm

Standard running gear (2UA)

380 ± 10 mm

Heavy-duty running gear (2UB)

400 ± 10 mm

Sports running gear except 18"

wheels (2UC)

365 ± 10 mm

Sports running gear with 18"

wheels (G02/G05/G07/2UC)

365 ± 10 mm

Sports running gear GTI (G08)

365 ± 10 mm

Sports running gear R32 (G09)

360 ± 10 mm

Sports running gear GTI; US

version (G11)

380 ± 10 mm

BlueMotion (G04/2UC)

365 ± 10 mm

1)

 The type of running gear fitted to the vehicle is recorded on the

vehicle data sticker. The running gear is identified by the PR

number. Which PR. No. refers to which running gear can be found

here

⇒ page 317

 .

– Raise wheel bearing housing using engine and gearbox jack

until dimension -a- is attained.

WARNING

♦ Never raise or lower the vehicle while the engine and

gearbox jack is positioned beneath the vehicle.

♦ Do not leave the engine and gearbox jack under the ve‐

hicle for longer than necessary.

– Tighten affected nuts and bolts.
– Lower wheel bearing housing.
– Pull engine and gearbox jack out from underneath vehicle.
– Remove support -T10149- .

2. Repairing rear suspension (front-wheel drive)

137



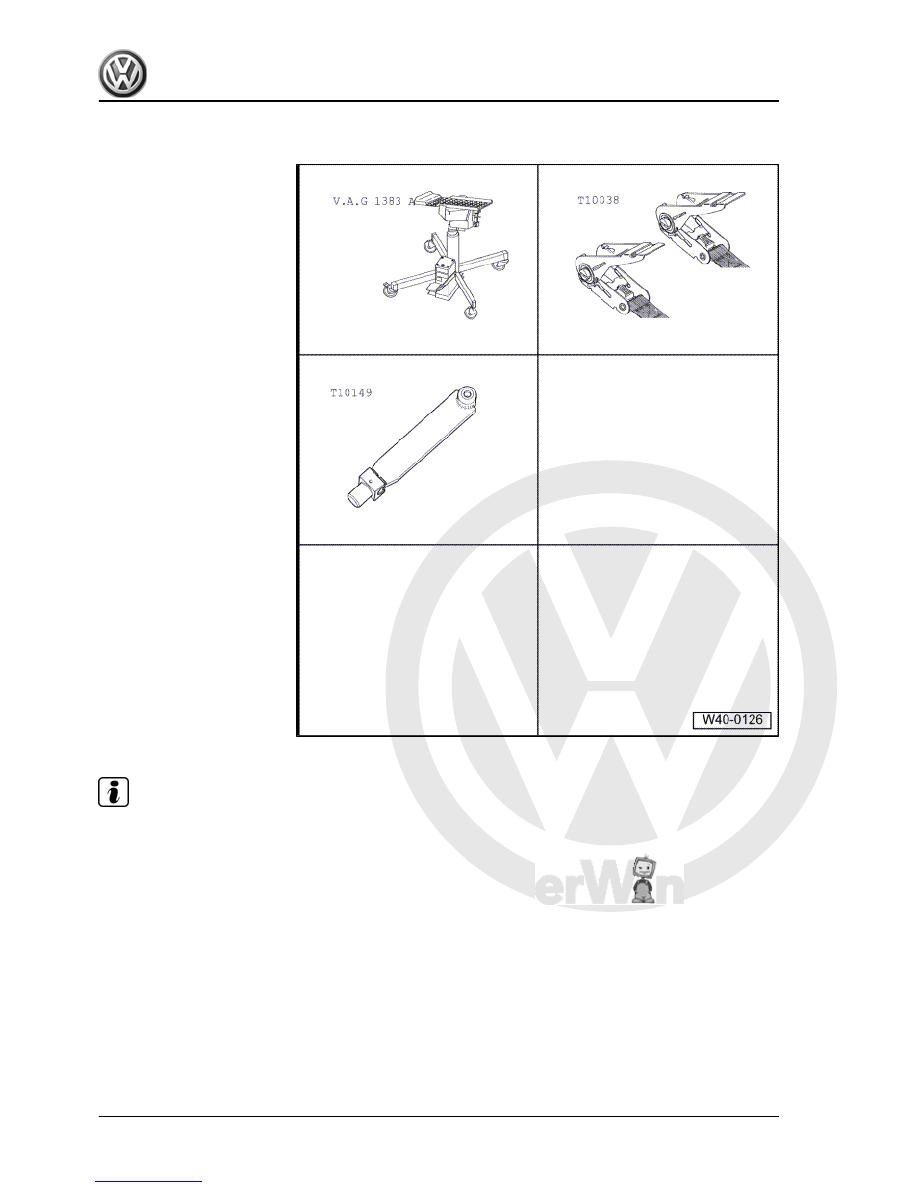

Special tools and workshop

equipment required
♦ Engine and gearbox jack -

V.A.G 1383 A-

♦ Tensioning strap -T10038-
♦ Support -T10149-

Note

All bolts on running gear components with bonded rubber bushes

may be tightened only when the component is in the unladen po‐

sition (normal position).

Bonded rubber bushes can be twisted only to a limited extent.
Axle components with bonded rubber bushes must therefore be

brought to a position equivalent to the unladen (normal) position

before being tightened.
Otherwise, the bonded rubber bush would be subject to torsion

loading, shortening its service life.
To simulate this position on the lifting platform, raise the axle on

one side using the engine and gearbox jack -V.A.G 1383 A- and

support -T10149- .

138

     Rep. Gr.42 - Rear suspension



straps -T10038- .

WARNING

If the vehicle is not strapped down, there is a danger that the

vehicle will slip off the lifting platform!

– Turn wheel hub until one of the wheel bolt holes is at the top.
– Attach support -T10149- with a wheel bolt.
Threaded connections may be tightened only when dimension

-a- between the centre of wheel hub and lower edge of wheel

housing, measured before starting work, has been attained.

Measuring dimension -a-
The dimension -a- depends on the ride height of the installed run‐

ning gear:

Running gear

1)

Ride height -a- in mm

Standard running gear (2UA)

378 ± 10 mm

Heavy-duty running gear (2UB)

398 ± 10 mm

Sports running gear except 18"

wheels (2UC)

363 ± 10 mm

Sports running gear with 18"

wheels (G02/G07/2UC)

363 ± 10 mm

CrossGolf (2UB)

395 ± 10 mm

BlueMotion (G06)

370 ± 10 mm

1)

 The type of running gear fitted to the vehicle is recorded on the

vehicle data sticker. The running gear is identified by the PR

number. Which PR. No. refers to which running gear can be found

here

⇒ page 317

 .

– Raise wheel bearing housing using engine and gearbox jack

until dimension -a- is attained.

WARNING

♦ Never raise or lower the vehicle while the engine and

gearbox jack is positioned beneath the vehicle.

♦ Do not leave the engine and gearbox jack under the ve‐

hicle for longer than necessary.

– Tighten affected nuts and bolts.
– Lower wheel bearing housing.
– Pull engine and gearbox jack out from underneath vehicle.
– Remove support -T10149- .

2. Repairing rear suspension (front-wheel drive)

139



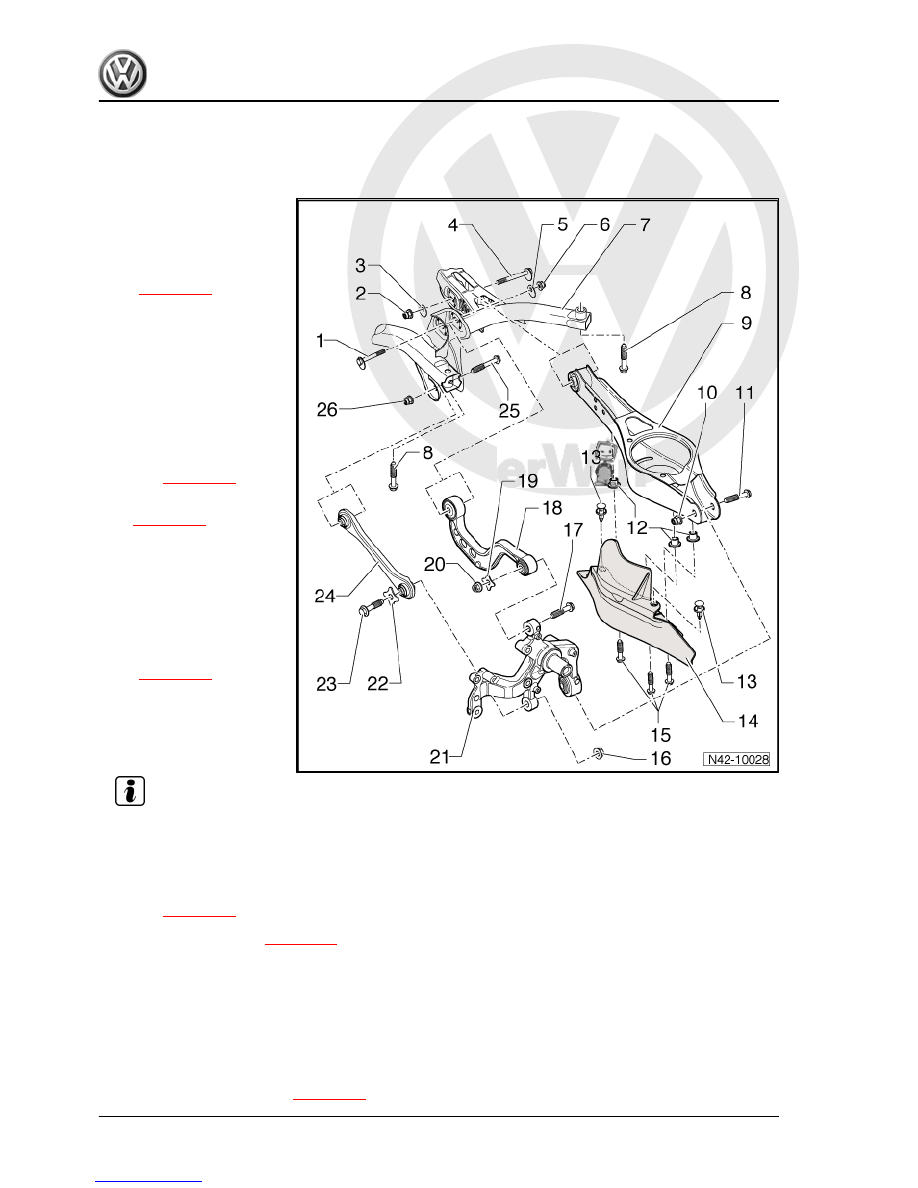

drive)

1 - Eccentric bolt

❑ For camber adjustment
❑ Check wheel alignment

whenever this compo‐

nent is loosened

⇒ page 305

 .

2 - Nut

❑ M12 x 1.5
❑ 95 Nm
❑ Self-locking
❑ Always renew after re‐

moving

❑ Always tighten threaded

connections in unladen

position:

Golf

⇒ page 136

Golf Plus, CrossGolf

⇒ page 138

3 - Eccentric washer

❑ Inner hole with lug

4 - Eccentric bolt

❑ For track adjustment
❑ Check wheel alignment

whenever this compo‐

nent is loosened

⇒ page 305

 .

5 - Eccentric washer

❑ Inner hole with lug

6 - Nut

❑ 95 Nm

Note

❑ M12 x 1.5
❑ Self-locking
❑ Always renew after removing
❑ Always tighten threaded connections in unladen position:

Golf

⇒ page 136

Golf Plus, CrossGolf

⇒ page 138

7 - Subframe
8 - Bolt

❑ M12 x 1.5 x 90
❑ 90 Nm + 90° further
❑ Always renew after removing

9 - Lower transverse link

❑ Removing and installing

⇒ page 151

140
