– Insert retaining ring, ensuring that it is seated correctly.
– Press 70 grammes of drive shaft grease from repair set into

triple roller joint.

– Slide joint body over rollers and hold.
– Press 60 g of drive shaft grease from repair kit into rear of triple

roller joint.

– Install joint boot.

– Install hose clip.

Note

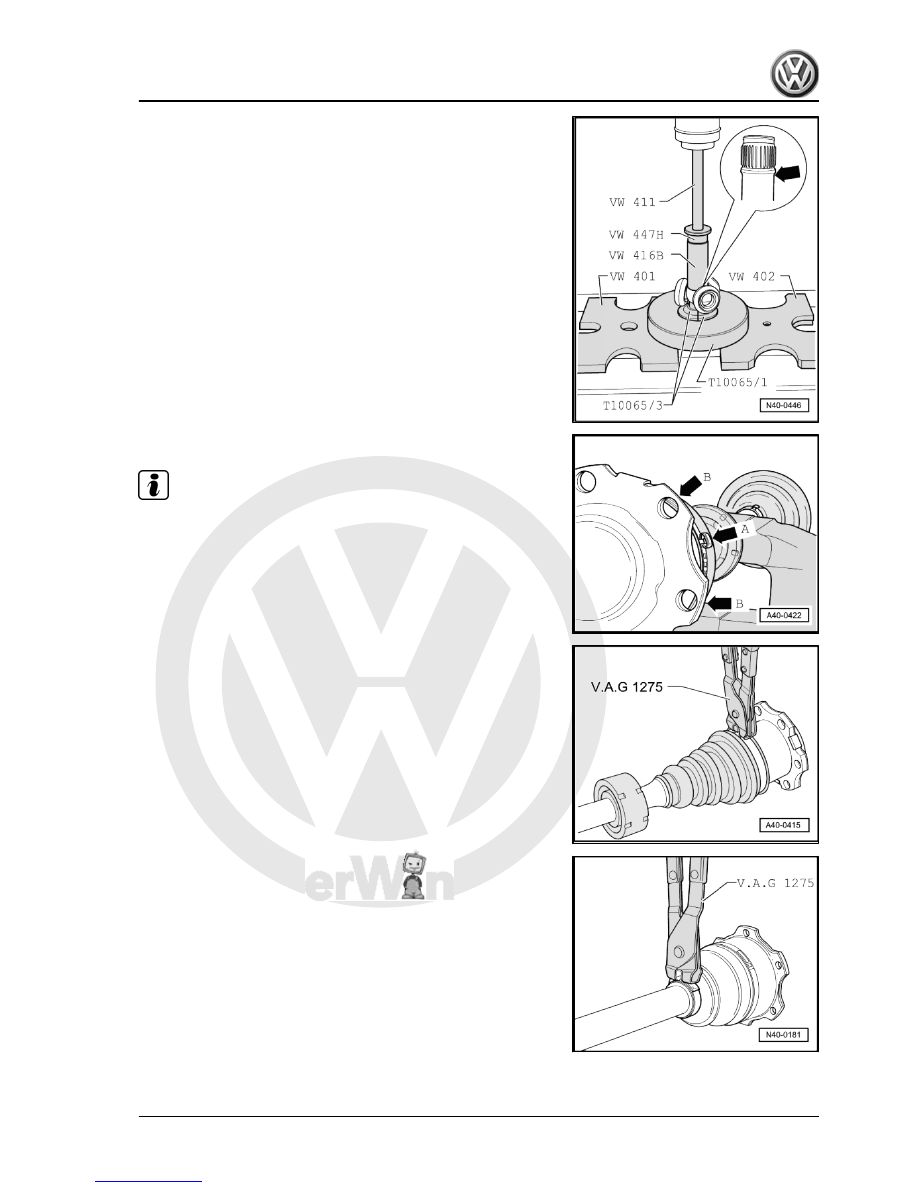

To make it easier to insert the multi-point socket-head bolts when

installing the drive shaft, position ear -arrow A- of hose clip be‐

tween mounting flanges -arrows B- of joint body.

– Tighten hose clip using hose clip pliers -V.A.G 1275-.

– Tighten small hose clip using hose clip pliers -V.A.G 1275-.

12. Assembly overview - drive shaft with triple roller joint AAR3300i

133



Appraisal of accident vehicles

A checklist for evaluating running gear of accident vehicles can

be found under

⇒ page 1

 .

134

     Rep. Gr.42 - Rear suspension



wheel drive)

2.1

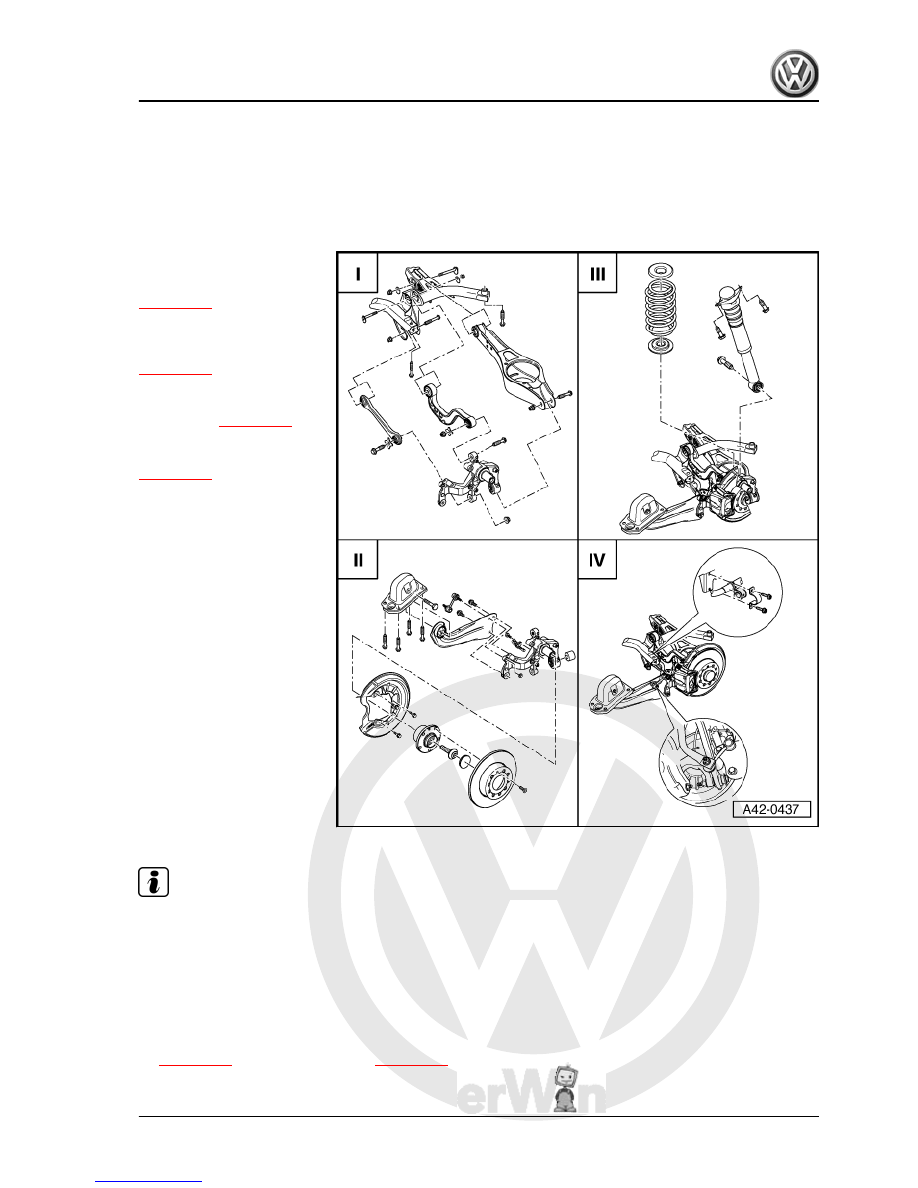

Overview - rear axle

I - Assembly overview: sub‐

frame, transverse link, track

rod (front-wheel drive)

⇒ page 140

II - Assembly overview: wheel

bearing housing, trailing arm

(front-wheel drive)

⇒ page 156

III - Assembly overview: shock

absorber, coil spring (front-

wheel drive)

⇒ page 173

IV - Assembly overview: anti-

roll bar (front-wheel drive)

⇒ page 179

Note

It is not permitted to weld or straighten load-bearing or wheel-

guiding components of the suspension.

Always renew self-locking nuts.

Always renew corroded nuts and bolts.

Bonded rubber bushes can be twisted only to a limited extent.

Therefore, you should only tighten the threaded connections

of components with bonded rubber bushes when the wheel

bearing housing is raised to unladen position, Golf

⇒ page 136

 ; Golf Plus, CrossGolf

⇒ page 138

 .

2. Repairing rear suspension (front-wheel drive)

135



Special tools and workshop

equipment required

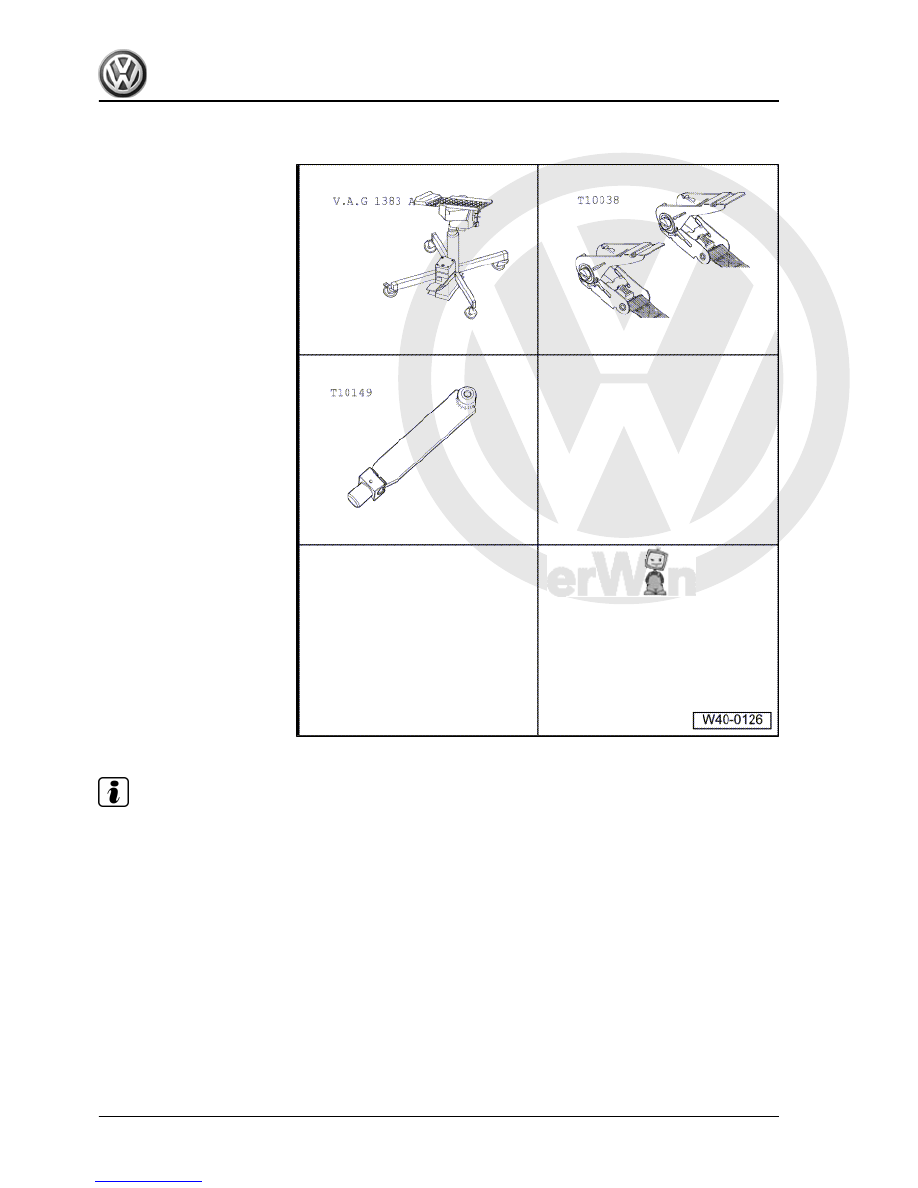

♦ Engine and gearbox jack -

V.A.G 1383 A-

♦ Tensioning strap -T10038-
♦ Support -T10149-

Note

All bolts on running gear components with bonded rubber bushes

may be tightened only when the component is in the unladen po‐

sition (normal position).

Bonded rubber bushes can be twisted only to a limited extent.
Axle components with bonded rubber bushes must therefore be

brought to a position equivalent to the unladen (normal) position

before being tightened.
Otherwise, the bonded rubber bush would be subject to torsion

loading, shortening its service life.
To simulate this position on the lifting platform, raise the axle on

one side using the engine and gearbox jack -V.A.G 1383 A- and

support -T10149- .

136
