Volkswagen Golf / Golf Plus. Manual - part 36





Golf

⇒ page 136

Golf Plus, CrossGolf

⇒ page 138

11 - Bolt

❑ Always renew after removing

12 - Threaded rivet

❑ M6

13 - Spreader rivet
14 - Stone deflector

❑ Allocation ⇒  Electronic parts catalogue “ETKA”

15 - Bolt

❑ 8 Nm

16 - Nut

❑ M14 x 1.5
❑ 130 Nm + 90° further
❑ Self-locking
❑ Always renew after removing
❑ Always tighten threaded connections in unladen position:

Golf

⇒ page 136

Golf Plus, CrossGolf

⇒ page 138

17 - Bolt

❑ Always renew after removing
❑ Always tighten threaded connections in unladen position:

Golf

⇒ page 136

Golf Plus, CrossGolf

⇒ page 138

18 - Upper transverse link

❑ Removing and installing

⇒ page 149

19 - Washer
20 - Nut

❑ M14 x 1.5
❑ 130 Nm + 90° further
❑ Self-locking
❑ Always renew after removing
❑ Always tighten threaded connections in unladen position:

Golf

⇒ page 136

Golf Plus, CrossGolf

⇒ page 138

21 - Wheel bearing housing

❑ Removing and installing

⇒ page 157

3. Assembly overview: subframe, transverse link, track rod (front-wheel drive)

141



Golf

⇒ page 136

Golf Plus, CrossGolf

⇒ page 138

24 - Track rod

❑ Various versions

♦ Forwards closed (left and right track rods differ)
♦ Downwards open (left and right track rods identical)

❑ It is permitted to install mixed types.
❑ Allocation ⇒  Electronic parts catalogue “ETKA”
❑ Removing and installing

⇒ page 152

25 - Bolt

❑ Always renew after removing

26 - Nut

❑ M12 x 1.5
❑ 90 Nm + 90° further
❑ Self-locking
❑ Always renew after removing
❑ Always tighten threaded connections in unladen position:

Golf

⇒ page 136

Golf Plus, CrossGolf

⇒ page 138

142

     Rep. Gr.42 - Rear suspension

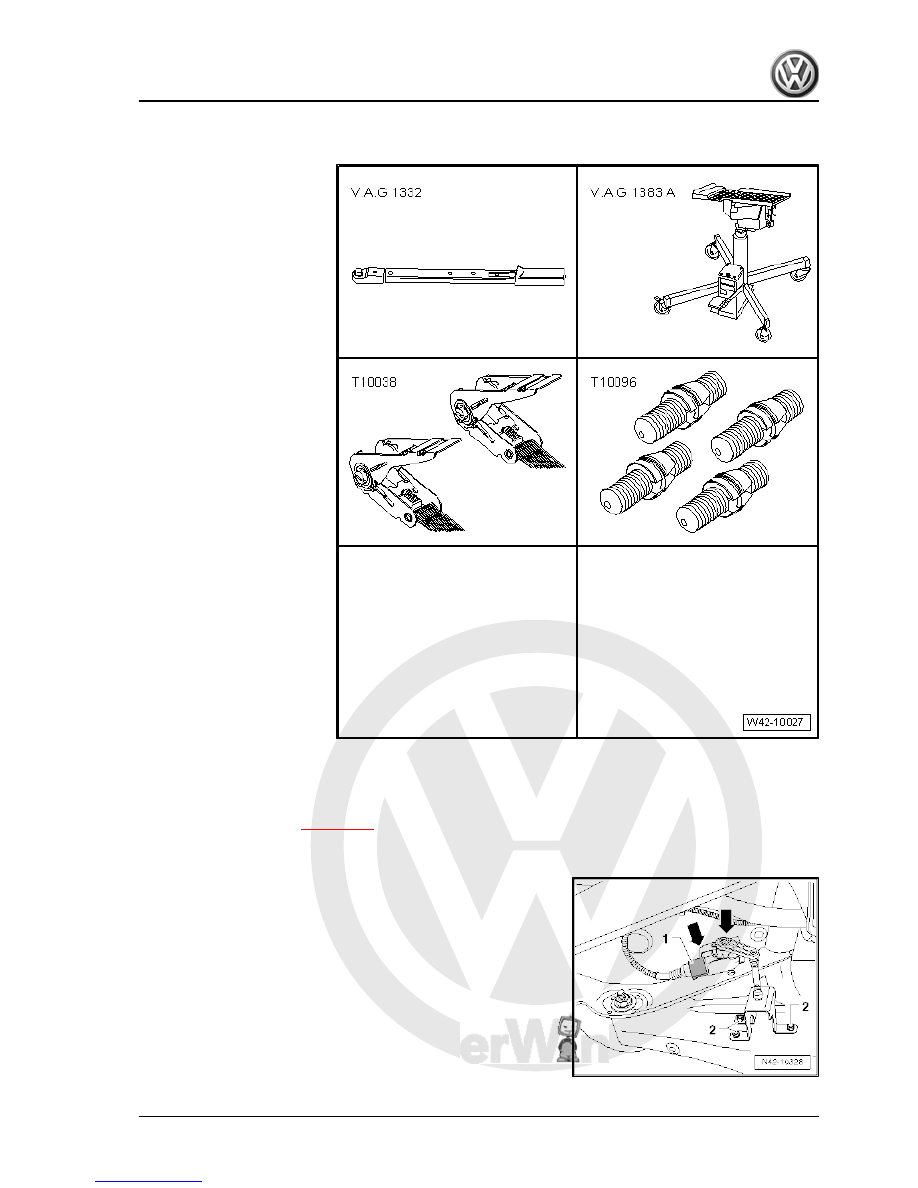

Special tools and workshop

equipment required
♦ Torque wrench -V.A.G

1332-

♦ Engine/gearbox jack -

V.A.G 1383/A -

♦ Tensioning strap -T10038-
♦ Locating pins -T10096-

Removing subframe with attachments
– Remove wheels.
– Removing coil springs

⇒ page 174

– Remove front and rear silencers of exhaust system ⇒  Engine

⇒  Rep. Gr.  26

– On vehicles with automatic headlight range control, separate

wiring connection -1-.

– Remove ABS speed sensor out of wheel bearing housing.

3. Assembly overview: subframe, transverse link, track rod (front-wheel drive)

143



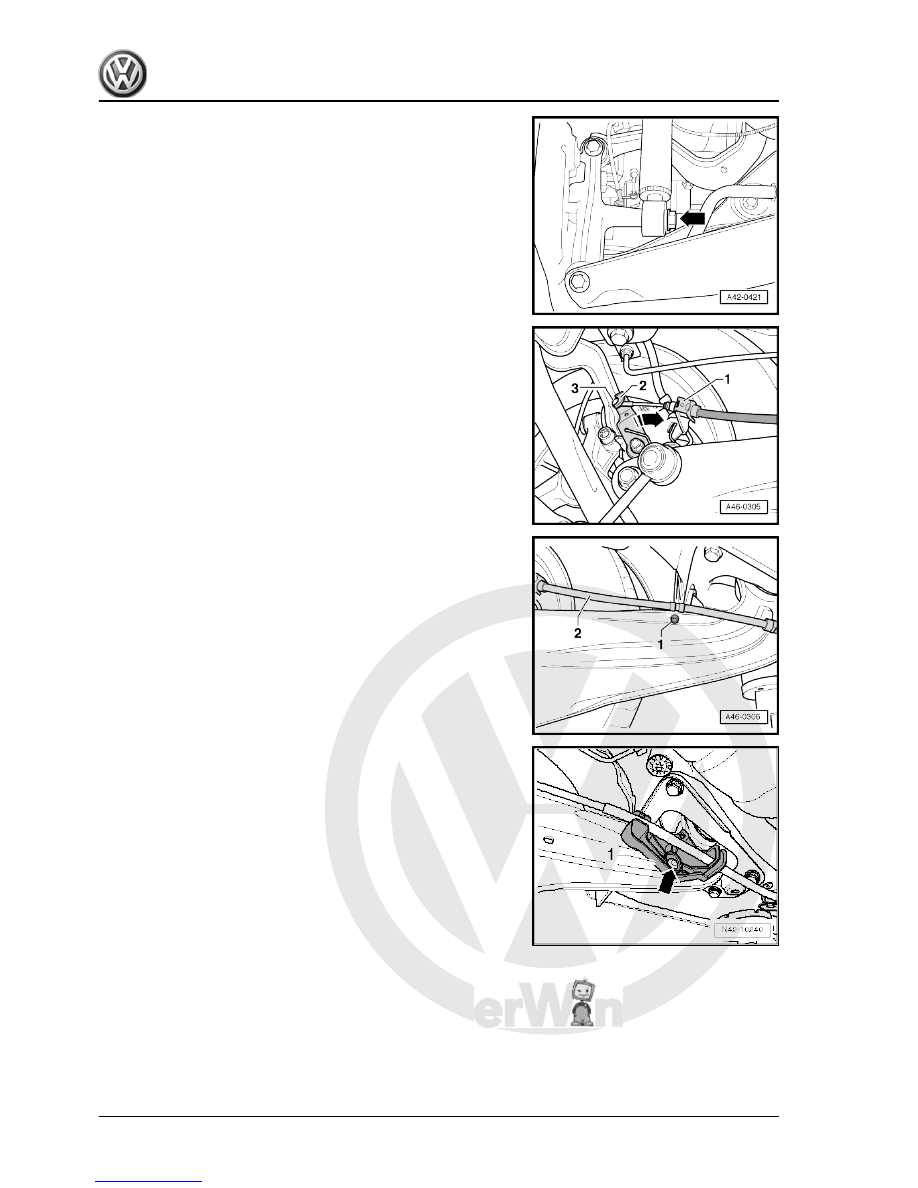

-3-.

– Unscrew hexagon bolt -1- and detach handbrake cable -2-

from brake cable bracket.

Vehicles with retainer for handbrake cable
– Remove retainer -1- by pushing out inner pin of rivet -arrow-.
Continuation for all vehicles

144

     Rep. Gr.42 - Rear suspension
