Volkswagen Golf / Golf Plus. Manual - part 26

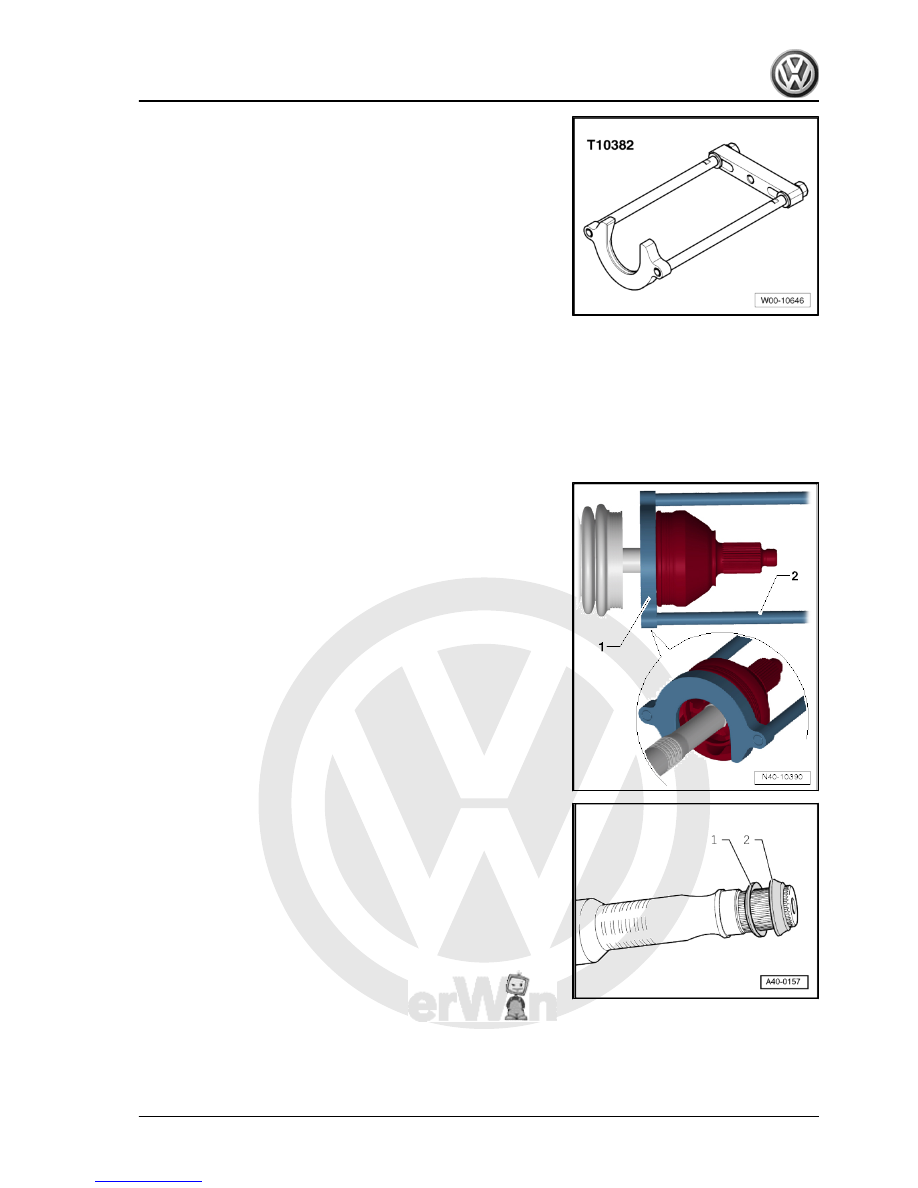

T10382/1- points to spindles -T10382/2- .

– Assemble puller -T10382- complete with multi-purpose tool -

VW 771- .

– Pull constant velocity joint from drive shaft with puller -T10382-

and multi-purpose tool -VW 771- .

1 - Puller plate -T10382/1-
2 - Spindles -T10382/2-
Driving on outer constant velocity joint

Installation position of dished spring 1 and thrust washer 2 on

outer joint
1 - Dished spring
2 - Thrust washer
– Install new retaining ring.
– If necessary, push new joint boot onto drive shaft.
– Drive onto shaft with plastic head hammer until retaining ring

engages.

8. Assembly overview - drive shaft with VL90 or VL100 constant velocity joint

101

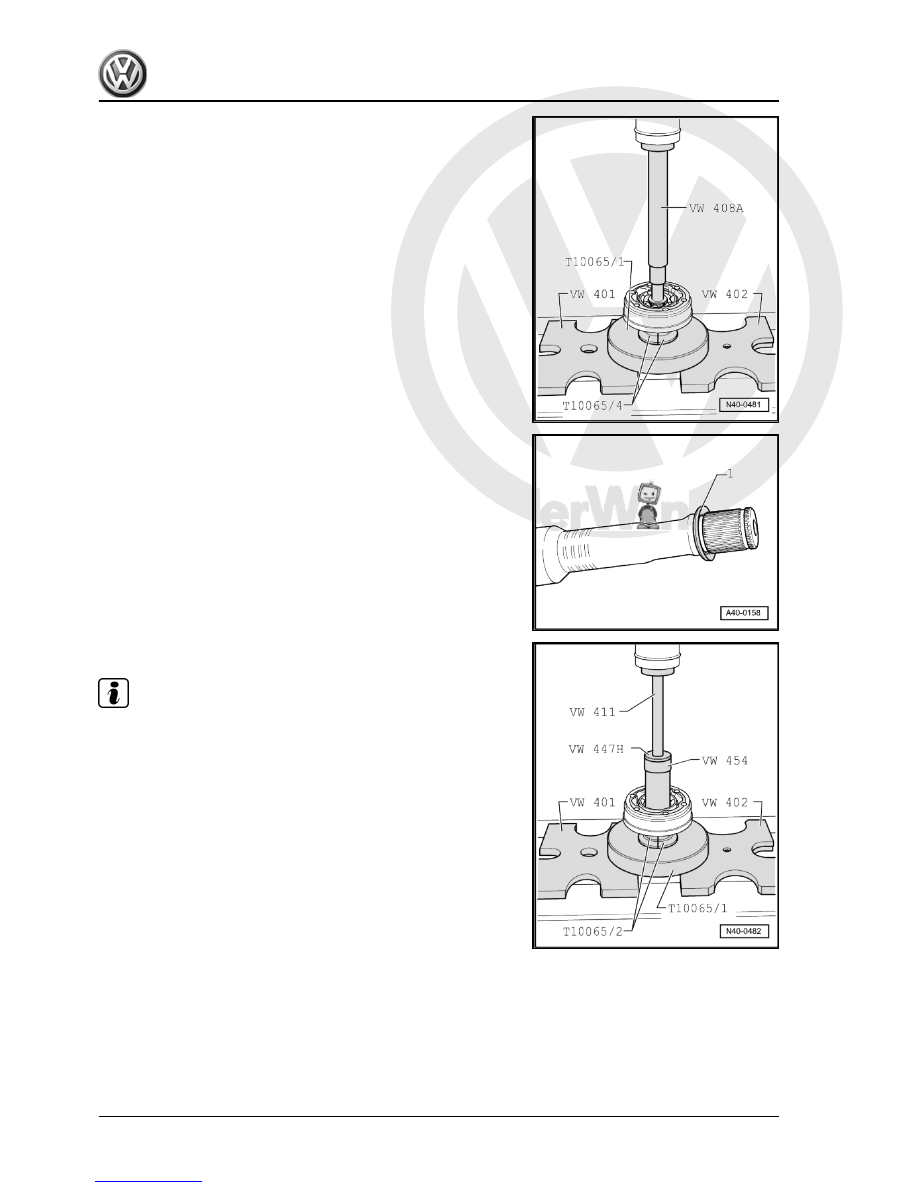

Pressing on inner constant velocity joint

Note

Chamfer on internal circumference of ball hub (splines) must face

contact shoulder on drive shaft.

102

     Rep. Gr.40 - Front suspension



-arrows B-.

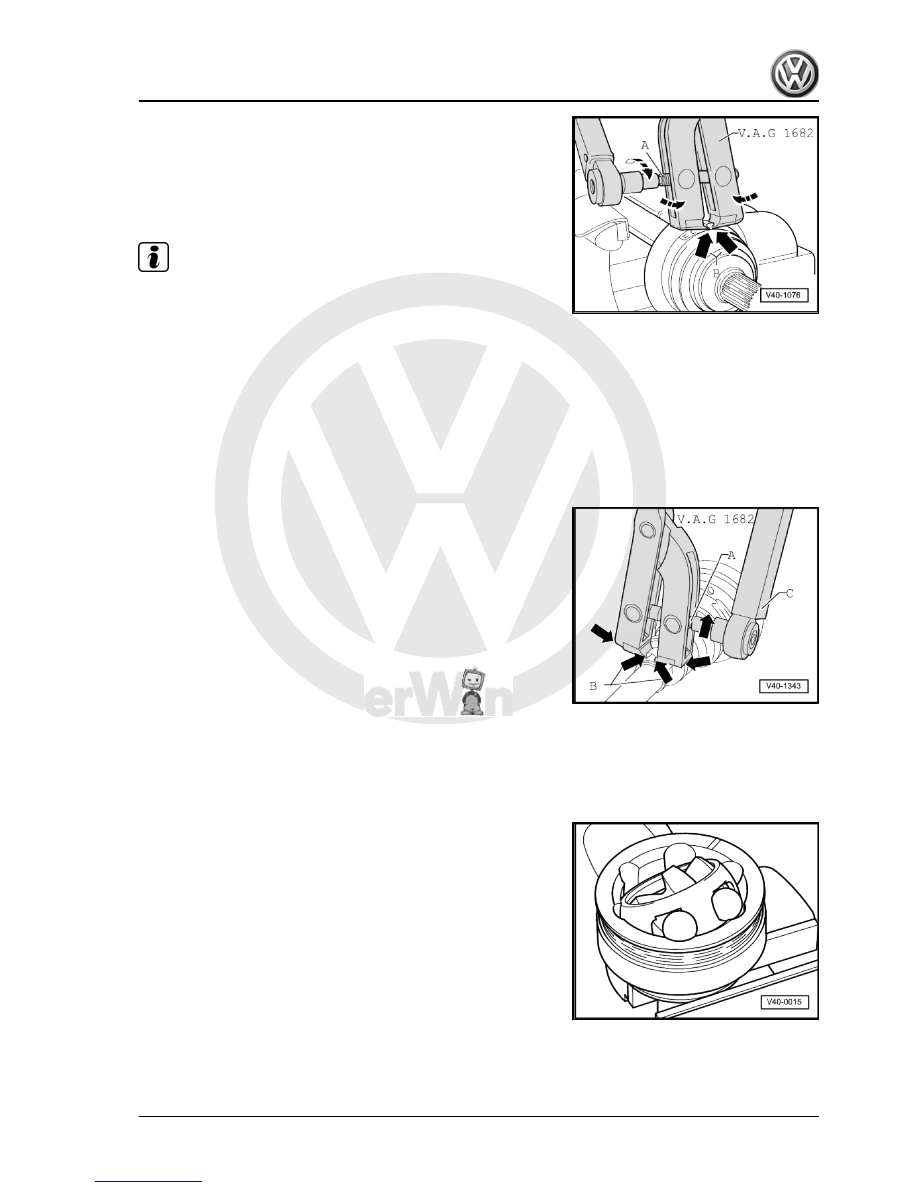

– Tighten hose clip by turning spindle with a torque wrench (do

not cant pliers).

Note

Because a stainless steel hose clip is required due to the hard

material of the joint boot (compared to rubber), it is possible to

tighten the hose clip only with special pliers -V.A.G 1682- .

Specified torque: 25 Nm.

Use torque wrench -C- with adjustment range 5 ... 50 Nm, (e.g.

torque wrench -V.A.G 1331- ).

Make sure thread of spindle -A- on pliers moves freely. Lubri‐

cate with MoS2 grease if necessary.

If the thread is tight (e.g. due to dirt), the required clamping

force for the clip will not be attained although the correct torque

is applied.

Tightening hose clip on small diameter

8.2

Checking outer constant velocity joint

The joint is to be dismantled to renew the grease if it is heavily

soiled, or to check the running surfaces of the balls for wear and

damage.
Removing
– Before dismantling, mark position of ball hub in relation to ball

cage and joint body with an electric scriber or oil stone.

– Swing ball hub and ball cage.
– Remove balls one at a time.

8. Assembly overview - drive shaft with VL90 or VL100 constant velocity joint

103

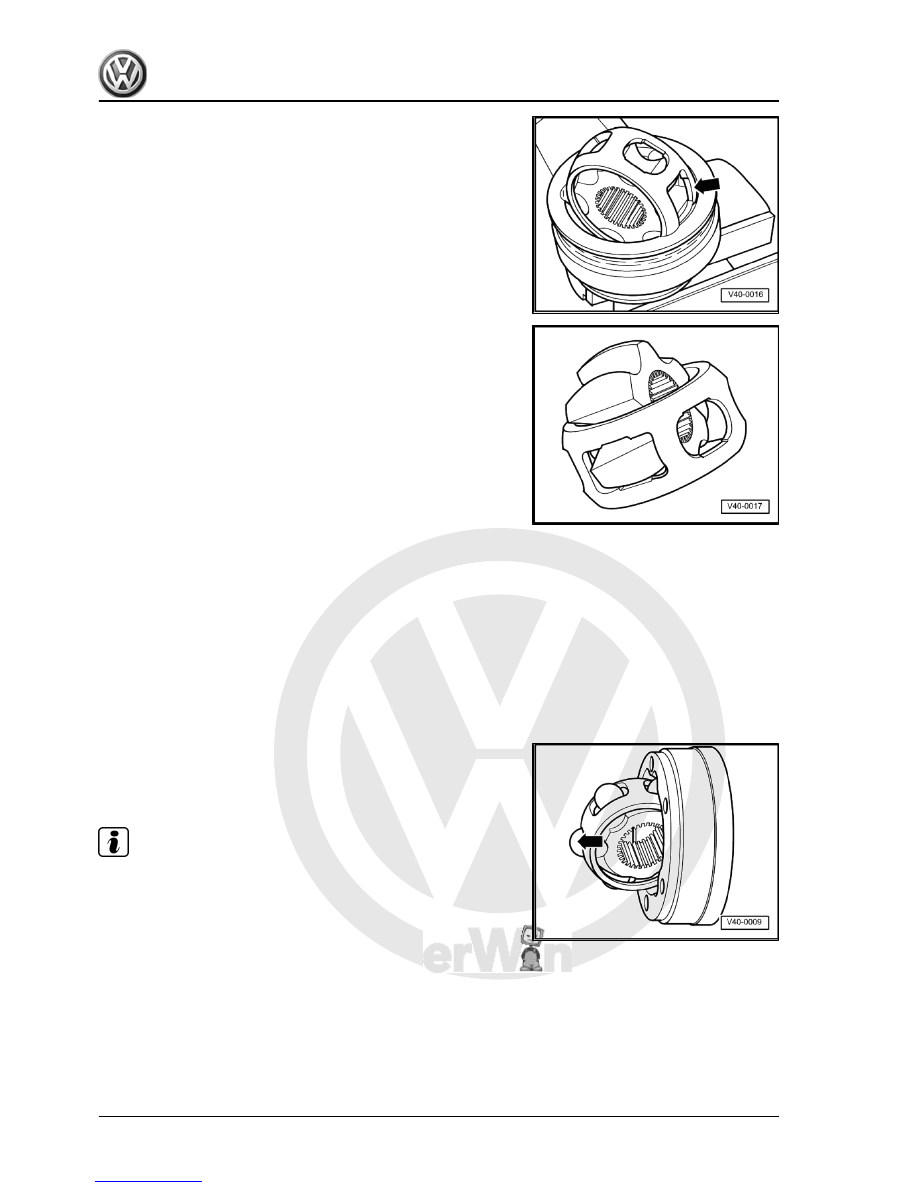

– Take out cage with hub.

– Swing segment of hub into square cage window.
– Tip hub out of cage.
The six balls for each joint belong to a tolerance group. Check

stub axle, hub, cage and balls for small indentations (pitting) and

traces of seizing. Too much circumferential backlash in the joint

becomes noticeable during load change jolts; in such cases, the

joint must be renewed. Smoothing and traces of wear of the balls

are no reason to change the joint.
Installing
– Pack half of total grease quantity (40 g) into joint body.
– Fit cage with hub into joint body.
– Press in opposing balls one after the other; the original position

of the hub relative to the cage and joint body must be restored.

– Fit new retaining ring into hub.
– Distribute remaining grease in boot.

8.3

Checking inner constant velocity joint

Removing
The joint is to be dismantled to renew the grease if it is heavily

soiled, and to check the running surfaces and the balls for wear

and damage.
– Swing ball hub and ball cage.
– Press out joint body in direction of arrow.
– Press balls out of cage.

Note

The ball hub and joint body are paired. Do not interchange them.

104

     Rep. Gr.40 - Front suspension
