Volkswagen Golf / Golf Plus. Manual - part 24





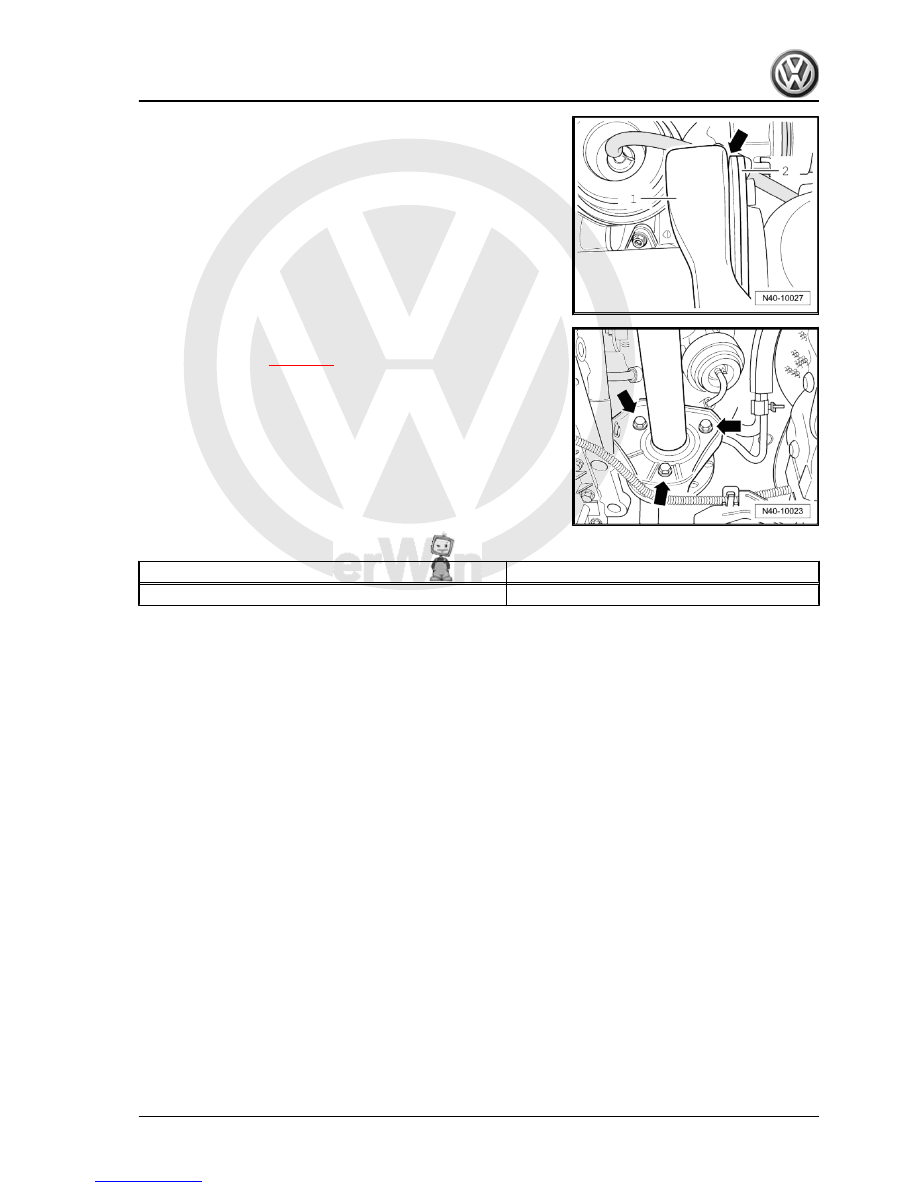

-arrow-.

– Tighten bolts -arrows- to prescribed torque.
– Install drive shaft

⇒ page 80

 .

Specified torques

Component

Specified torque

Intermediate shaft bearing to bearing bracket

20 Nm

6. Removing and installing drive shafts

93

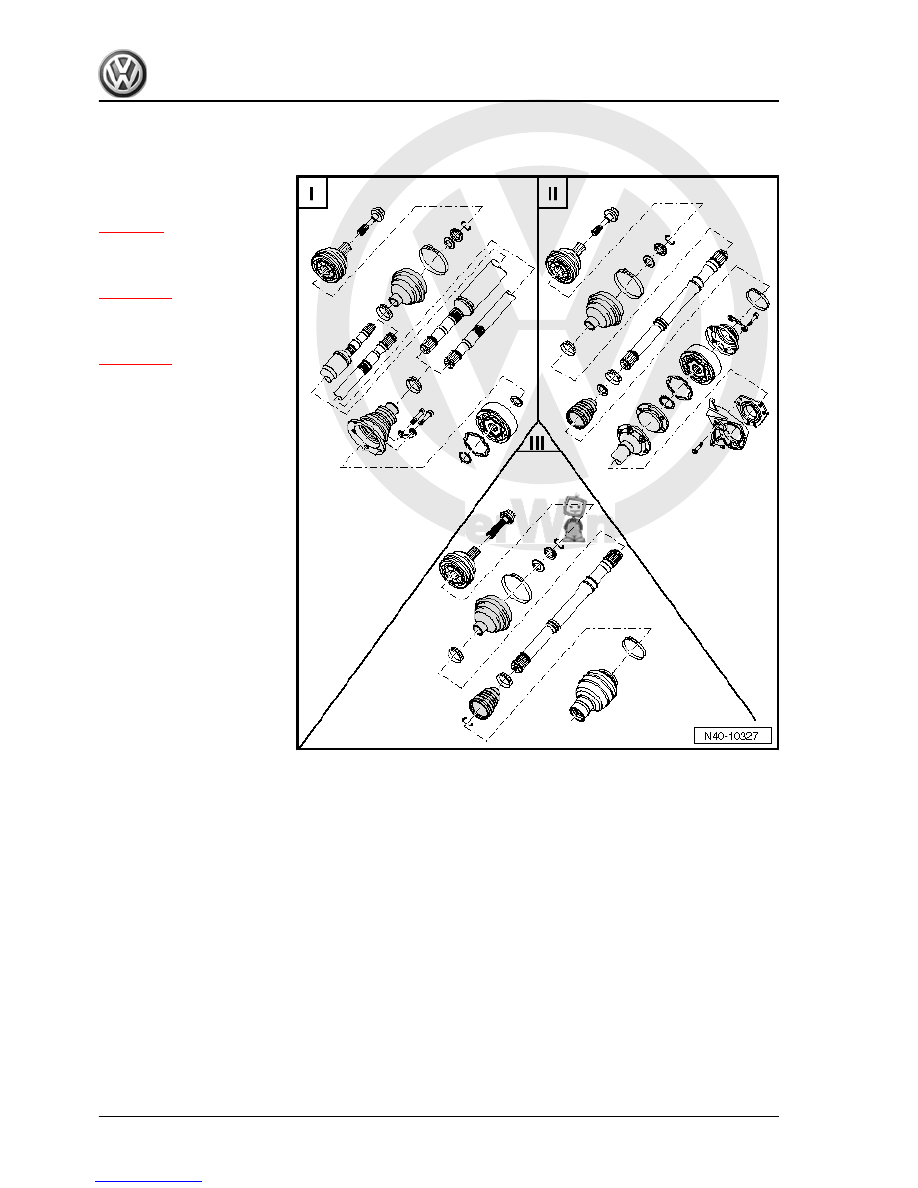

I - Assembly overview - drive

shaft with VL90 or VL100 con‐

stant velocity joint

⇒ page 97

II - Assembly overview - drive

shaft with VL107 constant ve‐

locity joint (bolt-on)

⇒ page 107

III - Assembly overview - drive

shaft with VL107 constant ve‐

locity slip joint (push-on)

⇒ page 116

94

     Rep. Gr.40 - Front suspension



AAR2600i

⇒ page 121

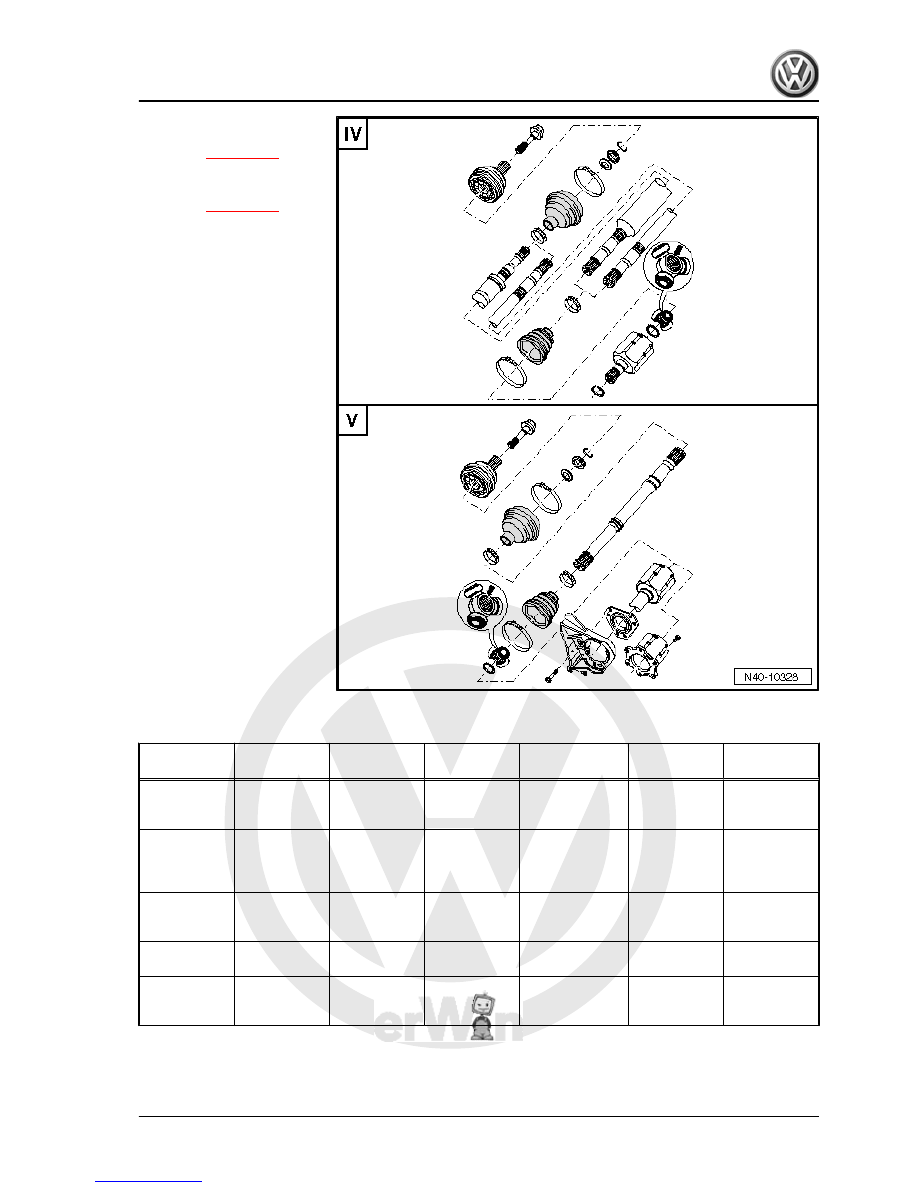

V - Assembly overview - drive

shaft with triple roller joint

AAR3300i

⇒ page 127

Distinguishing between drive shafts when installed



VL90

VL100

VL107 (bolt-

on)

VL 107 (push-

on)

AAR2600i

AAR3300i

Diameter of

inner joint in

mm

90

100

107

-

-

-

Cover be‐

tween inner

joint and drive

flange

-

-

X

-

-

-

With bearing

bracket on

right side

-

-

X

-

-

X

Inner joint fit‐

ted in gearbox

-

-

-

-

X

-

Inner joint

pushed onto

stub shaft

-

-

-

x

-

-

7. Repairing drive shaft - overview of drive shafts

95



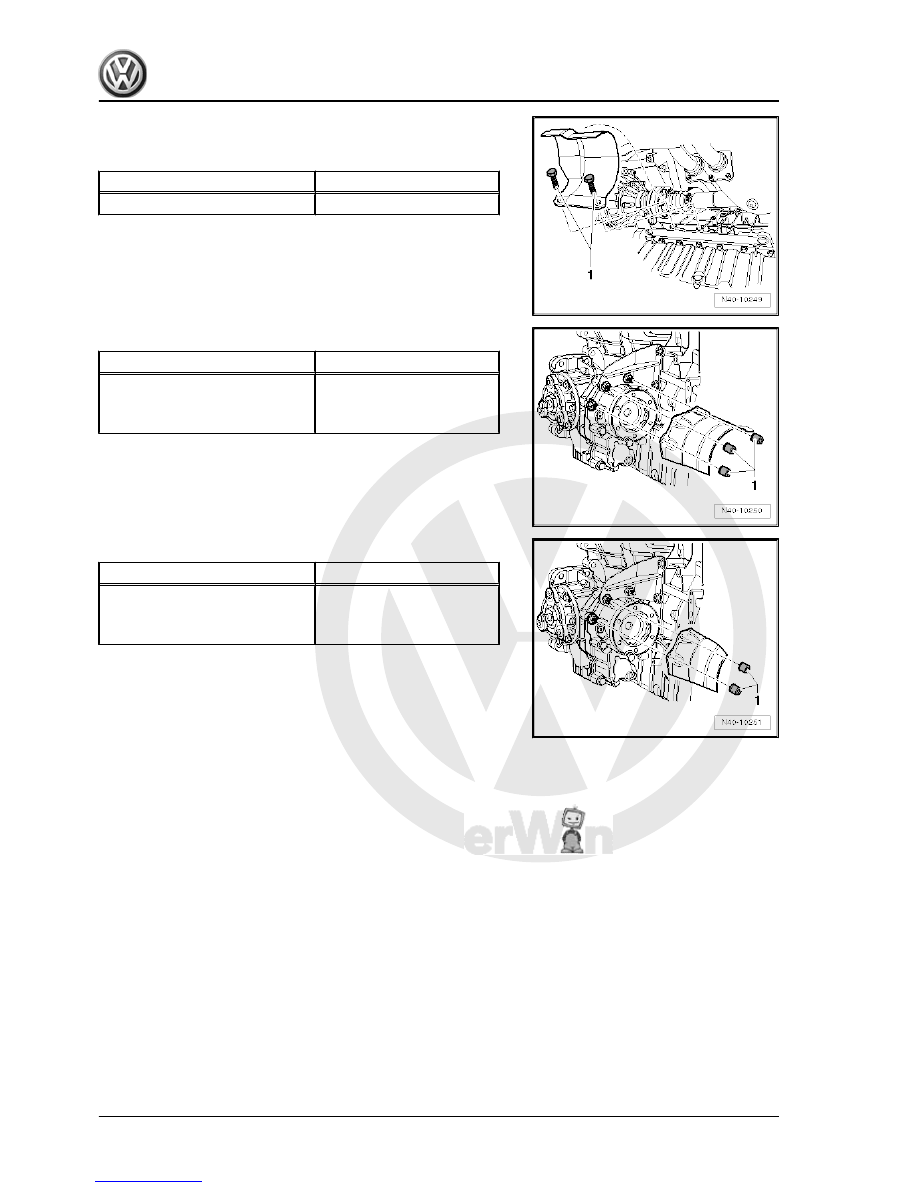

Front-wheel drive

Component

Specified torque

Hexagon bolt -1-

25 Nm

Four-wheel drive:

Component

Specified torque

Nuts -1-

20 Nm

♦ Initially tighten all nuts to

10 Nm

Four-wheel drive:

Component

Specified torque

Nuts -1-

20 Nm

♦ Initially tighten all nuts to

10 Nm

96

     Rep. Gr.40 - Front suspension
