41-28
MANUAL TRANSMISSION/TRANSAXLE
- MANUAL TRANSAXLE ASSY (C59)
4107F-01
OVERHAUL
1.
REMOVE MANUAL TRANSMISSION FILLER PLUG
(a) Remove the manual transmission filler plug and gasket
from the manual transmission case.
C80549
2.
REMOVE DRAIN (MTM) PLUG SUB-ASSY
(a) Remove the drain (MTM) plug sub-assy and gasket from
the manual transmission case.
C80550
3.
REMOVE SPEEDOMETER SENSOR (W/O ABS)
(a) Remove the bolt and speedometer sensor from the transaxle case.
(b) Remove the O-ring from the speedometer sensor.
4.
REMOVE SPEEDOMETER DRIVEN (MTM) GEAR SUB-ASSY (W/O ABS)
(a) Remove the clip and speedometer driven (MTM) gear sub-assy from the speedometer sensor.
5.
REMOVE SPEEDOMETER DRIVEN HOLE COVER SUB-ASSY (W/ ABS)
(a) Remove the bolt and speedometer driven hole cover sub-assy from the transaxle case.
(b) Remove the O-ring from the speedometer driven hole cover.
6.
REMOVE CLUTCH RELEASE FORK SUB-ASSY
(a) Remove the clutch release fork sub-assy with clutch re-
lease bearing assy from the transaxle case.
C67601
41-29
MANUAL TRANSMISSION/TRANSAXLE
- MANUAL TRANSAXLE ASSY (C59)
7.

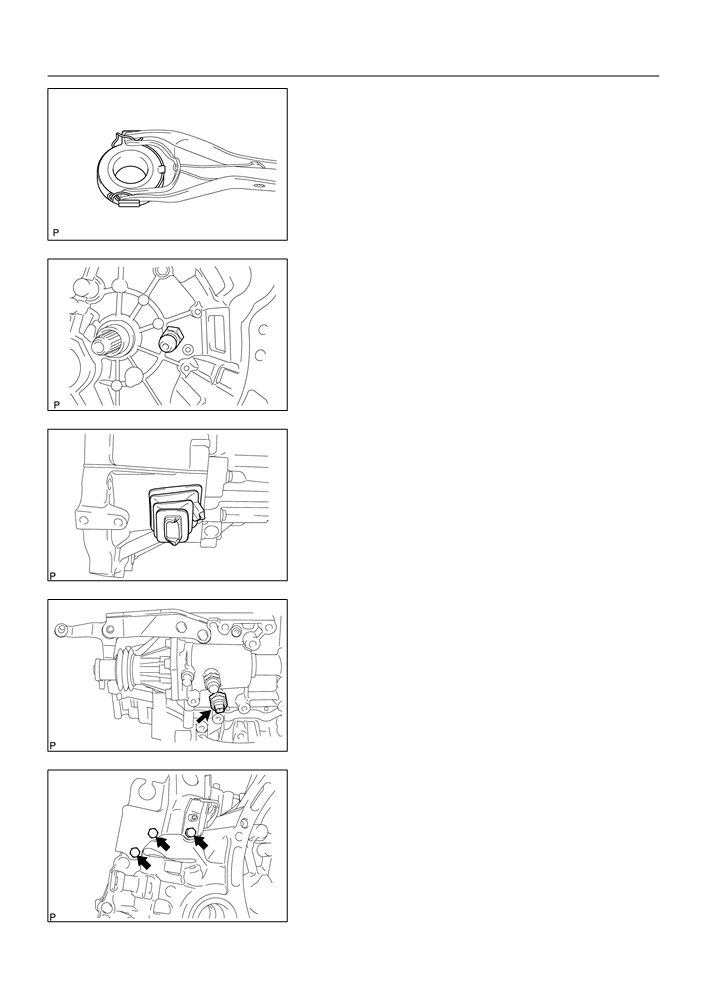

REMOVE CLUTCH RELEASE BEARING ASSY
(a) Remove the clutch release bearing clip and clutch release
bearing assy from the clutch release fork sub-assy.
C67602
8.
REMOVE RELEASE FORK SUPPORT
(a) Remove the clutch release fork support from the trans-
axle case.
C67604
9.
REMOVE CLUTCH RELEASE FORK BOOT
(a) Remove the clutch release fork boot from the transaxle
case.
C80331
10. REMOVE BACK UP LAMP SWITCH ASSY
(a) Remove the back up lamp switch assy and gasket from
the manual transmission case.
C95184
11. REMOVE FLOOR SHIFT CONTROL LEVER HOUSING
SUPPORT BRACKET
(a) Remove the 3 bolts and floor shift control lever housing
support bracket from the transaxle case.
C80333
41-30
MANUAL TRANSMISSION/TRANSAXLE
- MANUAL TRANSAXLE ASSY (C59)
12. REMOVE SELECTING BELL CRANK ASSY
(a) Remove the 2 bolts and selecting bellcrank assy from the
manual transmission case.
(b) Remove the control shift lever bush.
C95185
13. FIX MANUAL TRANSAXLE ASSY
(a) Using 2 wooden blocks, fix the manual transaxle assy.
C80336
14. REMOVE LOCK BALL ASSY NO.1
(a) Remove the lock ball assy No.1 from the manual trans-
mission case.
C95186
15. REMOVE SHIFT & SELECT LEVER SHAFT ASSY
(a) Remove the 4 bolts, shift & select lever shaft assy and
gasket from the manual transmission case.
C95187
16. REMOVE MANUAL TRANSMISSION CASE COVER
SUB-ASSY
(a) Remove the 9 bolts.
C95188
41-31
MANUAL TRANSMISSION/TRANSAXLE
- MANUAL TRANSAXLE ASSY (C59)

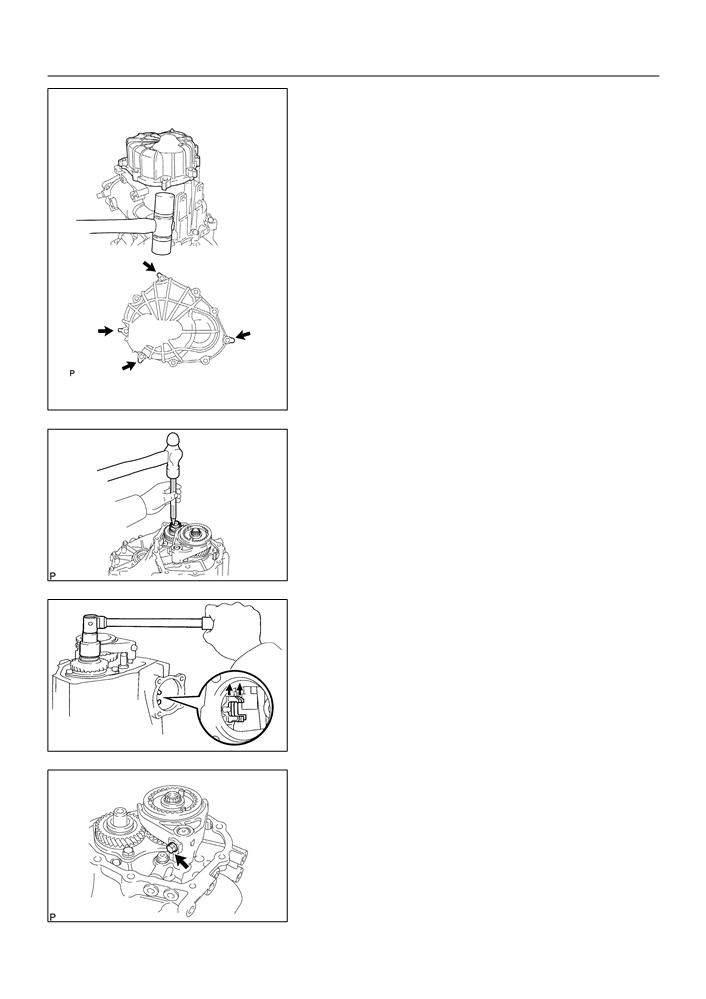

(b) Using a plastic hammer, carefully tap the projection of the
manual transmission case cover sub-assy to remove it
from the manual transmission case.
NOTICE:
Do not damage the manual transmission case.
C95189
17. REMOVE MANUAL TRANSMISSION OUTPUT SHAFT
REAR SET NUT
(a) Using a chisel and a hammer, loosen the staked part of
the manual transmission output shaft rear set nut.
C80341
(b) Engage the gear to the double meshing.
(c)
Remove the manual transmission output shaft rear set
nut.
(d) Disengage the double mashing of the gear.
Q06512
18. REMOVE GEAR SHIFT FORK NO.3
(a) Remove the gear shift fork lock bolt from the gear shift fork
No.3.
C80342
41-32
MANUAL TRANSMISSION/TRANSAXLE
- MANUAL TRANSAXLE ASSY (C59)
(b) Remove the transmission hub sleeve No.3 with gear shift
fork No.3 from the transmission clutch hub No.3.
C80343

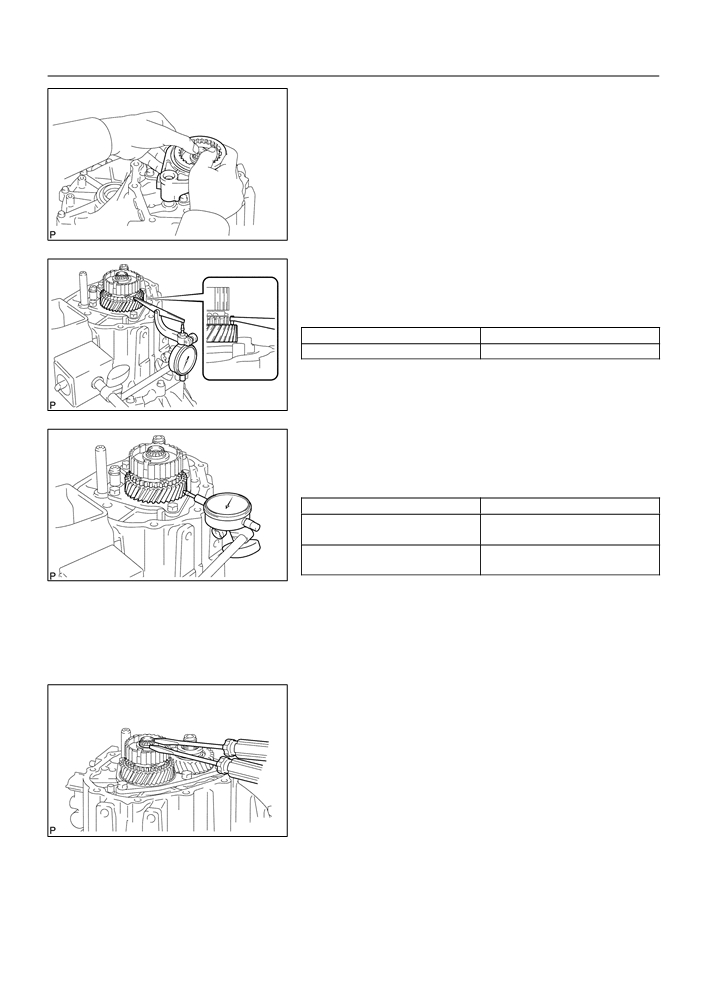

19. INSPECT 5TH GEAR THRUST CLEARANCE
(a) Using a dial indicator, measure the 5th gear thrust clear-
ance.
5th gear thrust clearance:
Standard clearance: mm (in.)
Maximum clearance: mm (in.)
0.10 - 0.57 (0.0039 - 0.0224)
0.57
(0.0224)
C80344
20. INSPECT 5TH GEAR RADIAL CLEARANCE
(a) Using a dial indicator, measure the 5th gear radial clear-
ance.
5th gear radial clearance: mm (in.)
Standard clearance: mm (in.)
Maximum clearance: mm (in.)
KOYO made:
KOYO made: 0.058 ( 0.0023)
0.015 - 0.058 (0.0006 - 0.0023)
NSK made:
NSK made: 0.056 (0.0022)
0.015 - 0.056 (0.0006 - 0.0022)
C80345
If the clearance exceeds the maximum, replace the gear,
needle roller bearing or shaft.
21. REMOVE TRANSMISSION CLUTCH HUB NO.3
(a) Using 2 screwdrivers and a hammer, tap out the snap
ring.
HINT:
Using a waste to prevent the snap ring from being scattered.
C80346
41-33
MANUAL TRANSMISSION/TRANSAXLE
- MANUAL TRANSAXLE ASSY (C59)
(b) Using SST, remove the transmission clutch hub No.3, 5th
SST
gear and synchronizer ring No.3 from the input shaft.
SST
09950-40011 (09951-04020,
09952-04010,
09953-04030,
09954-04010,
09955-04071,
09957-04010), 09950-60010 (09951-00200)
C80347
(c)
Remove the 3 synchromesh shifting keys and 2 synchro-
mesh shifting key springs from the transmission clutch
hub No.3.
D07737
22. REMOVE 5TH GEAR NEEDLE ROLLER BEARING
(a) Remove the 5th gear needle roller bearing and 5th gear
bearing spacer from the input shaft.
C80348
23. REMOVE 5TH DRIVEN GEAR
(a) Using SST, remove the 5th driven gear from the output
shaft.
SST
SST
09950-30012 (09951-03010, 09953-03010,
09954-03010, 09955-03011, 09957-04010),
09950-60010 (09951-00190)
C80349
24. REMOVE BEARING RETAINER REAR (MTM)
(a) Remove the 5 bolts and bearing retainer rear (MTM) from
the manual transmission case.
C80350
41-34
MANUAL TRANSMISSION/TRANSAXLE
- MANUAL TRANSAXLE ASSY (C59)
25. REMOVE OUTPUT SHAFT REAR BEARING HOLE
SNAP RING
(a) Using a snap ring expander, remove the output shaft rear
bearing hole snap ring from the output shaft.
C80351
26. REMOVE INPUT SHAFT REAR BEARING HOLE SNAP
RING
(a) Using a snap ring expander, remove the input shaft rear
bearing hole snap ring from the input shaft.
C80352

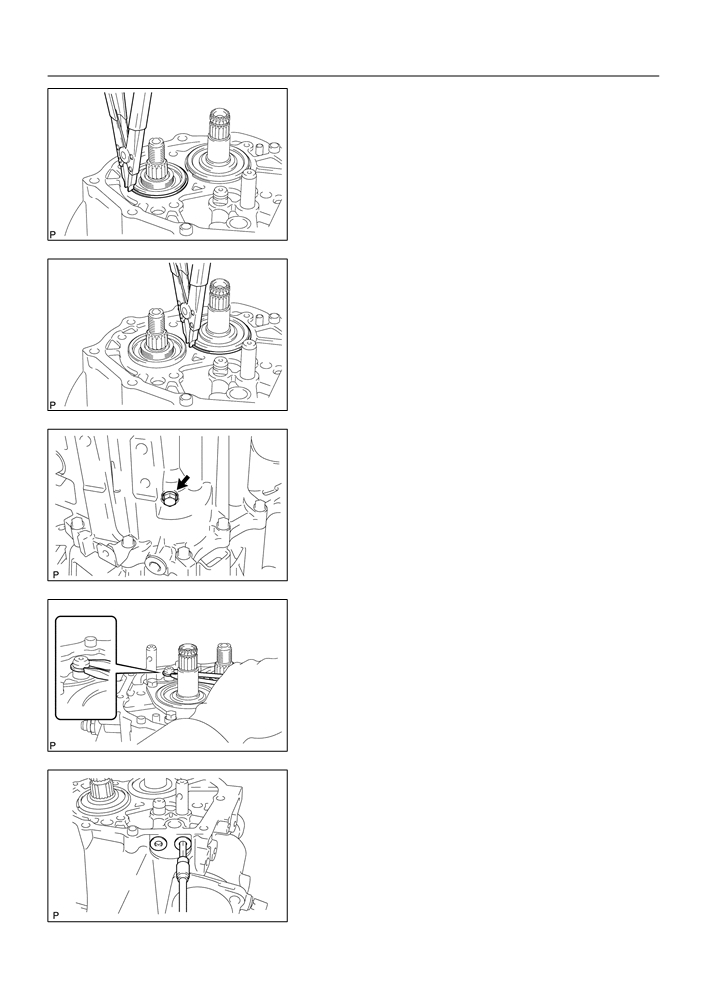

27. REMOVE REVERSE IDLER GEAR SHAFT BOLT
(a) Remove the reverse idler gear shaft bolt and gasket from
the manual transmission case.
C67639
28. REMOVE SHIFT FORK SHAFT SHAFT SNAP RING
(a) Using 2 screwdrivers and a hammer, tap out the snap ring
from the gear shift fork shaft No.2.
HINT:
Using a waste to prevent the snap ring from being scattered.
C80353
29. REMOVE SHIFT DETENT BALL
(a) Using a hexagon wrench, remove the 2 shift detent ball
plugs from the manual transmission case.
C67634
41-35
MANUAL TRANSMISSION/TRANSAXLE
- MANUAL TRANSAXLE ASSY (C59)
(b) Using a magnetic finger, remove the 2 seats, 2 springs
and 2 shift detent balls from the manual transmission
case.
C67635
(c)
Using a hexagon wrench, remove the shift detent ball
plug from the transaxle case.
C80354
(d) Using a magnetic finger, remove the seat, spring and shift
detent ball from the transaxle case.
C80355
30. REMOVE LOCK BALL ASSY NO.1
(a) Using a hexagon wench, remove the lock ball assy No.1
from the manual transmission case.
C80356
31. REMOVE MANUAL TRANSMISSION CASE
(a) Remove the 3 bolts from the transaxle case side.
C80357
41-36
MANUAL TRANSMISSION/TRANSAXLE
- MANUAL TRANSAXLE ASSY (C59)
(b) Remove the 13 bolts from the manual transmission case
side.
C80358
(c)
Using a brass bar and a hammer, carefully tap the projec-
tion of the manual transmission case to remove it from the
transaxle case.
NOTICE:
Do not damage the manual transmission case and trans-
axle case.
C67642
32. REMOVE REVERSE IDLER GEAR SUB-ASSY
(a) Remove the reverse idler gear sub-assy, thrust washer
and reverse idler gear shaft from the transaxle case.
C80359
33. REMOVE REVERSE SHIFT ARM BRACKET ASSY
(a) Remove the 2 bolts and reverse shift arm bracket assy
from the transaxle case.
C80360
34. REMOVE GEAR SHIFT FORK SHAFT NO.2
(a) Remove the 2 bolts from the gear shift fork No. 2 and gear
shift head No.1.
C80361
41-37
MANUAL TRANSMISSION/TRANSAXLE
- MANUAL TRANSAXLE ASSY (C59)
(b) Remove the gear shift fork shaft No.2 and gear shift head
Gear Shift
No.1 from the transaxle case.
Fork Shaft
No.2
Gear Shift
Head No.1
C80362
35. REMOVE GEAR SHIFT FORK SHAFT SUB-ASSY
NO.1
(a) Using 2 screwdrivers and a hammer, tap out the snap
rings.
HINT:
Using a waste to prevent the snap ring from being scattered.
C80363
(b) Remove the gear shift fork lock bolt and gear shift fork
shaft sub-assy No.1 from the gear shift fork No.1.
C80364
(c)
Remove the gear shift fork No.1.
Gear Shift
Fork No.1
C80365
36. REMOVE GEAR SHIFT FORK SHAFT NO.3
(a) Using 2 screwdrivers and a hammer, tap out the snap ring
from the gear shift fork shaft No.3.
HINT:
Using a waste to prevent the snap ring from being scattered.
C80366
41-38
MANUAL TRANSMISSION/TRANSAXLE
- MANUAL TRANSAXLE ASSY (C59)
(b) Remove the shift fork shaft No.3 with reverse shift fork
Gear Shift
Gear Shift
and gear shift fork No.2 from the transaxle case.
Fork Shaft No.3
Fork No.2
Reverse
Shift Fork
C80367
(c)
Using a magnetic finger, remove the 2 balls from the re-
verse shift fork.
C80368
(d) Using 2 screwdrivers and a hammer, tap out the snap
ring.
HINT:
Using a waste to prevent the snap ring from being scattered.
(e) Remove the reverse shift fork from the gear shift fork shaft
No.3.
C80369
37. REMOVE INPUT SHAFT ASSY
(a) Remove the input and output shaft assy from the trans-
axle case.
C80586
38. REMOVE DIFFERENTIAL CASE ASSY
(a) Remove the differential case assy from the transaxle
case.
C67656
41-39
MANUAL TRANSMISSION/TRANSAXLE
- MANUAL TRANSAXLE ASSY (C59)
39. REMOVE MANUAL TRANSAXLE CASE RECEIVER
(a) Remove the bolt and manual transaxle case receiver from
the transaxle case.
C67657
40. REMOVE REVERSE RESTRICT PIN ASSY
(a) Using a hexagon wrench, remove the reverse restrict pin
plug from the manual transmission case.
C80372
(b) Using a pin punch (f 5 mm) and a hammer, drive out the
slotted spring pin and remove the reverse restrict pin assy
from the manual transmission case.
C80373
41. REMOVE OIL RECEIVER PIPE NO.1 (MTM)
(a) Remove the bolt and oil receiver pipe No.1 (MTM) from
the manual transmission case.
NOTICE:
Be careful not to damage the oil receiver pipe No.1 (MTM).
C67644
42. REMOVE OIL RECEIVER PIPE NO.2 (MTM)
(a) Remove the bolt and oil receiver pipe No.2 (MTM) from
the manual transmission case.
NOTICE:
Be careful not to damage the oil receiver pipe No.2 (MTM).
C80374
41-40
MANUAL TRANSMISSION/TRANSAXLE
- MANUAL TRANSAXLE ASSY (C59)

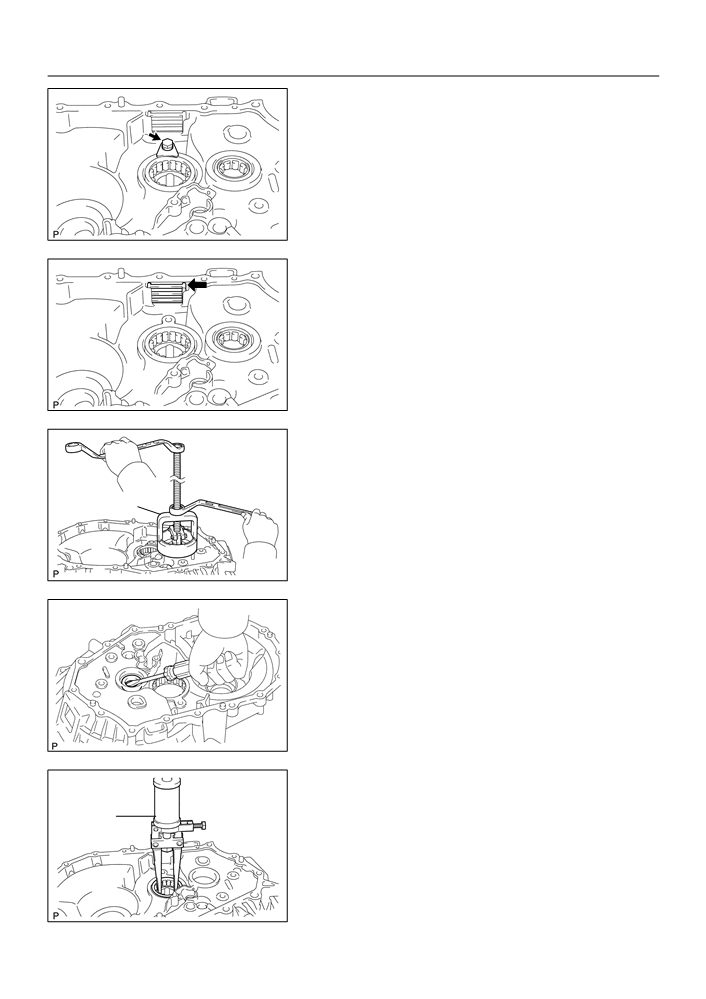

43. REMOVE BEARING LOCK PLATE
(a) Remove the bolt and bearing lock plate from the transaxle
case.
C67658
44. REMOVE TRANSMISSION MAGNET
(a) Remove the transmission magnet from the transaxle
case.
C67659
45. REMOVE INPUT SHAFT FRONT BEARING
(a) Using SST, remove the input shaft front bearing from the
transaxle case.
SST
09612-65014 (09612-01050, 09612-01060)
SST
C81783
46. REMOVE FRONT TRANSAXLE CASE OIL SEAL
(a) Using a screwdriver, remove the front transaxle case oil
seal from the transaxle case.
C95411
47. REMOVE OUTPUT SHAFT FRONT BEARING
(a) Using SST, remove the output shaft front bearing from the
transaxle case.
SST
SST
09308-00010
C82141
41-41
MANUAL TRANSMISSION/TRANSAXLE
- MANUAL TRANSAXLE ASSY (C59)
48. REMOVE OUTPUT SHAFT (MTM) COVER
(a) Remove the output shaft (MTM) cover from the transaxle
case.
C67719
49. REMOVE FR DIFFERENTIAL CASE FRONT TAPERED
ROLLER BEARING
(a) Using SST, remove the FR differential case front tapered
roller bearing (outer race) and shim from the transaxle
case.
SST
09612-65014 (09612-01040, 09612-01050)
SST
C81785
(b) Using SST, remove FR differential case front tapered roll-
er bearing (inner race) from the front differential case.
SST
09950-00020, 09950-00030, 09950-40011
(09957-04010), 09950-60010 (09951-00360)
NOTICE:
Be careful not to damage bearing.
Z16129
50. REMOVE TRANSAXLE CASE OIL SEAL
(a) Using SST and a hammer, drive out the transaxle case oil
SST
seal from the transaxle case.
SST
09950-60010 (09951-00530), 09950-70010
(09951-07150)
C81789
51. REMOVE FR DIFFERENTIAL CASE REAR TAPERED
ROLLER BEARING
SST
(a) Using SST, remove the FR differential case rear tapered
roller bearing (outer race) and shim from the manual
transmission case.
SST
09612-65014 (09612-01040, 09612-01050)
C81788
41-42
MANUAL TRANSMISSION/TRANSAXLE
- MANUAL TRANSAXLE ASSY (C59)
(b) Using SST and a hammer, remove the FR differential
case rear tapered roller bearing (inner race) from the front
differential case.
SST
09950-40011 (09951-04010,
09952-04010,
09953-04020,
09954-04010,
09955-04061,
09957-04010,
09958-04011),
09950-60010
SST
(09951-00360)
NOTICE:
C95108
Be careful not to damage bearing.
52. REMOVE TRANSMISSION CASE OIL SEAL
(a) Using SST and a hammer, remove the transmission case
oil seal from the manual transmission case.
SST
09950-60010 (09951-00600), 09950-70010
SST
(09951-07100)
C81787
53. INSPECT SYNCHRONIZER RING NO.3
(a) Check for wear or damage.
(b) Check the braking effect of the synchronizer ring. Turn the
synchronizer ring in one direction while pushing it to the
gear cone, check that the ring locks.
If the braking effect is insufficient, apply a small amount of the
fine lapping compound between the synchronizer ring and gear
cone. Lightly rub the synchronizer ring and gear cone together.
C67848
NOTICE:
Ensure the file lapping compound is completely washed off
after rubbing.
(c)
Check again the breaking effect of the synchronizer ring.
(d) Using a feeler gauge, measure the clearance between
the synchronizer ring back and gear spline end.
Minimum clearance: 0.75 mm (0.0295 in.)
If the clearance is less than minimum, replace the synchronizer
ring and gear cone by applying a small amount of the fine lap-
ping compound on gear cone.
NOTICE:
Ensure the fine lapping compound is completely washed
C67850
off after rubbing.















Content   ..  26  27  28  29   ..
