SsangYong Rexton. Service manual - part 357

SSANGYONG  Y200

1B3-6  DIESEL ENGINE MECHANICAL

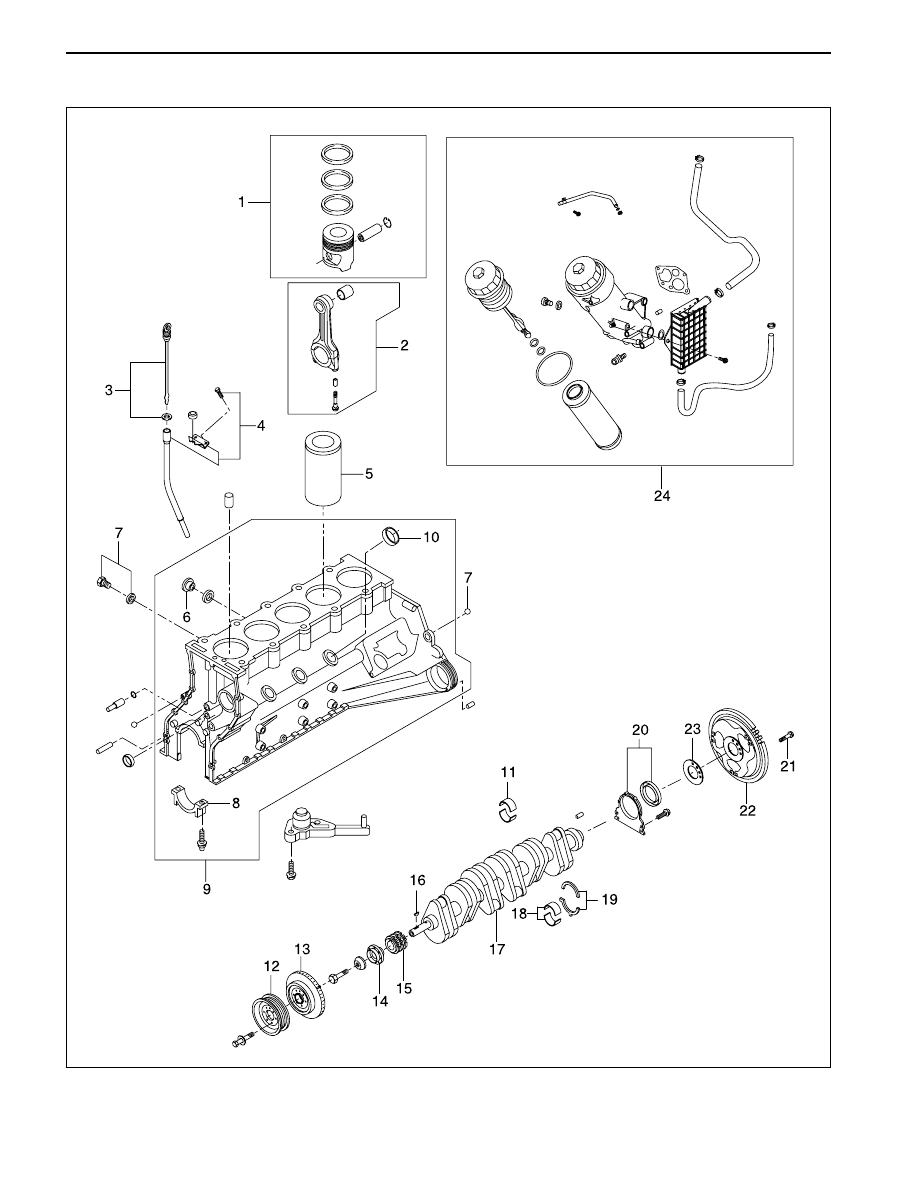

CYLINDER BLOCK

YAD1BA50

DIESEL ENGINE MECHANICAL  1B3-7

SSANGYONG  Y200

1 Piston & Piston Ring Assembly
2 Connection Rod Assembly
3 Oil Dipstick Gauge
4 Oil Dipstick Gauge Bracket
5 Cylinder Liner
6 Plug
7 Screw & Seal Ring
8 Crankshaft Bearing Cap
9 Cylinder Block

10 Plug
11 Crankshaft Journal Bearing
12 Crankshaft Pulley

13 Vibration Damper
14 Hub
15 Crankshaft Sprocket
16 Key
17 Crankshaft
18 Crankshaft Journal Bearing
19 Crankshaft Thrust Bearing
20 Crankshaft Sealing Cover
21 Bolt
22 Flywheel
23 Plate
24 Oil Pump Assembly

SSANGYONG  Y200

1B3-4  DIESEL ENGINE MECHANICAL

COMPONENT LOCATOR

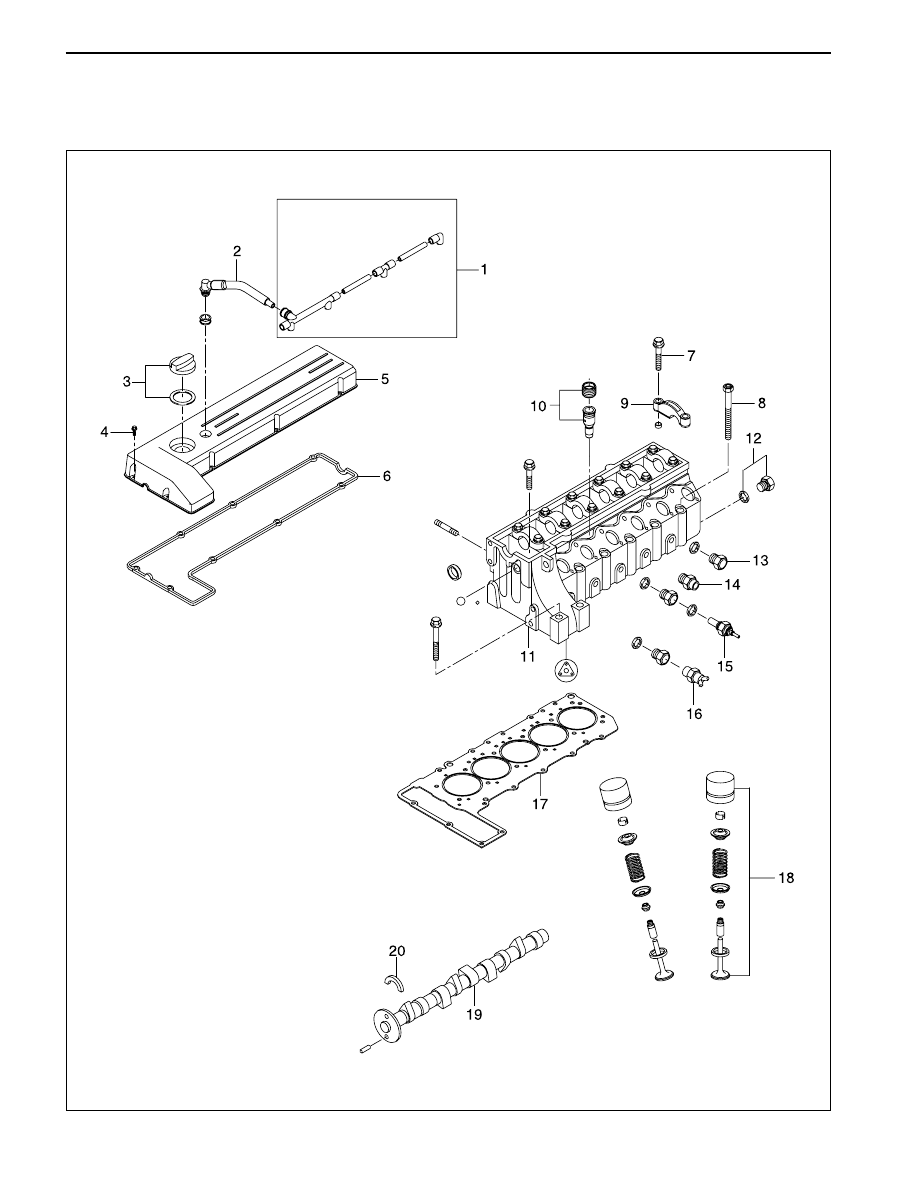

CYLINDER HEAD

YAD1BA40

DIESEL ENGINE MECHANICAL  1B3-5

SSANGYONG  Y200

1 Blow By Gas Return Hose
2 Blow By Gas Return Pipe
3 Oil Filler Cap
4 Bolt
5 Cylinder Head Cover
6 Cylinder Head Cover Gasket
7 Camshaft Cap Bolt
8 Cylinder Head Bolt
9 Camshaft Bearing Cap

10 Pre Chamber Assembly

11 Cylinder Head
12 Plug
13 Plug
14 Connector
15 Engine Coolant Temperature Sensor
16 Thermo Valve
17 Cylinder Head Gasket
18 Valve Assembly
19 Camshaft
20 Camshaft Adjust Key
