SSANGYONG  Y200

1B3-8  DIESEL ENGINE MECHANICAL

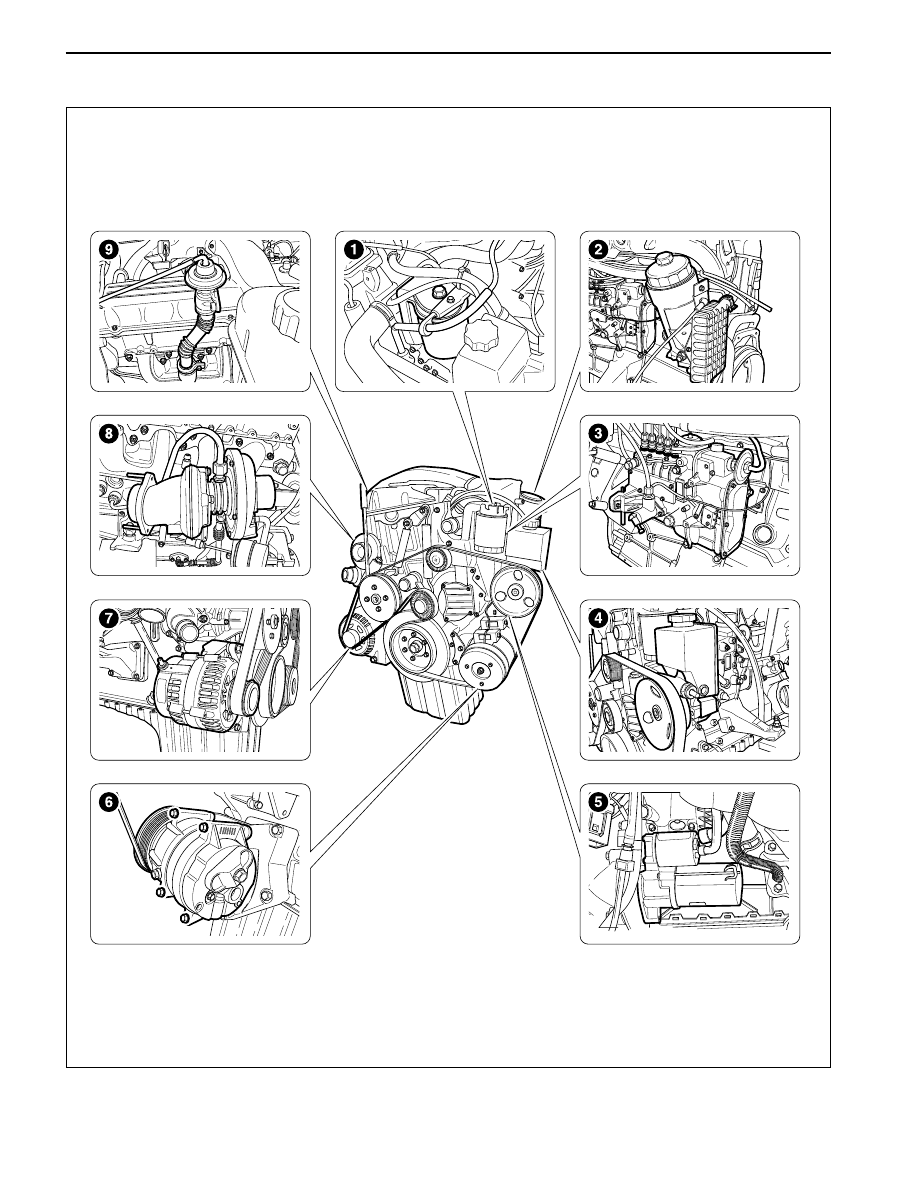

ENGINE COMPONENT

YAD1BA60

DIESEL ENGINE MECHANICAL  1B3-9

SSANGYONG  Y200

1 Fuel Filter Assembly
2 Oil Filter Assembly
3 Injection Pump Assembly
4 Power Steering Pump Assembly
5 Starter Assembly

6 A/C Compressor Assembly
7 Generator Assembly
8 Turbo Charger Assembly
9 EGR Valve Assembly

SSANGYONG  Y200

1B3-10  DIESEL ENGINE MECHANICAL

REPAIR INSTRUCTIONS

ON-VEHICLE SERVICE

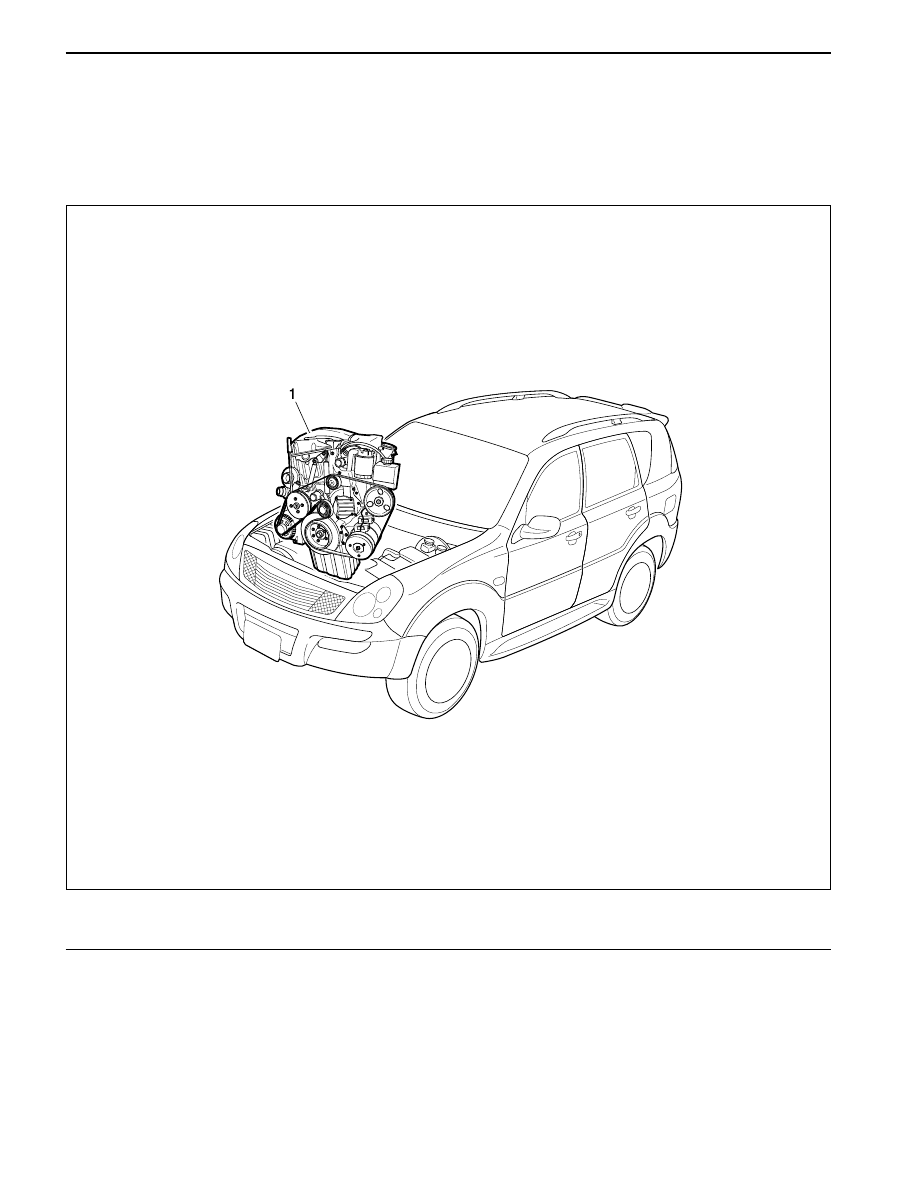

ENGINE ASSEMBLY

1. Engine Assembly

YAD1BA70

DIESEL ENGINE MECHANICAL  1B3-11

SSANGYONG  Y200

1

YAD1BA80

YAD1BA90

YAD1B020

YAD1BAA0

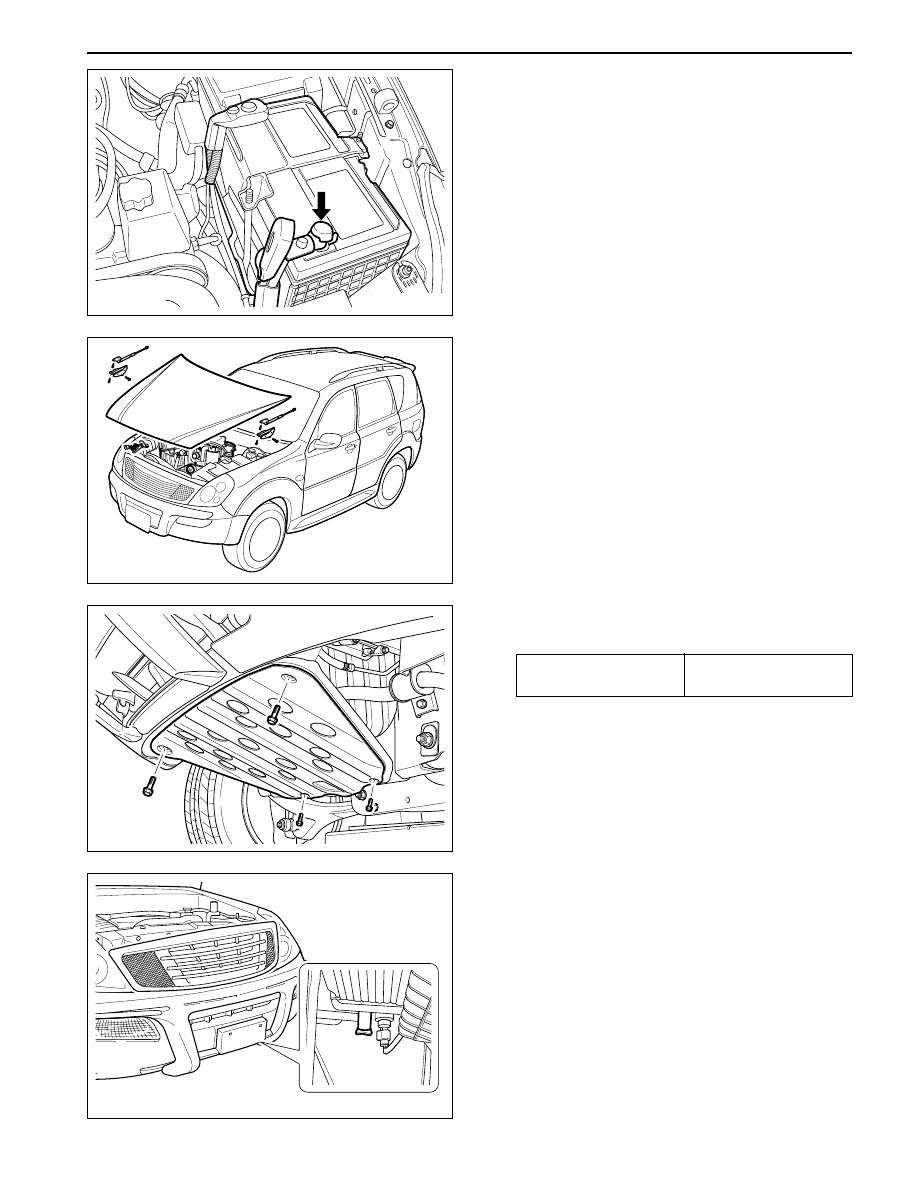

Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the hood.

3. Remove the skid plate.

Installation Notice

4. Remove the radiator drain cock and drain the

coolant.

Notice: Open the coolant reservoir tank cap.

Tightening Torque

28 - 47 N•m

(21 - 35 lb-ft)
