M162 ENGINE MECHANICAL  1B1-11

SSANGYONG  Y200

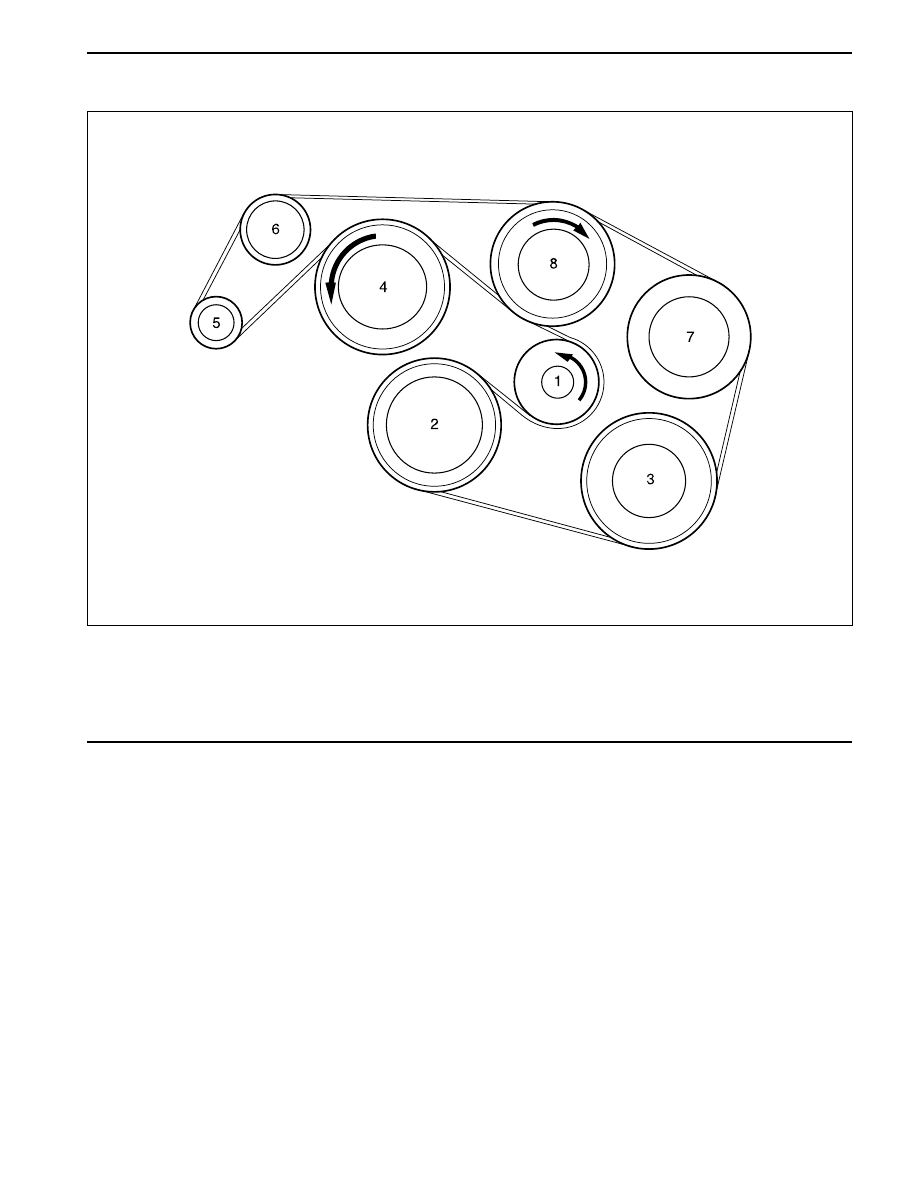

Poly V-Belt Arrangement

1 Belt Tensioning Pulley
2 Crankshaft Belt Pulley
3 A/C Compressor Pulley
4 Cooling Fan Pulley

5 Generator Pulley
6 Idler
7 Power Steering Pump Pulley
8 Cooling Fan and Water Pump Pulley

YAD1B340

SSANGYONG  Y200

1B1-12  M162 ENGINE MECHANICAL

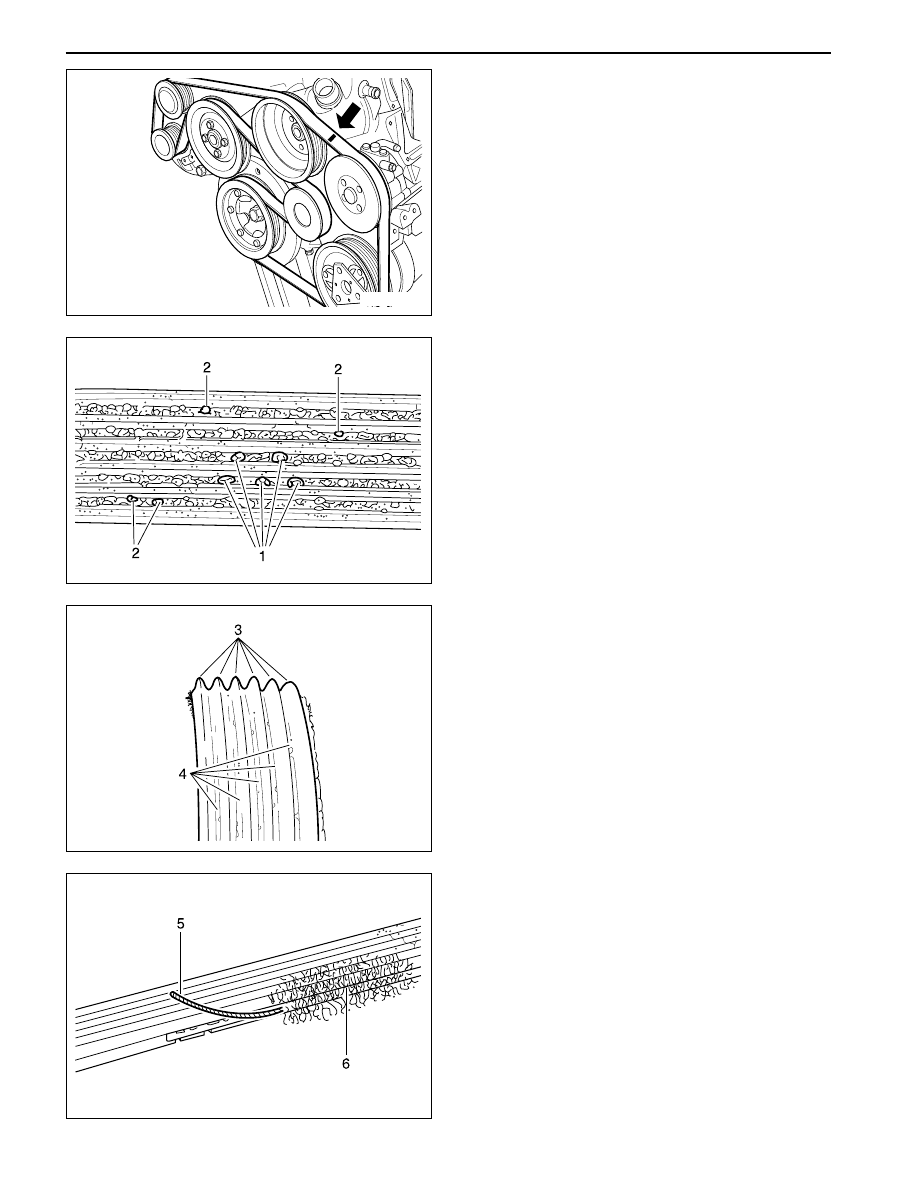

1. Rubber lumps in the base of rib.

2. Dirt or grit ingrained.

5. Cord torn out at the side.

6. Outer cords frayed.

3. Pointed rib.

4. Belt cord visible in the base of rib.

POLY  V - BELT INSPECTION

•

Make marks on the belt with chalk.

•

Rotate the engine and check the belt for damage.

Notice: If one of the following types of damages
is found, replace the belt.

YAD1B370

YAD1B380

YAD1B390

YAD1B400

M162 ENGINE MECHANICAL  1B1-13

SSANGYONG  Y200

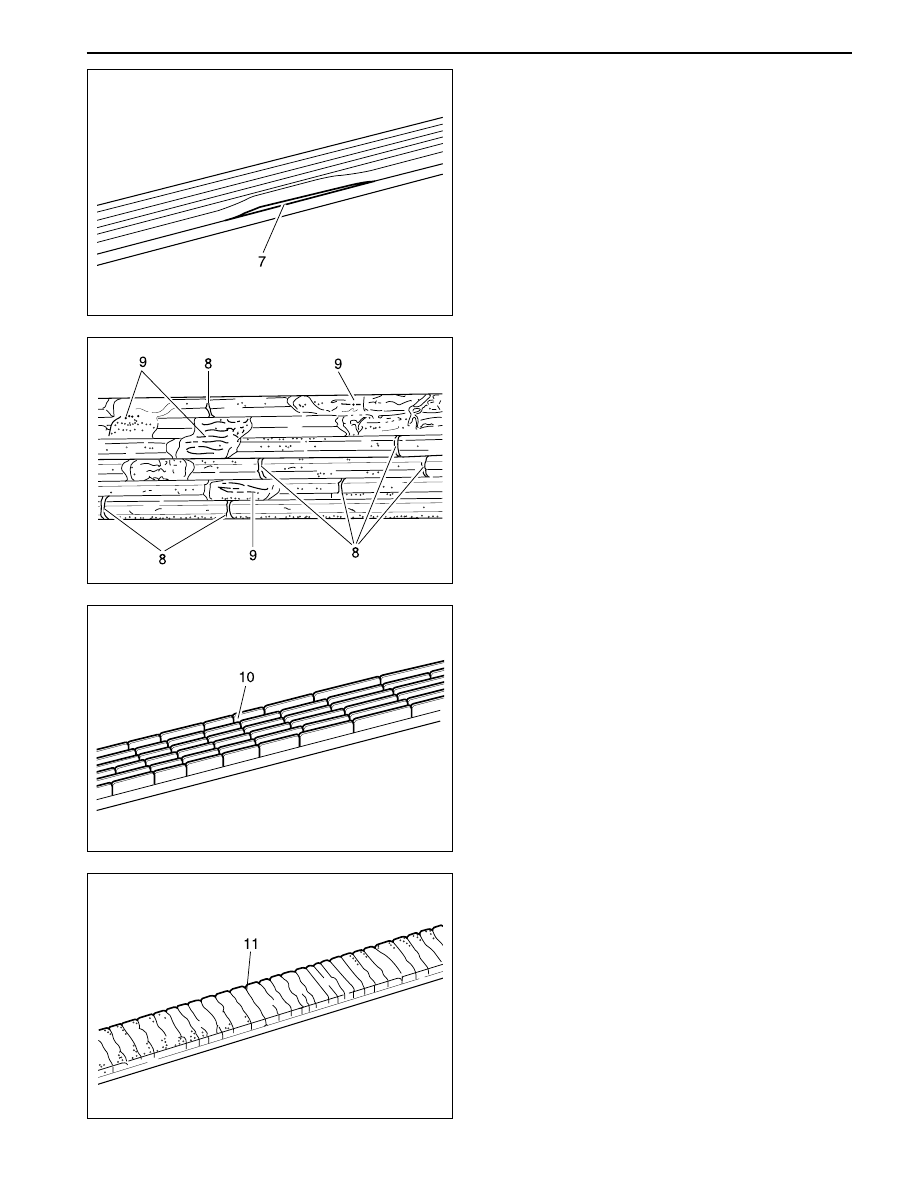

8. Splits across the rib.

9. Sections of rib torn out.

11. Splits across the back of the belt.

10. Splits across several ribs.

7. Rib detached from the base of belt.

YAD1B410

YAD1B420

YAD1B430

YAD1B440

SSANGYONG  Y200

1B1-14  M162 ENGINE MECHANICAL

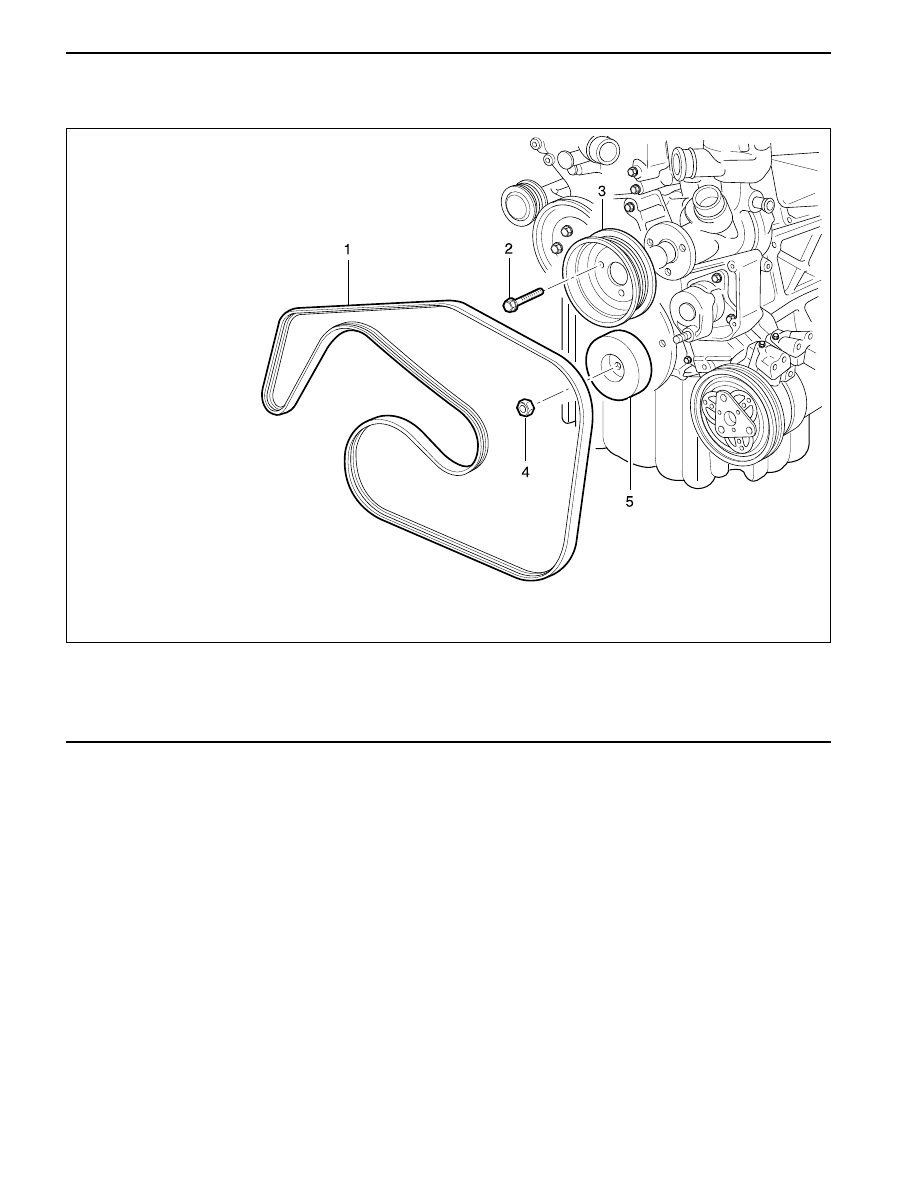

TENSIONING DEVICE

Preceding Work : Removal of poly v-belt

1 Belt (L = 2245)
2 Bolt Combi (M8 x 14, 3 pieces) + Washer

........................... 22.5-27.5 N•m (16.6-20.3 lb-ft)

3 Water Pump Pulley
4 Nut
5 Belt Tensioning Pulley

YAD1B350
