M162 ENGINE MECHANICAL  1B1-7

SSANGYONG  Y200

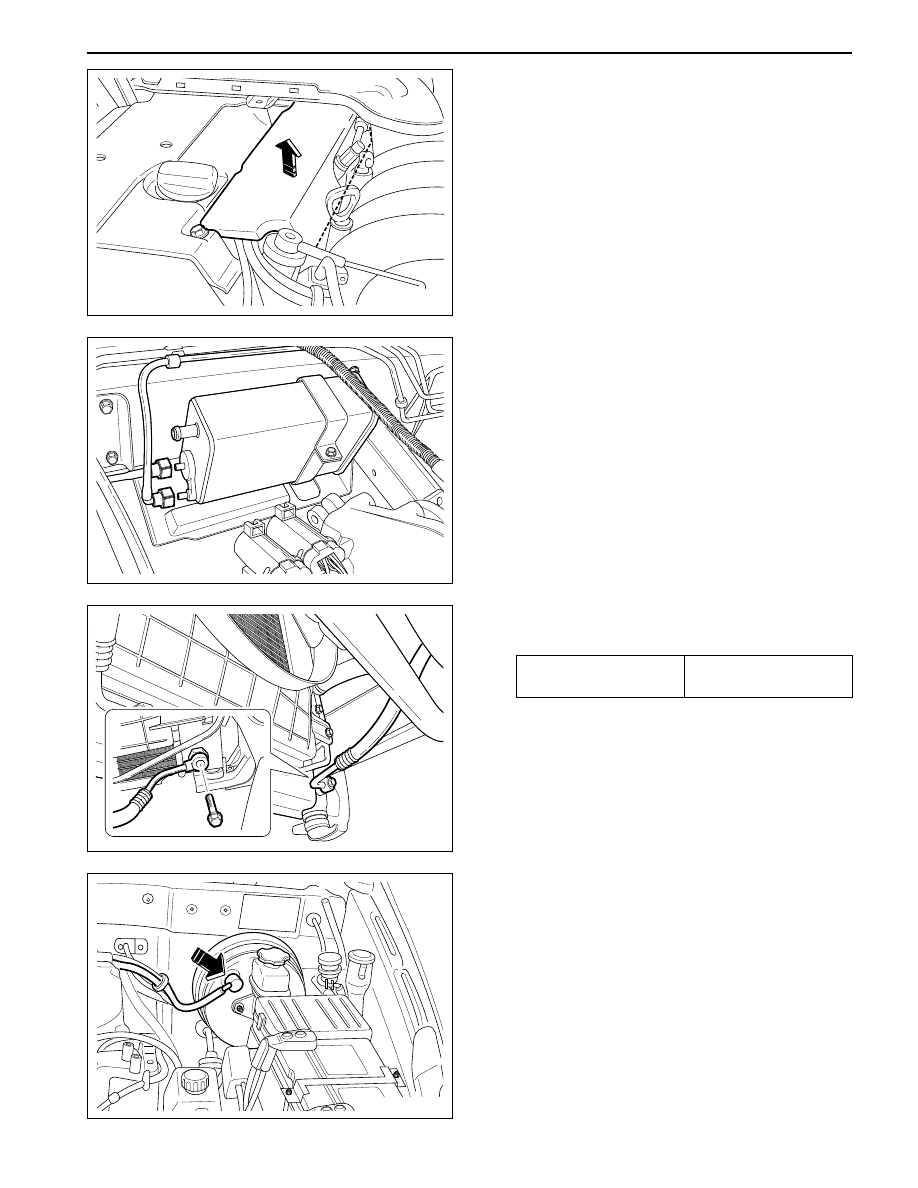

24. Separate the hose toward engine from canister

purge solenoid valve.

26. Separate the vacuum hose for brake booster.

27. Separate the other vacuum hoses.

25. Remove the automatic transmission oil cooler line.

Installation Notice

22. After removing the ignition coil cover, disconnect

the ignition coil connector.

23. Remove the harness cover and disconnect the 6

injection valve connectors. Disconnect the main
harness.

YAD1B140

YAD1B4N0

YAD1B150

YAD1B160

Tightening Torque

25 - 35 N•m

(18 - 26 lb-ft)

SSANGYONG  Y200

1B1-8  M162 ENGINE MECHANICAL

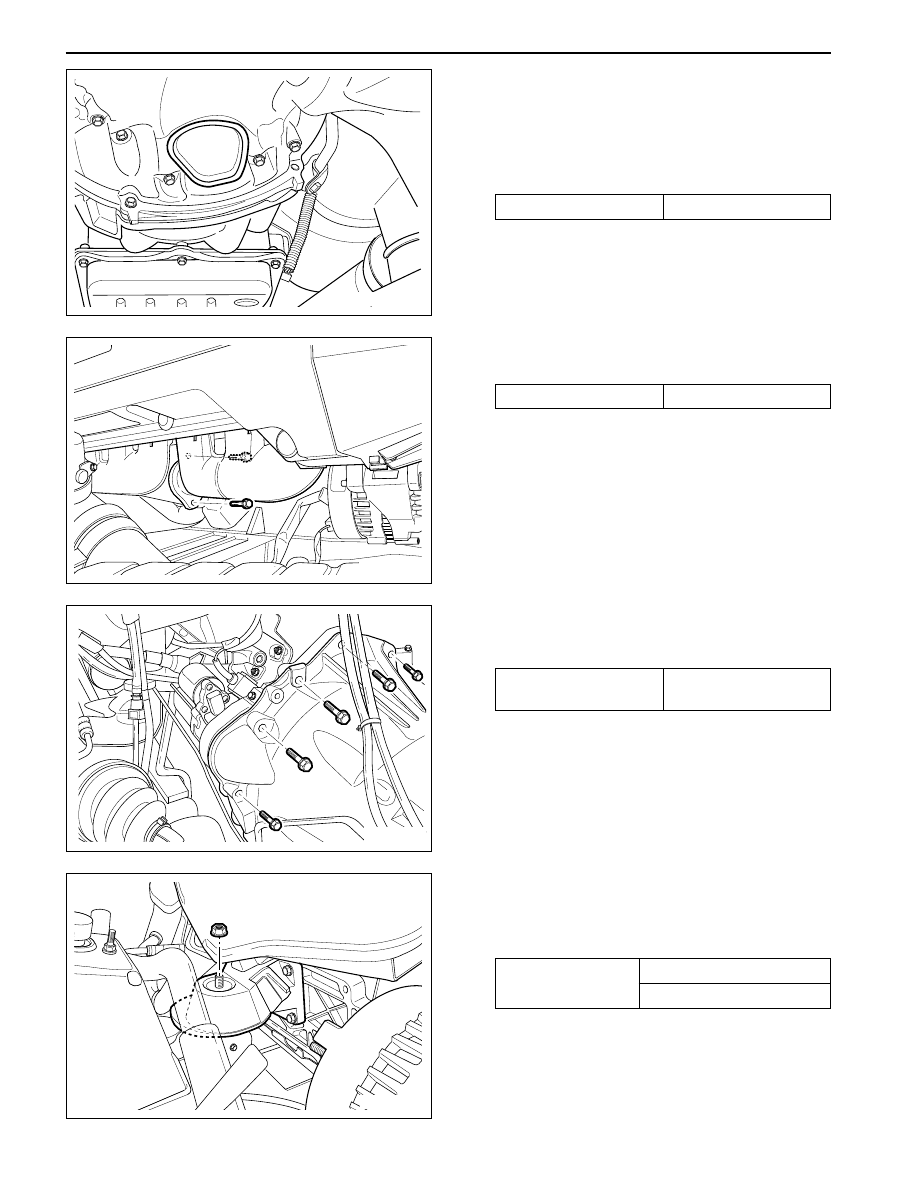

28. Remove the service hole cover in the engine block.

29. Put the alignment mark for installation, and remove

the six mounting bolts for torque converter from
drive plate through the service hole by rotating the
engine and remove the torque converter.

Installation Notice

31. Remove the transmission mounting bolts and

separate the transmission from the engine.

Installation Notice

30. Remove the exhaust manifold and exhaust pipe.

Installation Notice

32. Install a chain to the bracket of engine, by using

a hoist or crane.

33. Remove the engine mounting bracket nuts.

Installation Notice

Tightening Torque

Upper : 70 N•m (52 lb-ft)

Lower : 38 N•m (28 lb-ft)

•

Screw the six bolts mounting the torque
converter through the service hole by using a
mirror and rotating the engine.

Tightening Torque

42 N•m (31 lb-ft)

Tightening Torque

30 N•m (22 lb-ft)

Tightening Torque

54 - 68 N•m

(40 - 50 lb-ft)

KAA5A2N0

YAD1B180

YAD1B190

YAD1B200

M162 ENGINE MECHANICAL  1B1-9

SSANGYONG  Y200

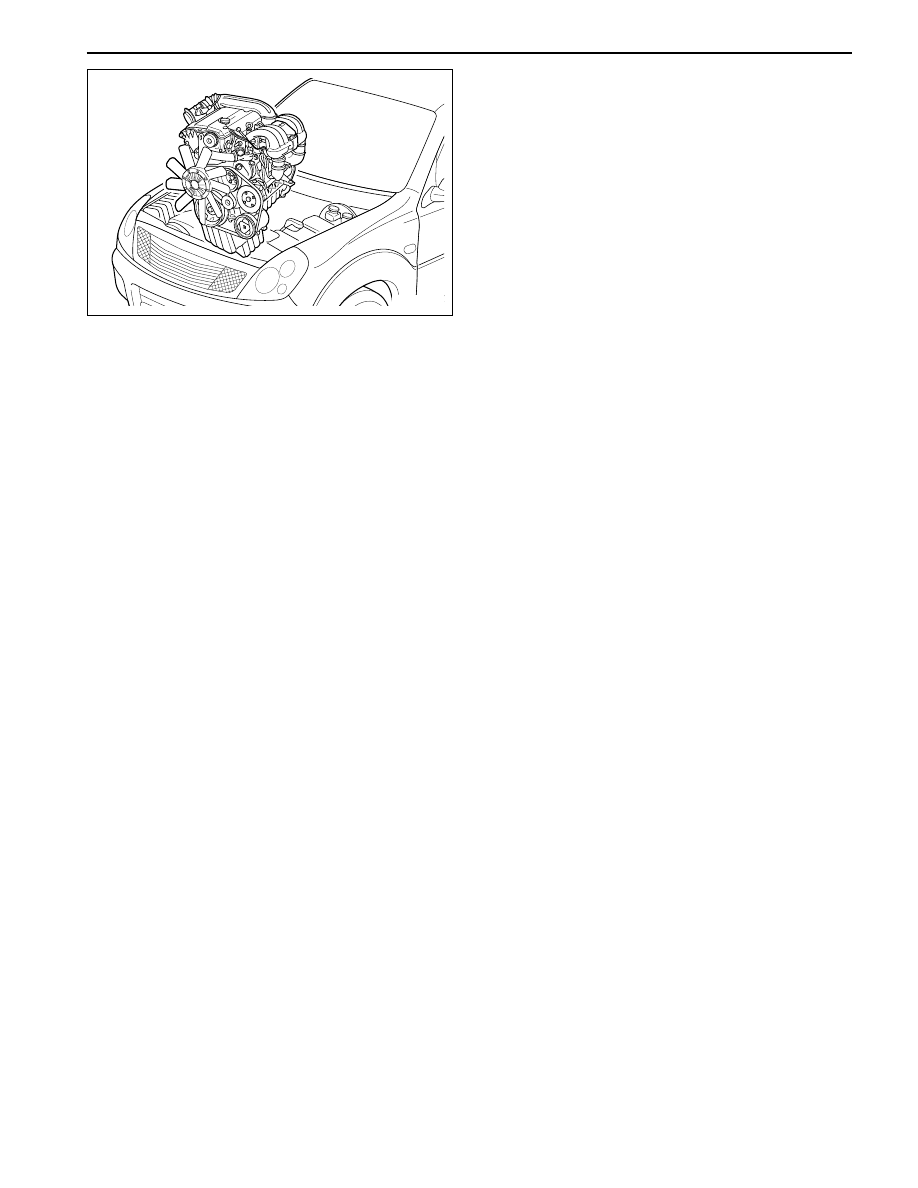

34. Carefully separate the engine assembly from the

vehicle.

35. Installation should follow the removal procedure

in the reverse order.

YAD1B210

SSANGYONG  Y200

1B1-10  M162 ENGINE MECHANICAL

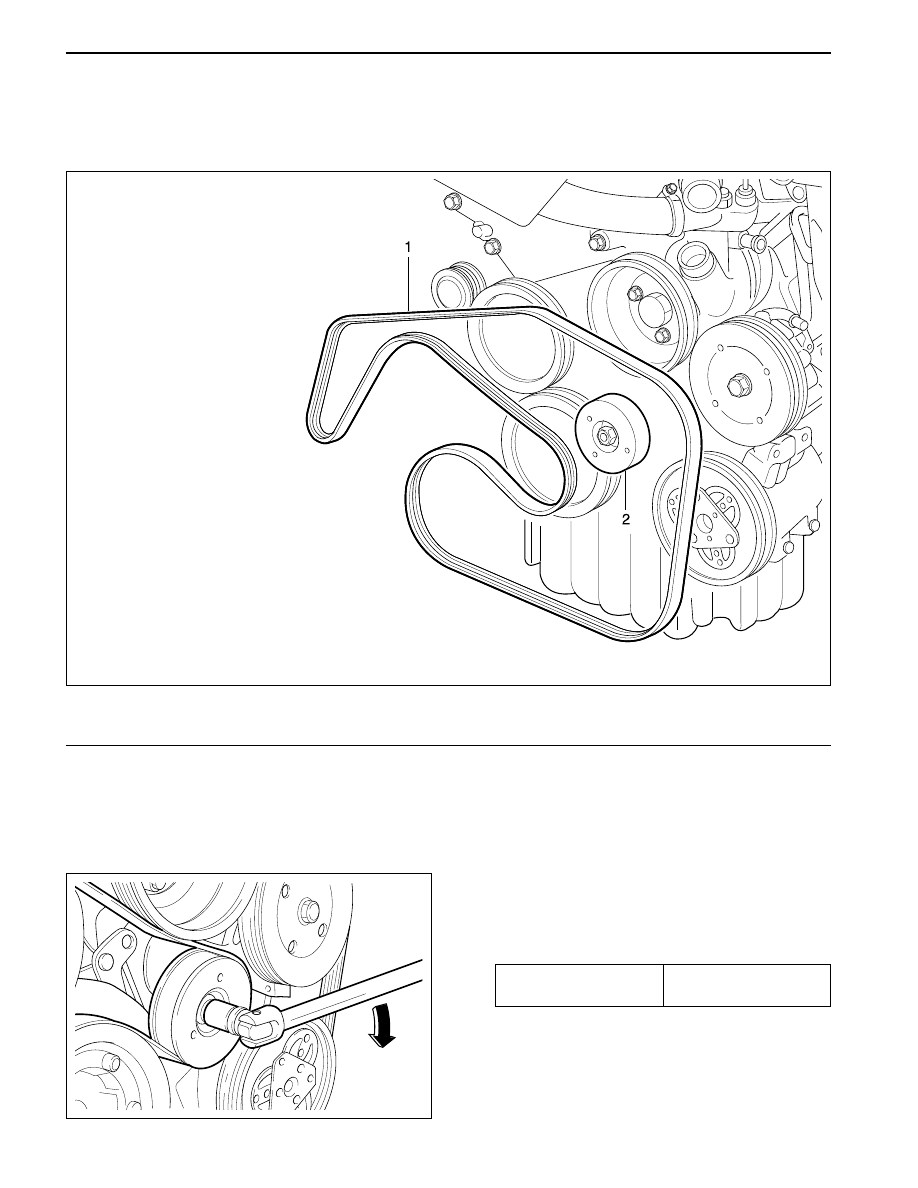

POLY V-BELT AND TENSIONING DEVICE

POLY  V - BELT

Preceding Work : Removal of cooling fan

1 Poly V-belt

2 Belt Tensioning Pulley

YAD1B330

Removal & Installation Procedure

1. Release the belt tension by turning the belt

tensioning pulley nut clockwise.

Installation Notice

Tightening Torque

40.5 - 49.5 N•m

(29.9 - 36.5 lb-ft)

2. Remove the poly v-belt.

Notice: Check the belt for damage and tensioning
pulley bearing point for wear and replace them if
necessary.

3. Install the belt by turning the nut of tensioning

pulley clockwise.

YAD1B250
