SsangYong Rexton. Service manual - part 183

SSANGYONG  REXTON XDi(RHD)

5-36  ELECTRICAL WIRING DIAGRAMS

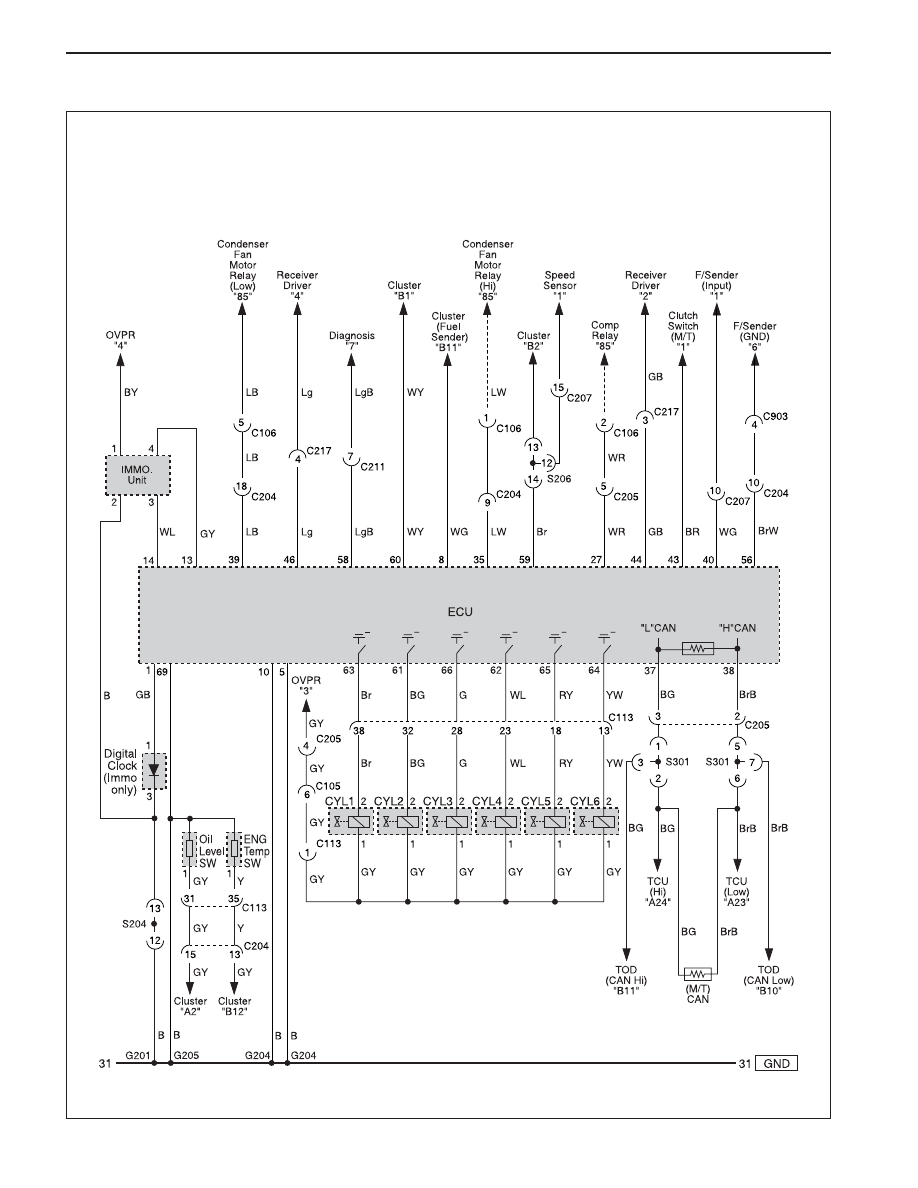

(3) DIGITAL CLOCK, ENG TEMP SENSOR, IMMOBILIZER CIRCUIT

ELECTRICAL WIRING DIAGRAMS  5-37

SSANGYONG  REXTON XDi(RHD)

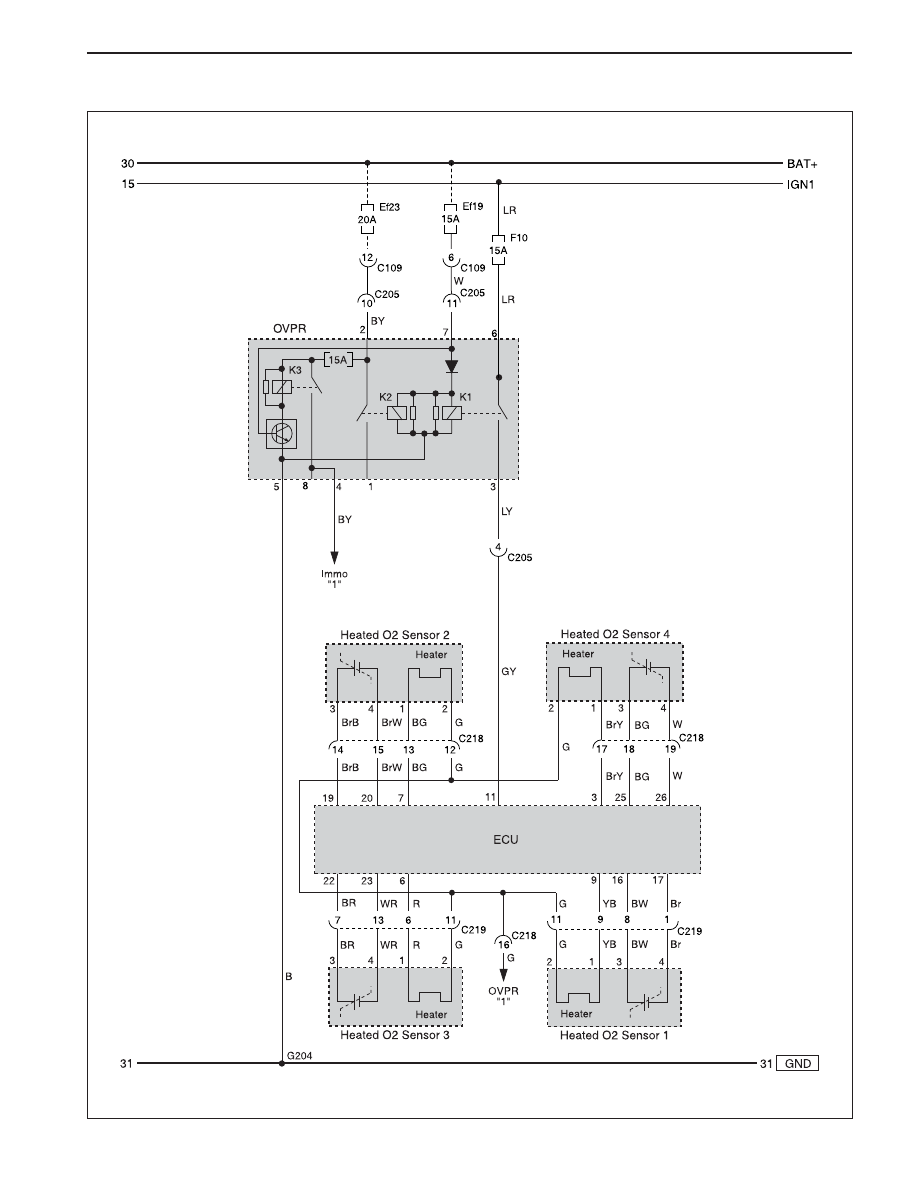

(4) O

2

SENSOR

SSANGYONG  REXTON XDi(RHD)

5-38  ELECTRICAL WIRING DIAGRAMS

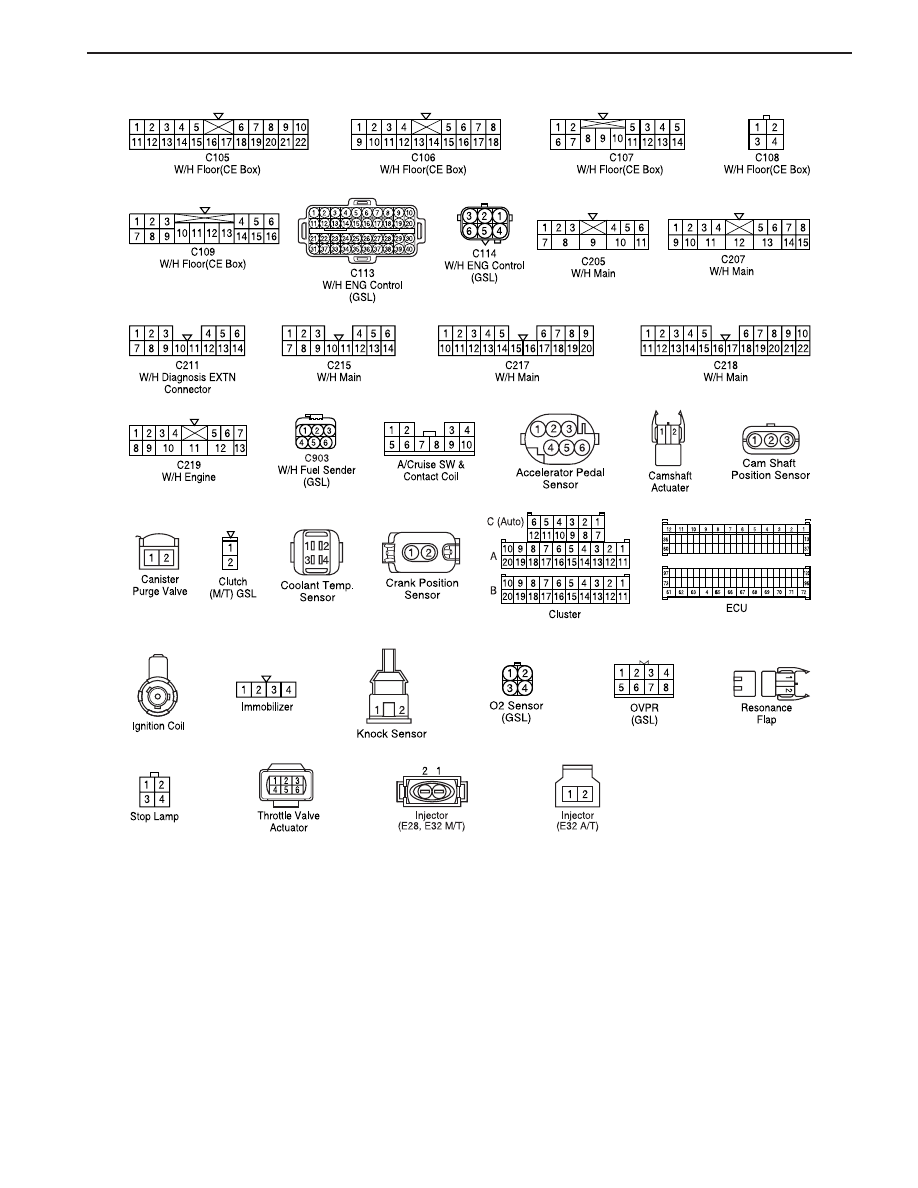

A. CONNECTOR INFORMATION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(E) - Engine

Engine Room Fuse Box(F) - Engine

Engine Room Fuse Box(J) - Engine

Engine Room Fuse Box(K) - Engine

Engine Room Fuse Box(M) - Engine

Engine - Engine Control

Engine - Engine Control

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(LH)

Main - Diagnosis Connector

Engine - Main(RH)

Engine - Main(RH)

Main - Floor(RH)

Engine - Main(RH)

Floor - Fuel Sender

W/H Main

W/H Main

W/H Main

W/H Floor

W/H Main

W/H Main

W/H Main

W/H Floor

C105(22Pin, White)

C106(18Pin, White)

C107(14Pin, White)

C108(4Pin, Colorless)

C109(16Pin, White)

C113(40Pin, Black)

C114(6Pin, Black)

C204(20Pin, Black)

C205(11Pin, White)

C207(15Pin, Blue)

C211(14Pin, White)

C215(14Pin, White)

C217(20Pin, Black)

C218(22Pin, Yellow)

C219(13Pin, Green)

C903(6Pin, Black)

S201(14Pin, Black)

S204(14Pin, Black)

S206(14Pin, Black)

S301(8Pin, Black)

G201

G204

G205

G301

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Right Engine Room Dash PNL

Right Engine Room Dash PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Upper the Diagnosis

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Sied Cowl PNL

Left the T/C(Under the Floor)

Upper the I/P Relay Box

Behind the Left FATC

Behind the Left the FATC

Under Driver Seat

Inside Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Under Co-Driver Dash PNL

Under Co-Driver Seat

GSL

GSL

A/T

ABS, ABD

GSL

GND

GND

CAN(GSL)

DSL

ECU GND

Remark

Connector Position

ELECTRICAL WIRING DIAGRAMS  5-39

SSANGYONG  REXTON XDi(RHD)

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
