SsangYong Rexton. Service manual - part 182
SSANGYONG REXTON XDi(RHD)

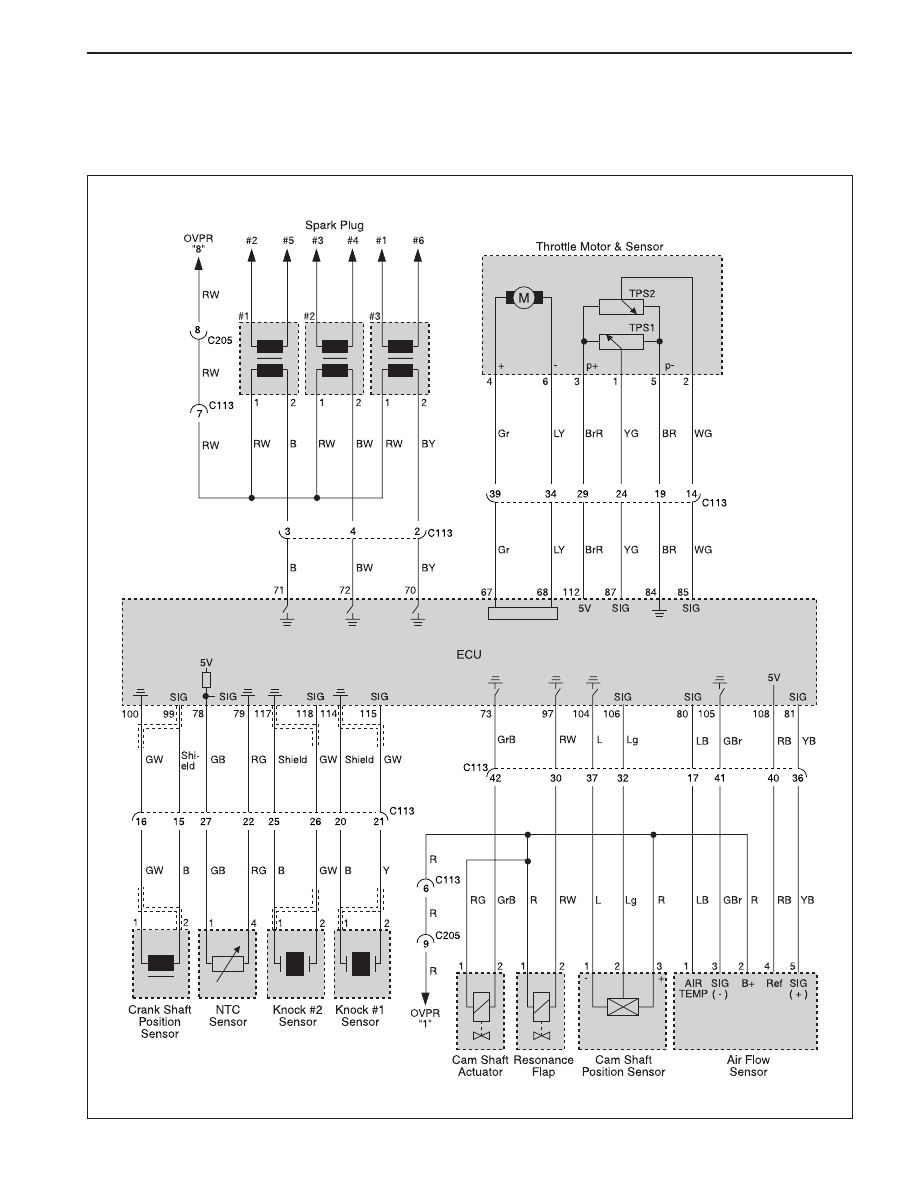

5-32 ELECTRICAL WIRING DIAGRAMS

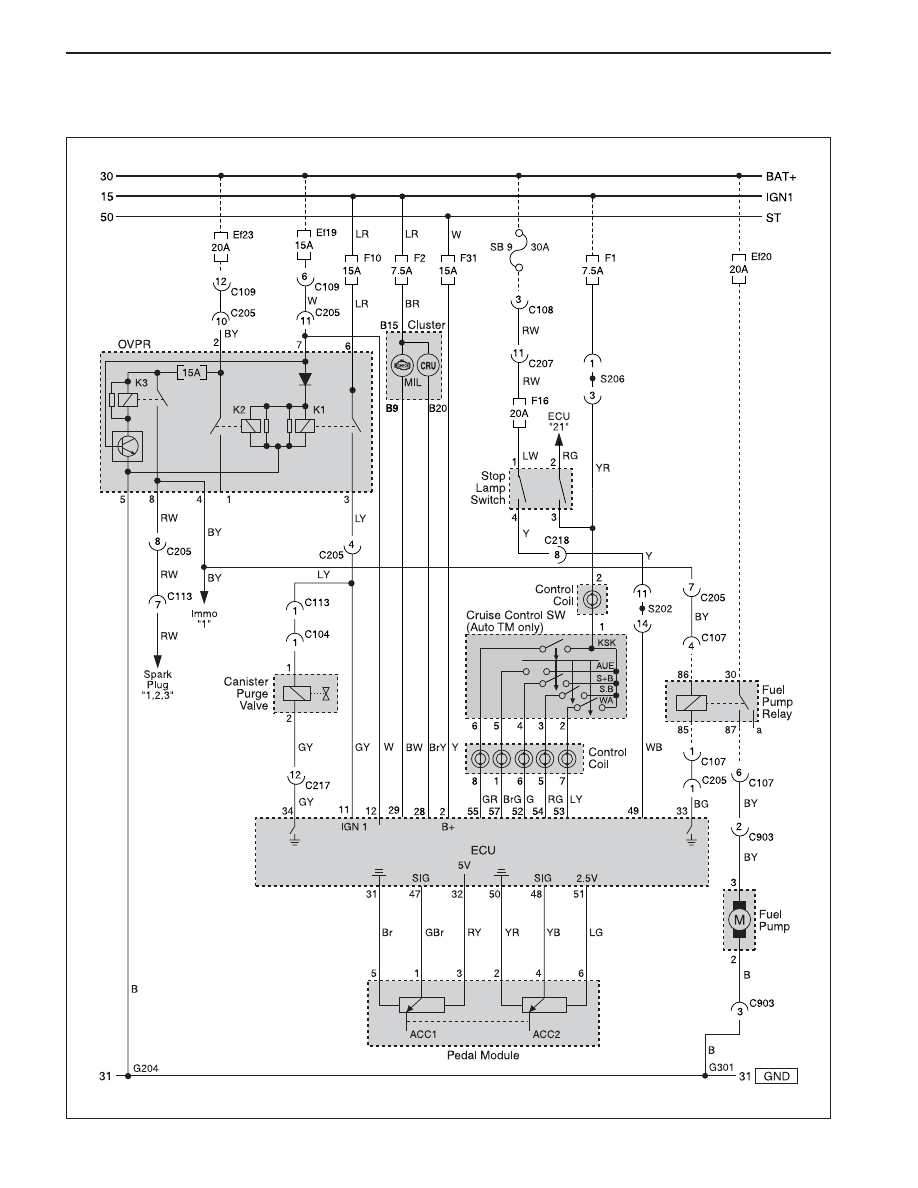

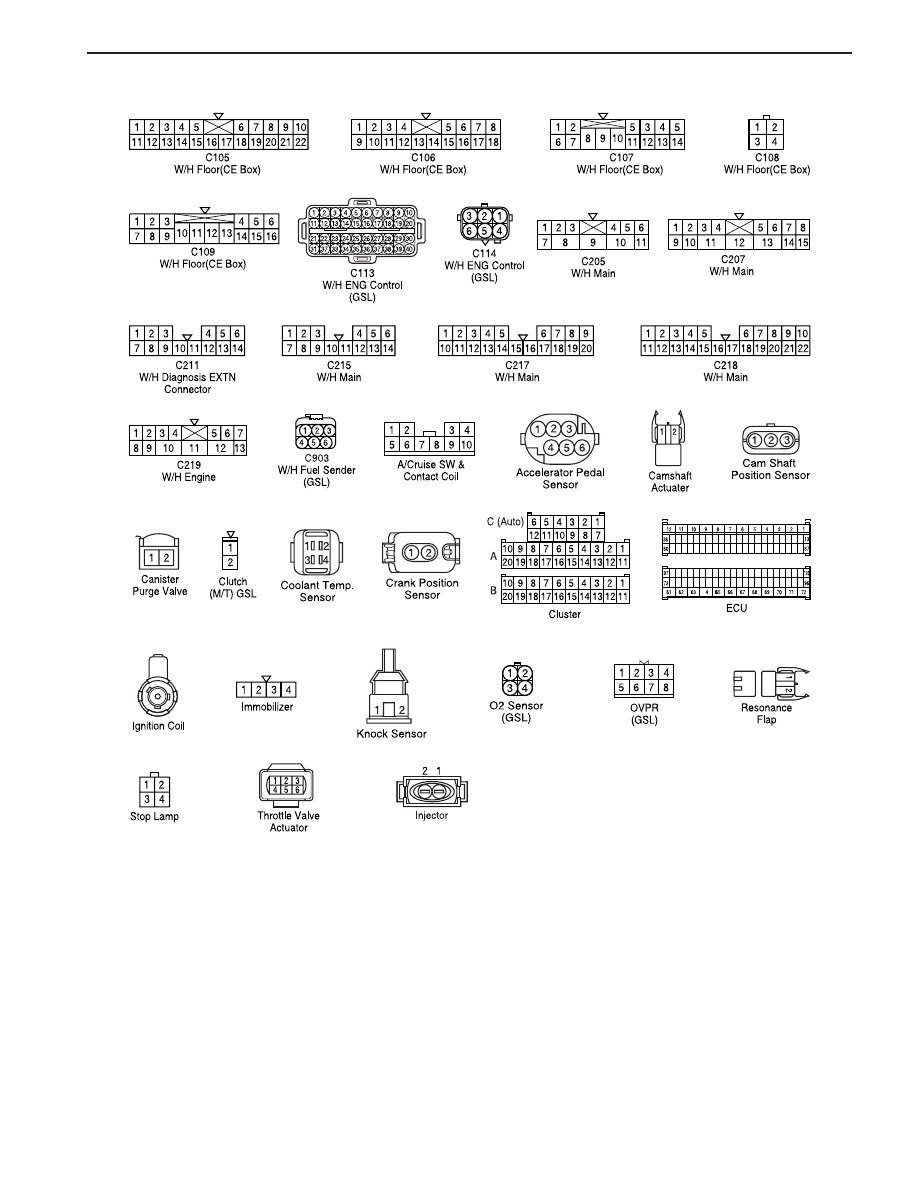

A. CONNECTOR INFORMATION
Connector Number
(Pin Number, Color)
Engine Room Fuse Box(E) - Engine
Engine Room Fuse Box(F) - Engine
Engine Room Fuse Box(J) - Engine
Engine Room Fuse Box(K) - Engine
Engine Room Fuse Box(M) - Engine
Engine - Engine Control
Engine - Engine Control
Main - Floor(LH)
Main - Floor(LH)
Main - Floor(LH)
Main - Diagnosis Connector
Engine - Main(RH)
Engine - Main(RH)
Main - Floor(RH)
Engine - Main(RH)
Floor - Fuel Sender
W/H Main
W/H Main
W/H Main
W/H Floor
W/H Main
W/H Main
W/H Main
W/H Floor
C105(22Pin, White)
C106(18Pin, White)
C107(14Pin, White)
C108(4Pin, Colorless)
C109(16Pin, White)
C113(40Pin, Black)
C114(6Pin, Black)
C204(20Pin, Black)
C205(11Pin, White)
C207(15Pin, Blue)
C211(14Pin, White)
C215(14Pin, White)
C217(20Pin, Black)
C218(22Pin, Yellow)
C219(13Pin, Green)
C903(6Pin, Black)
S201(14Pin, Black)
S204(14Pin, Black)
S206(14Pin, Black)
S301(8Pin, Black)
G201
G204
G205
G301
Connecting Wiring
Harness
Engine Room Fuse Box
Engine Room Fuse Box
Engine Room Fuse Box
Engine Room Fuse Box
Engine Room Fuse Box
Right Engine Room Dash PNL
Right Engine Room Dash PNL
Inside Co-Driver Side Cowl PNL
Inside Co-Driver Side Cowl PNL
Inside Co-Driver Side Cowl PNL
Upper the Diagnosis
Inside Driver Side Cowl PNL
Inside Driver Side Cowl PNL
Inside Driver Side Cowl PNL
Inside Driver Sied Cowl PNL
Left the T/C(Under the Floor)
Upper the I/P Relay Box
Behind the Left FATC
Behind the Left the FATC
Under Driver Seat
Inside Driver Side Cowl PNL
Inside Co-Driver Side Cowl PNL
Under Co-Driver Dash PNL
Under Co-Driver Seat
GSL
GSL
A/T
ABS, ABD
GSL
GND
GND
CAN(GSL)
GSL
ECU GND
Remark
Connector Position
