SSANGYONG  REXTON XDi(RHD)

5-28  ELECTRICAL WIRING DIAGRAMS

5. ECU(ELECTRONIC CONTROL UNIT)(E28, E32)

1) ~ 2002 MODEL

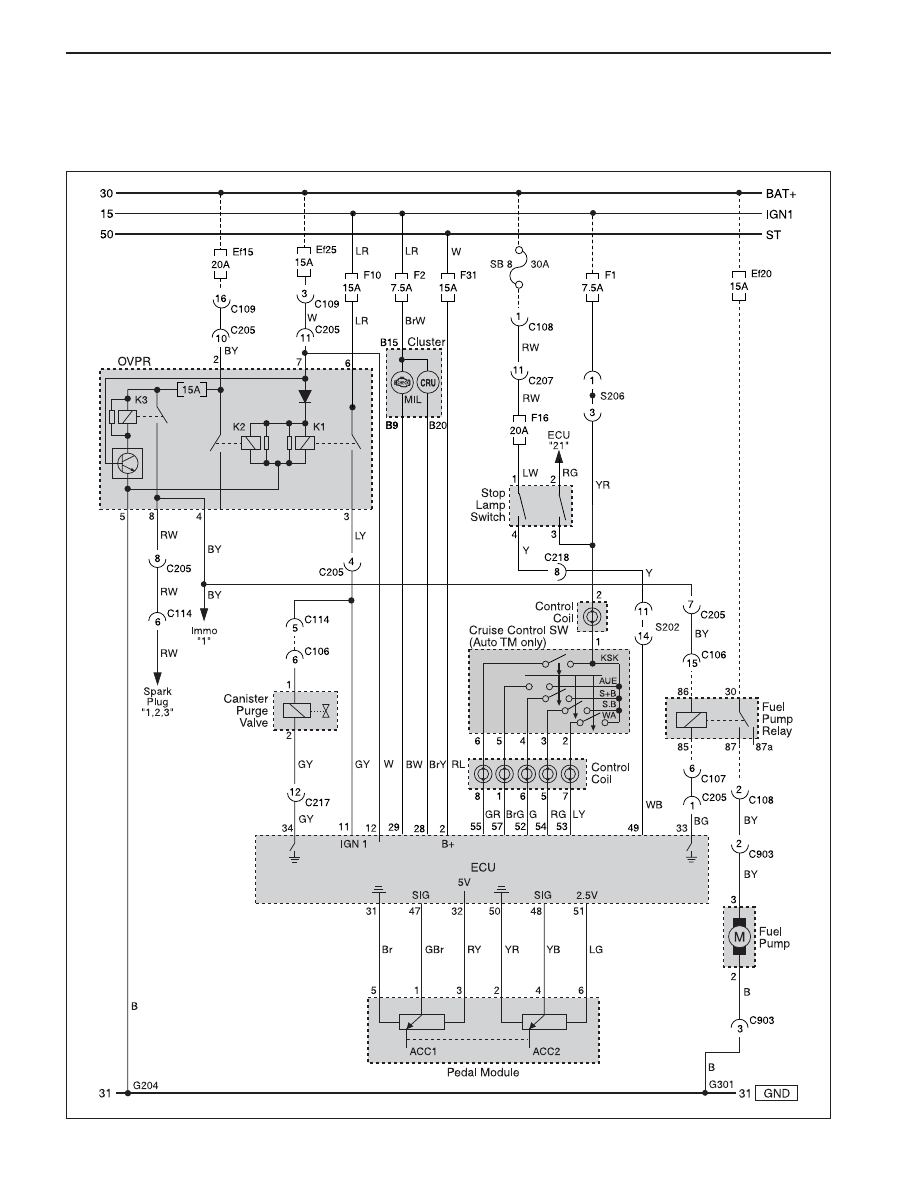

(1) OVPR, FUEL PUMP, CANISTER PURGE VALVE, PEDAL MODULE CIRCUIT

ELECTRICAL WIRING DIAGRAMS  5-29

SSANGYONG  REXTON XDi(RHD)

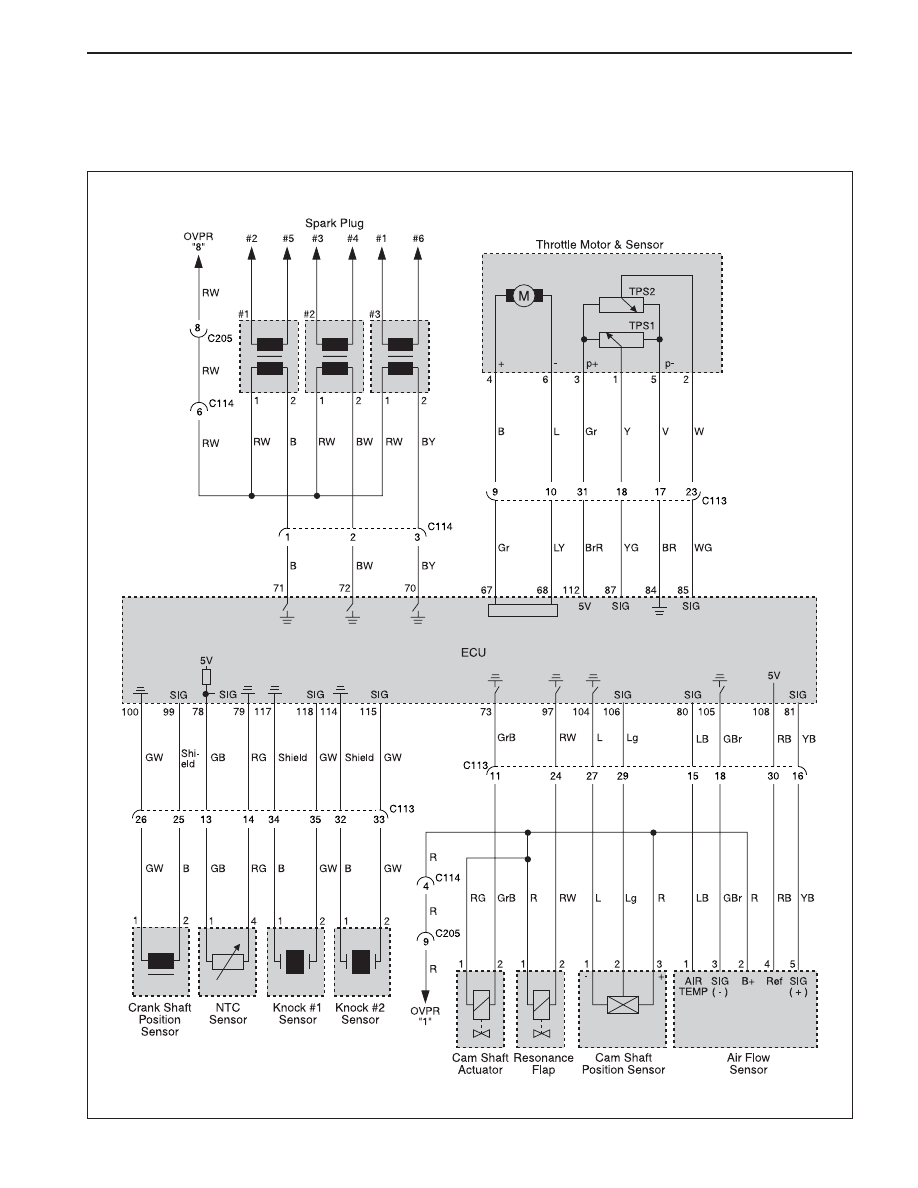

(2) SPARK PLUG, SENSOR(CAM SHAFT POSITION, NTC, CRANK SHAFT POSITION,

THROTTLE MOTOR & SENSOR, KNOCK), CAM SHIFT ACTUATOR, RESONANCE FLAP
CIRCUIT

SSANGYONG  REXTON XDi(RHD)

5-30  ELECTRICAL WIRING DIAGRAMS

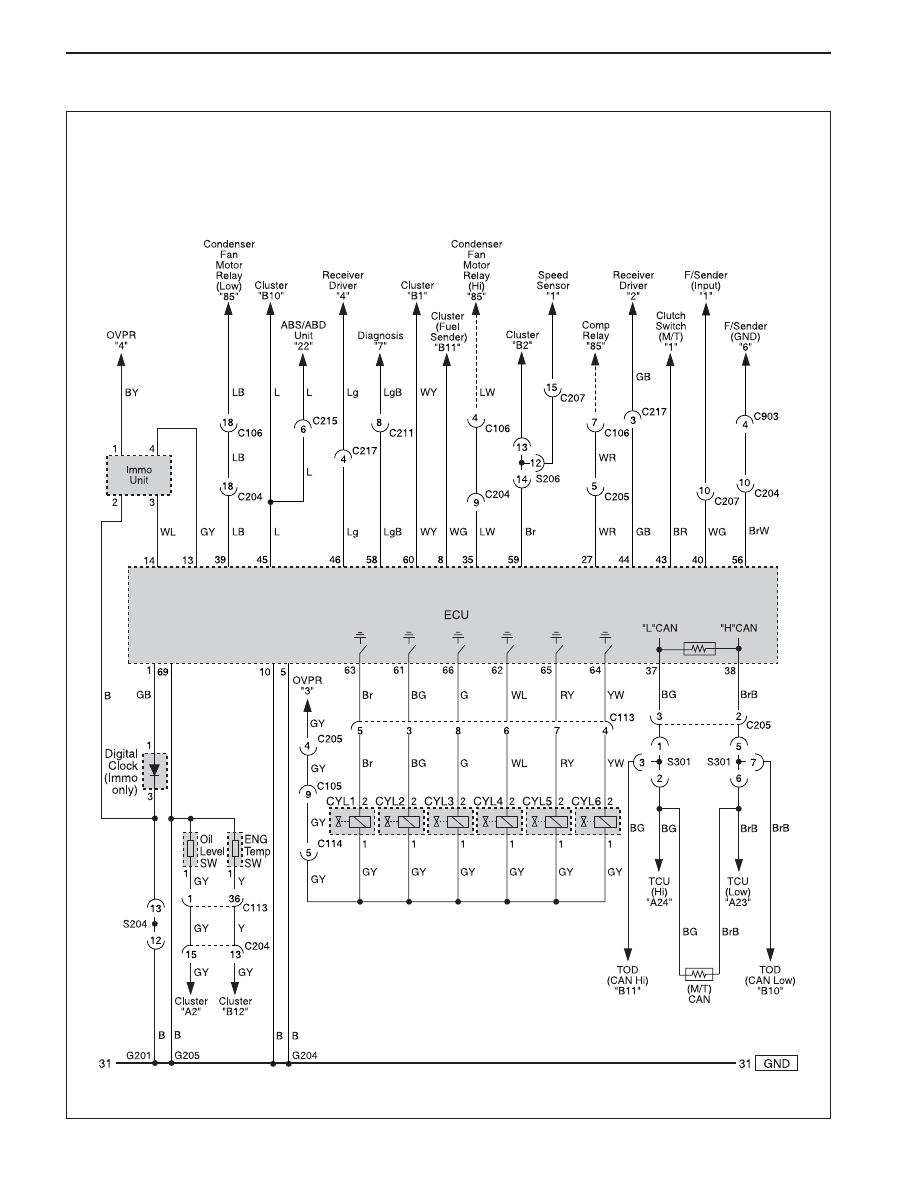

(3) DIGITAL CLOCK, ENG TEMP SENSOR, IMMOBILIZER CIRCUIT

ELECTRICAL WIRING DIAGRAMS  5-31

SSANGYONG  REXTON XDi(RHD)

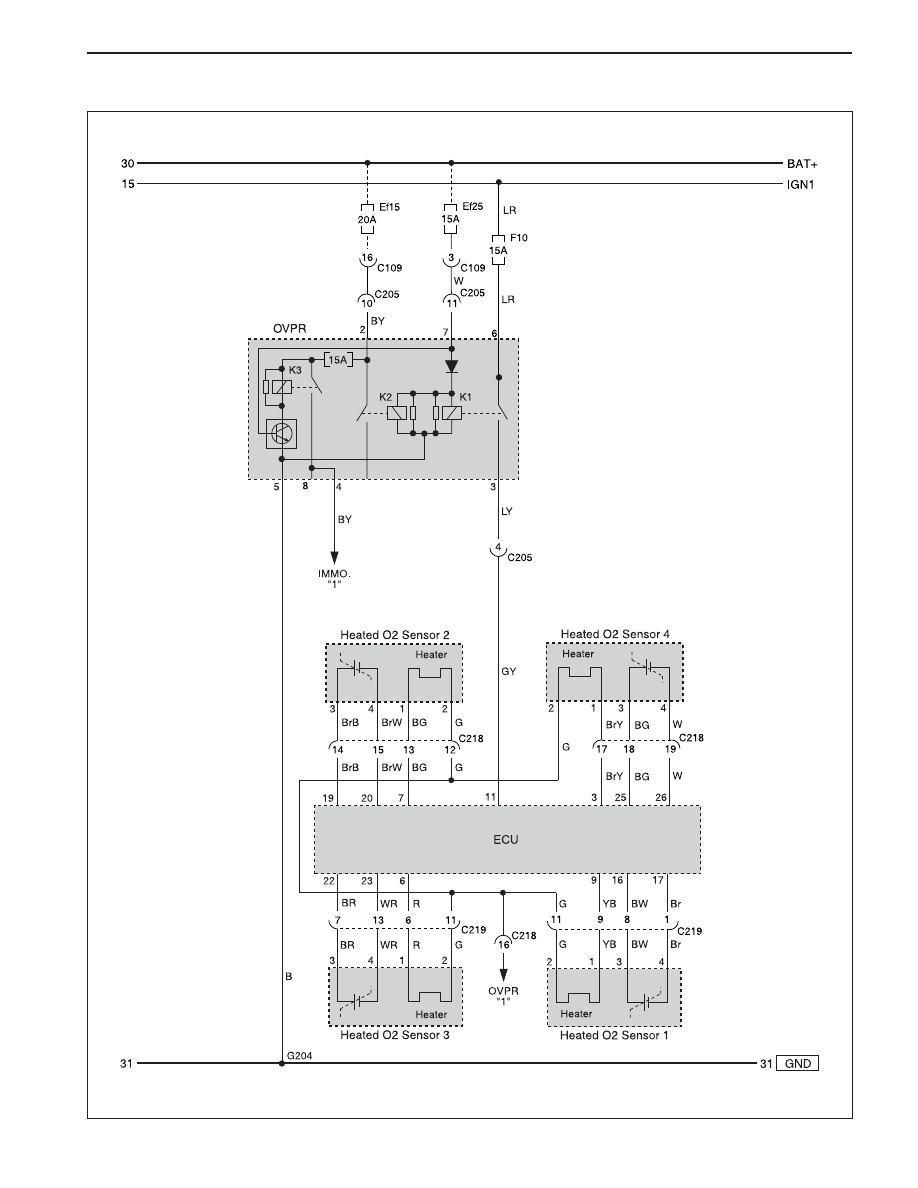

(4) O

2

SENSOR
