SSANGYONG  REXTON XDi(RHD)

5-40  ELECTRICAL WIRING DIAGRAMS

6. ECU(XDi)

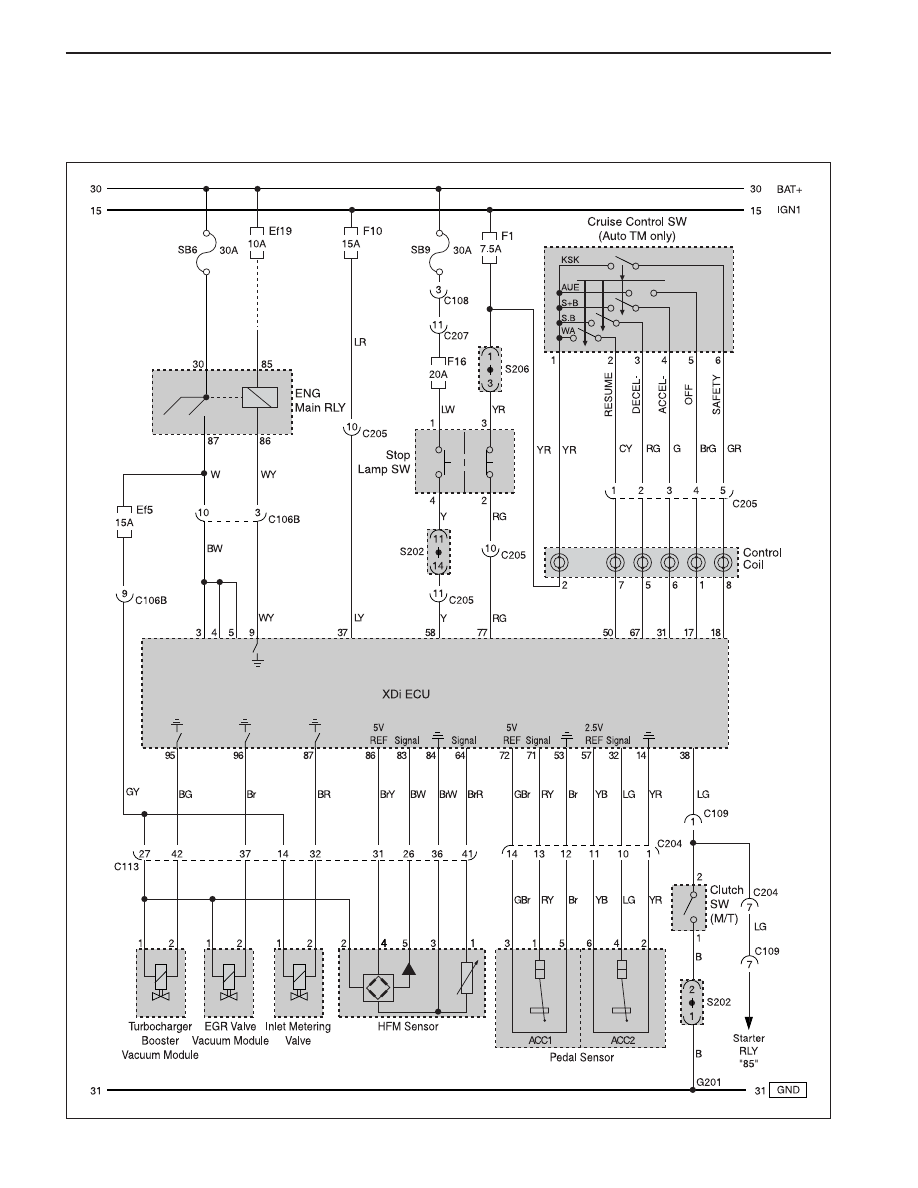

1) ENG MAIN RLY, PEDAL MODULE, HFM SENSOR, VALVE

(TURBO CHANGER BOOSTER, EGR VACUUM MODULE, INLETMETERING VALVE)

ELECTRICAL WIRING DIAGRAMS  5-41

SSANGYONG  REXTON XDi(RHD)

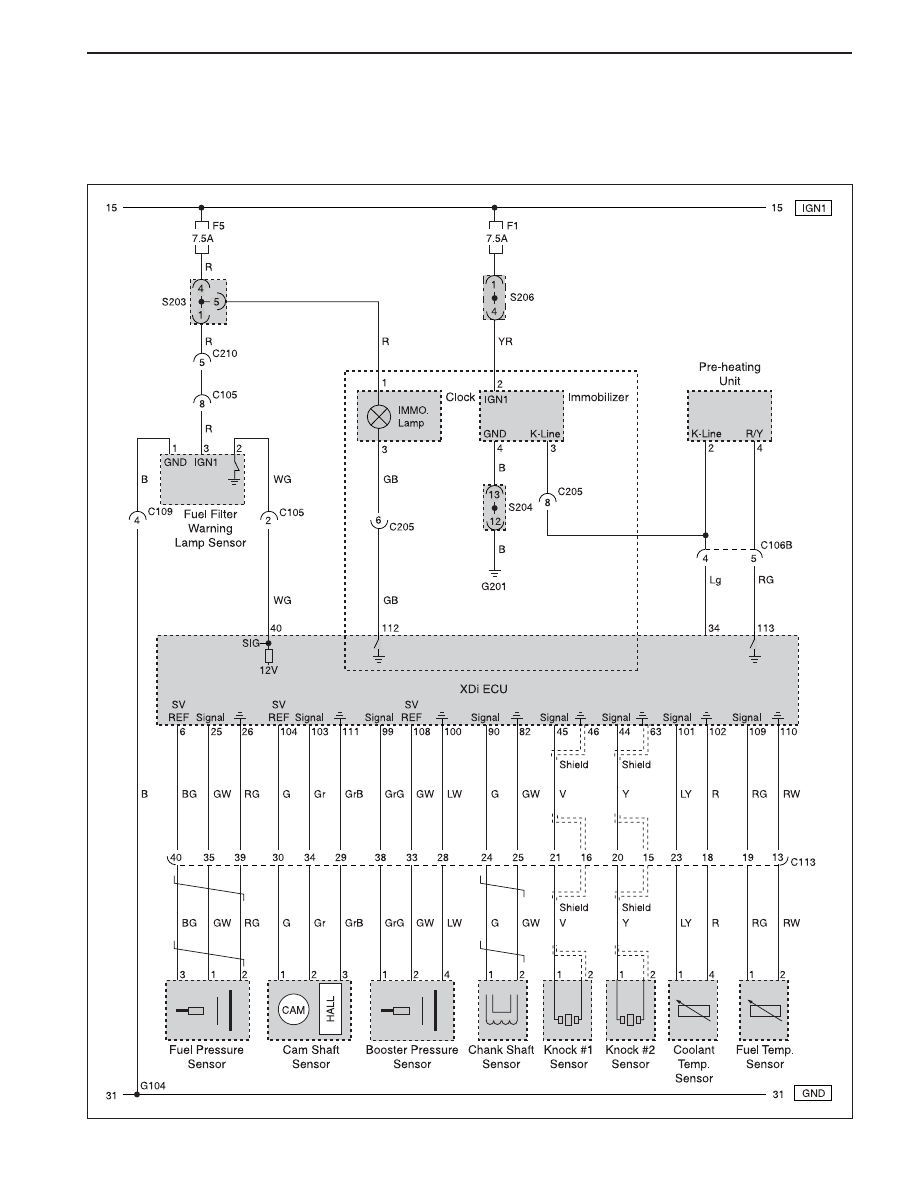

2) FUEL FILTER WARNING LAMP, IMMOBILIZER, SENSOR

(FUEL PRESSURE, CAM SHAFT, BOOSTER PRESSURE, CRANK SHAFT, KNOCK,
WATER PUMP, FUEL TEMP)

SSANGYONG  REXTON XDi(RHD)

5-42  ELECTRICAL WIRING DIAGRAMS

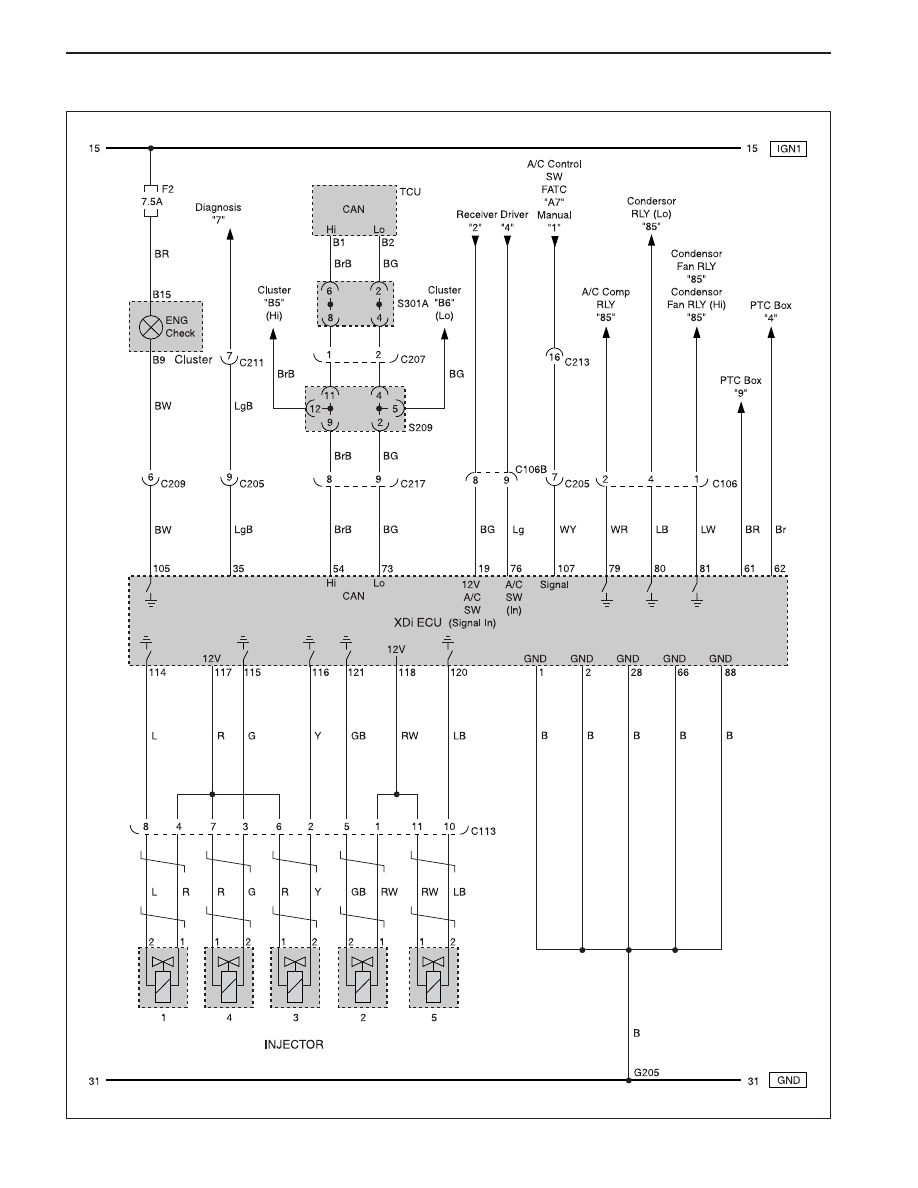

3) INJECTOR, CAN LINE

ELECTRICAL WIRING DIAGRAMS  5-43

SSANGYONG  REXTON XDi(RHD)

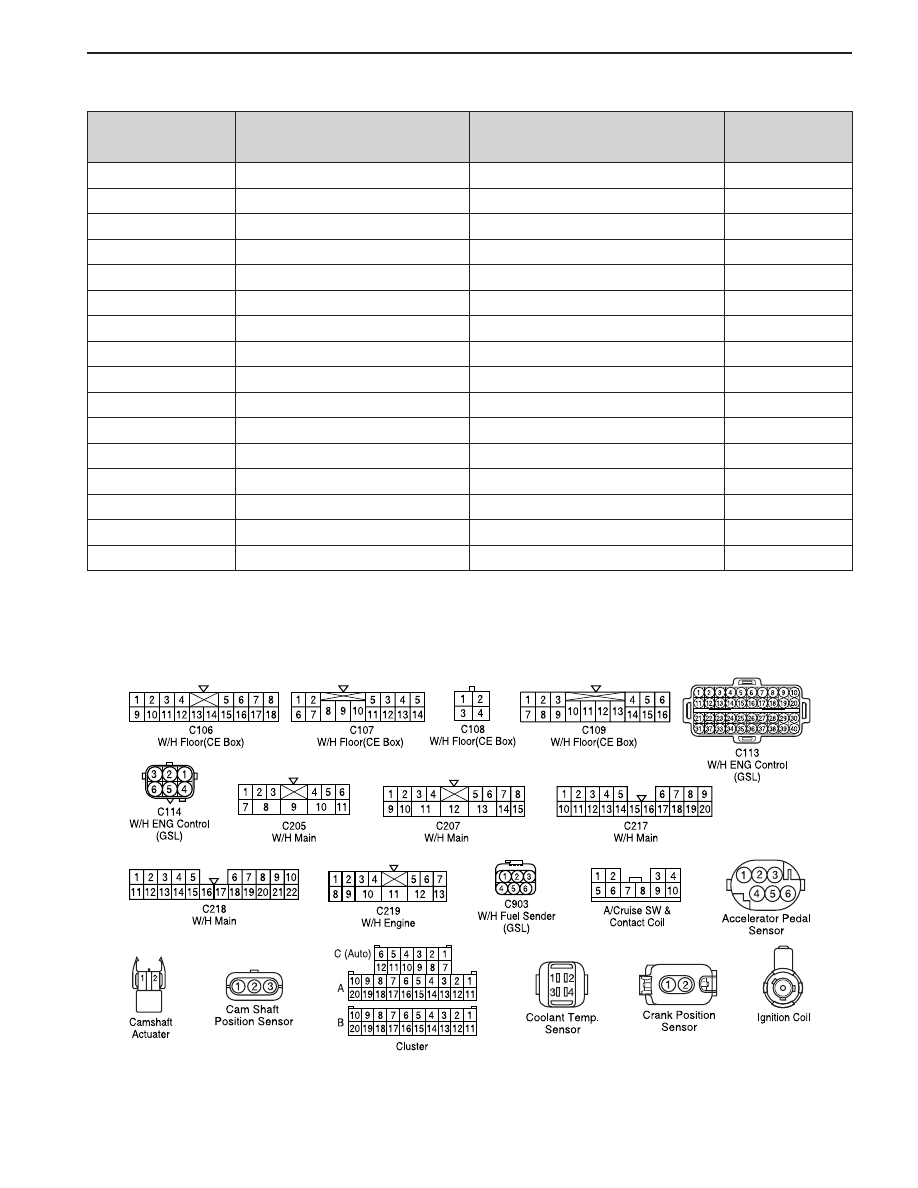

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(E) - Engine

Engine Control - Engine

Engine Room Fuse Box(M) - Engine

Engine - Engine Control

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(LH)

Main - Diagnosis Connector

W/H Main

W/H Floor

W/H Engine

W/H Engine

W/H Main

W/H Main

C105(22Pin, White)

C106B(11Pin, White)

C109(16Pin, White)

C113(40Pin, Black)

C204(20Pin, Black)

C205(11Pin, White)

C207(15Pin, Blue)

C209(22Pin, Yellow)

C210(13Pin, Green)

C211(14Pin, White)

S204(14Pin, Black)

S301A(8Pin, Black)

G104

G106

G201

G205

Connecting Wiring

Harness

Engine Room Fuse Box

Under the Engine Room Fuse Box

Engine Room Fuse Box

Right Engine Room Dash PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Upper the Diagnosis

Behind the Left FATC

Under Driver Seat

Beside the Engine Mounting Bracket

Beside the Engine Coolant Reserve Tank

Inside Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

XDi

GSL

A/T

GND

XDi

ABS, ABD

GSL

Remark

Connector Position
