Peugeot 3008 (2017 year). Manual

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Choice of language

This menu allows selection of the language
used by the screen and the instrument" panel.

Display configuration

This menu gives access to the following
settings:
-

"Choice of units",

"Date and time adjustment",

"Display parameters",

- "Brightness".

Adjusting the date and time
F Press the "7" or "8" button to display

the "Display configuration" menu, then
press "OK".

F Press the "5" or "6" button to select the

"Date and time adjustment" button, then
press "OK".

F Press the "7" or "8" button to select

the setting to modify. Confirm by
pressing "OK", then modify the setting and
confirm again to save the modification.

F Adjust the settings one by one, confirming

with the "OK" button.

F Press the "5" or "6" button, then the

"OK" button to select the "OK" box and
confirm or the "Back" button to cancel.

As a safety measure, the driver must
only carry out operations that require
sustained attention when stationary.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Touch screen

This system gives access to:
-

the permanent display of the time and
the ambient temperature (a blue symbol
appears when there is a risk of ice),

the heating/air conditioning controls,

menus for adjusting settings for vehicle
functions and systems,

audio system and telephone controls and
the display of associated information,

the display of visual parking aids (visual
parking sensor information, Park Assist, ...),

Internet services, and the display of
associated information.

General operation

and, depending on equipment, allows:
-

access to the navigation system controls
and the display of associated information.

As a safety measure, the driver
should only carry out operations
that require close attention with the
vehicle stationary.
Some functions are not accessible
when driving.

Recommendations

This screen is of the capacitive type.
Use is possible in all temperatures.
Do not use pointed objects on the touch
screen.
Do not touch the touch screen with wet hands.
Uses a soft clean cloth to clean the touch
screen.

Principles

Use the buttons below the touch screen for
access to the menus, then press the virtual
buttons in the touch screen.
Certain menus may be displayed over two
pages. Press the "OPTIONS" button to go to
the second page.
To deactivate or activate a function,
select "OFF" or "ON".
To modify a setting or access additional
information, press the symbol for the function.

Use this button to confirm.

Use this button to return to the
previous page.

After a few moments with no action
on the second page, the first page is
displayed automatically.

For the audio and telematic systems,
refer to the supplement to the handbook
or go to the following internet address:
http://public.servicebox.peugeot.com/ddb/

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Air conditioning.
Allows control of the settings for
temperature, air flow...

Connected navigation or Mirror
Screen*.
See more information in "Audio
equipment and telematics".

Menus

i-Cockpit Amplify function.
Allows a vehicle ambience to be
personalised.

Radio Media.
See more information in "Audio
equipment and telematics".

Driving.
Allows the activation, deactivation and
adjustment of settings for certain functions.

Telephone.
See more in "Audio equipment and
telematics".

Applications.
Allows direct access to certain
i-Cockpit Amplify functions
(scented air freshener...).

Volume / mute.
See more in "Audio equipment and
telematics".

* Depending on equipment.

Upper bar

Certain information is always displayed in the
upper bar of the touch screen:
-

Repeat of the air conditioning information,
and direct access to the corresponding
menu.

Repeat of information from the Radio
Media, Telephone menus and navigation
instructions*.

Access to Configuration of the touch
screen and the digital instrument panel.

For more information on the i-Cockpit Amplify
function, refer to the corresponding section.

For more information on Semi-automatic
mono-zone air conditioning and Automatic
dual-zone air conditioning, refer to the
corresponding sections.

The functions accessible from this menu are
arranged under two tabs: "Settings" and
"Driving assistance".

For more information on the Scented air
freshener, refer to the corresponding section.
See more information in "Audio equipment and
telematics".

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Driving menu

"Settings" tab

Button

Comments

"Lighting"

"Directional headlamps": activation/deactivation of cornering lighting.

"LED daytime running lamps" (depending on the country of sale).

"Vehicle access"

"Driver plip action": activation/deactivation of selective unlocking of the driver's door.

"Unlock boot only": activation/deactivation of selective unlocking at the tailgate.

"Motorized tailgate": activation/deactivation of motorized operation of the tailgate.

"Hands-Free Tailgate Access": activation/deactivation of the hands-free tailgate access system.

"Comfort"

"Rear wiper in reverse": activation/deactivation of the rear wiper coupled with reverse gear.

"Guide-me-home lighting": activation/deactivation of automatic guide-me-home lighting.

"Welcome lighting": activation/deactivation of exterior welcome lighting.

"Mood lighting": activation/deactivation of mood lighting and adjustment of brightness.

"Auto mirror dipping in reverse": activation/deactivation of automatic dipping of door mirrors in reverse gear.

"Safety"

"Collision risk alert and automatic braking": activation/deactivation of collision risk alert and automatic emergency
braking.

"Recommended speed display": activation/deactivation of speed limit recognition.

"Fatigue Detection System": activation/deactivation of the driver fatigue detection system.

For more information on one of these functions, refer to the corresponding section.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

"Driving assistance" tab

Corresponding function

"Comments"

"Speed settings"

Memorisation of speed settings for the speed limiter or cruise control.

"Under-inflation initialization"

Reinitialization of the under-inflation detection system.

"Lane departure detection assistance."

Activation/deactivation of the function.

"Help staying in lane"

Activation/deactivation of the function.

Parking sensors

Activation/deactivation of the function.

"Park Assist"

Activation/deactivation of the function.

"Automatic headlamp dip"

Activation/deactivation of the function.

"Stop & Start"

Activation/deactivation of the function.

"Blind spot monitoring"

Activation/deactivation of the function.

"Panoramic visual aid"

Activation of the Visiopark 2 function.

"Wheel anti-slip regulation"

Activation/deactivation of the function

For more information on one of these functions, refer to the corresponding section.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Configuration

The functions available through this menu are detailed in the table below.

Button

Comments

Turn off the screen (black screen).
To return to the current screen, press the black screen or one of the menu buttons.

Adjustment of the brightness of the instrument panel mood lighting.

Choice and settings for three user profiles.

Settings for the touch screen and the digital instrument panel...

Activation and adjustment of Wi-Fi settings.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Button

Corresponding function

Comments

Screen configuration

Adjustment of the display settings (scrolling of text, animations...) and brightness.

Instrument panel perso

Select the type of information displayed in the digital instrument panel.

System configuration

Choice of units:
-

temperature (°Celsius or °Fahrenheit)

distance and fuel consumption (l/100 km, mpg or km/l).

Languages

Choice of language used for the touch screen and the digital instrument panel.

Time / Date

Setting the time, date and format.
Option of synchronisation with GPS.

Settings

The settings possible for the touch screen and the digital instrument panel are presented in the table below.

Access

3008-2_en_Chap02_ouvertures_ed01-2016

Remote control

The remote control can be used for the
following functions, depending on version:
-

unlocking / locking / deadlocking the
vehicle,

unlocking and opening the boot,

switch on the lighting from a distance,

folding / unfolding the door mirrors,

activation / deactivation of the alarm,

opening the windows,

closing the windows and the opening roof,

locating the vehicle,

vehicle immobiliser.

In normal operating conditions, it is preferable
to use the remote control.

General points

The key, integral with the remote control, can
be used for the following functions, depending
on version:
-

unlocking / locking / deadlocking the
vehicle,

turning the child lock on or off,

activation / deactivation of the passenger's
front airbag,

back-up door locking,

switching on the ignition and starting /
stopping the engine.

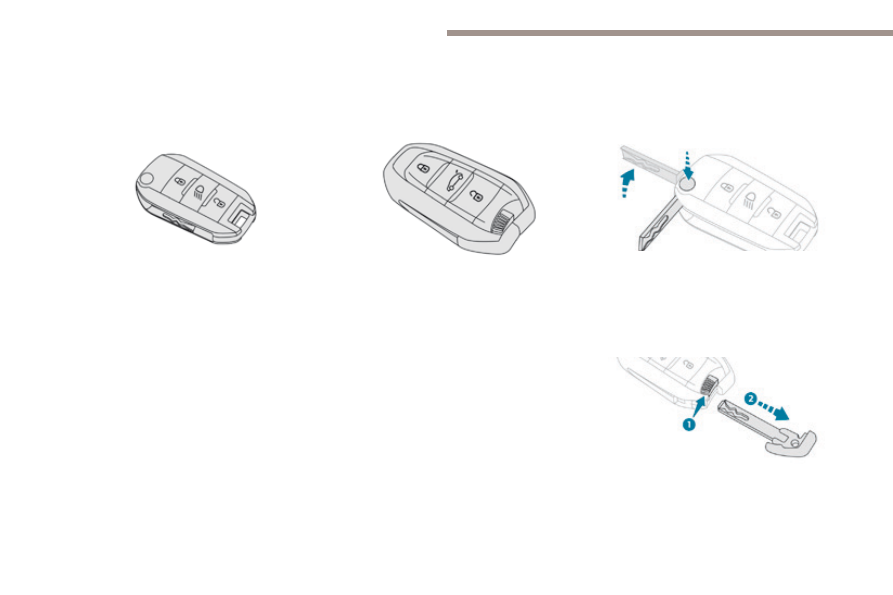

Ejecting the key

Version with Keyless Entry and Starting
F Pull on this button to remove the key from

the housing.

To return it to the housing, first pull on this
button.

Version without Keyless Entry and Starting
F Press this button; the key is ejected from its

housing.

To avoid damaging the mechanism, first press
this button to fold it.

Back-up procedures allow the vehicle to be
locked or unlocked in the event of a failure
of the remote control, the central locking,
the battery...
For more information on the Back-up
procedures, refer to the corresponding
section.

Access

3008-2_en_Chap02_ouvertures_ed01-2016

F Press this button.

Total unlocking

Unlocking the vehicle

Selective unlocking of the
driver's door

Setting is via the vehicle configuration menu in
the screen.

F To unlock just the driver's door,

make a first press on this button.

F To unlock the other doors and

the boot, press this button again.

On the first press of the locking button, flashing
of the direction indicators for a few seconds
signals:
-

total or selective unlocking of the vehicle
for versions without alarm,

deactivation of the alarm for other versions.

Depending on version, the door mirrors unfold.

Opening the windows

Locking the vehicle

Normal locking

F Press this button.

On pressing the locking button, illumination
of the direction indicators for a few seconds
signals:
-

locking of the vehicle for versions without
alarm,

activation of the alarm for other versions.

Depending on version, the door mirrors fold.

If one of the doors or the boot is not
fully closed, the locking does not take
place. However, if your vehicle has an
alarm, this will be totally activated after
about 45 seconds.
If the vehicle is unlocked inadvertently
and there is then no action on the doors
or boot, the vehicle will automatically
lock itself again after about 30 seconds.
If the alarm had been previously
activated, it will be reactivated
automatically.

The folding and unfolding of the door
mirrors with the remote control can be
deactivated by a PEUGEOT dealer or a
qualified workshop.

Depending on version, pressing and
holding the unlocking buttons opens
the windows to the desired position.

The windows stop when you release the button.

Access

3008-2_en_Chap02_ouvertures_ed01-2016

Deadlocking

F Make a first press on this button.
F Within five seconds, press this

button again to deadlock the
vehicle.

Deadlocking renders the interior door
controls inoperative.
It also deactivates the interior central
locking button on the dashboard.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.

Locating your vehicle

F Press this button.

This will switch on the courtesy lamps and door
mirror spot lamps and the direction indicators
will flash for around ten seconds.

This function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must be locked.

For versions without alarm, deadlocking is
confirmed by illumination of the direction
indicators for few seconds on the second press
of the locking button.

Closing the windows and sunroof

Pressing and holding the locking
button closes the windows and,
depending on version, the sunroof to
the desired position.

When closing the windows and sunroof
you must ensure that nothing prevents
their correct closing.
If, on versions with alarm, you want to
leave the windows and/or sunroof partly
open, you must first deactivate the
volumetric alarm protection.
For more information on the Alarm,
refer to the corresponding section.

This operation also starts closing of the blind.

Access

3008-2_en_Chap02_ouvertures_ed01-2016

If selective unlocking of the boot is
deactivated, pressing the unlocking
button unlocks the whole vehicle.

Remote operation of
exterior lighting

Availability of this function depends on version.

F Make a short press on this

remote control button.

Pressing again before the end of the timed
period switches off the lighting immediately.

Unlocking and opening the
boot

Selective unlocking of the boot

F Make a long press on this button

to unlock the boot and start the
motorised opening of the tailgate.

The doors and fuel filler flap remain locked.

The sidelamps, dipped beam headlamps,
number plate lamps and door mirror spotlamps
come on for 30 seconds.

The setting for selective unlocking of the boot
is done in the vehicle configuration menu in the
screen.
By default, selective unlocking of the boot is
activated.

If motorised operation of the tailgate
is deactivated, pressing the unlocking
button releases the tailgate.
To lock the vehicle, it is necessary to
close the tailgate manually.

On pressing the boot unlocking button, flashing
of the direction indicators for a few seconds
signals:
-

total or selective unlocking of the vehicle
for versions without alarm,

deactivation of the alarm for other versions.

Depending on version, the door mirrors unfold.

The setting for motorised operation
of the tailgate is done in the
Driving menu of the touch screen.

By default, motorised operation is deactivated.

Access

3008-2_en_Chap02_ouvertures_ed01-2016

Keyless Entry and Starting

System that allows the unlocking, locking
and starting of the vehicle, while keeping the
electronic key on your person.

Unlocking the vehicle

Complete unlocking

The electronic key can also be used as
a remote control.
For more information on the operation
of the Remote control, refer to the
corresponding section.

F With the electronic key on your person and

in the recognition zone A, pass your hand
behind one of the front door handles or
press the tailgate opening control (located
in the middle).

If motorised operation of the tailgate is
activated, this action triggers its automatic
opening.

Opening the windows
Depending on version, keeping your hand
behind the door handle or pressing the tailgate
control allows the windows to be opened to the
desired position.

Flashing of the direction indicators for a few
seconds signals:
-

the unlocking of the vehicle for versions
without alarm,

the deactivation of the alarm for other
versions.

Depending on version, the door mirrors unfold.

Access

3008-2_en_Chap02_ouvertures_ed01-2016

Selective unlocking of the
driver's door

F To unlock only the driver's door, with the

electronic key on your person, pass your
hand behind the driver's door handle.

F To unlock the complete vehicle, pass your

hand behind the front passenger door
handle with the electronic key close to
the passenger door, or press the tailgate
opening control (located in the middle) with
the electronic key close to the rear of the
vehicle.

Activation or deactivation of the
selective unlocking of the driver's
door is done in the Driving menu of
the touch screen.

When unlocking the driver's door, flashing
of the direction indicators for a few seconds
signals:
-

the selective unlocking of the vehicle for
versions without alarm,

the deactivation of the alarm for other
versions.

Depending on version, the door mirrors unfold.

Selective unlocking of the boot

F Press the tailgate opening button to unlock

just the boot.

The doors remain locked.

If selective unlocking of the boot is
deactivated, pressing this control also
unlocks the door.

Activation or deactivation of selective
locking of the boot is done in the
Driving menu of the touch screen.

Access

3008-2_en_Chap02_ouvertures_ed01-2016

If one of the doors or the boot is still
open or if the electronic key for the
Keyless Entry and Starting system has
been left inside the vehicle, the central
locking does not take place.
However, the alarm (if fitted) will be fully
activated after about 45 seconds.

As a safety measure (children on
board), never leave the vehicle without
taking the electronic key for the Keyless
Entry and Starting system with you,
even for a short period.
Be aware of the risk of theft when the
electronic key for the Keyless Entry and
Starting system is in one of the defined
zones with the vehicle unlocked.

The automatic folding and unfolding
of the door mirrors can be deactivated
by a PEUGEOT dealer or a qualified
workshop.

In order to preserve the battery in the
electronic key and the vehicle's battery,
the "hands-free" functions are put into
long-term standby after 21 days without
use. To restore these functions, press
one of the remote control buttons or
start the engine with the electronic key
in the reader.
For more information on starting with
Keyless Entry and Starting, refer to
the corresponding section.

If the vehicle is unlocked by mistake
and with no action on the doors or boot,
the vehicle will lock again automatically
after about 30 seconds.
If fitted to your vehicle, the alarm will
also be reactivated automatically.

Access

3008-2_en_Chap02_ouvertures_ed01-2016

Ensure that nothing could prevent the
correct closing of the windows and
sunroof.
Be particularly aware of children when
operating the windows.

Illumination of the direction indicators for a few
seconds signals:
-

locking of the vehicle for versions without
alarm,

activation of the alarm for other versions.

Depending on version, the door mirrors fold.

For reasons of safety and theft protection,
do not leave your electronic key in the
vehicle, even when you are close to it.
It is recommended that you keep it on your
person.

Locking the vehicle

Normal locking

F With the electronic key in the recognition

zone A, press with a finger or thumb
on one of the front door handles (at the
markings) or press the locking button on
the tailgate (on the right).

It is not possible to lock the vehicle if one of the
electronic keys is left inside the vehicle.

Closing the windows and sunroof
Maintaining pressure on the door handle or
the tailgate control allows the windows and,
depending on version, the sunroof to be closed
to the desired position.
This operation also closes the sunroof blind.

Access

3008-2_en_Chap02_ouvertures_ed01-2016

Accumulations (water, dust, grime,
salt...) on the inner surface of the door
handle may affect detection.
If cleaning the inner surface of the door
handle using a cloth does not restore
detection, contact a PEUGEOT dealer
or a qualified workshop.
A sudden splash of water (stream of
water, high pressure jet washer, …)
may be identified by the system as the
desire to open the vehicle.

Deadlocking

F With the electronic key in the recognition

zone A, press a finger or thumb on one of
the front door handles (at the markings)
or on the locking control located on the
tailgate (to the right).

F Within five seconds, press one of these

locking controls again to deadlock the
vehicle.

At the first press on one of the locking controls,
illumination of the direction indicators for a few
seconds signals:
-

the locking of the vehicle for versions
without alarm,

the activation of the alarm for other
versions.

Depending on version, the door mirrors fold.
At the second press, illumination of the
direction indicators for a few seconds signals
the deadlocking of the vehicle for versions
without alarm.

Deadlocking renders the interior door
controls inoperative.
It also deactivates the interior central
control button on the dashboard.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.

Peugeot 3008 (2017 year). Manual - part 4
