Warning / indicator lamp

State

Cause

Action / Observations

SCR emissions
control system
(BlueHDi Diesel)

fixed, on switching on
the ignition, associated
with the Service and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message.

A fault with the SCR emissions
control system has been detected.

This alert disappears once the exhaust emissions
return to normal levels.

flashing, on switching on
the ignition, associated
with the Service and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message indicating the
remaining driving range.

After confirmation of the fault with the
emissions control system, you can
drive for up to 650 miles (1 100 km)
before the engine starting inhibition
system is triggered.

Contact a PEUGEOT dealer or a qualified
workshop without delay, to avoid a breakdown.

flashing, on switching on
the ignition, associated
with the Service and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message.

You have exceeded the authorised
driving limit following confirmation
of a fault with the emissions control
system: the engine starting inhibition
system prevents starting of the
engine.

To be able to start the engine, you must call on a
PEUGEOT dealer or a qualified workshop.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Coolant temperature gauge

You must stop as soon as it is safe to do so.
Wait a few minutes before switching off the
engine.

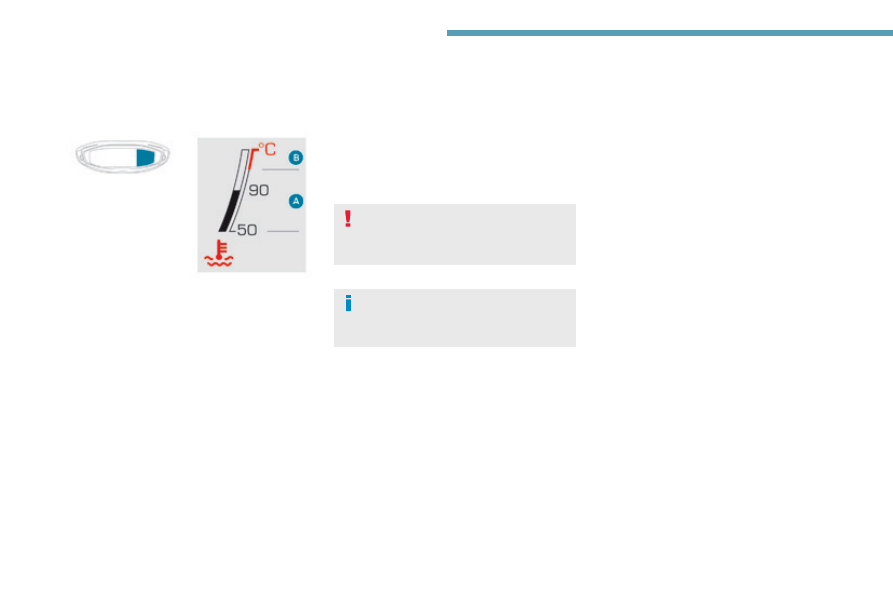

With the engine running:
-

in zone A, the temperature is correct,

in zone B, the temperature is too high;
this warning lamp and the central STOP
warning lamp come on, accompanied by
the display of a message and an audible
signal.

For more information on Checking
levels, refer to the corresponding
section.

Indicators

After first switching off the ignition,
open the bonnet cautiously and check
the coolant level.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

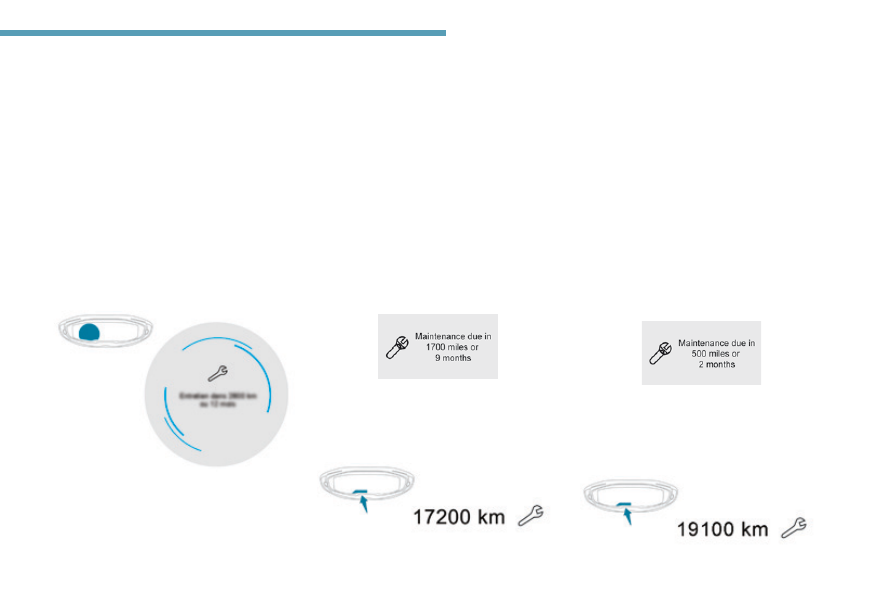

Service indicator

More than 1 800 miles (3 000 km)
remain before the next service is due

When the ignition is switched on, no service
information is displayed automatically in the
instrument panel.

Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain
before the next service is due

When the ignition is switched on, the system issues
an alert to indicate when the next service is due.
This alert comprises the temporary display of a
message in the instrument panel, accompanied
by the permanent display of the servicing spanner
alongside the total distance recorder.
Example: 1 700 miles (2 800 km) or 9 months
remain before the next service is due.

Less than 600 miles (1 000 km)
remain before the next service is due

When the ignition is switched on, the system
issues an alert to indicate that the next service
is due very soon.
This alert comprises the temporary display of a
message in the instrument panel, accompanied
by the flashing and then fixed display of the
servicing spanner alongside the total mileage
recorder.
Example: 560 miles (900 km) or 2 months
remain before the next service is due.

The servicing spanner remains on as a
reminder that a service is required soon.

The servicing spanner remains on as a
reminder that a service is required very soon.

System which informs the driver when the
next service is due, in accordance with the
manufacturer's service schedule.
The point at which the service is due is
calculated from the last reset of the service
indicator, according to the mileage covered and
the time elapsed since the last service.
For BlueHDi Diesel versions, depending on the
country of sale, the degree of deterioration of
the engine oil may also be taken into account.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Service overdue

When the ignition is switched on, the system
issues an alert to indicate that the next service
is overdue.
This alert comprises the temporary display of a
message in the instrument panel, accompanied
by the flashing and then fixed display of the
servicing spanner alongside the total mileage
recorder.

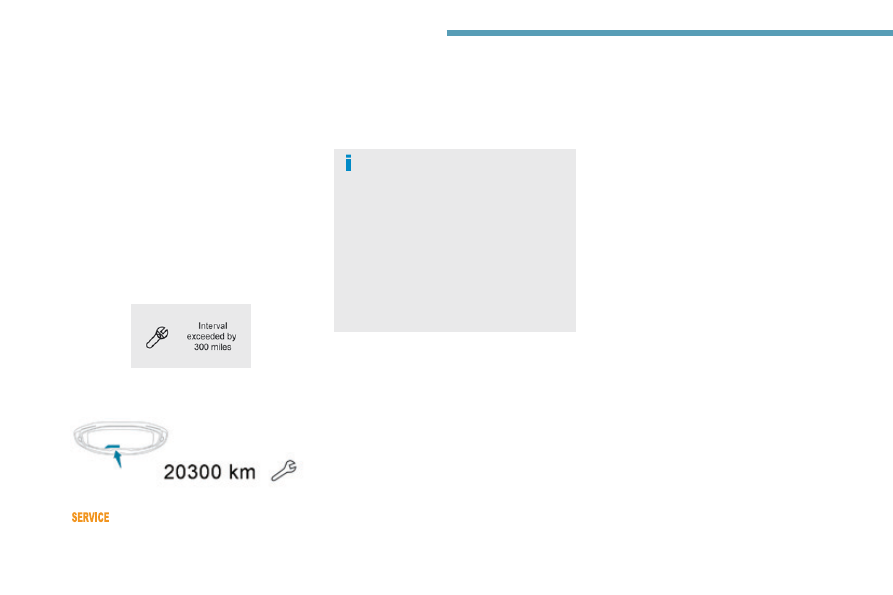

Example: the service is overdue by 186 miles
(300 km).

The servicing spanner remains on until the
service has been carried out.

With BlueHDi Diesel versions, when
the ignition is switched on, this alert
is completed by the fixed illumination
of this warning lamp.

The alert may be triggered if you
have exceeded the period since
the last service, as indicated in the
manufacturer's service schedule.
For BlueHDi Diesel versions, the alert
may also be triggered early, depending
on the degree of deterioration of the
engine oil, which depends on the driving
conditions in which the vehicle is used.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

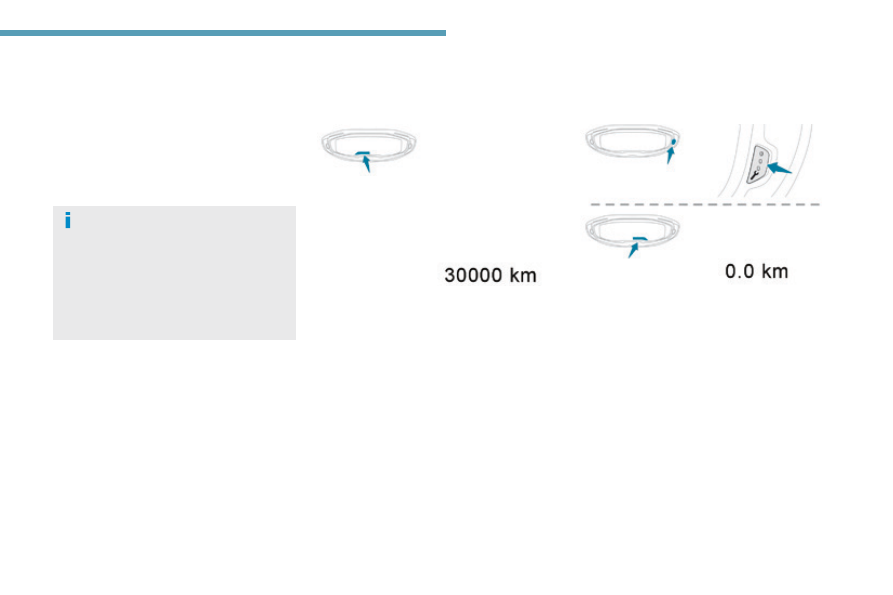

Resetting the service indicator

If you have to disconnect the battery
following this operation, lock the vehicle
and wait at least 5 minutes for the reset
to be registered.

After each service, the service indicator must
be reset to zero.
If you have carried out the service on your
vehicle yourself:

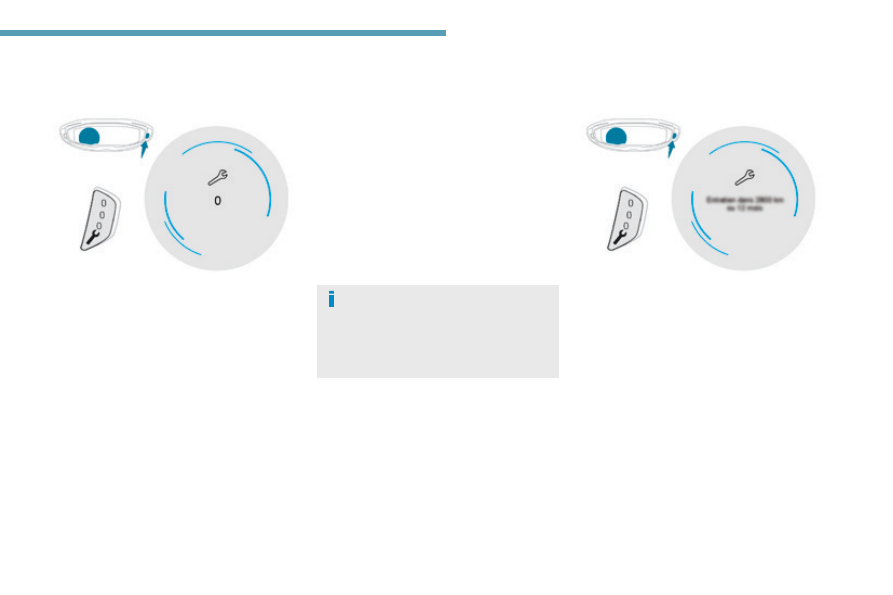

F switch off the ignition,
F press and hold the trip distance recorder

reset button,

F switch on the ignition; the distance recorder

display begins a countdown,

F when the display indicates "=0", release

the button; the spanner disappears.

Retrieving the service
information

You can access the service information at any
time.

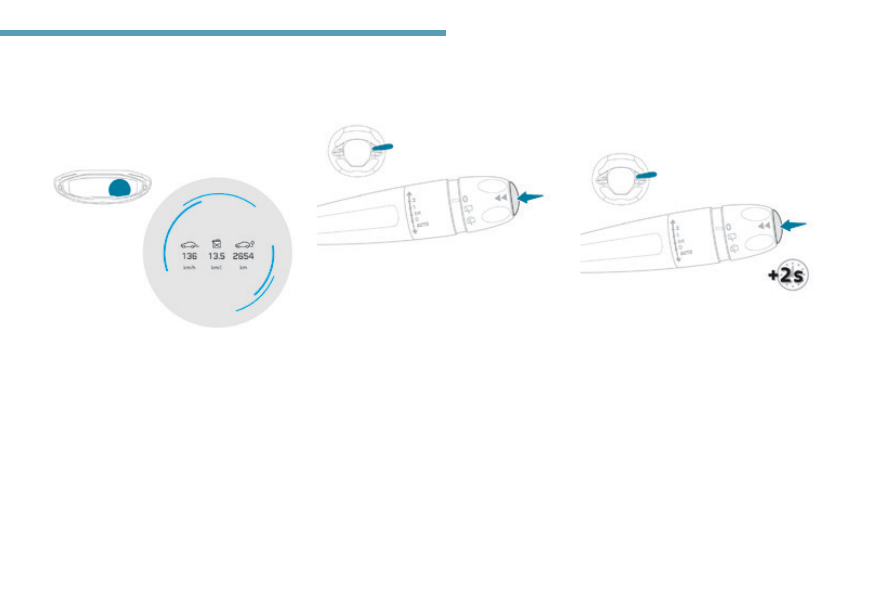

F Press the trip distance recorder reset

button.

The service information is displayed for a
few seconds, then disappears.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Engine oil level indicator*

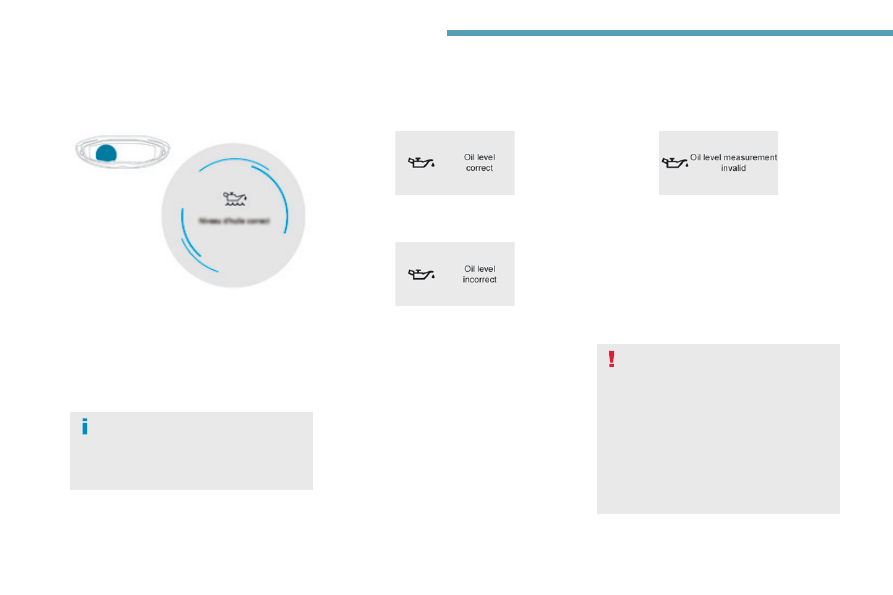

Oil level correct

This is indicated by the display of the message
"Oil level incorrect" in the instrument panel
screen, accompanied by the service warning
lamp and an audible signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
For more information on Checking levels,
refer to the corresponding section.

Oil level indicator fault

In the event of a fault with the electric
indicator, the oil level is no longer
monitored.
If the system is faulty, you must check
the engine oil level using the manual
dipstick located under the bonnet.
For more information on Checking
levels, refer to the corresponding
section.

Oil level incorrect

This is signalled by the display of the message
"Oil level measurement invalid" in the
instrument panel.
Contact a PEUGEOT dealer or a qualified
workshop.

On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds, after the servicing information.

* Depending on version.

The level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30 minutes.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

AdBlue

range indicators

These range indicators are present only on
BlueHDi Diesel versions.
Once the AdBlue

tank is on reserve or after

detection of a fault with the SCR emissions
control system, when the ignition is switched
on, an indicator displays an estimate of the
distance that can be covered, the range, before
engine starting is prevented.

In the event of the risk of non-starting related to a lack of AdBlue

1 500 miles" and, depending on the level in the
AdBlue tank, followed by a message indicating
that you can top-up with at least 10 litres.

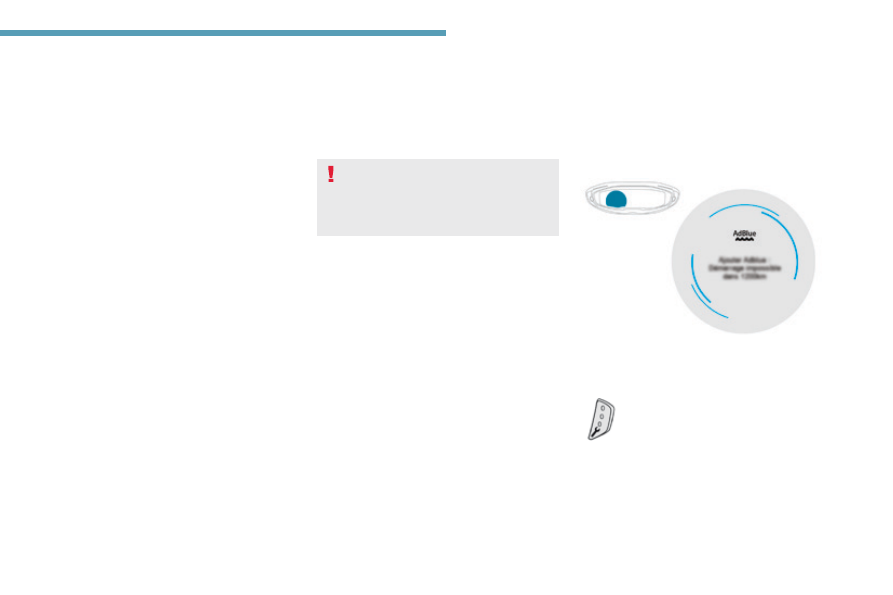

Remaining range greater than 1 500 miles (2 400 km)

Pressing this button will temporarily
display the remaining range with the
message "AdBlue: range greater than

The engine start prevention system
required by regulations is activated
automatically once the AdBlue

tank is

empty.

When switching on the ignition, there is no
automatic display of range in the instrument
panel.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Remaining range between 0 and 350 miles (0 and 600 km)

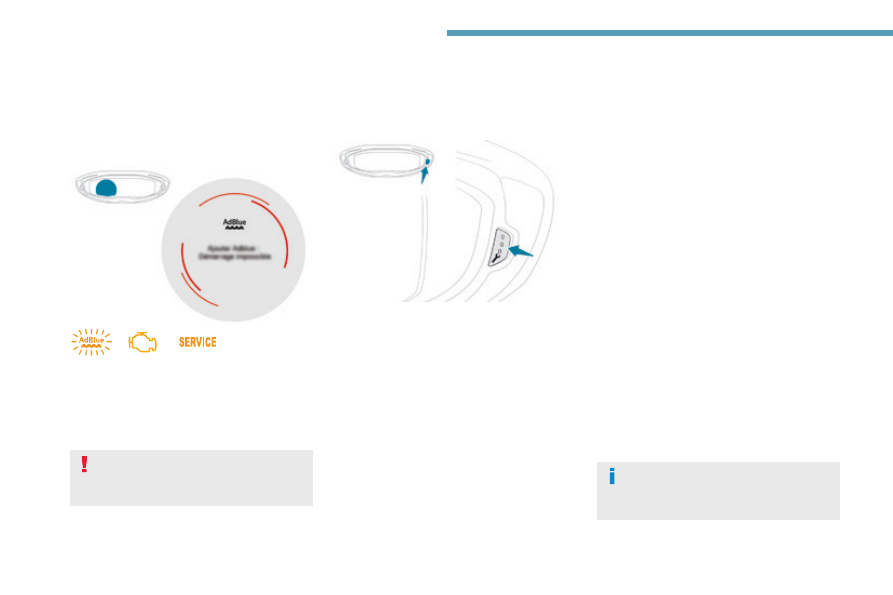

When switching on the ignition, the AdBlue
warning lamp flashes, accompanied by an
audible signal and the display of a message
(e.g. "Top-up AdBlue: Starting impossible in
150 miles") indicating the remaining range
expressed in miles or kilometres.
When driving, the message is displayed every
30 seconds until the AdBlue tank has been
topped-up.
It is essential to top-up as soon as possible and
before the tank is completely empty; otherwise
it will not be possible to restart the engine after
the next stop.

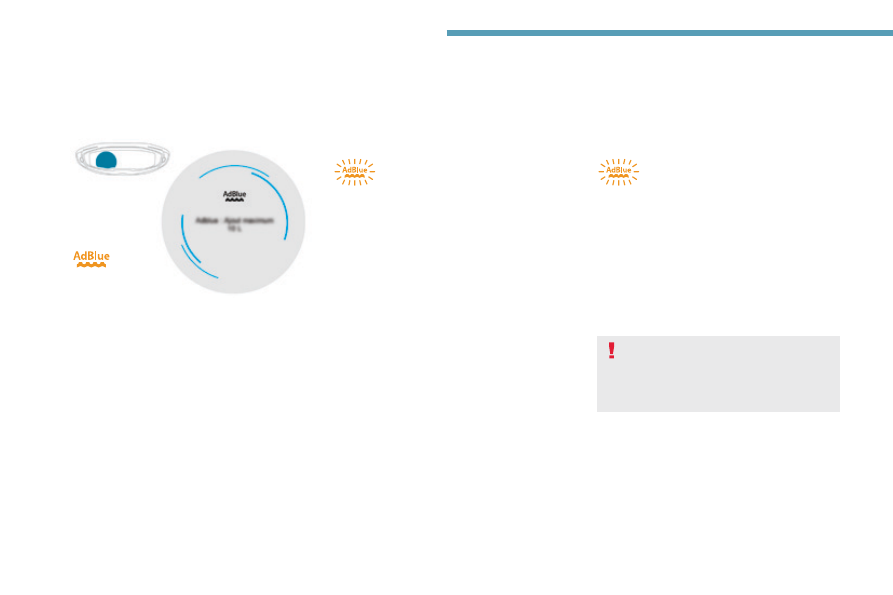

Remaining range between 350 and 1500 miles (600 and 2 400 km)

When switching on the ignition, the
AdBlue warning lamp comes on, accompanied
by an audible signal and the display of a message
(e.g. "Top-up AdBlue: Starting impossible in
900 miles") indicating the remaining range
expressed in miles or kilometres.
When driving, the message is displayed every
190 miles (300 km) until the AdBlue tank has
been topped-up.
The reserve level has been reached: it is
recommended that you top-up as soon as
possible.

To be able to start the engine, it is
essential to add at least 4 litres of
AdBlue

to its tank.

For more information on AdBlue

and the

SCR system, and topping-up in particular,
refer to the corresponding section.

When switching on the ignition, the AdBlue
warning lamp flashes, accompanied by an
audible signal and the display of the message
"Top-up AdBlue: Starting impossible".
The AdBlue

tank is empty: the system required

by regulations prevents engine starting.

Breakdown related to a lack of AdBlue

These messages are completed by the
recommendation to not top-up by more than
10 litres of AdBlue.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

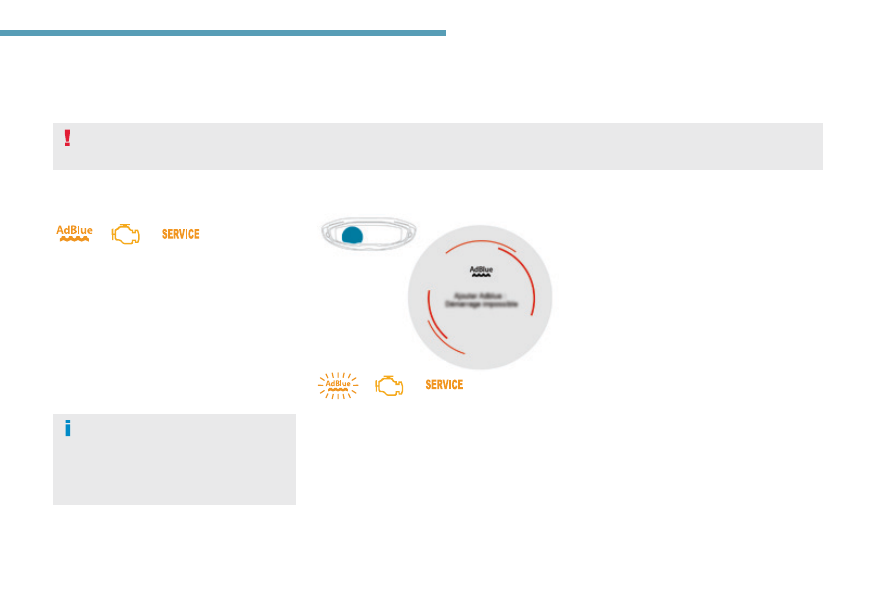

In the event of a fault with the SCR emissions control system

In the event of the detection of a fault

The AdBlue, SERVICE and self-diagnostic
warning lamps comes on, accompanied by an
audible signal and the display of the message
"Emissions fault".
The alert is triggered when driving when the
fault is detected for the first time, then when
switching on the ignition for subsequent
journeys, while the fault persists.

During an authorised driving phase (between
650 miles and 0 miles) (1 100 km and 0 km)

If a fault with the SCR system is confirmed
(after 30 miles (50 km) covered with the
permanent display of the message signalling
a fault), the SERVICE and engine diagnostic
warning lamps come on and the AdBlue
warning lamp flashes, accompanied by an
audible signal and the display of a message
(e.g.: "Emissions fault: Starting prevented in
150 miles") indicating the remaining range
express in miles or kilometres.

A system that prevents engine starting is activated automatically from 650 miles (1 100 km) after confirmation of a fault with the SCR emissions
control system. Have the system checked by a PEUGEOT dealer or a qualified workshop as soon as possible.

If it is a temporary fault, the alert
disappears during the next journey,
after self-diagnosis of the SCR system.

While driving, the message is displayed every
30 seconds while the fault with the SCR system
persists.
The alert is repeated when switching on the
ignition.
You should go to a PEUGEOT dealer or a
qualified workshop as soon as possible.
Otherwise, you will not be able to restart your
engine.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Starting prevented

Every time the ignition is switched on, the SERVICE
and engine diagnostic warning lamps come on and
the AdBlue warning lamp flashes, accompanied by
an audible signal and the display of the message
"Emissions fault: Starting prevented".

To be able to start the engine, you must call on
a PEUGEOT dealer or a qualified workshop.

You have exceeded the authorised
driving limit: the starting prevention
system inhibits engine starting.

This function allows you, at any time, to check
certain indicators and display the alerts log.

This information is also displayed
automatically every time the ignition is
switched on.

Manual test in the
instrument panel

The following information is displayed in the
instrument panel:
-

the engine oil level,

when the next service is due,

the driving range for the AdBlue and the
SCR system for BlueHDi Diesel versions,

current alerts.

F With the engine running, briefly press this

button.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Distance recorders

When travelling abroad, you may
have to change the units of distance:
the display of road speed must be in
the official units (miles or km) for the
country.
The change of units is done via the
screen configuration menu, with the
vehicle stationary.

The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.

Total distance recorder

It measures the total distance travelled by the
vehicle since its first registration.

Trip distance recorder

It measures the distance travelled since it was
reset by the driver.
Resetting the trip recorder
F With the ignition on, press the button until

zeros appear.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

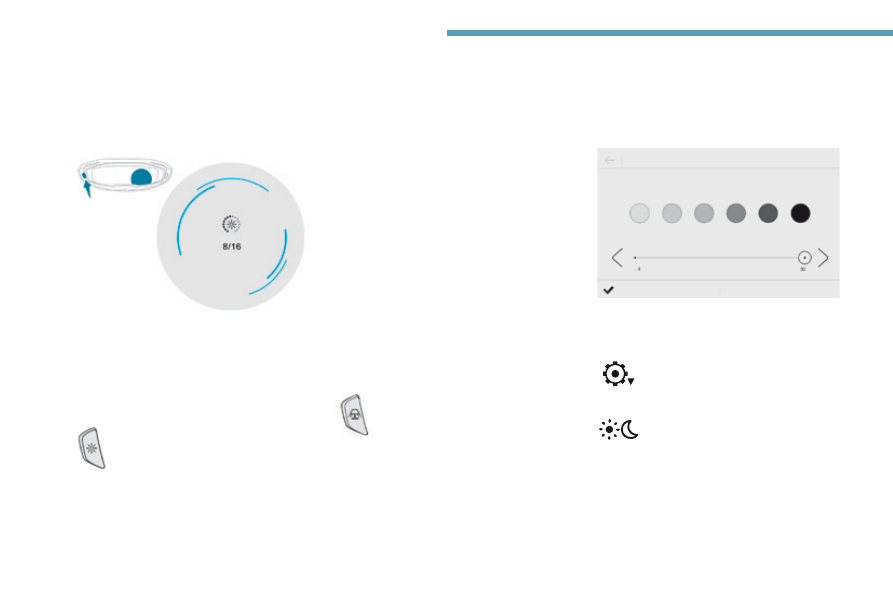

Instrument panel lighting
dimmer

Version with monochrome screen

The brightness of the instrument panel mood
lighting is adjusted in the touch screen.

F Select the Settings menu in the

upper bar of the touch screen.

Operates only when the vehicle's exterior
lighting is on ("night" mode).
It allows adjustment of the brightness of the
instrument panel and controls.

F Press this button to adjust the

brightness.

F When the lighting reaches the

minimum setting, release the
button, then press it again to
increase brightness.

F When the lighting reaches the maximum

setting, release the button, then press it
again to decrease brightness.

F Release the button once the desired level

of brightness is reached.

Instrument panel mood
lighting

F Press this button.

F Press the "Brightness" button.

F Adjust the brightness by pressing the

arrows or moving the cursor.

F Confirm to save and quit.

Version with touch screen

It allows the instrument panel mood lighting to
be switched on or off.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Trip computer

Information display in the
instrument panel

F Press the button on the end of the wiper

control stalk to display the various tabs in
succession.

The display of trip computer information
is permanent when you select the "TRIP
COMPUTER" or "PERSONAL" display mode.
For all other display modes, pressing the end
of the wiper stalk displays this information in a
new window.

System that gives you information on the current journey (range, fuel consumption…).

The current information tab with:
●  the range,
●  the current fuel consumption,
●  the Stop & Start time counter.

- Trip

"1" with:

●  the average speed.
●  the average fuel consumption,
●  the distance travelled,
  for the first trip.

- Trip

"2" with:

●  the average speed,
●  the average fuel consumption,
●  the distance travelled,
  for the second trip.

Trip reset

F When the desired trip is displayed, press

the button on the end of the wiper control
stalk for more than two seconds.

Trips "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

A few definitions…

Range

(miles or km)

When the range falls below 20 miles (30 km),
dashes are displayed.
After filling with at least 5 litres of fuel, the
range is recalculated and is displayed if it
exceeds 60 miles (100 km).

Current fuel consumption

(mpg or l/100 km or km/l)

Average fuel consumption

(mpg or l/100 km or km/l)

Distance travelled

(miles or km)

Stop & Start time counter

(minutes / seconds or hours /
minutes)

If dashes are displayed continuously
while driving in place of the digits,
contact a PEUGEOT dealer or a
qualified workshop.

This function is only displayed from
20 mph (30 km/h).

This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.

The distance which can still be travelled with
the fuel remaining in the tank (at the average
fuel consumption seen over the last few miles
(kilometres) travelled).

Calculated over the last few seconds.

Calculated since the last trip computer reset.

If your vehicle is fitted with Stop & Start, a time
counter calculates the time spent in STOP
mode during a journey.
It resets to zero every time the ignition is
switched on.

Calculated since the last trip computer reset.

Average speed

(mph or km/h)

Calculated since the last trip computer reset.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

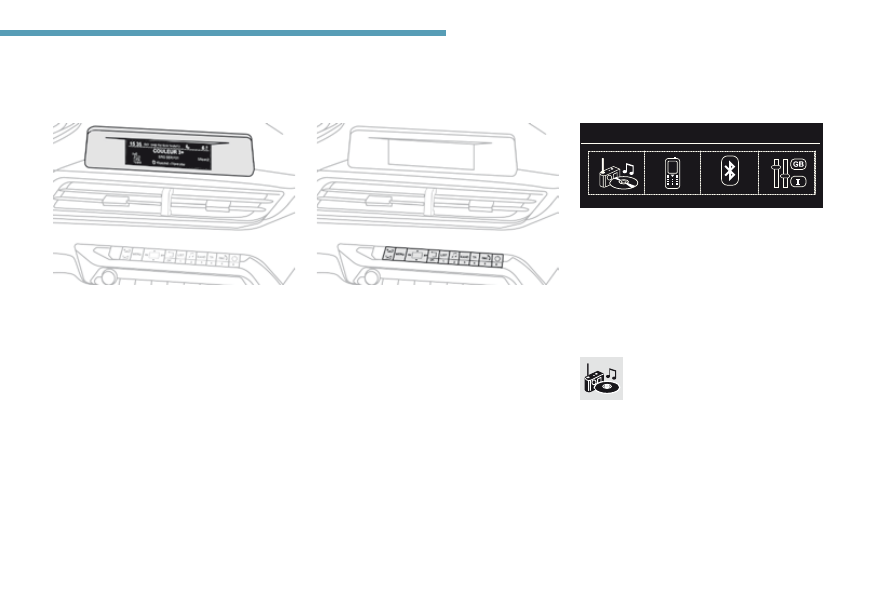

Monochrome screen C

Displays in the screen

Controls

Main menu

Depending on the context, it displays:
- time,
- date,
-

ambient temperature (this flashes if there is
a risk of ice),

visual parking sensor information,

current audio source,

telephone or Bluetooth system information,

settings menus for the screen and the
vehicle equipment.

From the audio system control panel, press:
F the

"MENU" button for access to the main

menu,

F the "5" or "6" buttons to scroll through the

items in the screen,

F the "7" or "8" buttons to change a setting

value,

F the

"OK" button to confirm,

or
F the

"Back" button to abandon the

operation in progress.

F Press the "MENU" button:

- "Multimedia",
- "Telephone",
- "Connections",
- "Personalisation-configuration",

F Press the "7" or "8" button to select the

menu required, then confirm by pressing
the "OK" button.

"Multimedia" menu

With the audio system switched on, this
menu allows you to activate or deactivate the
functions associated with use of the radio
(Frequency search (RDS), DAB / FM auto
tracking, RadioText (TXT) display) or to choose
the media play mode (Normal, Random,
Random all, Repeat).
For more information on the "Multimedia"
application, refer to the "Audio equipment and
telematics" section.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

"Telephone" menu

"Connections" menu

With the audio system on, this menu allows
a Bluetooth device (telephone, media player)
to be paired and the connection mode to be
defined (hands-free, playing audio files).
For more information on the "Connections"
application, refer to the "Audio equipment and
telematics" section.

With the audio system switched on, this menu
allows you to make a call, view the calls log or
the various telephone directories.
For more information on the "Telephone"
application, refer to the "Audio equipment and
telematics" section.

This menu gives access to the following
functions:
-

"Define the vehicle parameters",

"Choice of language",

"Display configuration",

"Comfort":
● "Rear wipe in reverse gear".
For more information on the Wipers,

refer to the "Lighting and visibility"
section.

● "Parking assistance".
For more information on Parking

assistance, refer to the "Driving"
section.

● "Fatigue Detection System".
For more information on the Fatigue

detection system, refer to the "Driving"
section.

Define the vehicle parameters

This menu allows the activation or deactivation
of the following equipment, depending on
version:
-

"Lighting":
● "Follow-me-home headlamps".
● "Welcome lighting".

For more information on Exterior lighting,
refer to the "Lighting and visibility" section.

"Personalisation-configuration" menu

"Access to the vehicle":
● "Plip action".

For more information on the Remote control
and selective door unlocking in particular, refer
to the "Access" section.

"Driving assistance":
● "Auto. emergency braking".
For more information on the Active

Safety Brake, refer to the "Driving"
section.

● "Speed recommendation".
For more information on Speed limit

recognition, refer to the "Driving"
section.

● "Tyre inflation".
For more information on Under-

inflation detection and reinitialisation in
particular, refer to the "Driving" section.

Content .. 1 2 3 4 ..
