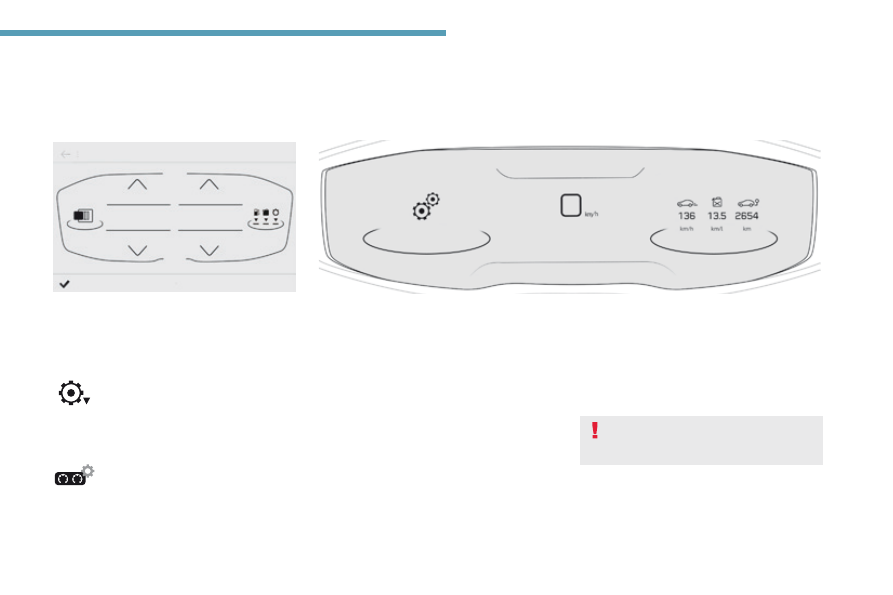

To enter settings for the "PERSONAL"
display mode and select the information to be
displayed in the personalisable areas of the
instrument panel:

F select the Settings menu in the

upper bar of the touch screen,

F press the "Perso" button,

F for each personalised area, left and right,

select a type of information using the
corresponding scroll arrows in the touch
screen:
●  "Driving aids",
●  "Default" (empty),
●  "Engine info" (Dynamic Pack),
●  "G-meters" (Dynamic Pack),
●  "Temperatures" (engine oil),
●  "Media",
●  "Navigation",
●  "Trip computer",
●  "Rev counter".

F a nominal preview appears alongside the

corresponding arrows,

F confirm to save and quit.
If the current display mode is "PERSONAL", the
new selection is displayed immediately.

F select "Configuration",

As a safety measure, these adjustments should
be carried out with the vehicle stationary.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

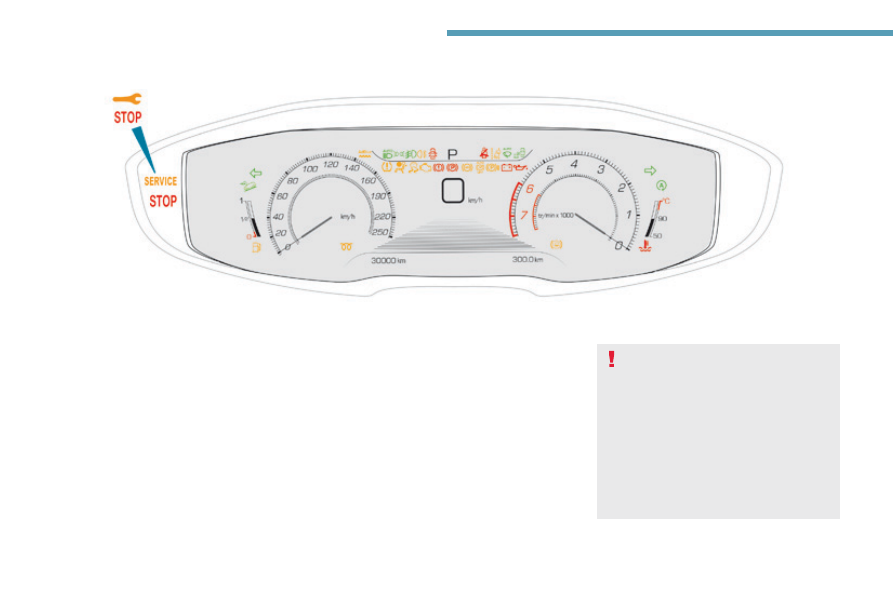

Indicator and warning lamps

When the ignition is switched on

Certain warning lamps come on in the
instrument panel for a few seconds when the
ignition is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.

Certain warning lamps may come on in
one of two modes: fixed (continuous) or
flashing.
Only by relating the type of illumination
to the operation of the vehicle can it
be determined whether the situation is
normal or a fault has occurred.
For more information, refer to the
corresponding tables of warning and
indicator lamps.

Associated warnings

The illumination of most of these warning lamps
is accompanied by the display of a message
and an audible signal.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Warning / indicator lamp

State

Cause

Action / Observations

Left-hand
direction indicator

flashing with buzzer.

The lighting stalk has been pushed
down.

Right-hand
direction indicator

flashing with buzzer.

The lighting stalk has been pushed
up.

Hazard warning
lamps

flashing with audible
signal.

The hazard warning lamps switch,
located on the dashboard, has been
operated.

The left-hand and right-hand direction indicators and
their associated indicator lamps flash simultaneously.

Sidelamps

fixed.

The lighting stalk is in the
"Sidelamps" position.

Dipped beam
headlamps

fixed.

The lighting stalk is in the "Dipped
beam headlamps" position.

Main beam
headlamps

fixed.

The lighting stalk has been pulled
towards you.

Pull the stalk to return to dipped beam headlamps.

Automatic
headlamp
dipping

fixed.

The function has been activated
via the Driving menu of the touch
screen.
The lighting stalk is in the "AUTO"
position.

The camera, located at the top of the windscreen,
manages the illumination of main or dipped beam,
depending on the exterior lighting and the driving
conditions.
For more information on Automatic headlamp
dipping, refer to the corresponding section.

Operation indicator lamps

For more information on the Lighting control stalk, refer to the corresponding section.

If one or more of the following indicator lamps come on, this confirms that the corresponding system has been switched on.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Warning / indicator lamp

State

Cause

Action / Observations

Diesel engine
pre-heating

fixed.

When the ignition is switched on
with a key in the ignition switch or
a starting instruction made using
the "START/STOP" button, the
engine temperature makes engine
pre-heating necessary.

The period of illumination of the indicator lamp is
determined by the ambient conditions (up to about
thirty seconds in severe winter conditions).
With an ignition switch and key, wait until the indicator
lamp goes off before starting.
With Keyless Entry and Starting, once it goes off,
starting is immediate, on condition that the brake
pedal remains pressed with an automatic gearbox, or
the clutch pedal is pressed fully down with a manual
gearbox.
If the engine does not start, switch the ignition off and
then on, wait until the indicator lamp goes off again,
then start the engine.

Stop & Start

fixed.

When the vehicle stops (red lights, traffic
jams, ...) the Stop & Start system has put
the engine into STOP mode.

The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want
to move off.

flashes for a few
seconds, then goes
off.

STOP mode is temporarily
unavailable,
or
START mode is invoked
automatically.

For more information on Stop & Start, refer to the
corresponding section.

Rear foglamps

fixed.

The rear foglamps have been
switched on using the ring on the
lighting control stalk.

Turn the ring on the lighting control stalk rearwards to
switch off the rear foglamps.

Front foglamps

fixed.

The front foglamps are switched on
using the ring on the lighting control
stalk.

Turn the ring on the lighting control stalk rearward
twice to switch off the front foglamps.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Warning / indicator lamp

State

Cause

Action / Observations

Passenger's
airbag system

fixed in the seat belt
and passenger's front
airbag warning lamps
display.

The control switch, located in the
glove box, has been placed in the
"ON" position.
The passenger's front airbag is
activated.

In this case, do not install a rearward facing child seat
on this seat.
Move the control switch to the "OFF" position to
deactivate the passenger's front airbag. In this case,
you can install a rearward facing child seat, unless
there is a fault with the airbags (airbag warning
lamp on).

Deactivation of
the automatic
functions of the
electric parking
brake

fixed.

The "automatic application" (on
switching off the engine) and
"automatic release" functions are
deactivated or faulty.

Activate the function again or contact a PEUGEOT
dealer or a qualified workshop in the event of a fault.
For more information on the Electric parking brake,
refer to the corresponding section.

Electric parking
brake

fixed.

The electric parking brake is applied.

Release the parking brake to switch off the warning
lamp: with your foot on the brake pedal, briefly push
the parking brake control lever.
Observe the safety recommendations.
For more information on the Electric parking brake,
refer to the corresponding section.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Warning / indicator lamp

State

Cause

Action / Observations

Hill Assist
Descent Control

fixed.

The system has been activated, but
is paused because the speed is too
high.

Between 18 and 30 mph (30 and 50 km/h), the system
is paused.
Reduce the speed of the vehicle.

fixed.

The system has been activated, but
the conditions for regulation are not
met (gradient, gear engaged).

flashing.

The system is regulating the speed of
the vehicle.

The vehicle is being braked; the brake lamps come on
during the descent.
For more information on the Hill Assist Descent
Control system, refer to the corresponding section.

Blind Spot
Monitoring
System

fixed.

The system has been activated.

For more information on the Blind Spot Monitoring
System, refer to the corresponding section.

Automatic
wiping

fixed.

The wiper control stalk has been
pushed down.
Automatic front wiping is activated.

To deactivate automatic wiping, push the wiper control
stalk down again or put the wiper control stalk in
another position.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Warning / indicator lamp

State

Cause

Action / Observations

Stop & Start

fixed, accompanied
by the display of a
message.

The Stop & Start system is
deactivated.

The engine will not cut out at the next stop in the
traffic.
Reactivate the system by pressing the button again.
For more information on Stop & Start, refer to the
corresponding section.

Passenger's
airbag system

fixed in the instrument
panel and/or seat belt
and front passenger's
airbag warning lamps
display.

The control switch, located in the
glove box, is set to the OFF position.
The passenger's front airbag is
deactivated.

You can install a rearward facing child seat, unless
there is a fault with the airbags (airbag warning lamp
on).
Set the control to the "ON" position to activate the
passenger's front airbag. In this case, do not install a
rearward facing child seat on this seat.

Deactivation indicator lamps

If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This may be accompanied by the display of a message and an audible signal.

Distance alert /
Active Safety
Brake

fixed, accompanied by
a message.

The system has been deactivated,
via the vehicle configuration menu in
the screen.

For more information on the Distance alert / Active
Safety Brake system, refer to the corresponding
section.

Assisted Lane
Departure
Warning System

fixed, accompanied
by the display of a
message.

The system has been deactivated.

There will be no correction of the vehicle's trajectory
should there be a change of direction.
For more information on the Assisted Lane
Departure Warning System, refer to the
corresponding section.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Warning / indicator lamp

State

Cause

Action / Observations

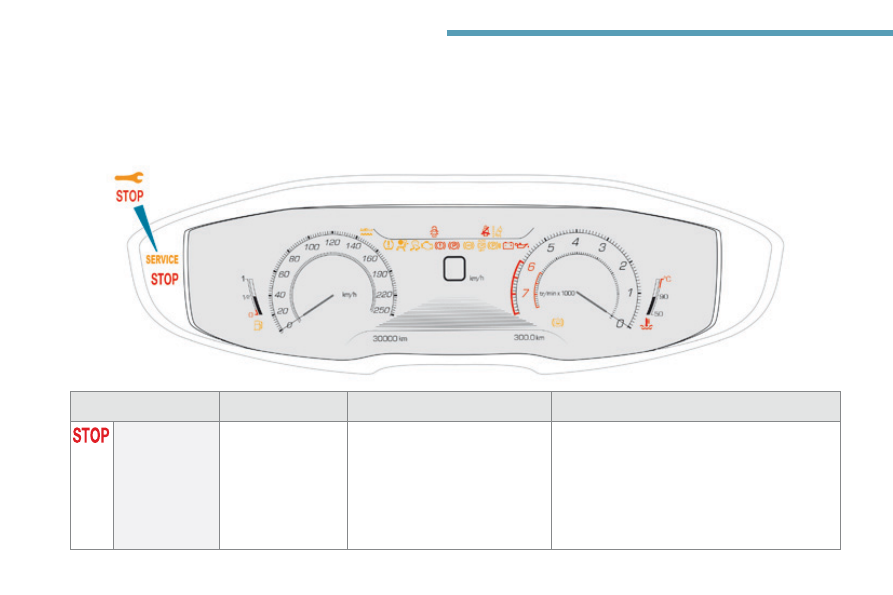

Warning lamps

STOP

fixed, associated with
another warning lamp,
accompanied by the
display of a message
and an audible signal.

Illumination of this warning lamp
is related to a serious fault with
the engine, braking system, power
steering, automatic gearbox or a
major electrical fault.

You must stop as soon as it is safe to do so.
Park, switch off the ignition and call a PEUGEOT
dealer or a qualified workshop.

When the engine is running or the vehicle is being driven, illumination of one or more of the following warning lamps indicates a fault which requires
action on the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further using the associated alert message.
If you encounter any problems, contact a PEUGEOT dealer or a qualified workshop.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Warning / indicator lamp

State

Cause

Action / Observations

Maximum
coolant
temperature

fixed.

The temperature of the cooling
system is too high.

Stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping-
up the level, if necessary.
If the problem persists, contact a PEUGEOT dealer or
qualified workshop.

Service

temporarily,
accompanied by the
display of a message.

One or more minor faults for which
there is no specific warning lamp
have been detected.

Identify the cause of the fault using the message
displayed in the instrument panel.
You can deal with some problems yourself, such as a
door open or the start of saturation of the particle filter
(as soon as the traffic conditions allow, regenerate the
filter by driving at a speed of at least 40 mph
(60 km/h), until the warning lamp goes off).
For any other problems, such as a fault with the tyre
under inflation detection system, contact a PEUGEOT
dealer or a qualified workshop.

fixed, accompanied
by the display of a
message.

One or more major faults for which
there is no specific warning lamp
have been detected.

Identify the cause of the fault using the message
displayed in the instrument panel; you must then
contact a PEUGEOT dealer or a qualified workshop.

fixed, associated with the
flashing and then fixed
display of the service
indicator spanner.

The servicing interval has been
exceeded.

Only on BlueHDi Diesel versions.
Your vehicle must be serviced as soon as possible.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Battery charge*

fixed.

The battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt, ...).

The warning lamp should go off when the engine is
started.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop.

Warning / indicator lamp

State

Cause

Action / Observations

Door(s) open

fixed, associated with
a message identifying
the door.

Speed below 6 mph (10 km/h), a door
or the boot is not properly closed.

Close the door or boot.

fixed, associated with
a message identifying
the door, together with
an audible signal.

Speed above 6 mph (10 km/h), a door
or the boot is not properly closed.

* Depending on the country of sale.

Engine oil
pressure

fixed.

There is a fault with the engine
lubrication system.

You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a PEUGEOT
dealer or a qualified workshop.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Seat belts
not fastened /
unfastened

fixed.

The driver and/or the front/rear
passenger has not fastened or has
unfastened their seat belt.

Pull the strap then insert the tongue in the buckle.
The illuminated dots represent the passengers that
have not fastened / unfastened their seat belt.
They come on:
-

fixed for 30 about seconds on starting the vehicle,

fixed from 0 to 12 mph (0 to 20 km/h) when
driving,

flashing above 12 mph (20 km/h), accompanied by
an audible signal for about 120 seconds.

Warning / indicator lamp

State

Cause

Action / Observations

Electric parking
brake

flashing.

The electric parking brake is not
applied automatically.
The application/release is faulty.

You must stop as soon as it is safe to do so.
Park on flat level ground, engage a gear
(select P mode for an automatic gearbox), switch
off the ignition and contact a PEUGEOT dealer or a
qualified workshop.

Electric parking
brake fault

fixed.

The electric parking brake has a fault.

Contact a PEUGEOT dealer or a qualified workshop
without delay.
For more information on the Electric parking brake,
refer to the corresponding section.

Anti-lock
Braking System
(ABS)

fixed.

The anti-lock braking system has a
fault.

The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
PEUGEOT dealer or a qualified workshop without
delay.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Warning / indicator lamp

State

Cause

Action / Observations

Brakes

fixed.

A minor fault with the braking system.

Drive carefully.
As soon as possible, have the system checked by a
PEUGEOT dealer or a qualified workshop.

fixed.

The brake fluid level has dropped
significantly.

You must stop as soon as it is safe to do so.
Top-up with brake fluid listed by PEUGEOT.
If the problem persists, have the system checked by a
PEUGEOT dealer or a qualified workshop.

fixed, associated
with the ABS warning
lamp.

The electronic brake force distribution
(EBFD) system has a fault.

You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT dealer or a qualified
workshop.

Dynamic
stability control
(DSC/ASR)

flashing.

The DSC/ASR regulation is
operating.

The system optimises traction and improves the
directional stability of the vehicle in the event of loss of
grip or trajectory.

fixed.

The DSC/ASR system has a fault.

Have the system checked by a PEUGEOT dealer or a
qualified workshop.

Distance alert /
Active Safety
Brake

flashing.

The system is operating.

The system brakes briefly so as to reduce the speed
of collision with the vehicle ahead.

fixed, accompanied
by a message and an
audible signal.

The system has a fault.

Have the system checked by a PEUGEOT dealer or a
qualified workshop.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Warning / indicator lamp

State

Cause

Action / Observations

Lane Departure
Warning System

flashing, accompanied
by an audible signal.

A lane marking has been crossed on
the left or right.

Turn the steering wheel in the opposite direction to
return to the correct trajectory.
For more information on the Lane Departure
Warning System, refer to the corresponding section.

fixed, accompanied
by the display of a
message.

The system has a fault.

Be vigilant and drive carefully.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.

Assisted Lane
Departure
Warning System

fixed.

The system is not available

The system has been deactivated or is on automatic
standby.
For more information on the Assisted Lane Departure
Warning System, refer to the corresponding section.

flashing.

You are about to cross a solid lane
marking without operating the
direction indicators.

The system is activated, then corrects the trajectory
on the side of the lane marking detected.

fixed, accompanied
by the display of a
message, an audible
signal and the Service
warning lamp.

The system has a fault.

Be vigilant and drive carefully.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.
For more information on the Assisted Lane
Departure Warning System, refer to the
corresponding section.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Airbags

on temporarily.

This warning lamp comes on for a
few seconds when you turn on the
ignition, then goes off.

This warning lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop.

fixed.

One of the airbag or seat belt
pretensioner systems has a fault.

Have them checked by a PEUGEOT dealer or a
qualified workshop.

Warning / indicator lamp

State

Cause

Action / Observations

Under-inflation

fixed.

The pressure in one or more wheels
is too low.

Check the pressure of the tyres as soon as possible.
This check should preferably be carried out when the
tyres are cold.

flashing then fixed,
accompanied by the
Service warning lamp.

The tyre pressure monitoring system
has a fault or no sensor is detected
on one of the wheels.

Under-inflation detection is not assured.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Engine
autodiagnosis
system

flashing.

The engine management system has
a fault.

Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer or a qualified
workshop.

fixed.

The emission control system has a
fault.

The warning lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or qualified
workshop without delay.

Warning / indicator lamp

State

Cause

Action / Observations

Low fuel level

fixed with reserve
level represented in
red, accompanied
by the display of a
message and an
audible signal.

When it first comes on there remains
approximately 6 litres of fuel in the
tank.

You must refuel as soon as possible to avoid running
out of fuel.
This warning lamp will come on every time the ignition
is switched on, accompanied by a message and an
audible signal, until a sufficient addition of fuel is
made.
This audible signal and message are repeated with
increasing frequency as the fuel level drops and
approaches "0".
Fuel tank capacity: approximately 53 litres.
Never continue to drive until you run out of fuel as
this could damage the emission control and injection
systems.

Instruments

3008-2_en_Chap01_instruments-de-bord_ed01-2016

Warning / indicator lamp

State

Cause

Action / Observations

AdBlue

(BlueHDi Diesel)

fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating the
remaining driving range.

The remaining driving range is
between 350 miles (600 km) and
1500 miles (2400 km).

Have the AdBlue

topped-up as soon as possible: go

to a PEUGEOT dealer or a qualified workshop.
You can add up to 10 litres of AdBlue

to its tank.

flashing, accompanied
by an audible signal
and a message
indicating the
remaining driving
range.

The remaining driving range is
between 0 and 350 miles (600 km).

You must top-up the AdBlue

to avoid a breakdown

or go to a PEUGEOT dealer or a qualified workshop.
You can add up to 10 litres of AdBlue

to its tank.

flashing, accompanied
by an audible signal
and a message
indicating that starting
is prevented.

The AdBlue

tank is empty: the

starting inhibition system required
by legislation prevents starting of the
engine.

To be able to start the engine, you must top-up the
AdBlue

or go to a PEUGEOT dealer or a qualified

workshop.
It is essential to add at least 4 litres of AdBlue

to its

tank.

For topping-up or for more information on AdBlue

and the SCR system, refer to the corresponding section.

Peugeot 3008 (2017 year). Manual - part 2
