Mercedes-Benz ML320. Service manual - part 836





124 589 17 63 00

129 589 00 59 00

Removal tool

Assembly tool

Commercially available tools (see Workshop Equipment Manual)

Number

Designation

Make (e. g.)

Order number

WH58.30-Z-1003-18A

Centering sleeve DUO-FLEX 2

When ordering, state flange shaft diameter and model of balancing
machine

HAWEKA

D-30928 Burgwedel

16 100 8006

WH58.30-Z-1004-18A

Conversion kit

Hofmann

D-64319 Pfungstadt

6416 451

Copyright DaimlerChrysler AG  06.07.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

AR40.10-P-1010-01A

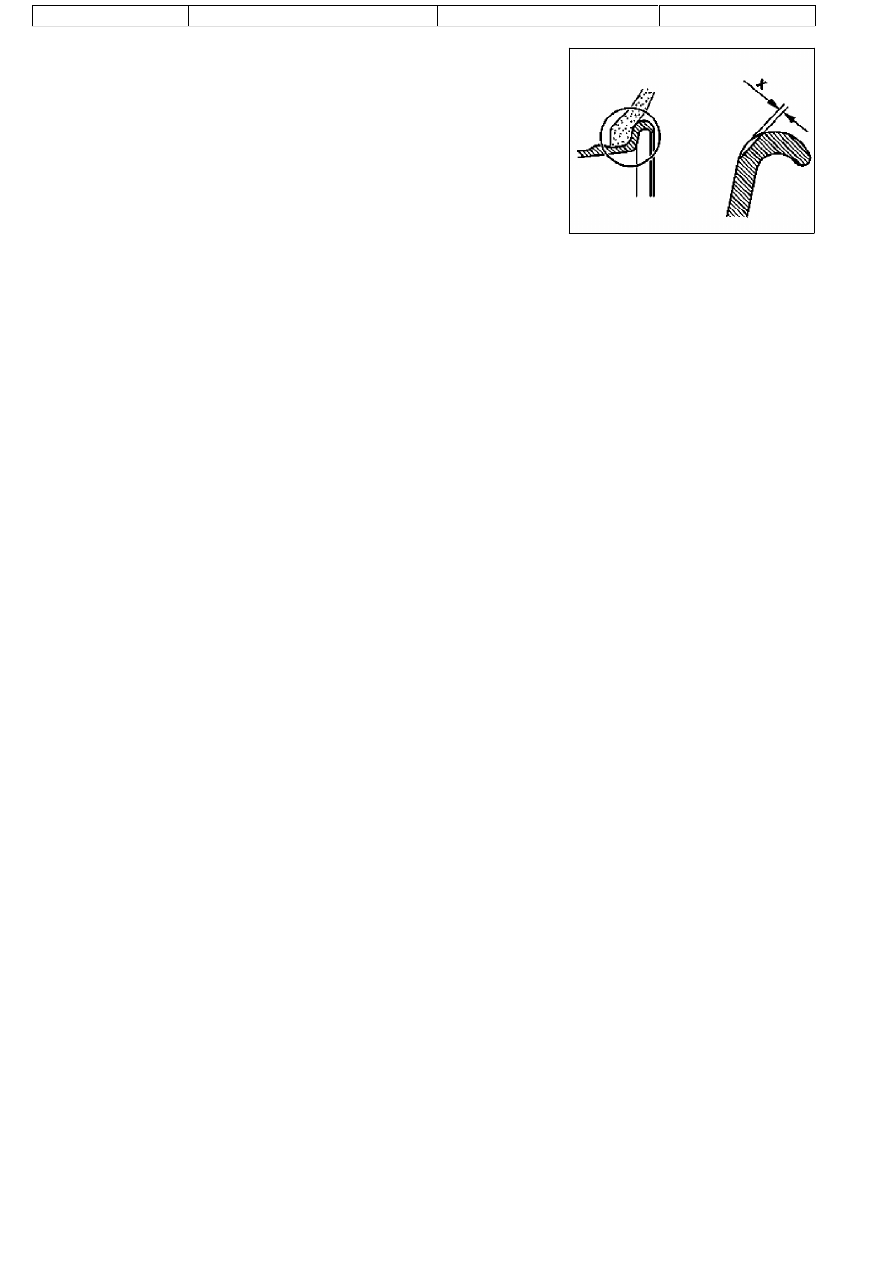

Checking condition of rim

P40.10-0259-01

1

Check inside and outside of wheel for dirt and clean wheel if necessary.

2

Check contact surface of rim for dirt and clean if necessary.

3

Check centering, spherical caps and rim flanges for damage. The spherical caps must be
free of grease.

Light-alloy rims

4

The rim flanges on light-alloy rims may exhibit increased levels of wear under the following
conditions:
High loads, operation with a trailer, insufficient tire inflation pressure, use of non-approved
tire makes or versions, contamination with dirt, sand and road salt.

5

The wear (X) must be no more than 1 mm.

Copyright DaimlerChrysler AG  06.07.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AP40.10-P-4050GH

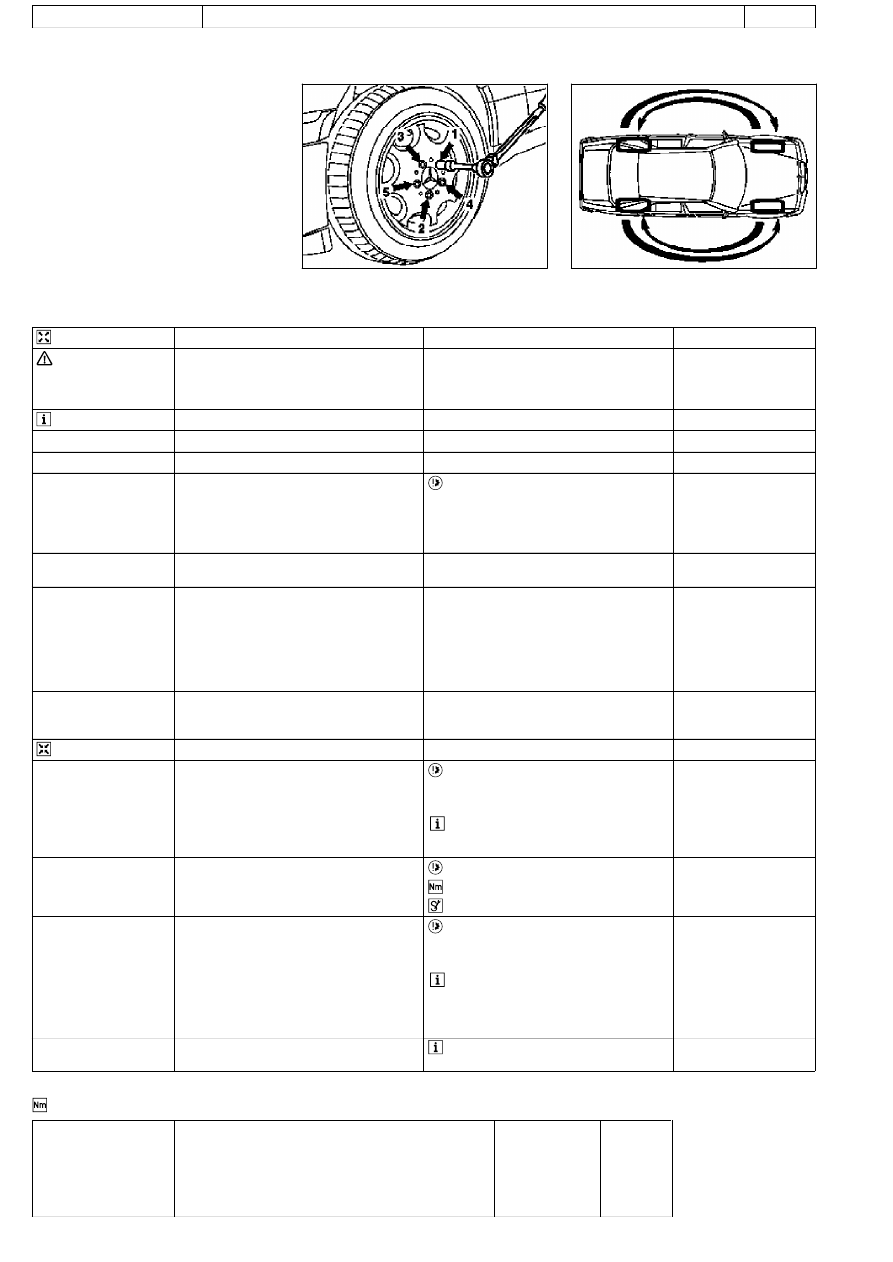

Remove/install wheels, rotate if necessary

15.7.97

MODEL

163

1-5

Tightening sequence

P40.10-0004-01

P40.00-0208-01



Remove

Danger!

Lethal injuries are possible if vehicle slips off
of lifting platform

Align vehicle between the columns of the
lifting platform and position the four support
plates at the lifting platform support points
specified by the vehicle manufacturer.

AS00.00-Z-0010-01A



Comply with notes on tires / rims

AH40.10-P-9411-01A

1

Raise vehicle.

AS00.00-Z-0010-01A

2

Unscrew wheel bolts, remove wheels

3

Check wheel bolts



The round contact shoulders on the lug

bolts must be free of oil and grease.

Replace bolts that have a damaged thread,
worn dacromet coating at radius seat or
corroded radius seat.

4

Check tires for damage and wear - measure
depth of tread

AP40.10-P-4051Z

5

Check disk wheels

D check for contamination,

D check that spherical caps are free of oil

and grease,

D check centering, spherical caps and rim

flanges for damage,

D check corrosion of lay-on surface

6

Check front wheel hub, brake disk bowl at
attachment face for contamination and
corrosion

Clean corroded surfaces with a wire brush or
an emery cloth.



Install

7

Change wheels around if necessary retaining
the same running direction



This excludes vehicles with mixed tires at

the front and rear axle.

 Between

5,000 and 10,000 km according to wear.

8

Fit wheels, tighten wheel bolts

 Observe tightening sequence "1-5".



*BA40.10-P-1001-01A



*126589040900

9

Lower vehicle, correct tire inflation pressure
(including spare wheel)



In the case of loss of tire pressure,

determine cause and replace tire if necessary.

 On versions with spare tire attached to

underside of vehicle, check tire inflation
pressure of spare tire before lowering the
vehicle.

c

 Deletion of spare tire with model 163.174

with TIREFIT

AH40.10-P-0001-01A



Wheels

Number

Designation

Models
163.113/128/
136/154/157/
172/175

Model
163.174

Copyright DaimlerChrysler AG  06.07.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

BA40.10-P-1001-01A

Wheel bolt

Nm

150

150

126 589 04 09 00

Wrench socket

Commercially available tools (see Workshop Equipment Manual)

Number

Designation

Make (e. g.)

Order number

WH58.30-Z-1002-10A

Electric or compressed air impact wrench with limited tightening torque,

see

D  trial reports on test benches and tools for

Mercedes Benz workshops, Volume 2, 40.1

D Workshop Equipment Manual Volume 1 "G" Group 40

651004700

6510053001

Copyright DaimlerChrysler AG  06.07.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2
