Mercedes-Benz ML320. Service manual - part 834





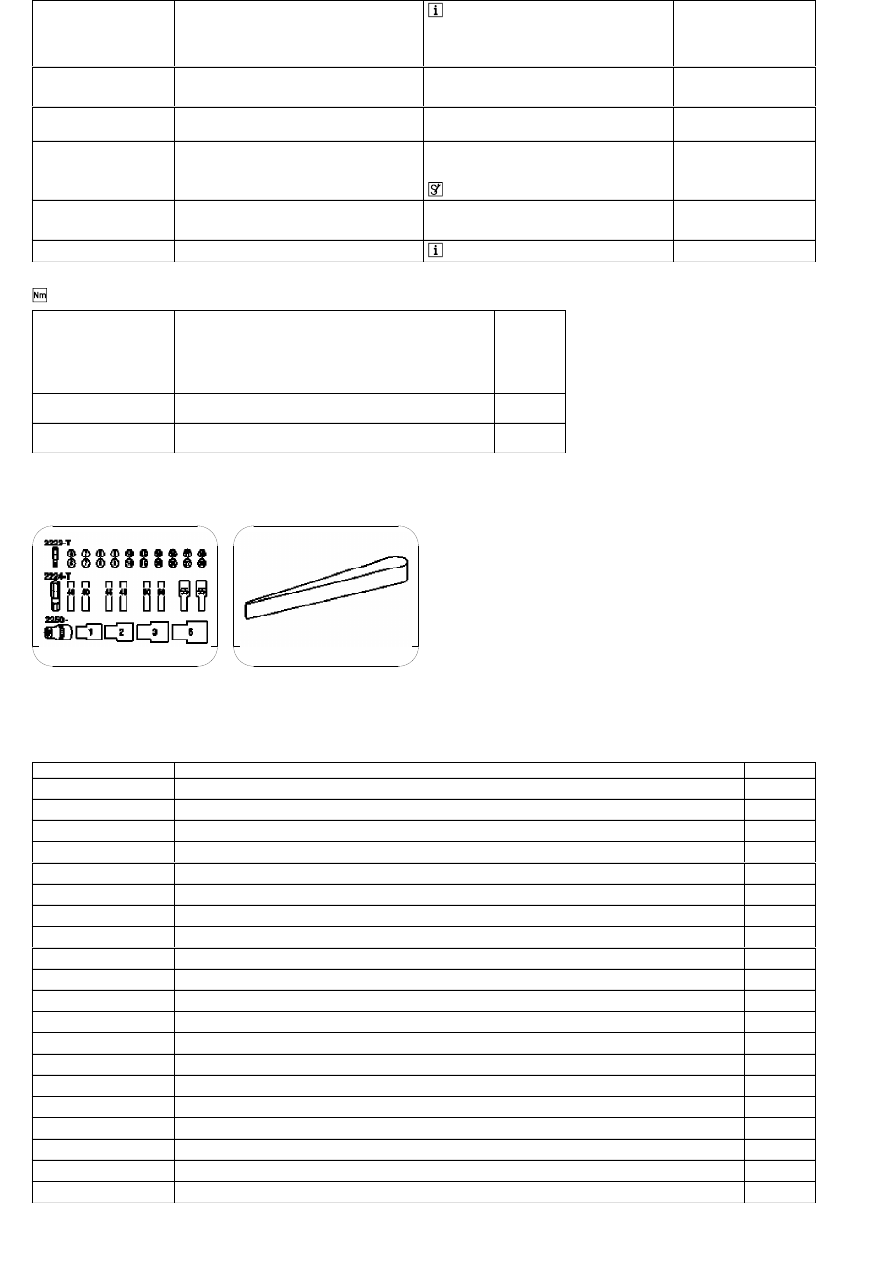

36

Install remaining covers under rear seat bench

 Replace cover under rear seat bench at

rear with cover from the conversion kit.

f



Remove and install cover on bottom of rear
seat

AR91.12-P-1100GH

37

Disconnect ground lead from battery

f



Disconnect ground lead from battery

AR54.10-P-0003A

38

Retrofit voltage supply for central interface
module (1)

AZ82.60-P-0004-06A

39

Install glove compartment

f



Remove/install glove compartment

AR68.10-P-1400GI

 Torx bit set

*000589011000

40

Connect ground cable for battery

f



Disconnect ground lead from battery

AR54.10-P-0003A

41.1

Initialize DVD player

 As of VIN A289565, X754620.

AZ82.60-P-0004-07GH



Rear seats

Number

Designation

Model
163 as of
09/99

BA91.12-P-1005-03A

Nuts for rear seat console on vehicle floor

NM

40

BA91.12-P-1008-03A

Screws for rear seat console on vehicle floor

NM

40

115 589 03 59 00

Longitudinal wedge

Torx bit set

000 589 01 10 00

Parts ordering notes

Part no.

Designation

Quantity

B6 782 6500

Monitor, anthracite/orion, with 2 earphones (NTSC)

1

B6 782 6501

Monitor, java, with 2 earphones (NTSC)

1

B6 782 6505

DVD player (national code 1), with bracket

1

B6 782 6506

Video player (NTSC), with bracket

1

B6 782 6507

Earphones (NTSC)

1

B6 782 6508

Radio-controlled earphones (NTSC)

1

B6 782 6530

Floor covering at bottom of rear seat, orion (only with video player) (NTSC)

1

B6 782 6531

Floor covering at bottom of rear seat, anthracite (only with video player) (NTSC)

1

B6 782 6532

Floor covering at bottom of rear seat, Java (only with video player) (NTSC)

1

B6 782 6536

Monitor, anthracite/orion, with 2 earphones (PAL)

1

B6 782 6537

Monitor, java, with 2 earphones (PAL)

1

B6 782 6538

DVD player (national code 2), with bracket

1

B6 782 6539

Video player (PAL), with bracket

1

B6 782 6540

Floor covering at bottom of rear seat, orion (only with video player) (PAL)

1

B6 782 6541

Floor covering at bottom of rear seat, anthracite (only with video player) (PAL)

1

B6 782 6542

Floor covering at bottom of rear seat, Java (only with video player) (PAL)

1

B6 782 6545

Earphones (PAL)

1

B6 782 6551

Central interface module

1

B6 782 6570

Supplementary kit as of VIN A289565, X754620 (PAL)

1

B6 782 6571

Supplementary kit as of VIN A289565, X754620 (NTSC)

1

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 3

BB00.40-P-0224-01A

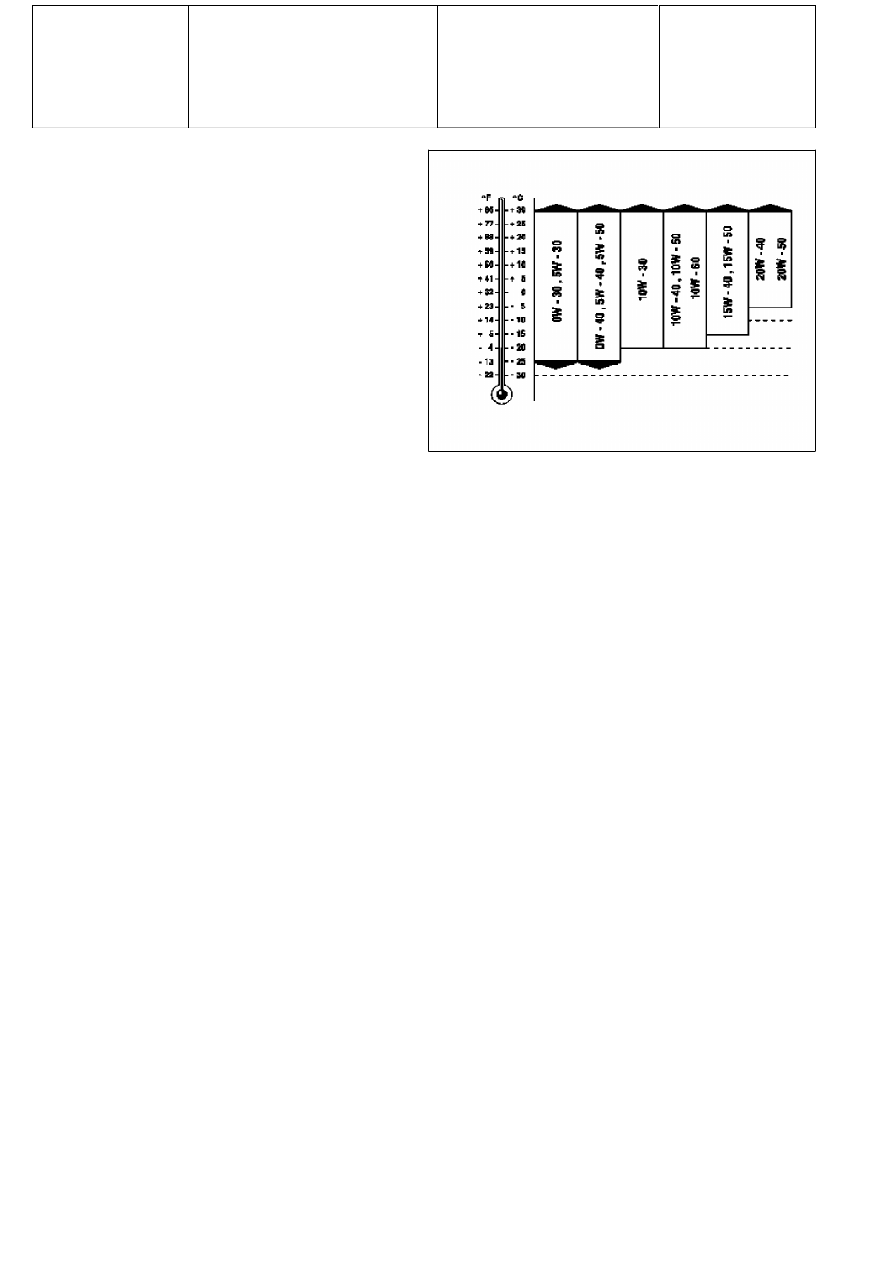

Viscosity classes of engine oils (car engines)

Passenger vehicle engines

(BR 100, BR 200, BR 600)

Commercial vehicle engines from the
passenger vehicle sector
(BR 100, BR 200, BR 600)

Industrial engines from the passenger
vehicle sector (BR 100, BR 200, BR 600)

Sheet 224.1

P00.40-0210-11

A precise application of the SAE grades in accordance with ambient
air temperatures would require more frequent engine-oil changes.
The temperature limits for the SAE grades should therefore be
regarded as guidelines, which can be exceeded or undercut for a
short duration.

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

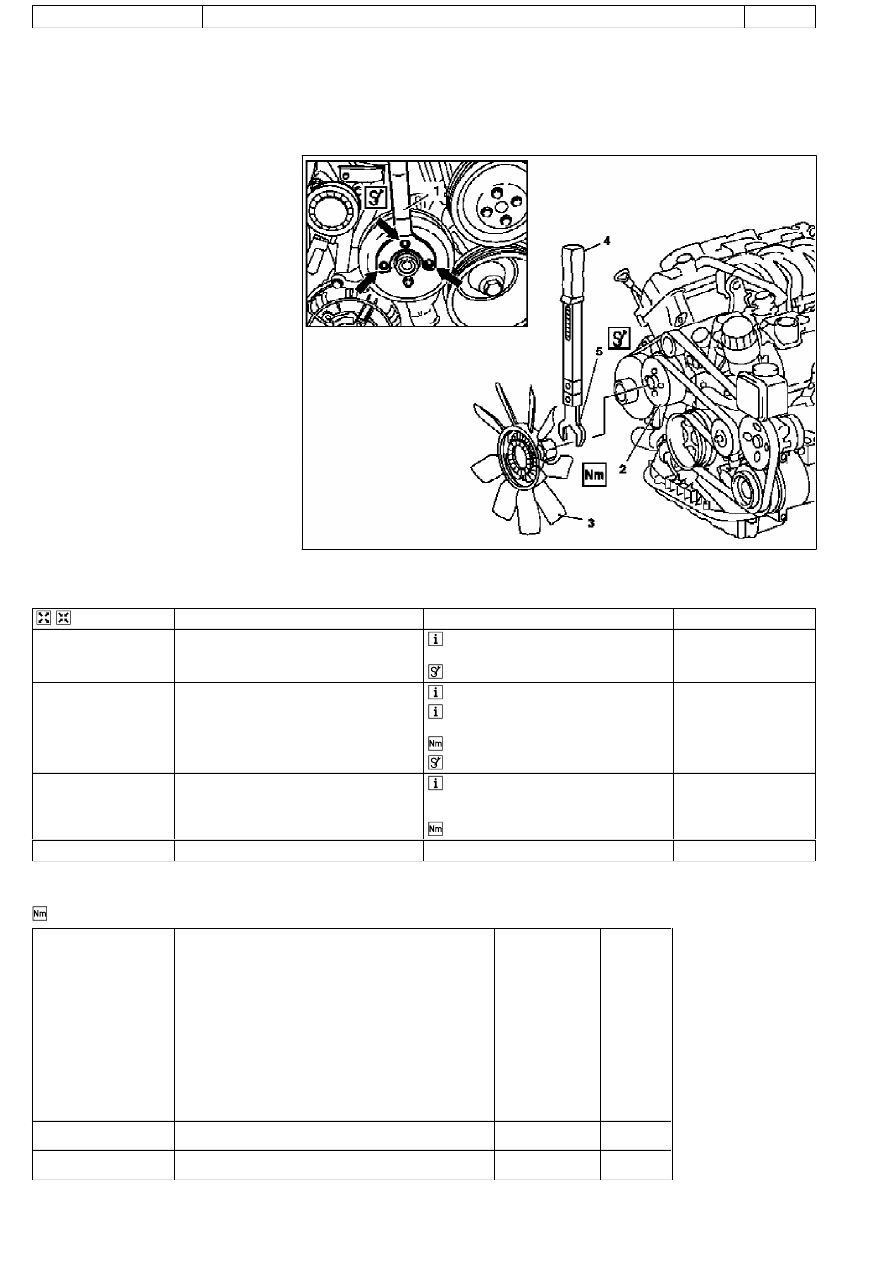

AR20.40-P-5660C

Remove/install viscous fan clutch

12.6.96

ENGINE

112 in MODEL 210, 202, 163.154 /157, 129

ENGINE

113 in MODEL 210, 208, 202, 163.172, 129

ENGINE

112.945 in MODEL 463.209 /232 /233 /244 /245 /250

ENGINE

113.962 in MODEL 463.206 /240 /241 /247 /248 /249 /254

ENGINE

113.982 in MODEL 463.243 /246

P20.40-0237-06

Shown on Engine 112

1

Counterholder

2

Belt pulley

3

Viscous fan

4

Torque wrench

5

Open-end wrench bit



Remove/Install

1

Fit counterholder (1) on bolts of belt pulley
(2), counterhold

 Belt pulley of coolant pump



*113589004000

2

Unscrew union nut at visocus fan (3)

 Right-hand thread.



Installation: Use torque wrench with

open-end wrench bit.



*BA20.40-P-1002-01B



*113589000100

3

Unbolt fan at viscous clutch



Installation:The installation position of

the fan is preset through cast-on ribs at fan
ring.



*BA20.40-P-1001-01B

4

Install in the reverse order



Fan, fan clutch

Number

Designation

Engine
112.910/911/912/
913/914/915/
916/917/920/
921/922/923/
940/941/942/
943/944/945/
946/947/949/
951/953/954/
955/960/961/
970/972/973/975

Engine
113

BA20.40-P-1001-01B

Fan to viscous clutch

Nm

10

10

BA20.40-P-1002-01B

Viscous clutch to bearing body

Nm

45

45

Copyright DaimlerChrysler AG  12.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

113 589 00 01 00

113 589 00 40 00

Counterholder

Open-end wrench bit

Copyright DaimlerChrysler AG  12.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2
