Mercedes-Benz ML320. Service manual - part 833





S-B-82.70/179A February 2002

2

TDMA PROGRAMMING

1.  Obtain the following information from the cellular carrier before beginning the programming sequence:

  Cellular telephone number:  __  __  __  -  __  __  __  -  __  __  __  __

  Carrier system I.D.:  __  __  __  __  __  (I.D. number will be 1 to 5 digits)

2.  Obtain the telephone security code from the customer. In a new telephone, it is set to 000000.

  Telephone security code:  __  __  __  __  __  __  (Default is all zeros)

3.  Program as follows:

Step

To

Press (Input)

Phone Displays

1

Enter Programming

Mode

Press: #, Carrier System I.D., #, *,

“SEND”

Enter Security Code

_ _ _ _ _ _

2

Enter Security Code

Press: 0, 0, 0, 0, 0, 0 and select

“OK” (This is the factory default

code)

ESN (Hex)

3

Enter Phone Number

Scroll down to MIN: --- --- --- ----

and insert the ten digit MIN

through the keypad and select

“OK” (MIN is the customer’s

cellular number)

IMSI

4

Finalizing

Programming

Select “DONE” (The handset

display will turn off temporarily)

Main Menu

Note: The telephone will display “Try Again” if an entry error is made. Press “CLR” to erase the

message/incorrect digits or press and hold “CLR” to clear all digits and then enter the correct number

and press “SEND.”

4.  The telephone will power off after the “NAM Program Begins” message displays. When the telephone is

powered up again, it will search for the network and be ready for use.

S-B-82.70/179A



February 2002

3

CDMA PROGRAMMING

1.  Obtain the following information from the cellular carrier before beginning the programming sequence:

  Cellular telephone number:   __  __  __  -  __  __  __  -  __  __  __  __

  Carrier analog system I.D.:  __  __  __  __  __  (I.D. number will be 1 to 5 digits)

  Carrier digital system I.D.:  __  __  __  __  __  (I.D. number will be 1 to 5 digits)

Note: Generally, the analog and digital system I.D. numbers will be the same. Questions regarding

system I.D. numbers should be addressed with the cellular carrier.

2.  Program as follows:

Step

To

Press (Input)

Telephone Displays

1

Enter

Programming

Mode

Press: 7, 4, 6, 6, 3, #, MENU,

MENU

Nam 1

Nam 2

2

Selecting NAM

Choose “SELECT” for NAM 1

MIN: 0000000000

3

Enter Phone

Number

Insert the ten digit MIN

through the keypad and select

“OK” (This is the customer’s

cellular number)

IMSI

4

Enter AMPS

System I.D.

Scroll down to AMPS Sys ID,

insert the number and select

“OK” (AMPS data is provided

by the carrier)

CDMA

 Sys ID:

5

Enter

CDMA

System I.D.

Insert the CDMA Sys ID and

select “OK” (

CDMA

 data is

provided by the carrier)

MIN:

6

Finalizing

Programming

Select “DONE” and then press

the “END” key

Main Menu

Note: The telephone will display “Try Again” if an entry error is made. Press “CLR” to erase the

message/incorrect digits or press and hold “CLR” to clear all digits and then enter the correct number

and press “STO.”

3.  After the “Entry Done” message appears, the telephone will display “Searching” as it attempts to contact

a network. When the “Searching” message disappears, the telephone is ready for use.

4.  To program a second number, follow step 1 in the table below and steps 2-6 in the above table.

Step

To

Press (Input)

Phone Displays

1

Enter NAM2

Programming

Mode

7, 4, 6, 6, 3, #, 2, FCN, FCN

Enter MIN

Note: Be sure to obtain the system I.D. for each before beginning the programming sequence if the

second through fourth numbers are with different cellular carriers.

Note: The CDMA telephone has a two telephone number maximum. Refer to the operation guide for

instructions on how to switch between the various telephone numbers.

AZ82.60-P-0004A

Retrofit vehicle video system

3.10.00

MODELS  163.136 /154 /172 1A as of 145273,
163.136 /154 /172 1X as of 708319,
163.113 /128 /157 /174 /175 1#
left hand drive vehicle

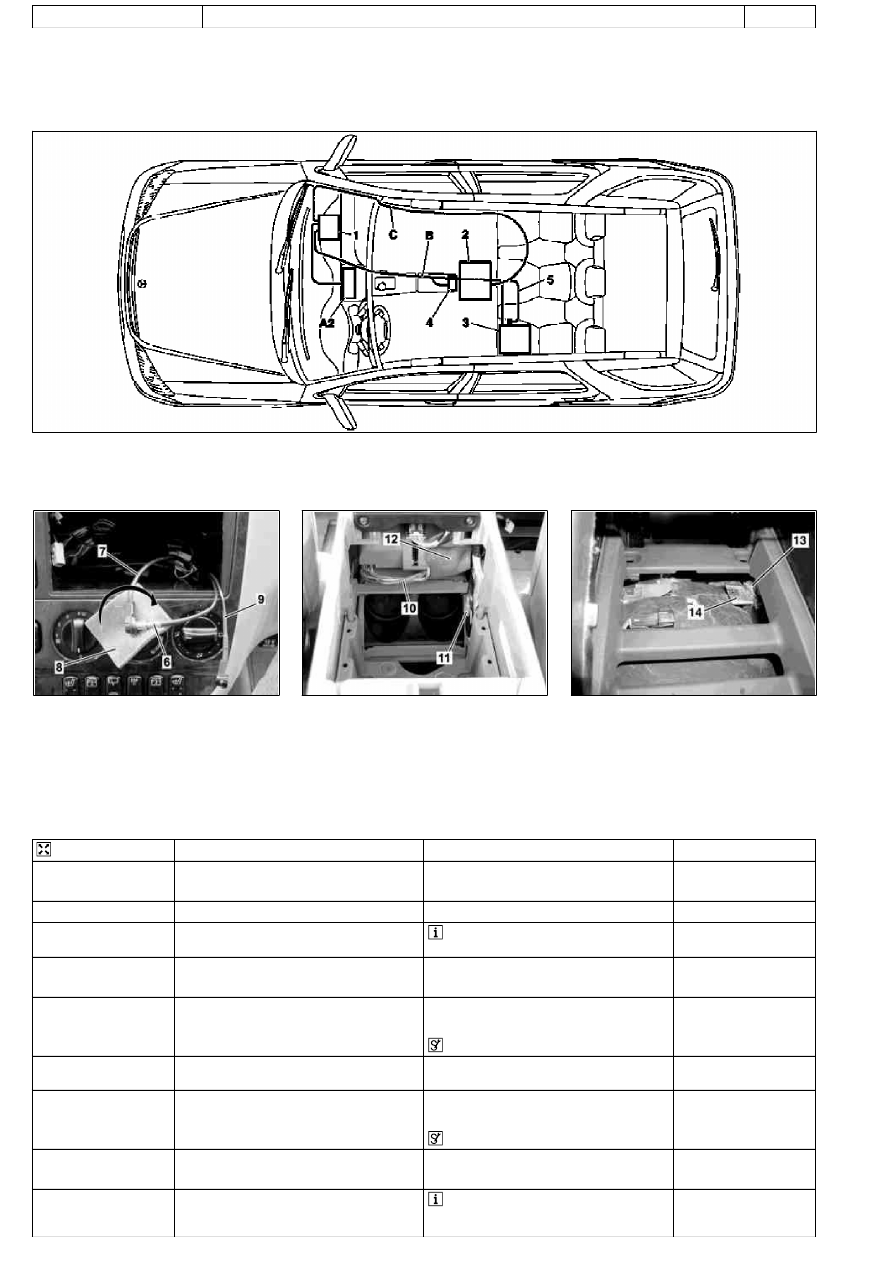

P82.60-2376-08

1

Central interface module

2

Video monitor

3

Video player

B

Video/DVD player wiring harness

C

Wiring harness for video monitor

4

Auxiliary interface module

5

DVD player wiring harness

A2

Radio

P82.60-2399-01

P82.60-2400-01

P82.60-2444-01

6

Antenna cable for FM modulator

7

Vehicle antenna cable

8

Self-adhesive foamed material

9

Antenna cable for FM modulator

Illustrated as of VIN A289565, X754620
13

Auxiliary interface module connector

14

Mount for center console

Illustrated up to VIN A289564, X754619
10

Wiring harness for auxiliary interface
module

11

Clip

12

Self-adhesive foamed material



Remove

1

Remove center console

f



Remove/install center console

AR68.20-P-2000GH

2

Remove center console insulating mat

3

Remove rear air duct

 Up to VIN A289564, X754619. 2 screws

at rear air duct.

4

Remove radio (A2)

f



Remove/install radio

AR82.60-P-7502EA

5

Remove glove compartment

f



Remove/install glove compartment

AR68.10-P-1400GI

 Torx bit set

*000589011000

6

Loosen upper section of right front door
rubber seal

7

Remove A-pillar paneling on right

f



Remove/install paneling on A-pillar

AR68.30-P-4050GH

 Long wedge

*115589035900

8

Remove right sun visor

f



Remove/install sun visor

AR68.60-P-5480GH

9

Remove right front handle

 Open covers for handles, press down clip

on each side of handle, at the same time
press handle upward and pull out.

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

10

Remove edge guard for tilting/sliding roof
cutout

11

Release upper right B-pillar paneling

12

Remove covers at lower rear seat

 Do NOT remove center cover for lower

40% seat. Do NOT reinstall curtain on 60%
front bench seat.

f



Remove and install cover on bottom of rear
seat

AR91.12-P-1100GH

13

Release side shade at the 60% bench

 Fold shade upward so that the working

area is not obstructed.

14

Remove 40% rear seat

f



Remove and install bench

AR91.12-P-1010GI

 Torx bit set

*000589011000



Install

15

Retrofit central interface module (1)

AZ82.60-P-0004-01A

16

Insert antenna cable for FM modulator (6) into
vehicle antenna cable (7)

17

Cover connector with self-adhesive foamed
material (8)

18

Plug remaining antenna cable of FM
modulator (9) into radio

19

Install radio (A2)

f



Remove/install radio

AR82.60-P-7502EA

20

Retrofit video monitor (2) and wiring harness
of video monitor (C)



With glass version of electric sliding/tilting

roof, code 414a.

AZ82.60-P-0004-02A



Except glass version of electric

sliding/tilting roof, code 414a.

AZ82.60-P-0004-02B

21

Secure upper right B-pillar paneling

 Ensure that the lugs of the seat belt height

adjustment are located correctly in the recess
clearance of the paneling.

22

Install right front handle

23

Install right sun visor

f



Remove/install sun visor

AR68.60-P-5480GH

24

Install right front A-pillar cover

f



Remove/install paneling on A-pillar

AR68.30-P-4050GH

25

Re-secure upper area of rubber door seal

26

Route wiring harness of video/DVD player
(B), additional interface module (4) and wiring
harness of video monitor (C) later

 Up to VIN A289564, X754619.

AZ82.60-P-0004-03A

 As of VIN A289565, X754620.

AZ82.60-P-0004-03B

27

Retrofit auxiliary interface module (4) in
center console

 Up to VIN A289564, X754619.

AZ82.60-P-0004-04A

 As of VIN A289565, X754620.

AZ82.60-P-0004-04B

28

Install center console insulating mat

29

Install center console

f



Remove/install center console

AR68.20-P-2000GH

30.1

Plug in plug of additional interface module
and secure the wiring harness of the
additional interface module (10) to the clip
(11) together with the wiring harness of the
rear power windows in the center console

 Up to VIN A289564, X754619.

30.2

Insert auxiliary interface module (13)
connector and route between center console
mount (14) and center console.

 As of VIN A289565, X754620.

31.1

Secure auxiliary interface module plug in the
left rear corner of the ashtray housing using
self-adhesive foamed material (12)

 Up to VIN A289564, X754619.

32

Open ashtray and cup holder and close to
check correct function

33

Attach side shade of the 60% bench

34.1

Retrofit video player (3)

AZ82.60-P-0004-05A



*BA91.12-P-1005-03A



*BA91.12-P-1008-03A

34.2

Retrofit DVD player

AZ82.60-P-0005-01GH

35

Install 40% rear seat

f



Remove and install bench

AR91.12-P-1010GI

 Torx bit set

*000589011000

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2
