Mercedes-Benz ML320. Service manual - part 831





GF54.50-P-4100-02GH

Trip computer control module, design

n



The trip computer control module (TRIP, N41) consists of the
following components:
D

Electronics unit

D

LCD display

D

Reset button (left button, N41s1)

D

Mode button (right button, N41s2)

D

Inclination sensor (N41b1)

D

Glass breakage sensor (N41b2)

D

CAN interface

D

Alarm bus to all activity module (AAM, N10)

D

as of 1.9.00: Interface (RS 485) to electronic compass (B26)

Copyright DaimlerChrysler AG  18.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

GF54.30-P-2016A

Trip computer interface, location/task

7.7.99

MODEL

129, 140 as of 1.6.96

The trip computer receives the following information via the trip
computer interface (2 lines):
D

Driving speed

D

Mileage

D

Time

-----------------------------------------------------------------------------------------



The trip computer receives information about fuel consumption
directly from the fuel level sensor.

-----------------------------------------------------------------------------------------

Copyright DaimlerChrysler AG  05.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

GF54.50-P-4100GH

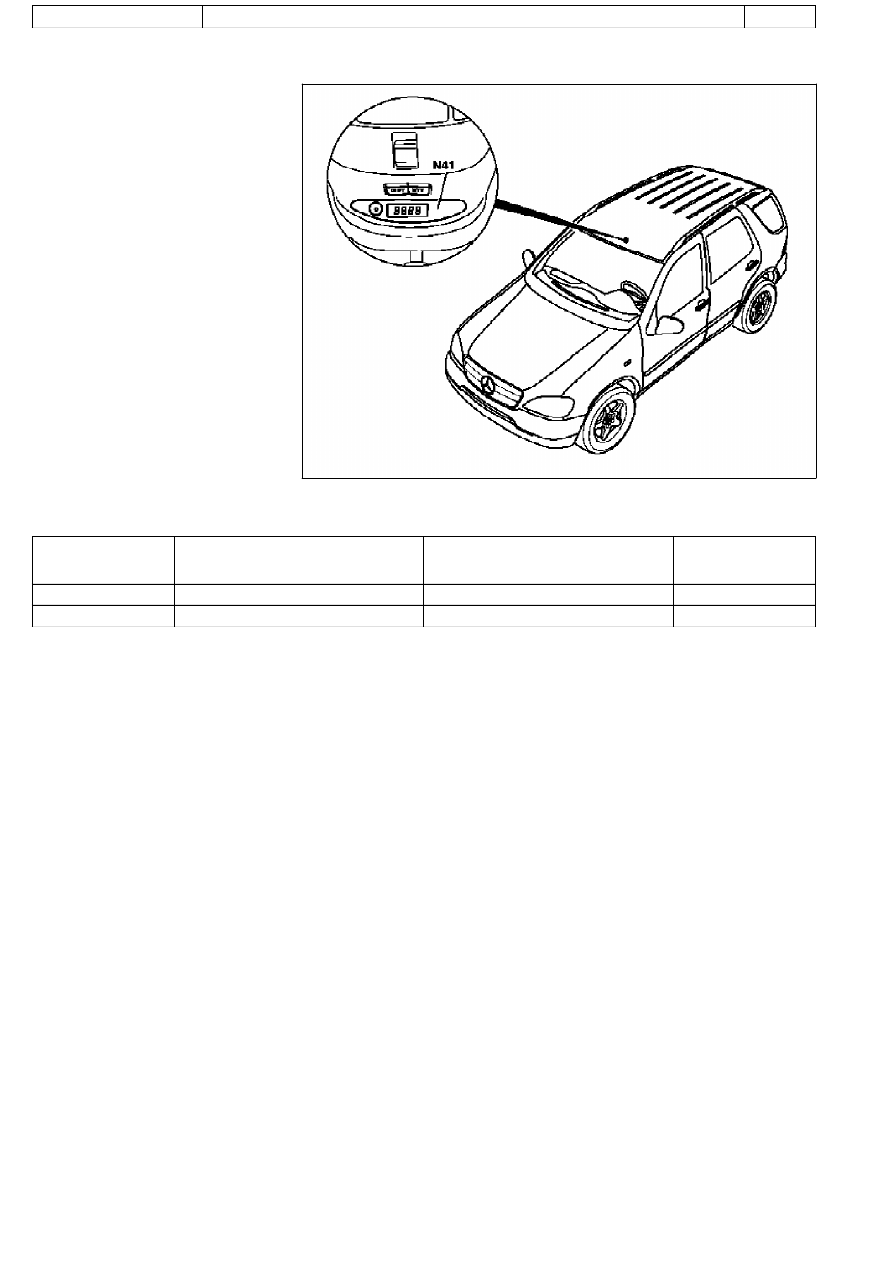

Trip computer control module, location/task/design

24.3.00

MODEL

163 as of 1.9.00 with CODE (245) Trip computer

P54.50-0212-06

N41 Trip computer control module

Trip computer control module, location

The trip computer control module (TRIP, N41)
is located above the
inside rearview mirror unit.

Trip computer control module, task

GF54.50-P-4100-01GH

Trip computer control module, design

GF54.50-P-4100-02GH

Copyright DaimlerChrysler AG  18.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR54.50-P-0001GH

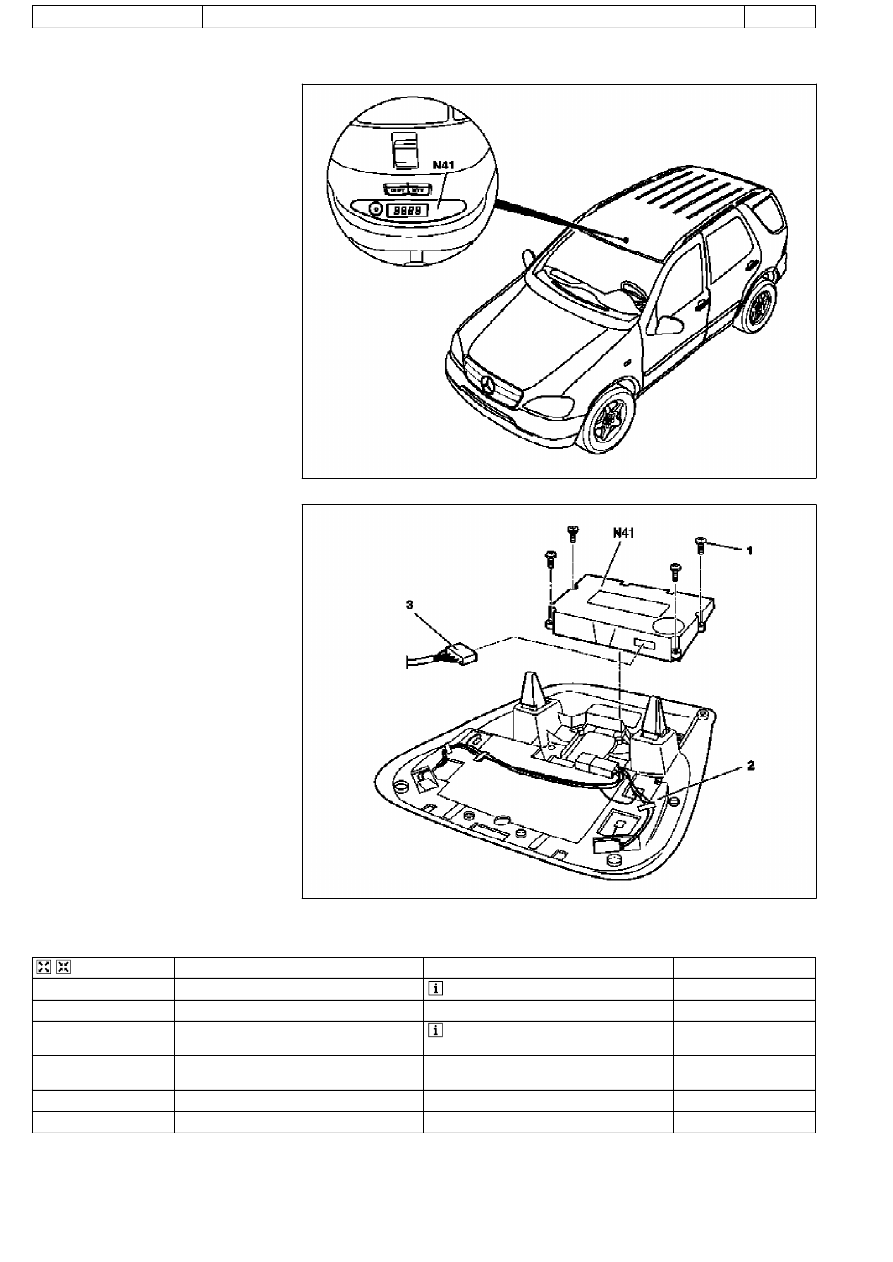

Remove, install trip computer

17.12.98

MODEL

163.113 /128 /136 /154 /157 /172 /174 /175 with CODE (245) Trip computer

P54.50-0212-06

N41

Trip computer control module

P54.50-2030-06

1

Bolts

2

Overhead control panel

3

Connector

N41

Trip computer control module



Remove/install

1

Ensure that the ignition key is in position "0".

 In order to prevent error codes.

AR54.10-P-0003A

2

Remove overhead control panel (2).

AR82.20-P-1100GH

3

Unscrew trip computer control module (N41)
from overhead control panel (2).



Unscrew screws (1) from control module.

4

Detach connector (3) from trip computer
control module (N41).

5

Install in the reverse order

6

Check that trip computer functions correctly.

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
