Mercedes-Benz ML320. Service manual - part 837





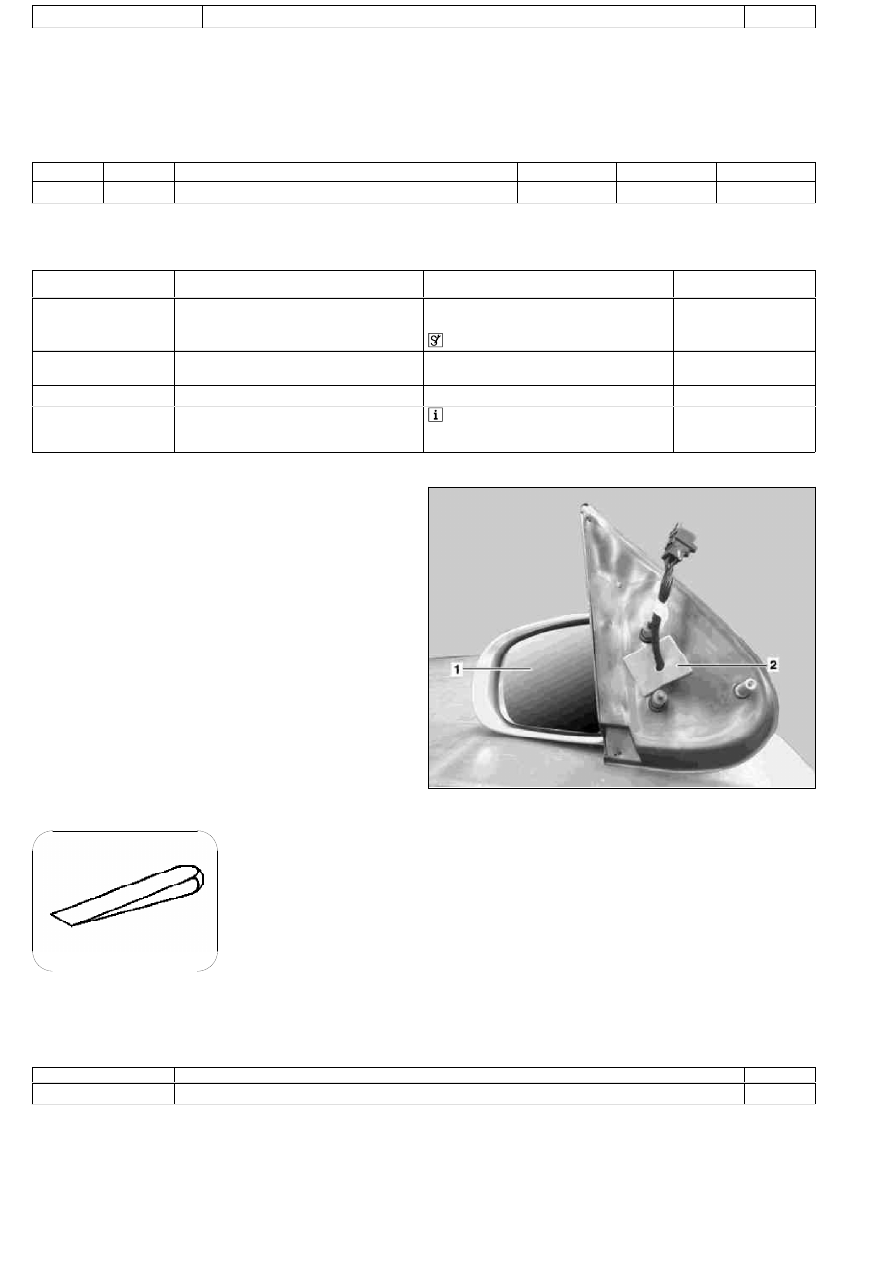

AF88.70-P-1100AG

Wind noise at outside mirror on left and/or right front door

30.10.03

MODEL

163.154 #A as of 289560,

163.113 /128 #X as of 754620,
163.113 /174 #A as of 289560 up to 486952,
163.128 /157 /175 #A up to 486952

Operation no. of the operation texts or standard texts and flat rates

Range

Op. no.

Operation text

Flat rate

Acc. no.

Code

P

024204

Foam on base of outside rearview mirror, Location:.... install

004 WU

81 101 39

---

Damage Code

Cause

Remedy

81 101 39

Insufficient seal pressure between door and
base of mirror mount.

1

Remove outside rearview mirror (1) only
on side where wind noise occurs.

AR88.70-P-9000GH



*110589035900

2

Install foam (2) onto base of mirror mount
around wiring harness.

3

Reinstall outside rearview mirror (1).

AR88.70-P-9000GH

 Replace foam on inside of door around

hole where mirror wiring harness comes
through.

P88.70-2311-11

1

Outside rearview mirror

2

Foam

Mounting wedge

110 589 03 59 00

Parts ordering notes

Part no.

Designation

Quantity

163 682 25 28

Foam

2

Copyright DaimlerChrysler AG  04.08.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

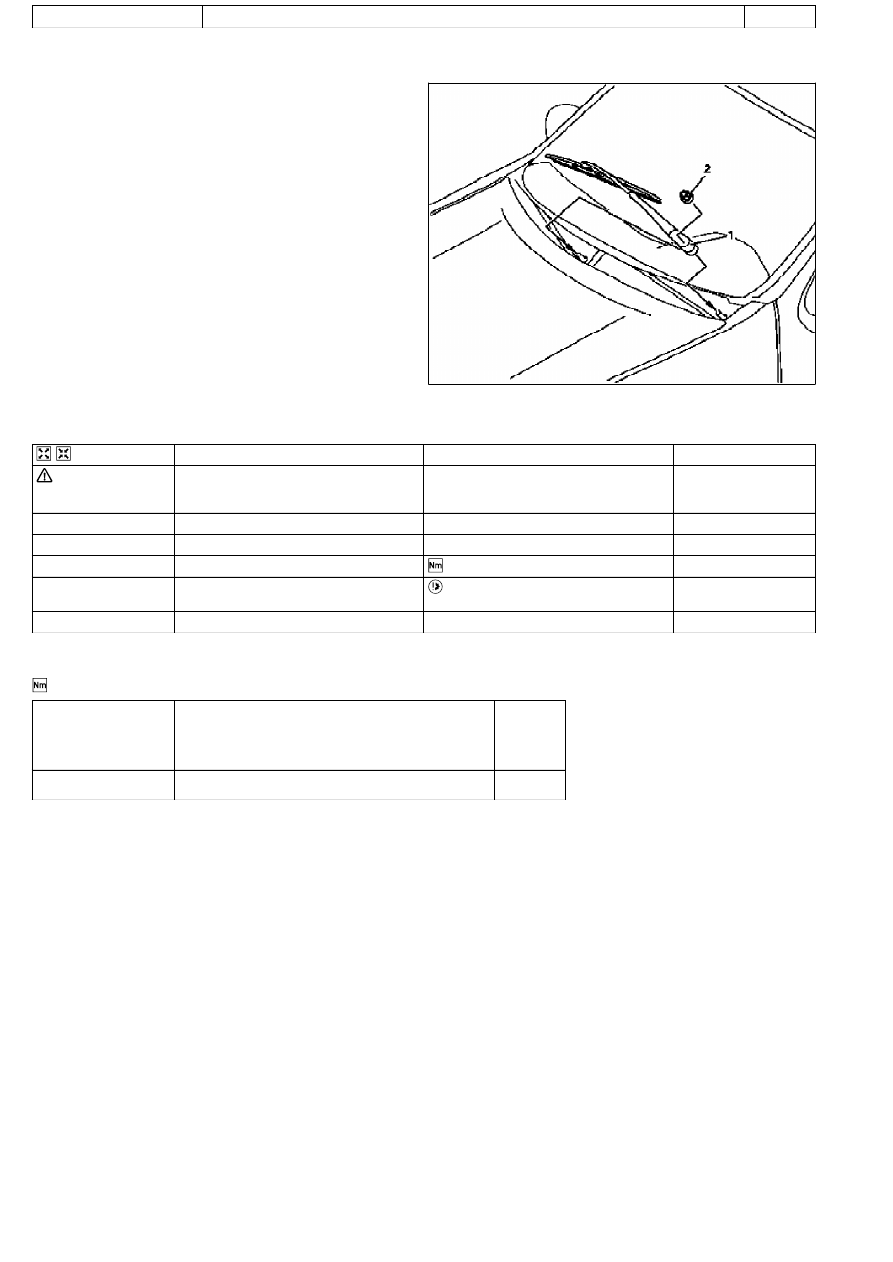

AR82.30-P-6100GH

Removing and installing wiper arm

7.3.97

MODEL

163.113 /128 /136 /154 /157 /172 /174 /175

P82.30-0386-11

1

Protective cap

2

Nut



 Remove/install

 Danger!

Injury hazard by trapping or crushing, in
extreme cases with loss of limbs when
reaching into windshield wiper mechanism

Always remove ignition key when working on
windshield wiper mechanism.

AS82.30-Z-0001-01A

1

Ensure that wiper motor is in park position

2

Open protective cap (1)

3

Unscrew nut (2)



*BA82.30-P-1002-01C

4

Take off wiper arm



Hold wiper arm on mounting section to

avoid hitting against windshield.

5

Install in the reverse order



Windshield wipers

Number

Designation

Model
Series 163

BA82.30-P-1002-01C

Nut for wiper arm on windshield

Nm

18

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

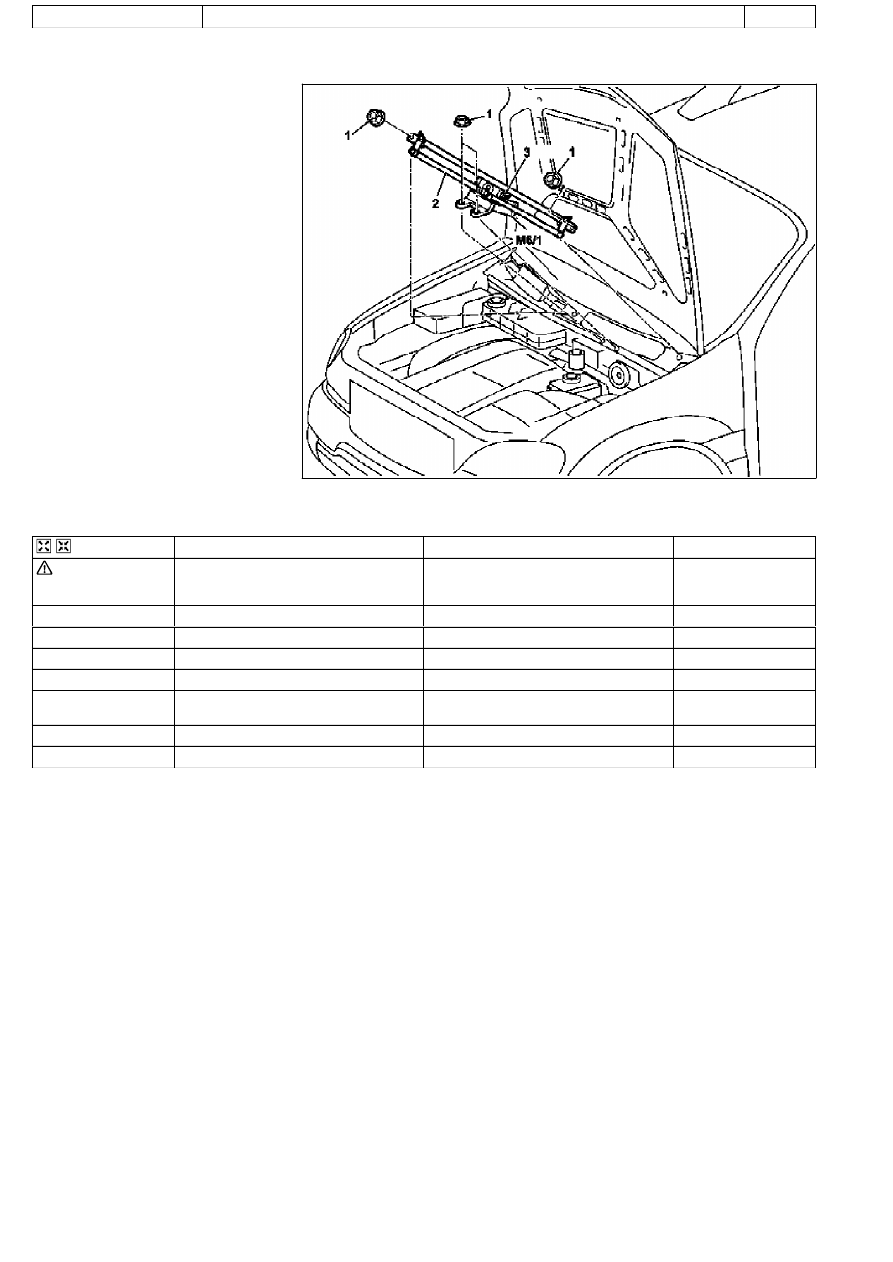

AR82.30-P-6400GH

Remove/install wiper system

3.3.97

MODEL

163.113 /128 /136 /154 /157 /172 /174 /175

P82.30-0393-06

1

Nuts

2

Wiper system

3

Connector

M6/1

Wiper motor



Remove/install

 Danger!

Injury hazard by trapping or crushing, in
extreme cases with loss of limbs when
reaching into windshield wiper mechanism

Always remove ignition key when working on
windshield wiper mechanism.

AS82.30-Z-0001-01A

1

Ensure that wiper motor is in park position

2

Remove cover on air intake

AR83.25-P-1405GH

3

Unscrew nuts (1) on wiper arm

4

Lift wiper system (2)

5

Disconnect connector (3) from the wiper
motor (M6/1)

6

Remove wiper system (2)

7

Install in the reverse order

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

2001 SYSTEM WIRING DIAGRAMS

Mercedes-Benz - ML320

USING MITCHELL1'S WIRING DIAGRAMS

For information on using these wiring diagrams, see USING MITCHELL1'S SYSTEM WIRING
DIAGRAMS
 article.

AIR CONDITIONING



2001 Mercedes-Benz ML320

2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320





2001 Mercedes-Benz ML320

2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320
