Mercedes-Benz ML320. Service manual - part 714





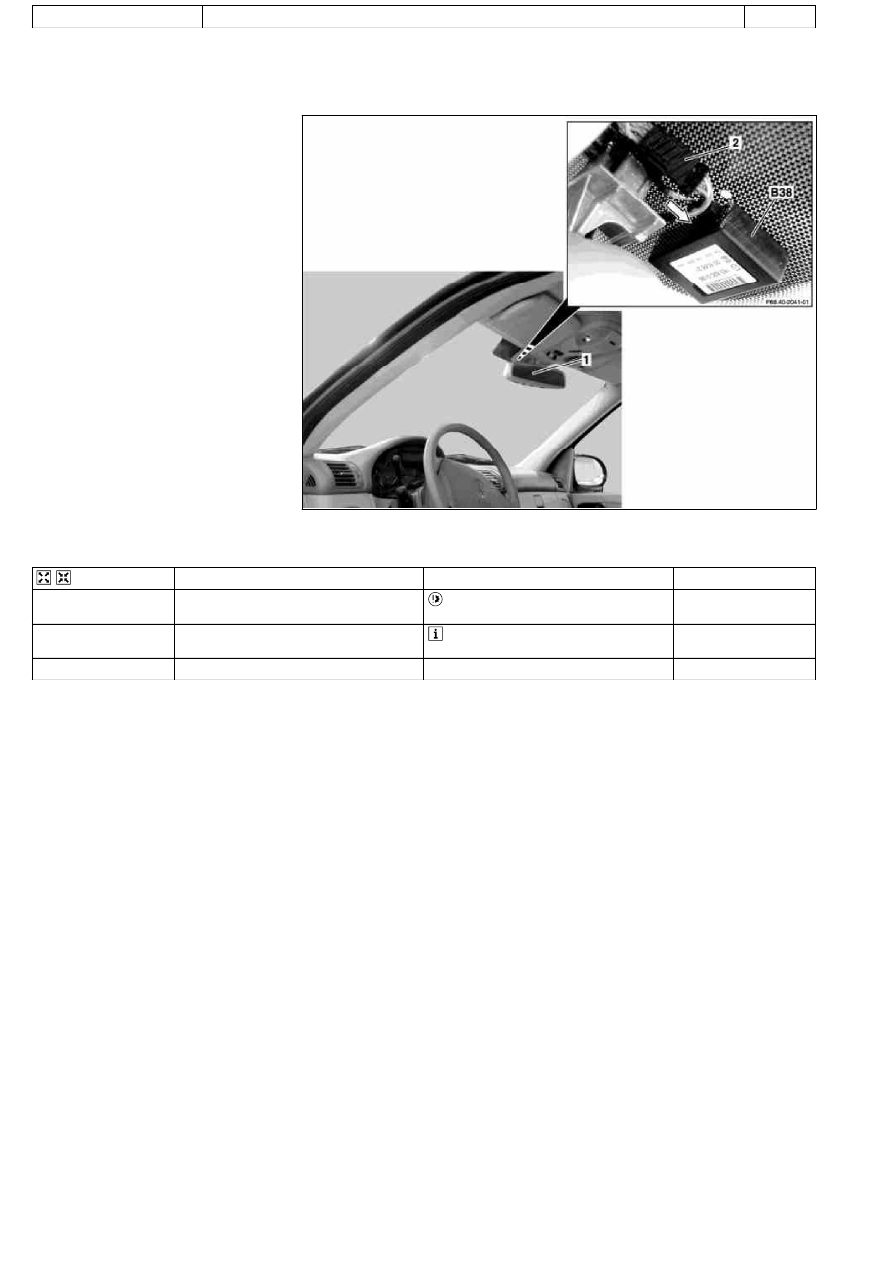

AR68.40-P-0001GI

Remove/install inside rearview mirror

23.4.01

MODEL

163.136 /154 /172 #A as of 145273,

163.136 /154 /172 #X as of 708319,
163.113 /128 /157 /174 /175

P68.40-2042-06

1

Inside rearview mirror

2

Automatic dimming connector

B38

Rain sensor



Remove/install

1

Turn inside rearview mirror (1) 90  and press
against mirror housing at side.

 Danger of breaking windshield.Do not

damage rain sensor (B38), if present.

2.1

Disconnect automatic dimming
connector (2).

 Only with automatically dimming inside

rearview mirror, code 249a.

3

Install in the reverse order

Copyright DaimlerChrysler AG  04.08.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR54.30-P-6049-02Z

Installing bulbs

129 589 00 09 00

129 589 01 09 00

Pin socket

Pin socket

P54.30-0012-01

Insert bulbs and turn to the right using special tool.

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

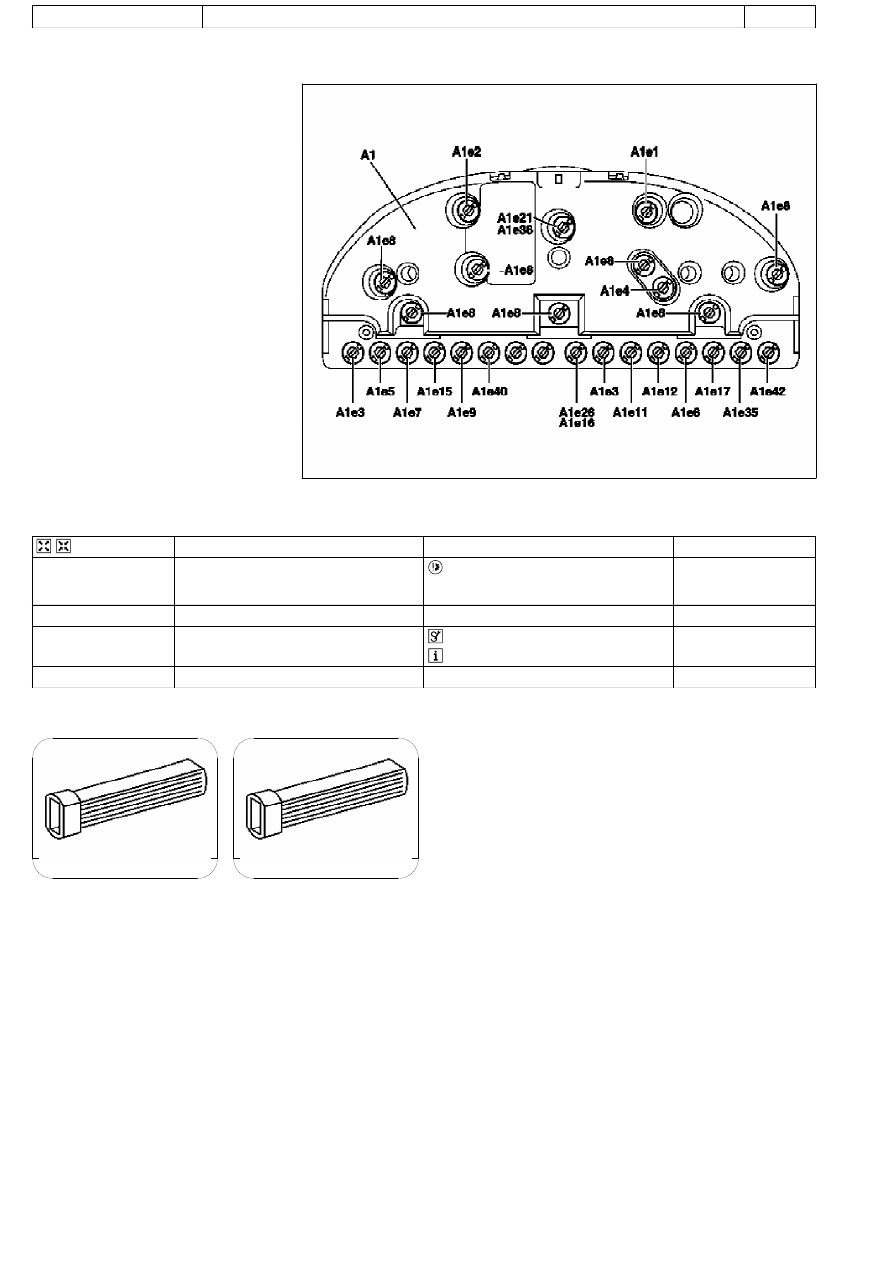

AR54.30-P-6049GH

Removing and installing bulbs of instrument cluster

21.1.97

MODEL

163

P54.30-0632-06

Instrument cluster
A1e1

Left turn signal indicator lamp

A1e2

Right turn signal indicator lamp

A1e3

High beam indicator lamp

A1e4

Fuel reserve indicator lamp

A1e5

Generator charge indicator lamp

A1e6

Brake pad wear indicator lamp

A1e7

Low brake fluid level/parking brake
indicator lamp

A1e8

Instrument illumination

A1e9

Seat belt reminder lamp

A1e11

Low ECL indicator lamp

A1e12

Low engine oil level indicator lamp

A1e15

SRS MIL

A1e17

ABS MIL

A1e21

ASR warning lamp

A1e26

"CHECK ENGINE" MIL

A1e35

ETS MIL

A1e36

ETS warning lamp

A1e40

Steering lock warning lamp

A1e42

ESP MIL



Removing, installing

 1

Disconnect ground cable from battery

 To prevent the disconnected ground cable

contacting the ground point W16/4
unintentionally, insulate ground cable terminal.

AR54.10-P-0003A

2

Remove instrument cluster

AR54.30-P-6015GH

3

Remove bulbs



AR54.30-P-6049-01Z



Installation: Install bulbs

AR54.30-P-6049-02Z

4

Install in opposite order



129 589 00 09 00

129 589 01 09 00

Socket

Socket

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

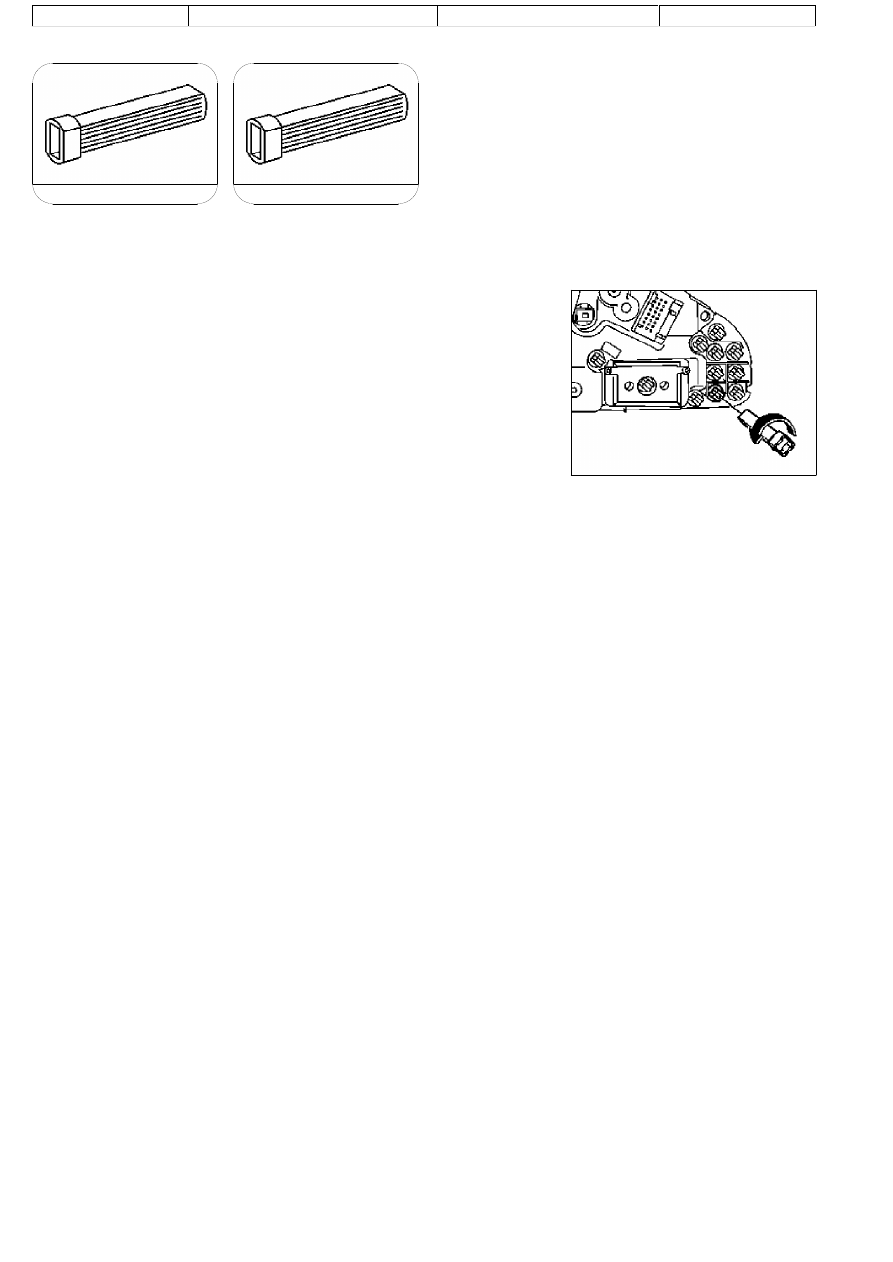

AR54.30-P-6049-01Z

Removing bulbs

129 589 00 09 00

129 589 01 09 00

Pin socket

Pin socket

P54.30-0011-01

Turn bulbs to the left and remove using special tool

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
