Mercedes-Benz ML320. Service manual - part 588





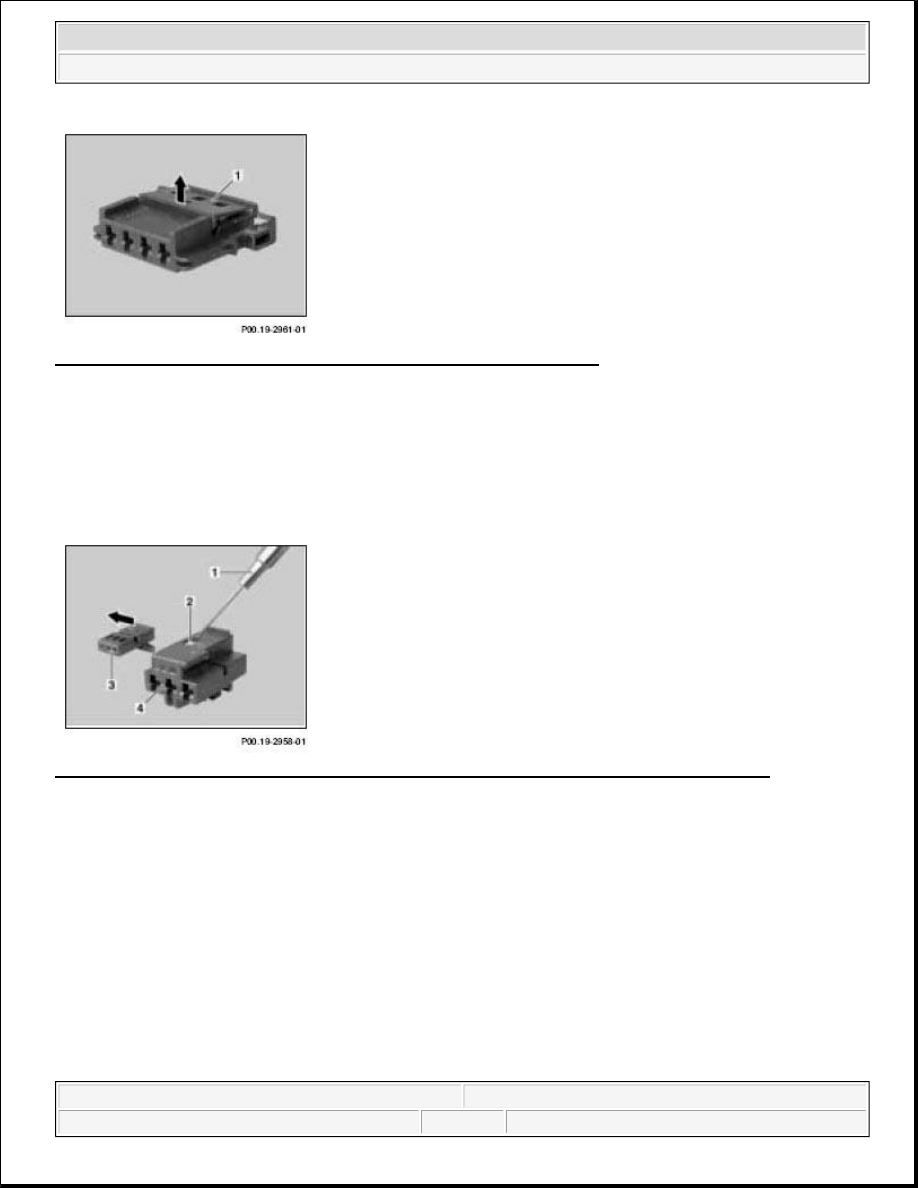

Fig. 525: Lifting Locking Shackles - Shown On A 4-Pin MCP Coupling

Secondary release on version with coupling cap (MCP)

1. Using a suitable tool (1), pry up lock tab (2) for coupling cap (4).

2. Pull clutch housing (3) from coupling cap (4) in direction shown by arrow.

Shown on a 3/3-pin MQS/MCP coupling

Fig. 526: Prying Up Lock Tab For Coupling Cap - Shown On A 3/3-Pin MQS/MCP Coupling

Secondary release on version with retaining cage (MCP)

1. Using a suitable tool (1), slide retaining cage (2) into pre-locking position in direction shown by arrow.

Shown on a 47-pin MQS or MCP coupling



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



Fig. 527: Sliding Retaining Cage - Shown On A 47-Pin MQS Or MCP Coupling

Unpin female contacts from coupling (MCP)

1. Insert blade holder with clamping pliers

 and MCP 2.8/Fl blade 2.8

 or MCP 2.8/Fl. 2.8/JPT/SPT

blade

 from the front through the openings in the contact cavity of the coupling (1).

 This step compresses the spring shackles (2) on the female contact.

2. A slight tug on the corresponding cable will remove the female contact (1) from the coupling.



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



Fig. 528: Female Contacts From Coupling (MCP)

REMOVE CONTACTS FROM STANDARD POWER TIMER COUPLING - AR00.19-P-0120-10A

Fig. 529: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Fig. 530: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Fig. 531: Identifying Wiring Harness Repair Kit (220 589 02 99 00)



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



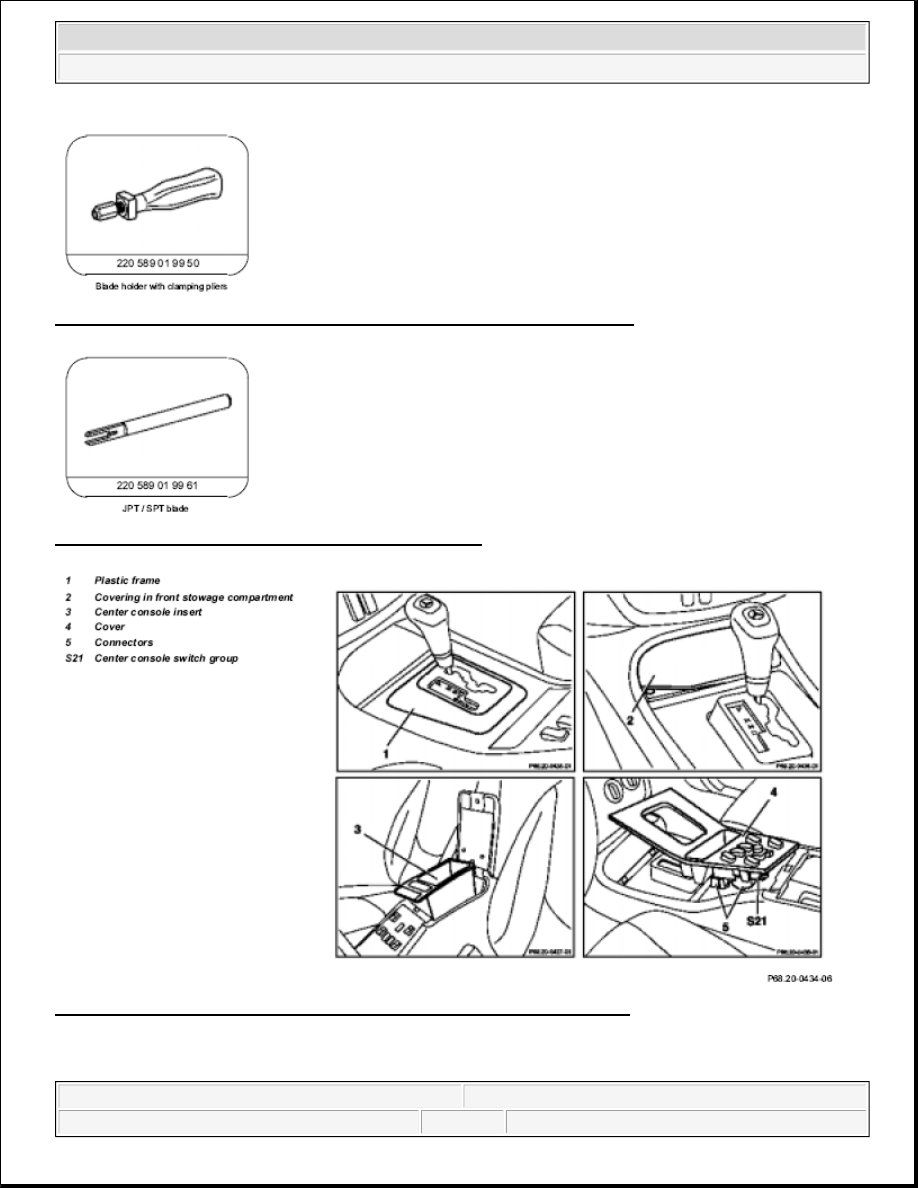

Fig. 532: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Fig. 533: Identifying JPT/ SPT Blade (220 589 01 99 61)

Fig. 534: Identifying MCP 2.8 / Fl Blade. 2.8 / JPT / SPT (000 589 13 99 30)

Secondary release on version with lock tab (SPT)



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me
