Mercedes-Benz ML320. Service manual - part 586

3. Press tabs of retainer (4) out of detent.

4. Open retainer (4).

Shown on 4-pin JPT, MPT coupling

Fig. 507: Identifying Retaining Cap, Coupling Housing And Retainer - Shown On 4-Pin JPT, MPT
Coupling

Unpin female contacts from coupling (JPT)

1. Insert blade holder with clamping pliers

 with JPT/SPT blade

 or MCP 2.8/Fl. 2.8/JPT/SPT blade



from the front through the openings in contact cavity of coupling.

 This presses together the springs of the female contact (1).

2. A slight tug on the corresponding cable will remove the female contact (1) from the coupling.



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



Fig. 508: Female Contacts From Coupling (JPT)

REMOVE CONTACTS FROM JUNIOR POWER TIMER PLUG - AR00.19-P-0120-08A

Fig. 509: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



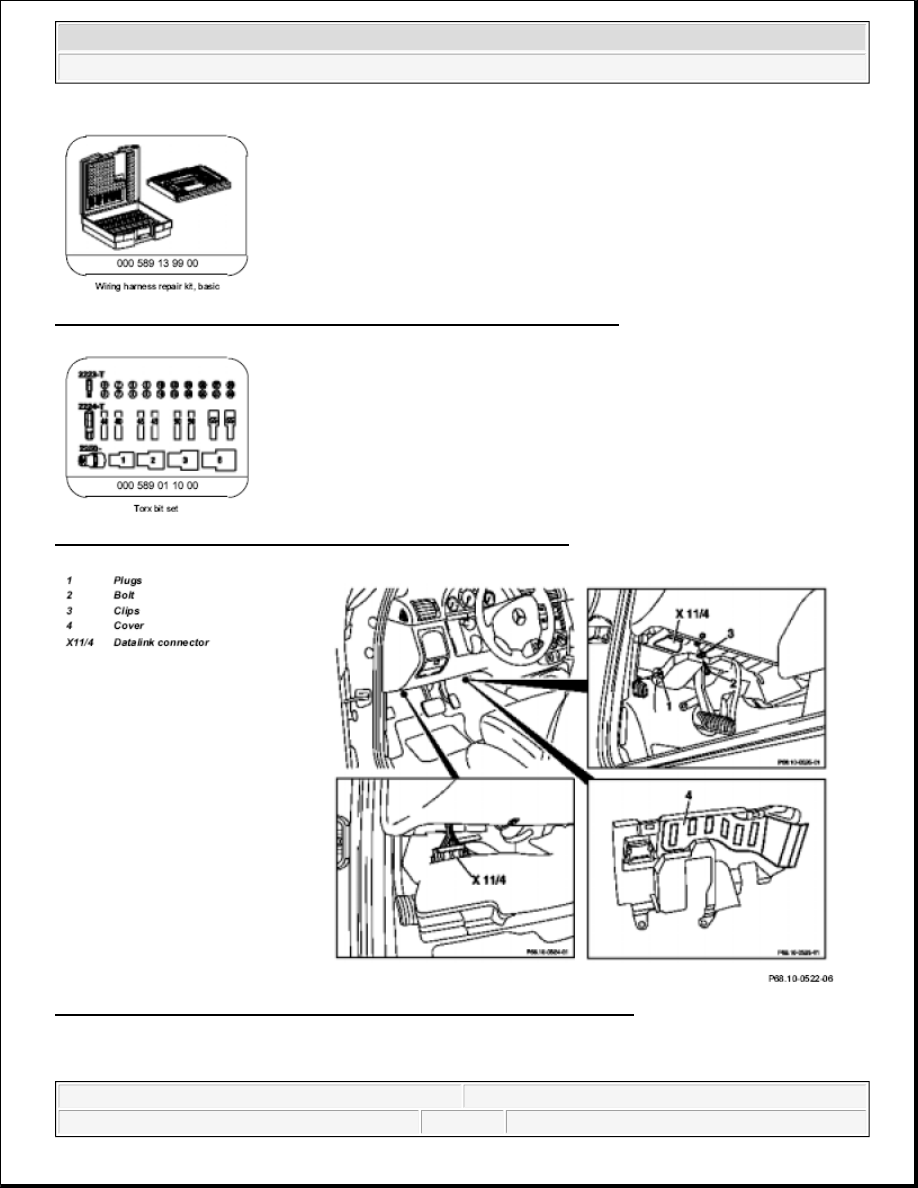

Fig. 510: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Fig. 511: Identifying Wiring Harness Repair Kit (220 589 02 99 00)

Fig. 512: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



Fig. 513: Identifying JPT /SPT Blade (220 589 01 99 61)

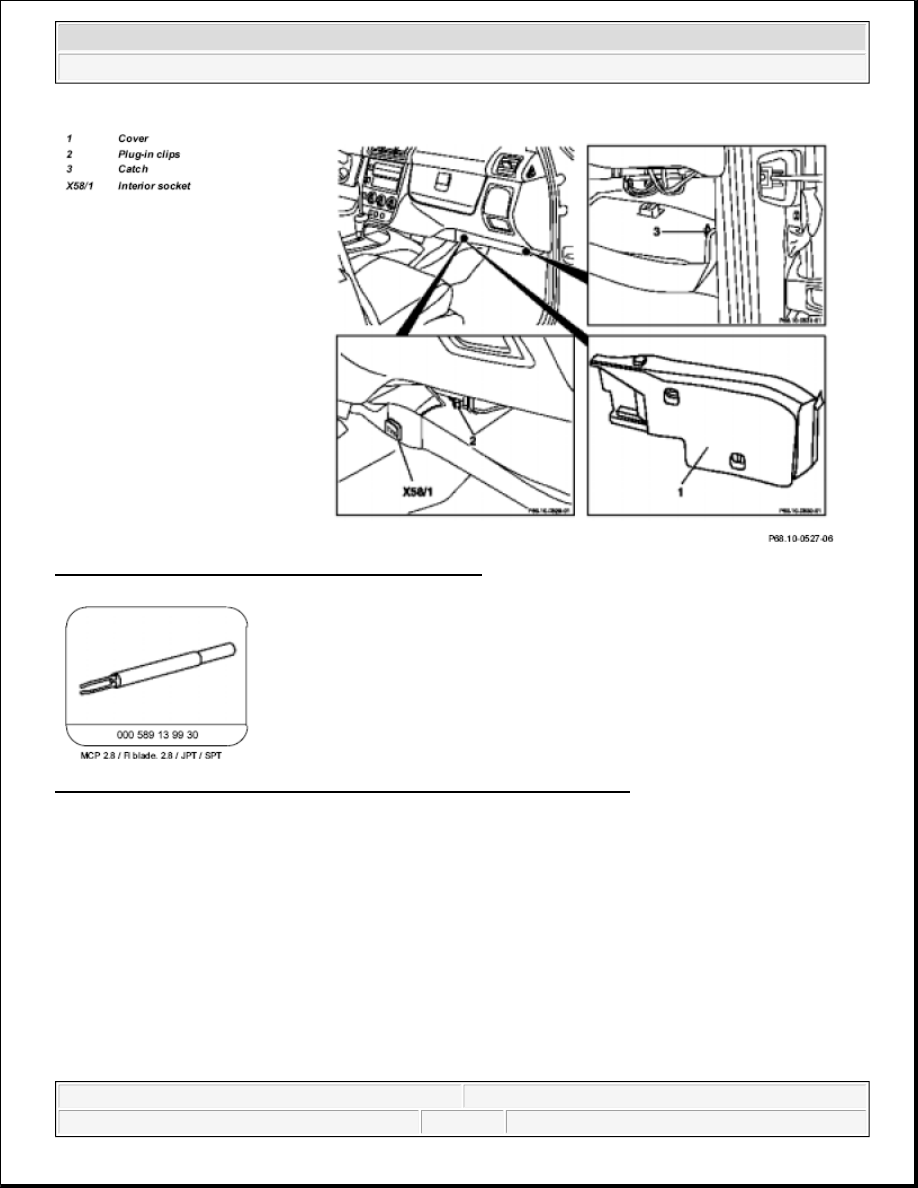

Fig. 514: Identifying MCP 2.8 / Fl Blade. 2.8 / JPT / SPT (000 589 13 99 30)

Secondary unlocking for version with locking bar (JPT)

1. Using a suitable tool, move locking bar (1) in direction of arrow out of locked position.

Shown on 4-pin JPT plug
