Fig. 489: Pushing Sliding Plate - Shown On 16-Pin MT 3 Coupling

Secondary release on version with locking slider (MT 3)

1. Lever slider out of locked position using a suitable tool.

Shown on 4-pin MT 3 and JPT coupling

Fig. 490: Removing Lever Slider Out Of Locked Position - Shown On 4-Pin MT 3 And JPT Coupling

Unpin the female contact from the coupling (MT 3)

1. Insert blade holder with clamping pliers

and MT 3 blade

from front side through openings on

contact cavity of coupling.

Do not damage webs between contact cavity and openings for release tool.

This pushes together the springs at the female contact (1).

2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis

Fig. 491: Female Contact From Coupling (MT 3)

2. A slight tug on the corresponding cable will remove the female contact from the coupling.

REMOVE CONTACTS FROM JUNIOR POWER TIMER COUPLING - AR00.19-P-0120-07A

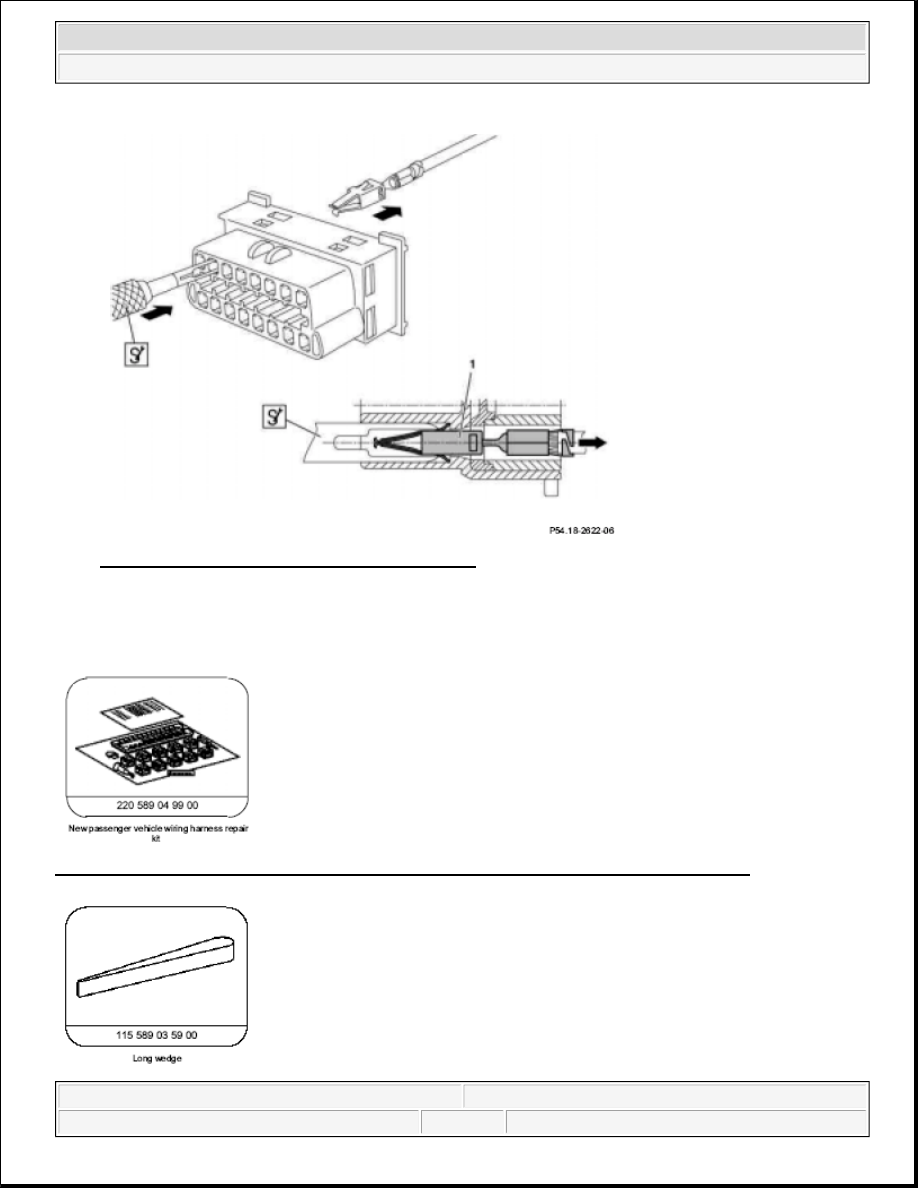

Fig. 492: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis

Fig. 493: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Fig. 494: Identifying Wiring Harness Repair Kit (220 589 02 99 00)

Fig. 495: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis

Fig. 496: Identifying JPT /SPT Blade (220 589 01 99 61)

Fig. 497: Identifying MCP 2.8 / Fl Blade. 2.8 / JPT / SPT (000 589 13 99 30)

Secondary unlocking for version with tab (JPT)

1. Using a suitable tool, at the line side unlock the lugs (1) on lock tab.

2. Open the tab.

Shown on 6-pin JPT coupling
