Mercedes-Benz ML320. Service manual - part 582





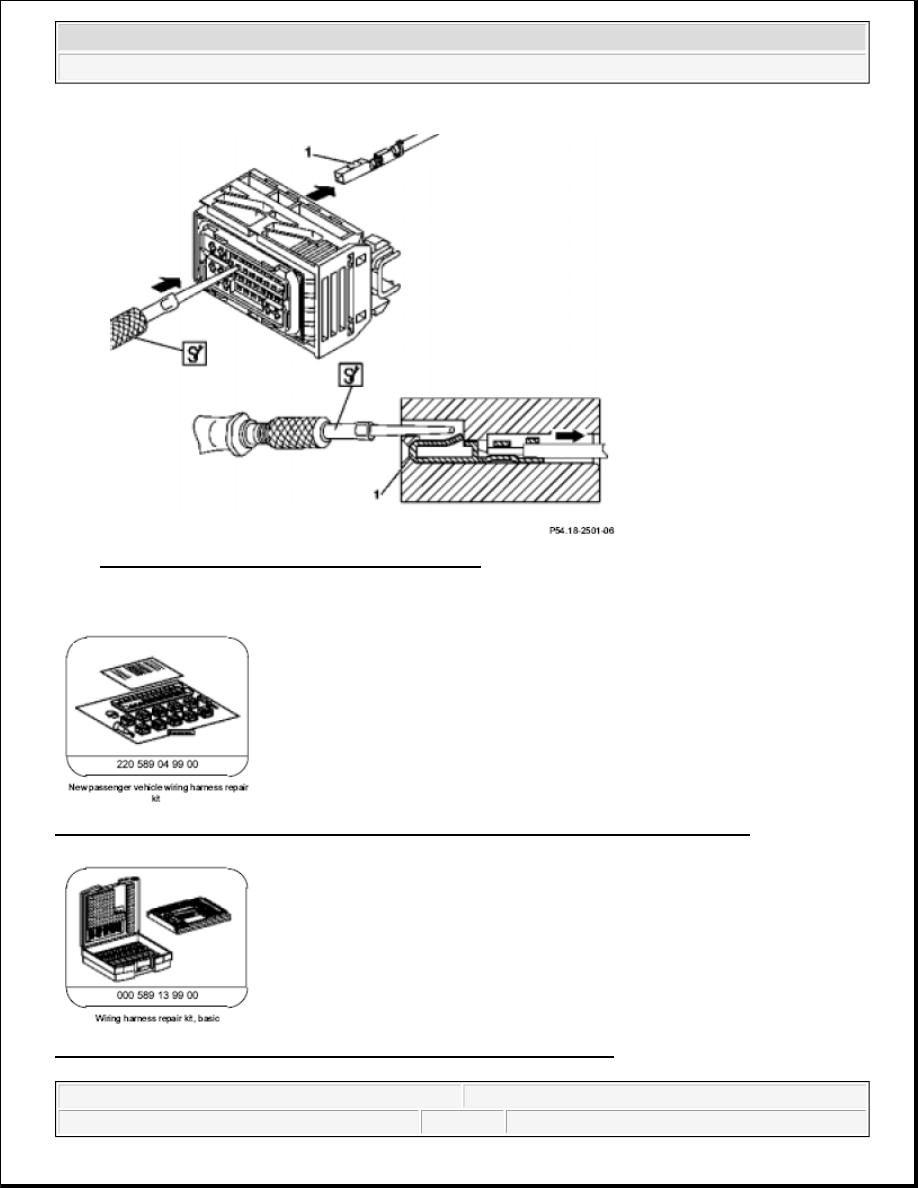

Fig. 473: Female Contacts From Coupling (MQS)

REMOVE CONTACTS FROM E 95 COUPLING - AR00.19-P-0120-05A

Fig. 474: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Fig. 475: Identifying Wiring Harness Repair Kit Basic (000 589 13 99 00)



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



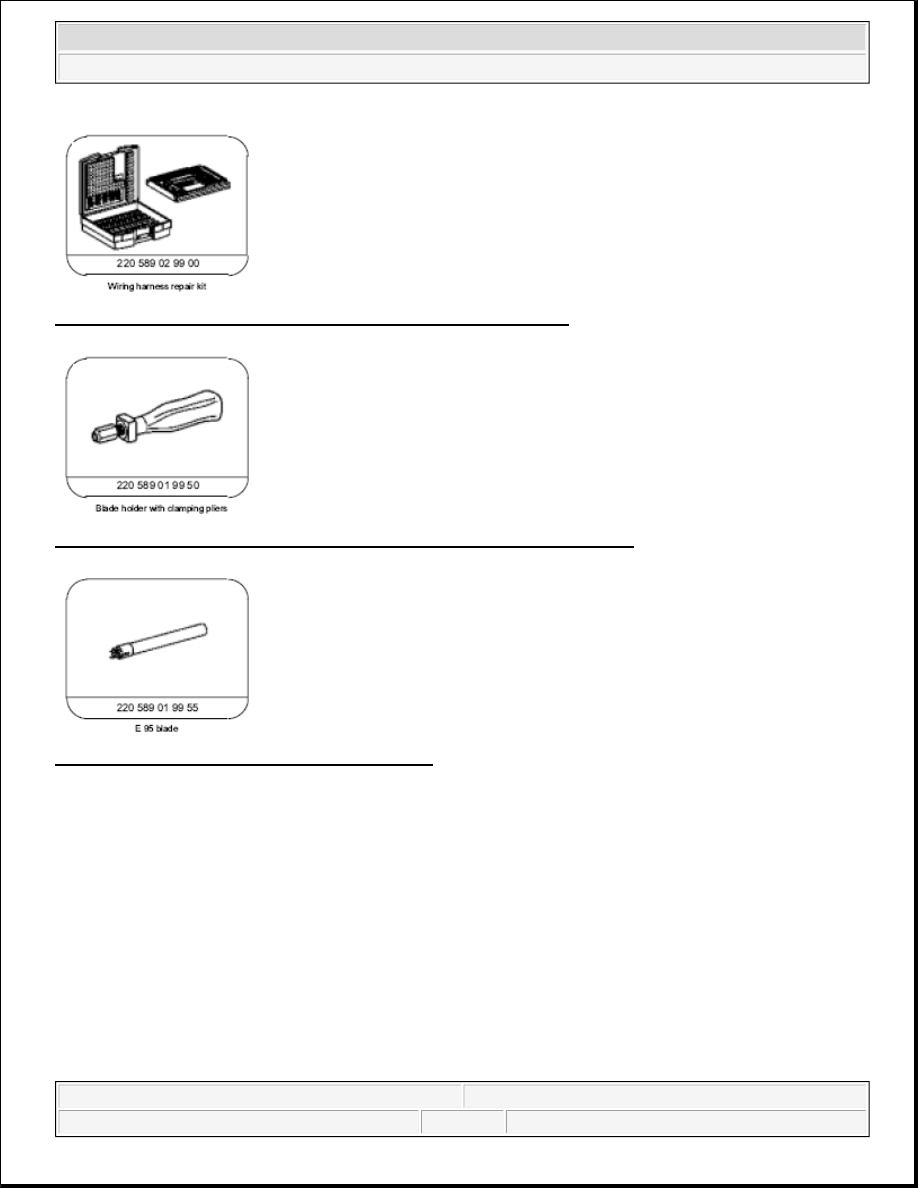

Fig. 476: Identifying Wiring Harness Repair Kit (220 589 02 99 00)

Fig. 477: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Fig. 478: Identifying E 95 Blade (220 589 01 9 55)

Secondary unlocking for version with tab (E 95)

1. Using a suitable tool, push tab in direction of arrow out of locked position.

Shown on 27-pin E 95 coupling



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



Fig. 479: Pushing Tab - Shown On 27-Pin E 95 Coupling

Secondary unlocking for version with slider (E 95)

1. Using a suitable tool, move slider in direction of arrow into the pre-locking position (1).

Shown on 29-pin E 95 coupling



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



Fig. 480: Moving Slider - Shown On 29-Pin E 95 Coupling

Secondary unlocking for version with retainer (E 95)

1. Push retainer (1) in direction of arrow out of locked position using a suitable tool.

 The seal may be damaged if the tool is inserted too.

Shown on 4-pin E 95 coupling



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me
