Fig. 481: Pushing Retainer - Shown On 4-Pin E 95 Coupling

Secondary unlocking for version with contact retainer (E 95)

1. Press on tabs of contact retainer between contact cavities (3, 5 or 4, 6) using a suitable tool.

2. Open contact retainer.

Shown on 6-pin E 95 coupling



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



Fig. 482: Opening Contact Retainer - Shown On 6-Pin E 95 Coupling

Unpin female contacts from coupling (E 95)

1. Insert blade holder with clamping pliers

 and E 95 blade

 from front side through openings on

contact cavity of coupling (2).

 Insert tool carefully to prevent damaging webs between contact cavity and openings for release tool.

 This pushes together the springs at the female contact (1).



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



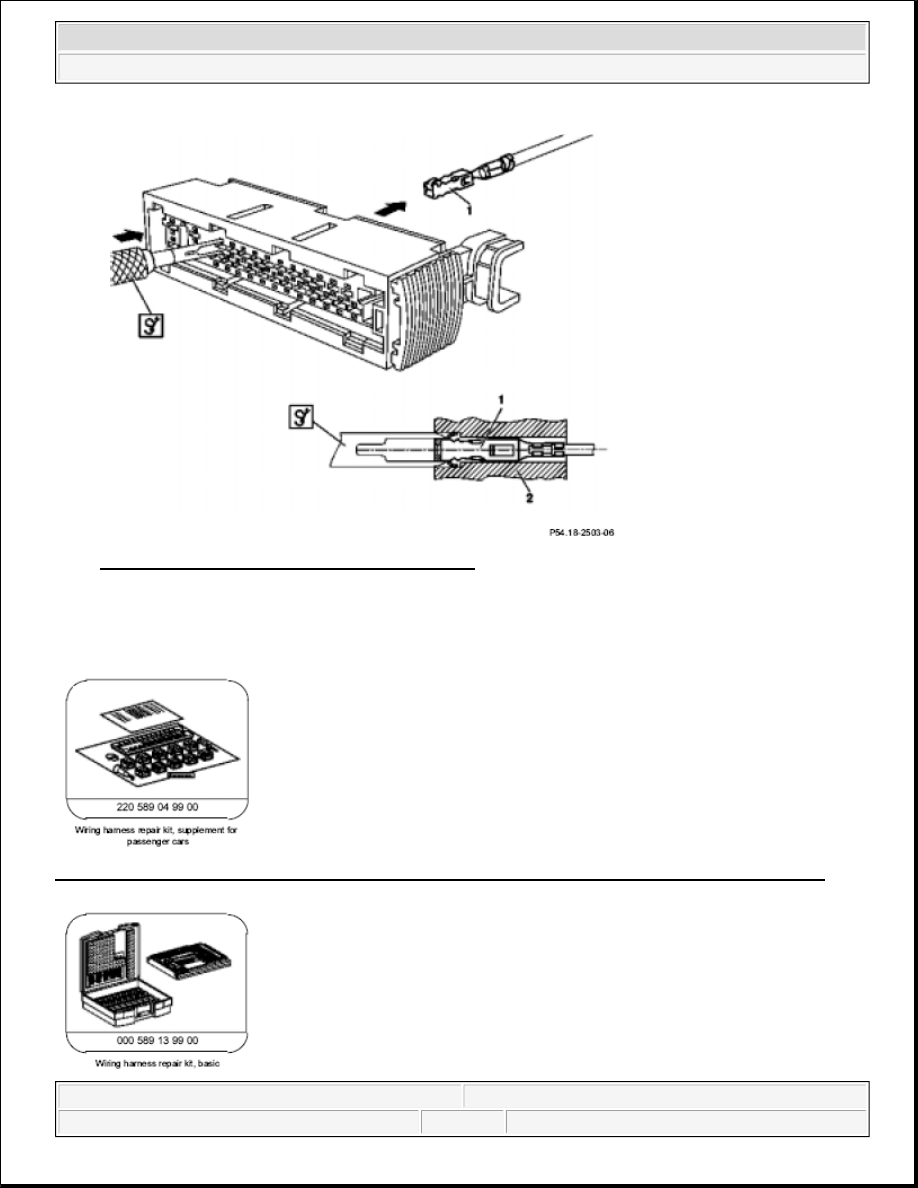

Fig. 483: Female Contacts From Coupling (E 95)

2. A slight tug on the corresponding cable will remove the female contact (1) from the coupling (2).

REMOVE CONTACTS FROM MICRO TIMER 3 COUPLING - AR00.19-P-0120-06A

Fig. 484: Identifying Wiring Harness Repair Kit, Supplement For Passenger Cars (220 589 04 99 00)



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



Fig. 485: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

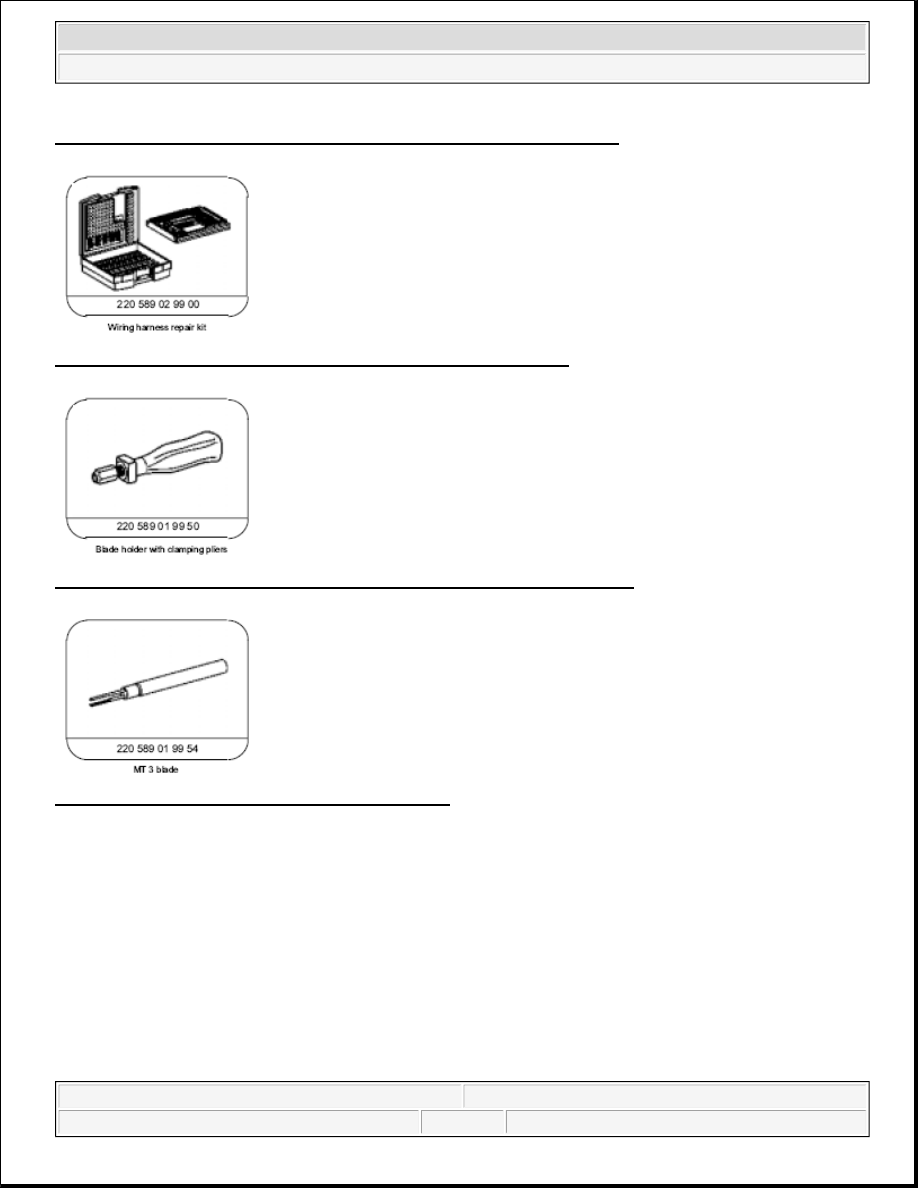

Fig. 486: Identifying Wiring Harness Repair Kit (220 589 02 99 00)

Fig. 487: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Fig. 488: Identifying MT 3 Blade (220 589 01 99 54)

Secondary release on version with sliding plate (MT 3)

1. Push sliding plate out of locked position using a suitable tool.

Shown on 16-pin MT 3 coupling



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me
