Mercedes-Benz ML320. Service manual - part 587





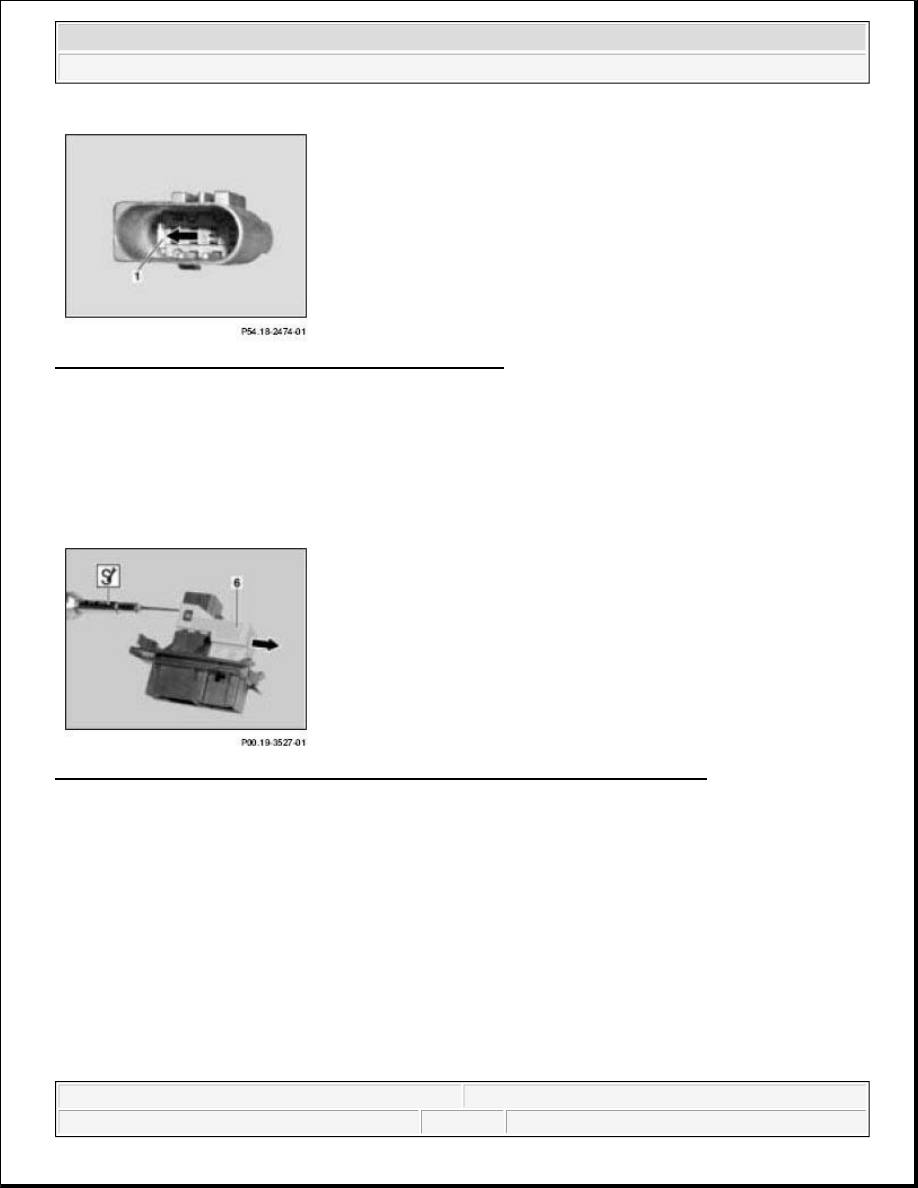

Fig. 515: Moving Locking Bar - Shown On 4-Pin JPT Plug

Secondary release on version with retaining cap (JPT)

1. Using a suitable tool, pry up the lock tab on the retaining cap (6).

2. Move the retaining cap (6) in direction of arrow until it reaches the stop.

Shown on 4/8-pin JPT/MQS plug

Fig. 516: Prying Up Lock Tab On Retaining Cap - Shown On 4/8-Pin JPT/MQS Plug

Secondary unlocking for version with lock tab

1. Insert suitable tool underneath locking tabs (1).

2. Pry up the locking tabs (1) in direction shown by arrow.

Shown on 4-pin JPT connector



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



Fig. 517: Prying Up Locking Tabs - Shown On 4-Pin JPT Connector

Unpin contact pins form connector (JPT)

1. Insert blade holder with clamping pliers

 with JPT/SPT blade

 or MCP 2.8/Fl. 2.8/JPT/SPT blade



from the front through the openings in contact cavity of connector housing (3).

 This results in the spring shackles of the contact pin (2) being compressed.

2. Remove contact pin (2) from connector housing (3) by gently pulling the relevant cable.

Shown on 4-pin JPT connector

Fig. 518: Contact Pins From Connector (JPT) - Shown On 4-Pin JPT Connector

REMOVE CONTACTS FROM MULTI CONTACT POINT (MCP) COUPLING - AR00.19-P-0120-09A



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



Fig. 519: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Fig. 520: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Fig. 521: Identifying Wiring Harness Repair Kit (220 589 02 99 00)



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



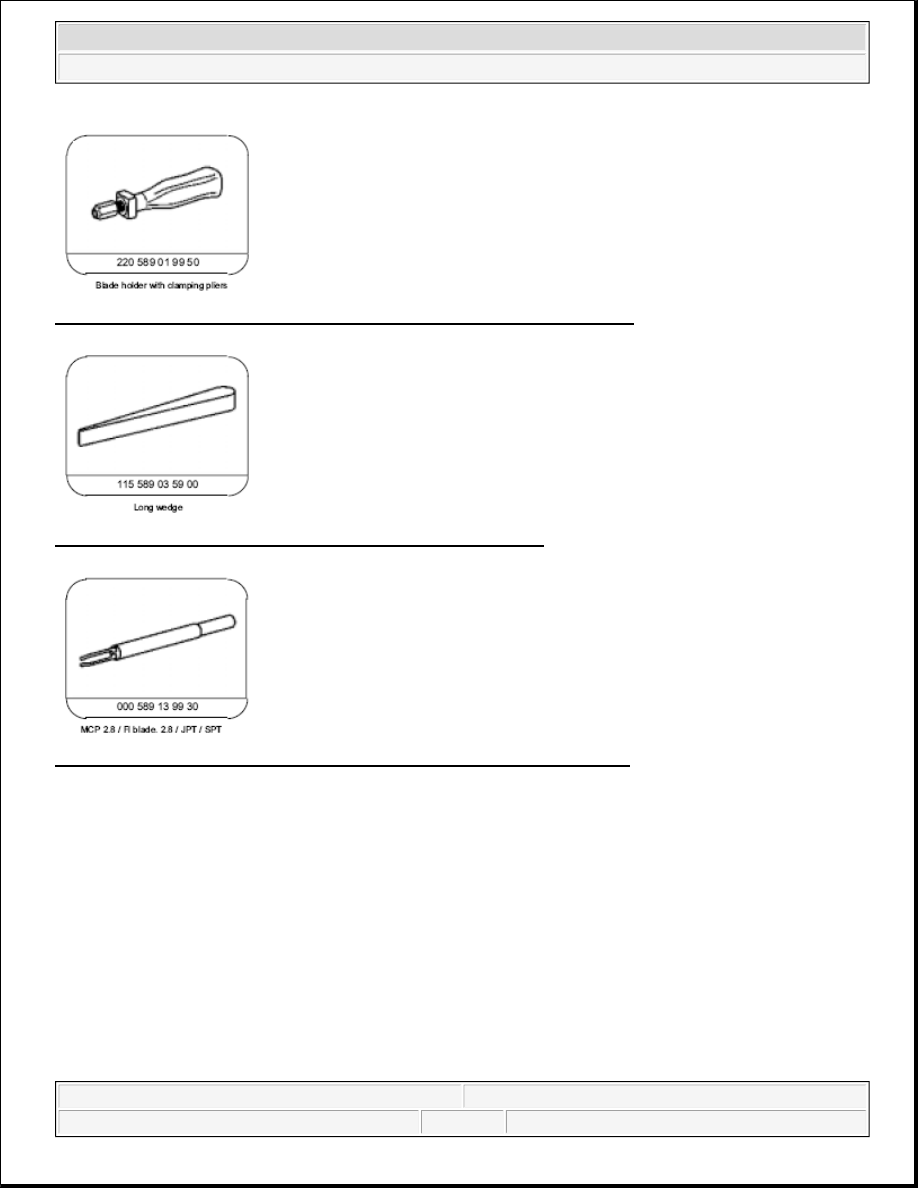

Fig. 522: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Fig. 523: Identifying MCP 2.8 / FL Blade. 2.8 (220 589 01 99 59)

Fig. 524: Identifying MCP 2.8 / Fl Blade. 2.8 / JPT / SPT (000 589 13 99 30)

Secondary release on version with lock tab (MCP)

1. Using a suitable tool, lift locking shackles (1) in direction shown by arrow.

Shown on a 4-pin MCP coupling



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me
