Mercedes-Benz ML320. Service manual - part 563





MODELS 124, 129, 140, 163 up to 30.11.99, 163 as of 1.9.01, 168, 170, 201, 202, 208, 210, 215, 220

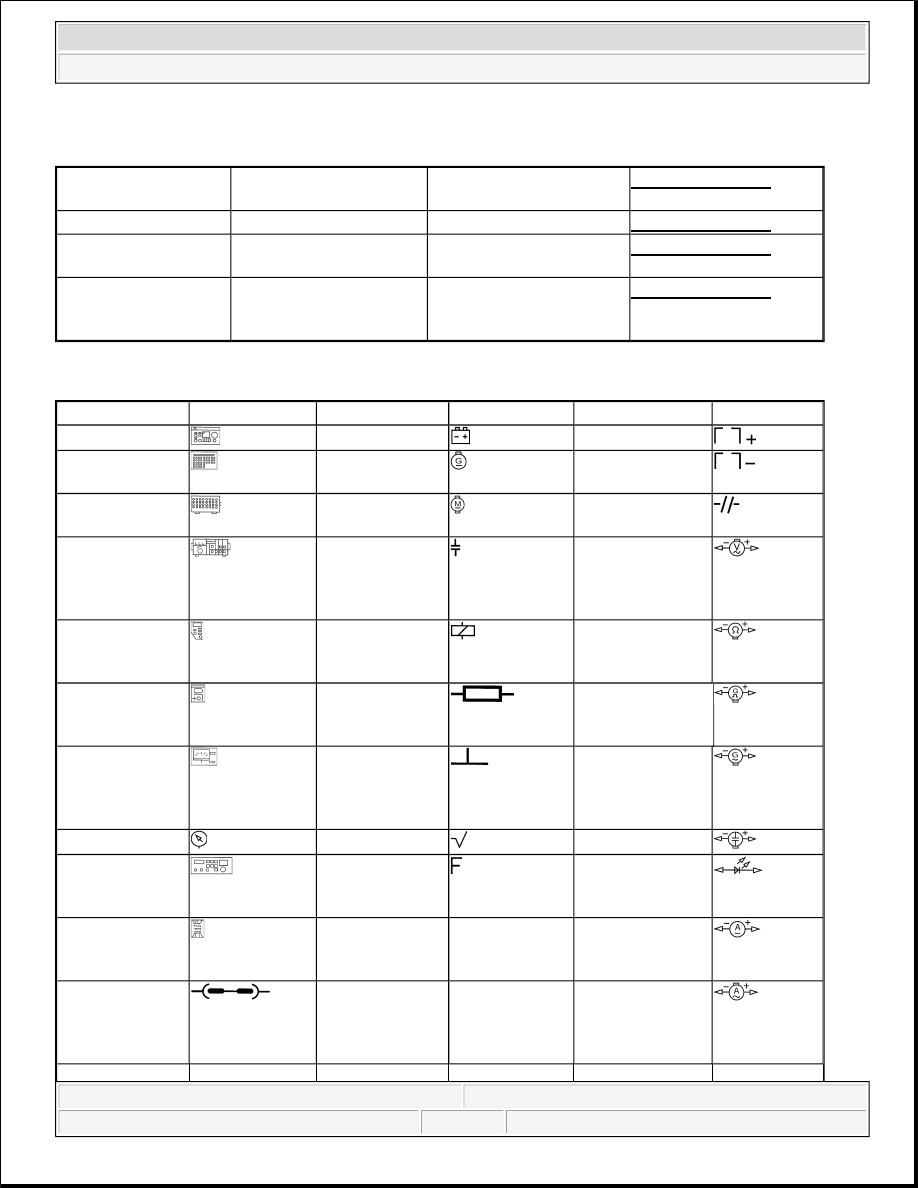

EXPLANATION OF SYMBOLS FOR TESTERS AND COMPONENTS - AD00.00-P-2000-01A

0.0 [] 1

Key to diagnostics
symbols



AD00.00-P-2001A

0.0 [] 2

Diagnosis assignment

except models 215, 220

AD00.00-P-2002A

0.0 [] 3

Connect test equipment
diagnosis

except model 215

AD00.00-P-2003A

0.0 [] 4

Diagnostic procedure

only for vehicle systems
that can be diagnosed using
STAR DIAGNOSIS

AD00.00-P-2004A

Description

Logo

Description

Logo

Description

Logo

ABS Adapter



Battery



Short-circuit



35-pin socket
box




Direct current
generator




Short-circuit to
ground




126-pin socket
box




Direct current
motor




Open-circuit



Function
generator




Capacitor



Multimeter
alternating
voltage type of
measurement




Hand-Held
Tester




Coil



Multimeter
resistance type of
measurement




Pulse counter



Resistance



Function
generator square-
wave signal shape




Lambda control
tester




Ground



Function
generator
sinusoidal signal
shape




Pressure gauge



In order



Oscilloscope



Multimeter



Fault



Adapter cable
with light-
emitting diode




Decade resistor



Greater than

>

Multimeter direct
current type of
measurement




Bridge



Less than

<

Multimeter
alternating
current type of
measurement






2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



ASSIGNMENT OF DATA LINK CONNECTOR - AD00.00-P-2000-02C

Hazardous
voltage




Short-circuit to
positive




Multimeter direct
voltage type of
measurement




Brake lining
wear indicator




Plug



Socket



Description

Logo

Description

Logo

Description

Logo

Program heating
(1st cut-in time)




Air up and down



Air Drying



Program heating
(2nd cut-in time)




Standard setting



Cooling mode
(standard setting)




Cut-in time



Economy setting



Air conditioning
Off




Time of day
display




Air to center and
side outlet




Air conditioning
On/Off (USA
only)




Instant heat



Minimum air
volume




Off (no air
supply)




Return flow



Maximum air
volume




° Celsius



Supply



Automatic blower
control




° Fahrenheit



Air upwards



Defrosting



Residual heat



Air upwards,
downwards,
doors




Automatic mode







Air downwards



Recirculated air









2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



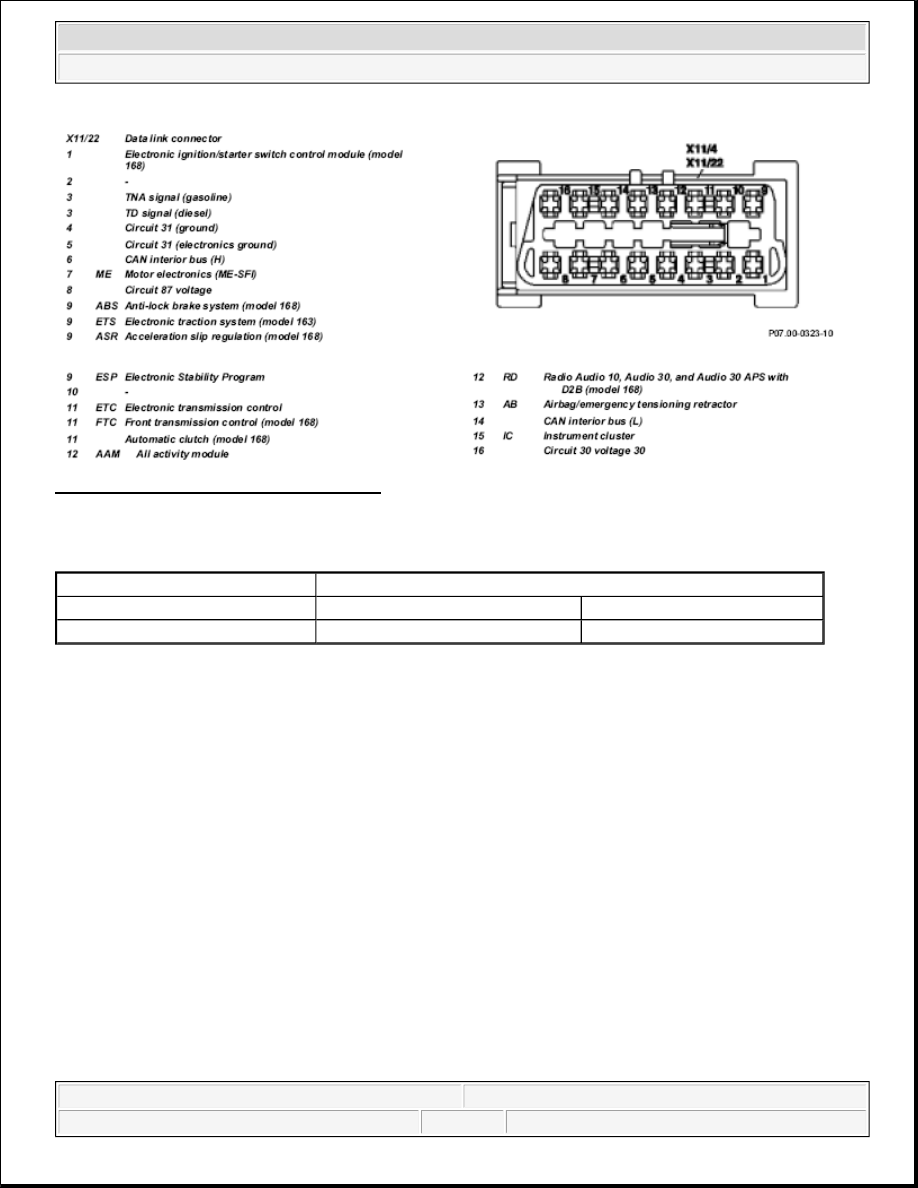

Fig. 326: Identifying Data Link Connector

CONNECTING HAND-HELD TESTER (HHT), READING OUT FAULT MEMORY - AD00.00-P-2000-03A

Commercially available tools

1. Connect Hand-Held Tester (087) with test cable (Multiplexer) (094) to data link connector (DTC readout)

(X11/4).

2. Switch on ignition.

3. According to instructions on display:

a. Read out/erase fault memory

b. Read out actual values

c. Perform actuations

d. Program control modules

4. Disconnect HHT.

Number

Designation

WH58.30-Z-1036-13A

Handheld tester (HHT)

651 100 01 99

WH58.30-Z-1037-13A

Test cable (multiplexer)

651 100 40 99



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



Fig. 327: Connecting Hand-Held Tester (HHT) For Reading Out Fault Memory

 Observe system-specific deviations which are listed for the appropriate diagnosis description in the chapter

"Advanced Information on diagnosis".

Stored faults which can be caused by disconnected cables or a simulation during test work must be erased in the
fault memory upon completion of the work.

CONNECT HAND-HELD TESTER (HHT), READ OUT DIAGNOSTIC TROUBLE CODE MEMORY - AD00.00-P-2000-03C

Model 163 up to 31.08.01

Model 168

Commercially available tools

1. Connect hand-held tester (087) to diagnosis test connector (X11/4) in interior using test cable

(multiplexer) (094) and adapter cable (107).

2. Switch on ignition.

3. According to instructions in display:

a. Read out/erase fault memory

b. Read out actual values

c. Perform actuations

d. Program control modules

4. Disconnect HHT.

Number

Designation

WH58.30-Z-1036-13A

Handheld tester (HHT)

651 100 01 99

WH58.30-Z-1037-13A

Test cable (multiplexer)

651 100 40 99

WH58.30-Z-1044-13A

Adapter cable (HHT) for datalink connector (X11/4, 16-pin)
