AR72.10-P-2400GH

Removing and installing outer door handle on front door

12.2.97

MODEL 163

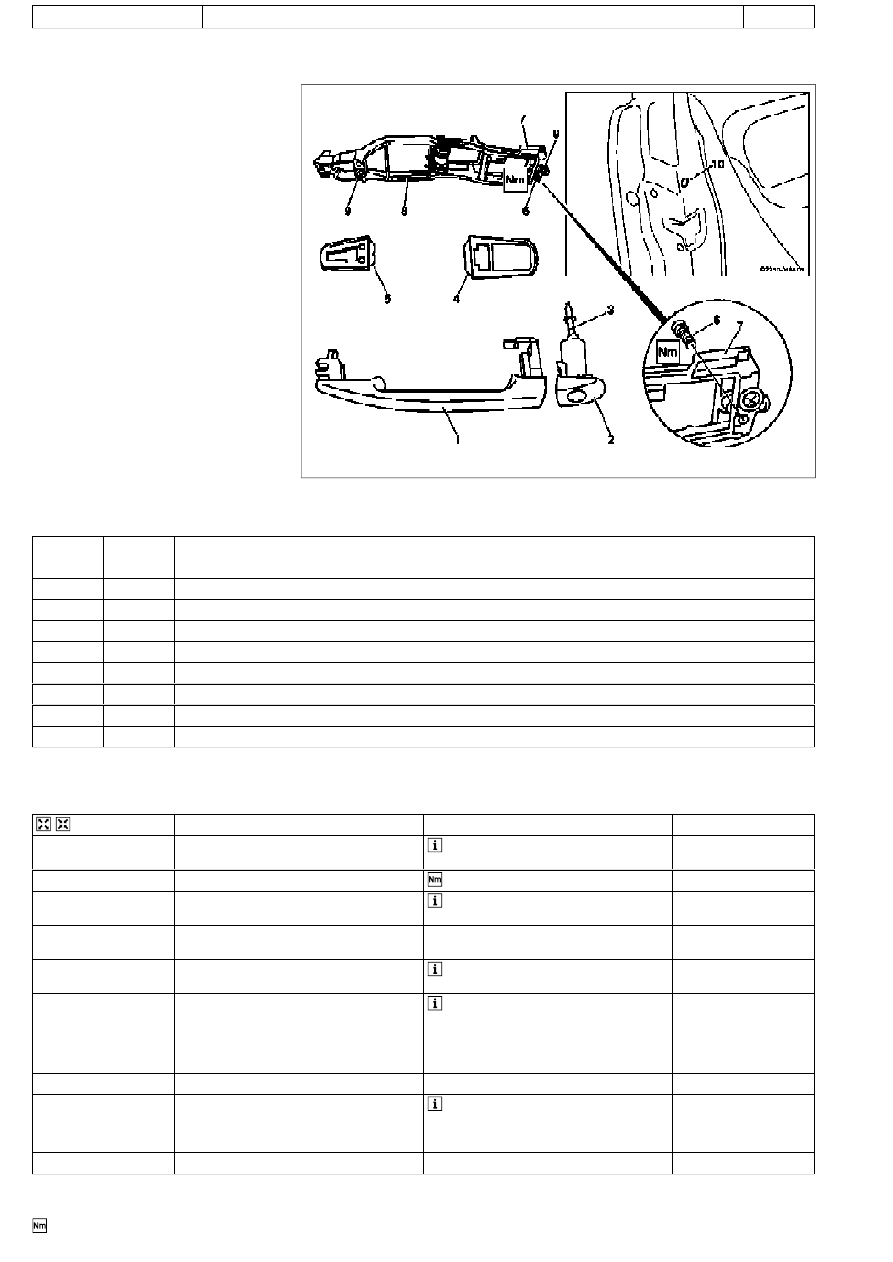

P72.10-0488-06

1

Handle

2

Lock cylinder guide

3

Rotating rod

4

Base

5

Base

6

Screw

7

Retaining strap

8

Bearing bracket

9

Screw

10

Screw opening

Operation no. of operation texts or of standard texts and flat rates

Division

Operation

no.

Operation text

P

727240

REPLACING OUTER DOOR HANDLE ON LEFT FRONT DOOR

P

727241

REPLACING OUTER DOOR HANDLE ON LEFT FRONT DOOR, WITHOUT BEARING BRACKET

P

727242

REPLACING OUTER DOOR HANDLE ON LEFT FRONT DOOR, WITH BEARING BRACKET

P

727243

REPLACING OUTER DOOR HANDLE ON LEFT FRONT DOOR  (INCLUDING TRANSFERING LOCKING CYLINDER)

P

727265

REPLACING OUTER DOOR HANDLE ON RIGHT FRONT DOOR

P

727266

REPLACING OUTER DOOR HANDLE ON RIGHT FRONT DOOR, WITHOUT BEARING BRACKET

P

727267

REPLACING OUTER DOOR HANDLE ON RIGHT FRONT DOOR, WITH BEARING BRACKET

P

727268

REPLACING OUTER DOOR HANDLE ON RIGHT FRONT DOOR  (INCLUDING TRANSFERING LOCKING CYLINDER)





Removal, installation

1

Loosen screw (6)

 Accessible through opening (10) on inner

side of door, loosen screw (6) max. 5 turns



*BA72.10-P-1003-01D

2

Pull off cylinder guide (2) outward to remove

 Installation: Insert rotary rod (3) into door

lock actuating mechanism

3

Pull handle (1) toward rear together with base
(4) out of bearing bracket (8)

4

Remove base (5)

 Installation: Insert base  (5) into bearing

bracket (8)

5.1

Remove bearing bracket (8)

 Only if bearing bracket is defective. The

bearing bracket (8) can only be removed
through the installation opening in the inner
door panel. For this purpose

#

Remove door liner on front door

AR72.10-P-1000GH

6

Install in opposite order

7

Adjust clearance between handle (1) and
actuating lever on door lock with eccentric
adjustment screw

Eccentric adjustment screw:

Accessible through opening on end of door.

Use Phillips screwdriver

8

Check for proper function

 Front door

Copyright DaimlerChrysler AG  03.09.2005 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

Number

Designation

Model 163

BA72.10-P-1003-01D

Screw for door handle

Nm

3

Copyright DaimlerChrysler AG  03.09.2005 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

AR68.30-P-4100GI

Remove/install door sill molding

20.4.01

MODEL

163.113 /128 /136 /154 /157 /172 /174 /175

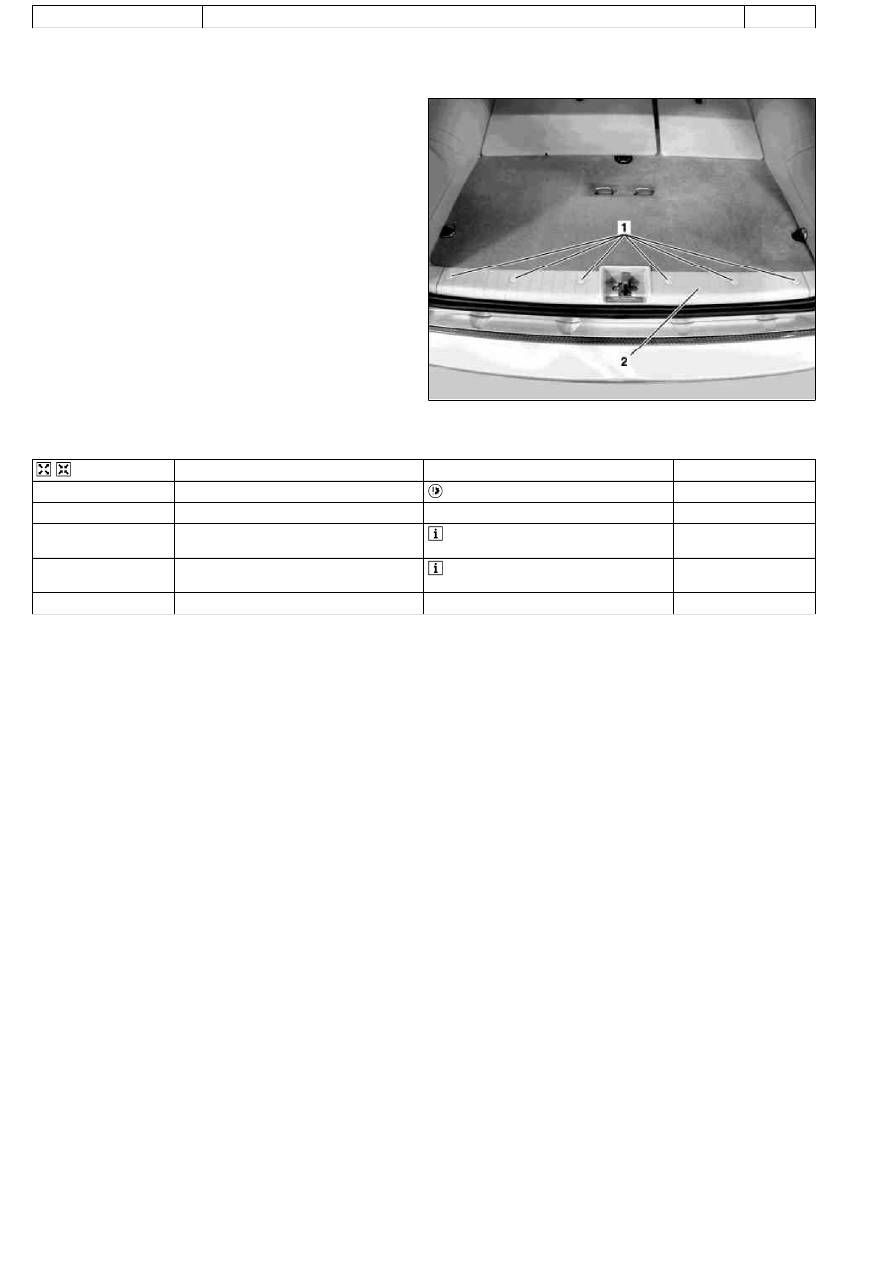

Door sill molding in cargo space

P68.30-2393-11

1

Caps

2

Door sill molding



Remove/install

1

Remove cover caps (1)

 Do not scratch door sill molding.

2

Remove screws below caps

3

Remove door sill molding (2)



Installation: Ensure that sealing rubber is

positioned correctly.

4.1

Disconnect connector from electronic compass

 Only as of 01.09.00 and with code (245),

trip computer.

5

Install in the reverse order

Copyright DaimlerChrysler AG  28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
