Mercedes-Benz ML320. Service manual - part 372





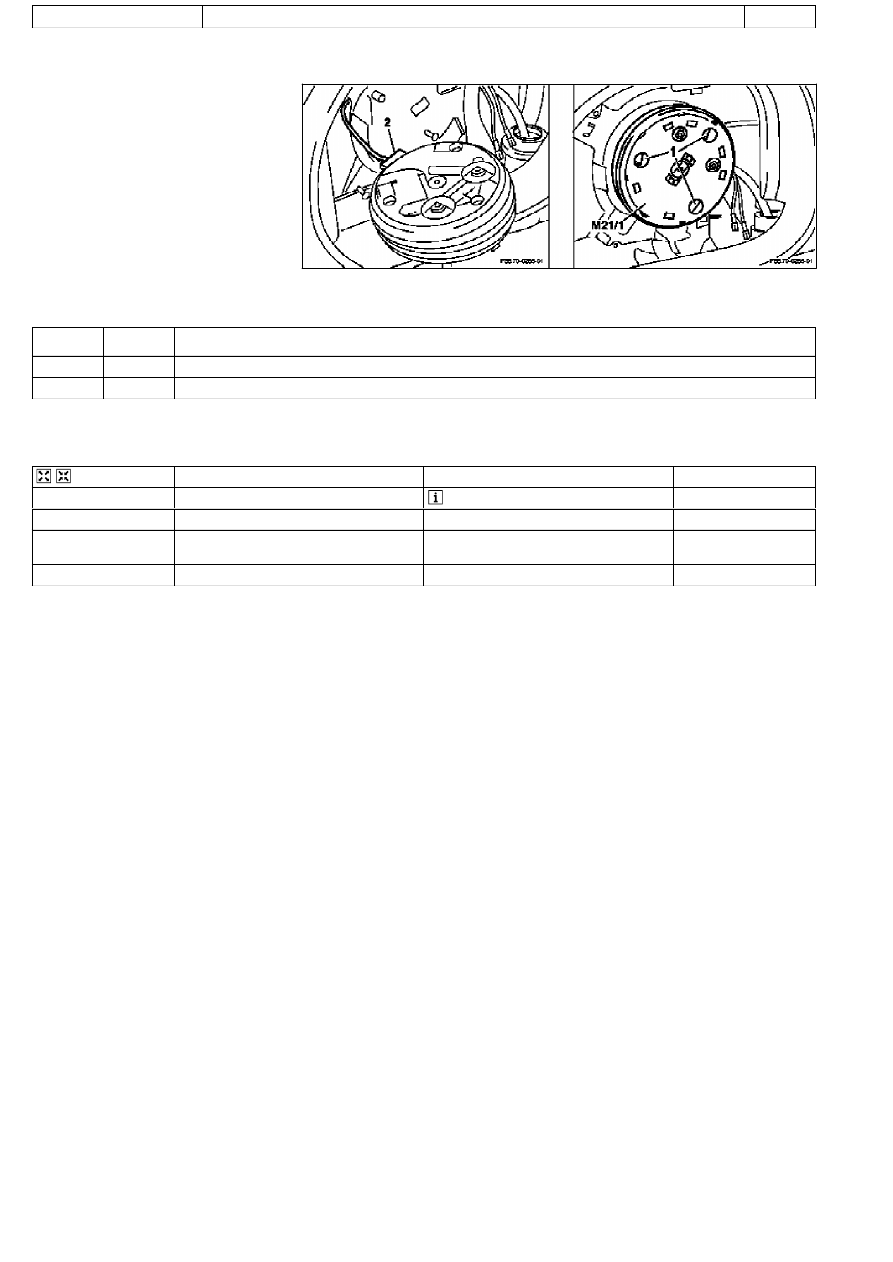

AR88.70-P-9060GH

Removing and installing mirror adjustment motor

12.2.97

MODEL

163

P88.70-0256-04

1

Screw

2

Connector

M21/1 Left electrically adjustable and heated

exterior rearview mirror

M21/2 Right electrically adjustable and

heated exterior rearview mirror (not
illustrated)

Operation no. of operation texts or of standard texts and flat rates

Division

Operation
no.

Operation text

P

883476

REPLACING MOTOR FOR LEFT ELECTRICALLY ADJUSTABLE EXTERIOR REARVIEW MIRROR

P

883478

REPLACING MOTOR FOR RIGHT ELECTRICALLY ADJUSTABLE EXTERIOR REARVIEW MIRROR



Removal, installation

1

Remove covering on outside rearview mirror

 Remove mirror housing covering only.

AR88.70-P-9040GH

2

Unscrew screw (1)

3

Disconnect connector (2) and remove mirror
adjustment motor (M21/1 or M21/2)

4

Install in opposite order

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

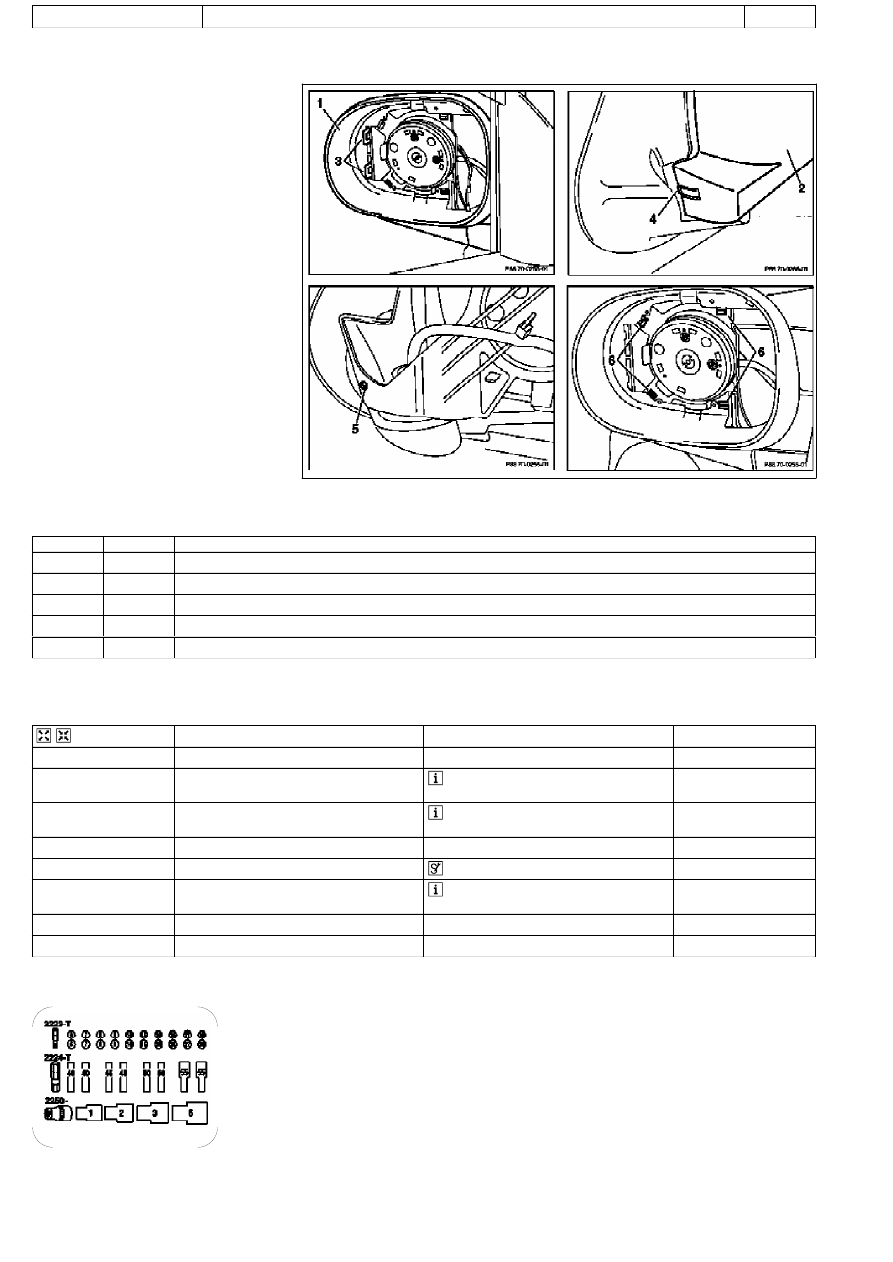

AR88.70-P-9040GH

Removing and installing outside rearview mirror cover

12.2.97

MODEL

163.113 /136 /154 /172 /174 up to 31.8.01

P88.70-0255-06

1

Frame

2

Mirror housing paneling

3

Catches in mirror housing

4

Outer catch

5

Bolt

6

Clips

Operation no. of operation texts or standard texts and flat rates

Range

Op. no.

Operation text

P

883424

REPLACING HOUSING FOR LEFT OUTSIDE REARVIEW MIRROR

P

883425

CONVERTING HOUSING FOR LEFT OUTSIDE REARVIEW MIRROR (MIRROR REMOVED)

P

883427

REPLACING HOUSING FOR RIGHT OUTSIDE REARVIEW MIRROR

P

883428

CONVERTING HOUSING FOR RIGHT OUTSIDE REARVIEW MIRROR (MIRROR REMOVED)

P

883430

REPLACING HOUSINGS FOR BOTH OUTSIDE REARVIEW MIRRORS



Remove/install

1

Remove mirror glass

AR88.70-P-9020GH

2

Release catch in mirror housing (3)

 Press mirror housing out of frame (1) with

slight pressure

3

Release paneling for mirror housing (2) from
frame (1)

 Outer catch (4) only accessible if mirror

housing is pivoted toward door

4

Remove mirror housing paneling (2)

5

Unscrew screw (5) from frame (1)

 Torx bit set

*000589011000

6

Unclip frame (1) from mirror actuator motor

 Pivot mirror housing back to initial

position. Unclip clips (6) from actuator motor.

6

Remove frame (1)

7

Install in the reverse order



Torx bit set

000 589 01 10 00

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

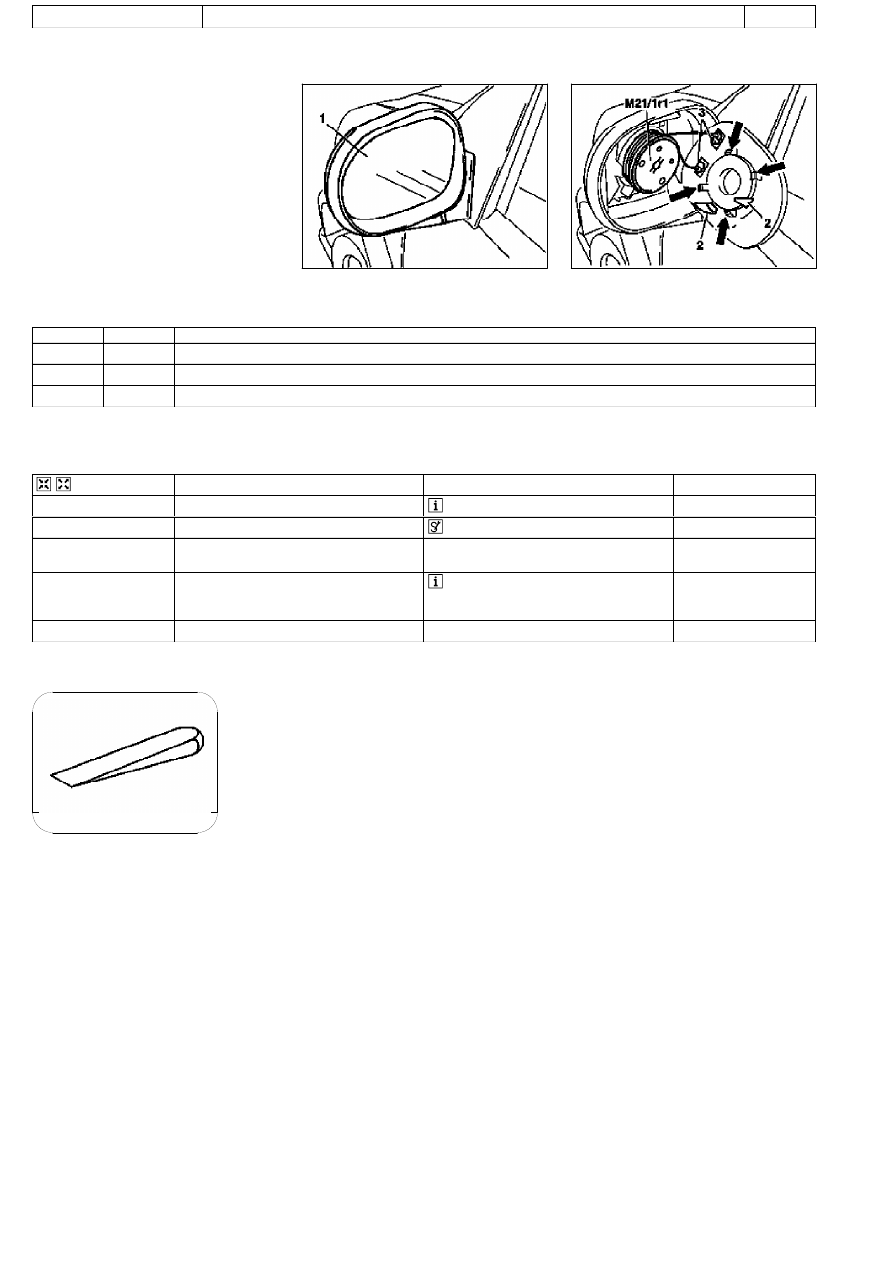

AR88.70-P-9020GH

Removing and installing mirror glass

12.2.97

MODEL

163.113 /136 /154 /172 /174 up to 31.8.01

P88.70-0253-01

1

Mirror glass

2

Support spring

3

Connector

Arrows

Mirror glass mount

M21/1r1

Mirror heater

M21/2r1

Mirror heater (not illustrated)

P88.70-0254-01

Operation no. of operation texts or standard texts and flat rates

Range

Op. no.

Operation text

P

883321

REPLACING GLASS FOR LEFT OUTSIDE REARVIEW MIRROR

P

883330

REPLACING GLASS FOR RIGHT OUTSIDE REARVIEW MIRROR

P

883340

REPLACING GLASS FOR BOTH OUTSIDE REARVIEW MIRRORS



Remove/install

1

Tilt mirror glass (1) at top outward

 Actuate electrical mirror adjustment switch

2

Press mirror glass (1) off of drive



*110589035900

3

Disconnect connector (3) from mirror heater
(M21/1r1 and M21/2r1)

4

Remove mirror glass (1)



Installation: Install mirror glass (1) from

bottom to top, thereby observe support spring
(2) and mirror glass mounts (arrows).

5

Install in the reverse order

Assembly wedge

110 589 03 59 00

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

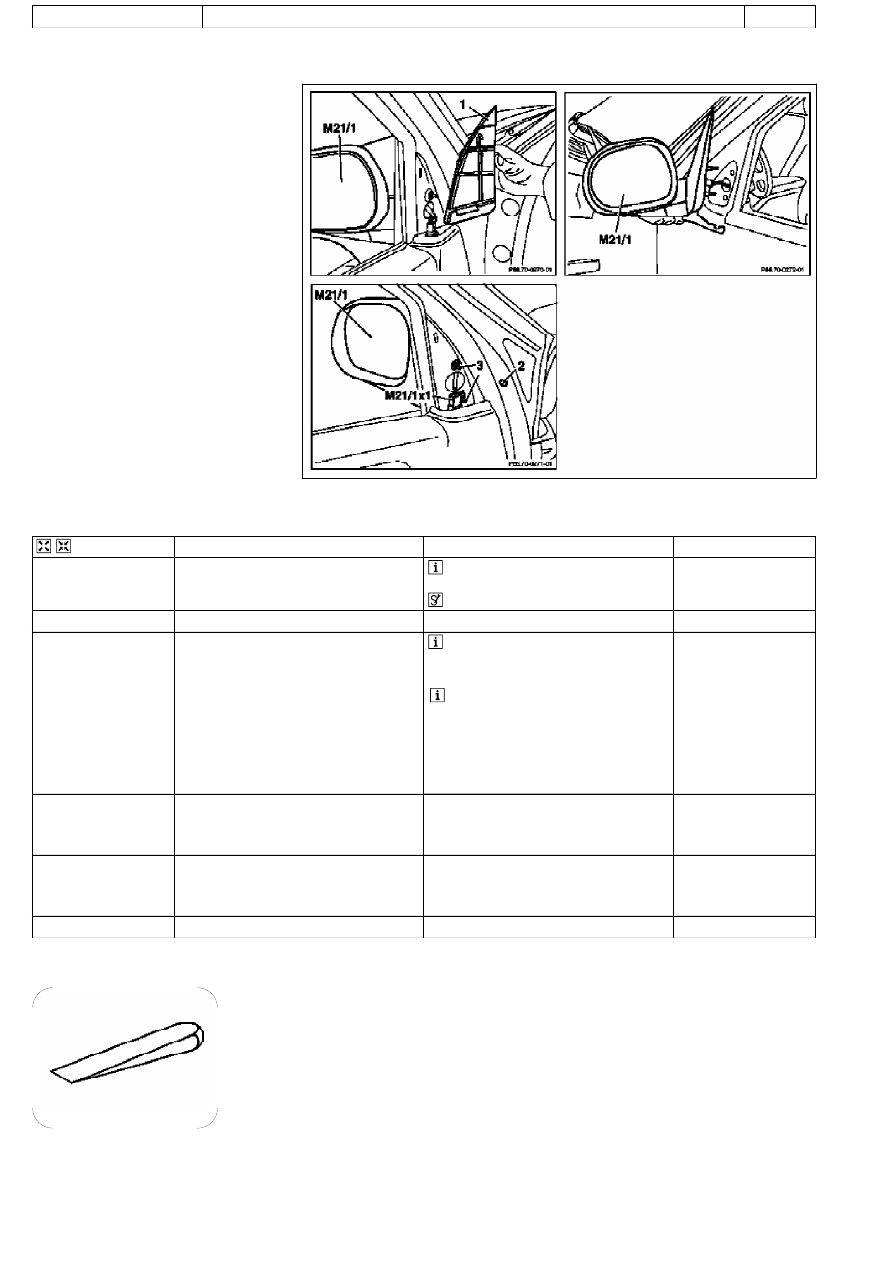

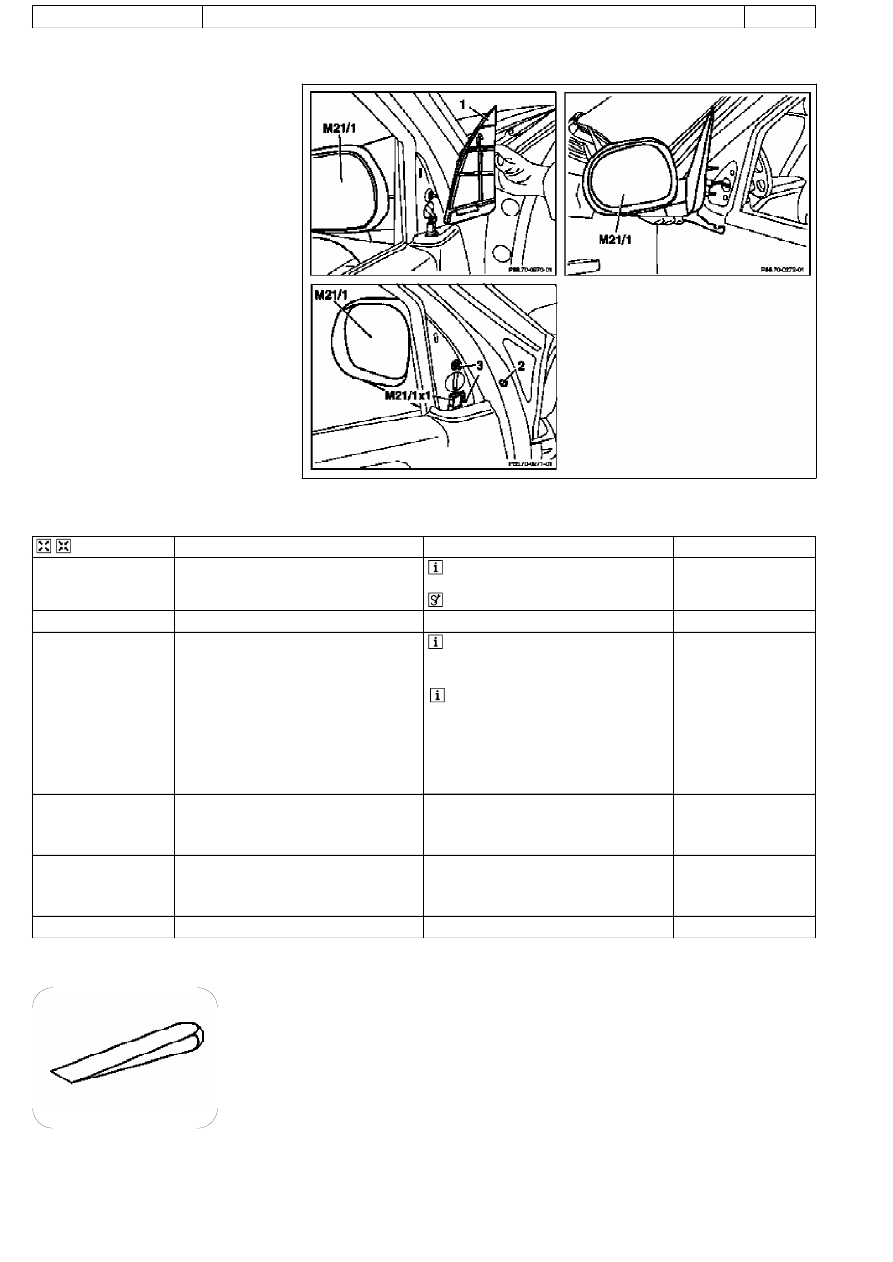

AR88.70-P-9000GH

Remove/install complete outside rearview mirror

12.2.97

MODEL

163.113 /128 /136 /154 /157 /172 /174 /175

P88.70-0252-06

Illustrated up to VIN A289564, X754619

1

Paneling

2

Screw

3

Nuts

M21/1

Left electrically adjustable and
heated outside mirror

M21/1x1

Left electrically adjustable and
heated outside mirror connector



Removing and installing

1

Press off paneling (1) with assembly wedge

 As of VIN A289565, X754620: If present,

disconnect connector from loudspeaker.

 Assembly wedge

*110589035900

2

Unscrew screw (2)

3

Unscrew nut (3)

 Secure outside rearview mirror against

falling down



Installation: Up to VIN A289564,

X754619 fasten mounting lug for connector
for left electrically adjustable and heated
outside rearview mirror (M21/1x1) or for
connector for right electrically adjustable and
heated outside rearview mirror on bottom stud
bolt.

4

Separate connector for left electrically
adjustable and heated outside rearview mirror
(M21/1x1) or connector for right electrically
adjustable and heated outside rearview mirror.

5

Remove left electrically adjustable and heated
outside rearview mirror (M21/1) or right
electrically adjustable and heated outside
rearview mirror

6

Install in the reverse order

Assembly wedge

110 589 03 59 00

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
