Mercedes-Benz ML320. Service manual - part 373

SM72.10-P-0004A

Modify front door

6.5.03

MODEL

163.113 /128 /136 /154 /157 /172 /174 /175

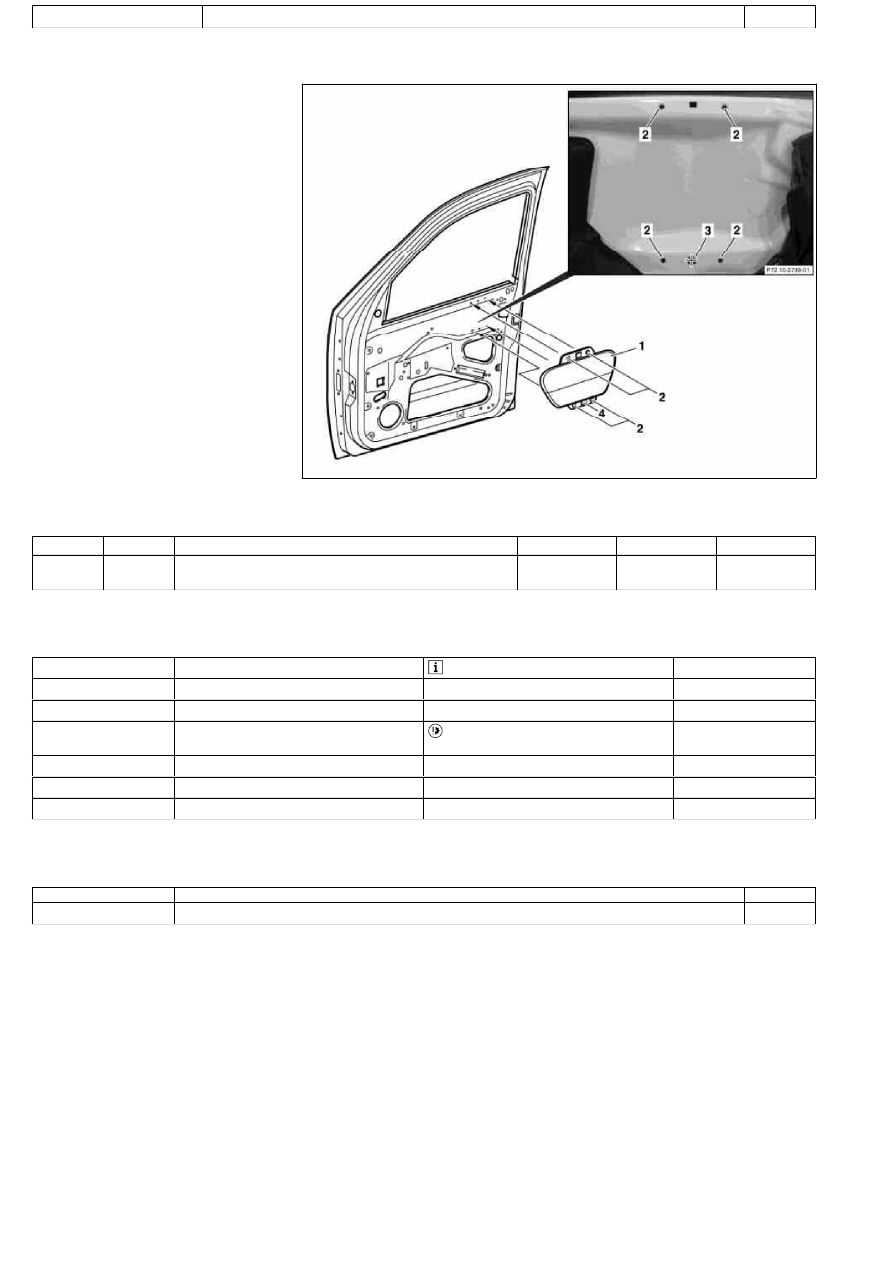

P72.10-2740-06

1

Side airbag

2

Mounting holes

3

Location hole

4

Locating tab

Operation no. of the operation texts or standard texts and flat rates

Range

Op. no.

Operation text

Flat rate

Acc. no.

Code

P

721680

Additional work to 1st door Location:.... replace transfer with
components: Drill hole for side airbag

003 WU/0.3 h

---

---

1

Place side airbag (1) into position on door

 Use mounting holes (2) to align properly.

2

Mark center of locating tab (4)

3

Remove side airbag

4

Drill

4

=10.5 mm hole (3) in door sheet metal

at center location

 Ensure window glass will not be damaged

by drilling.

5

Smooth rough edges of hole

6

Clean, prime, and paint hole

7

Remove metal chips from bottom of door

Parts ordering notes

Part no.

Designation

Quantity

000 986 06 50

Priming stick

1

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR72.12-P-1010GH

Remove/install rear door liner

18.2.97

MODEL

163.113 /128 /136 /154 /157 /172 /174 /175

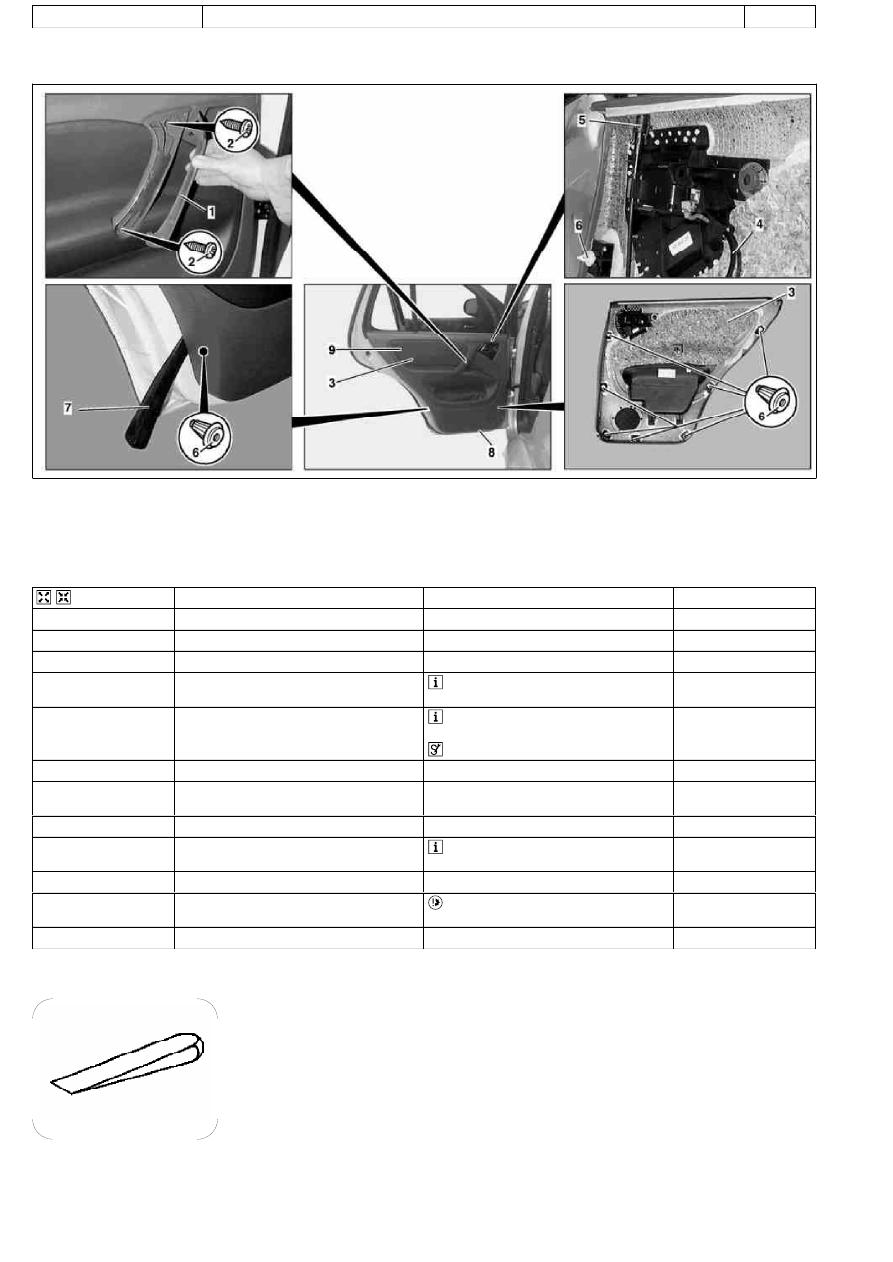

P72.12-2061-09

1

Door handle cover

2

Bolt

3

Door liner

7

Assembly wedge

8

Entrance lamp

9

Bolt

4

Bowden cable

5

Inner lock

6

Clips



Remove/install

1

Open crank window

2

Remove cover for door handle (1)

3

Unscrew screw (2)

4.1

Unclip SRS panel and unscrew screw (9)

 As of vehicle identification number

A145273, X708319.

5

Press door liner (3) off of bottom, front and
rear inner door panel with assembly wedge (7)

 Position assembly wedge directly next to

clips

 Assembly wedge

*110589035900

6

Lift door liner (3) up and out

7

Unhook control cable (4) on inner door
actuating mechanism

8

Unclip inner lock (5) on door liner (3)

9.1

Remove entrance lamp (8)

 As of vehicle identification number

A145273, X708319.

10

Lay down door liner

11

Check foil and sheet metal clip nuts on inner
door panel

  Replace damaged foil. Replace all clips.

12

Install in the reverse order

Assembly wedge

110 589 03 59 00

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR68.30-P-4100GI

Remove/install door sill molding

20.4.01

MODEL

163.113 /128 /136 /154 /157 /172 /174 /175

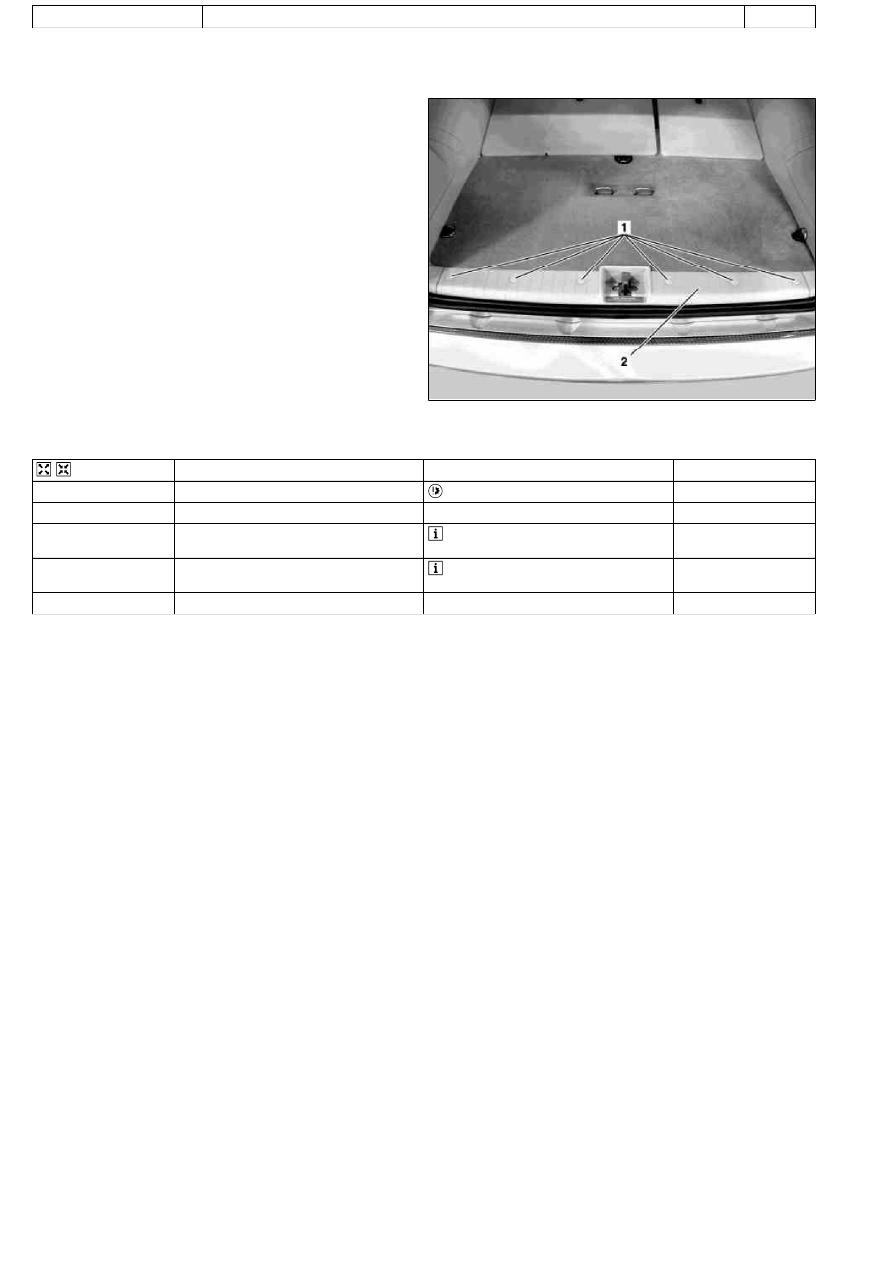

Door sill molding in cargo space

P68.30-2393-11

1

Caps

2

Door sill molding



Remove/install

1

Remove cover caps (1)

 Do not scratch door sill molding.

2

Remove screws below caps

3

Remove door sill molding (2)



Installation: Ensure that sealing rubber is

positioned correctly.

4.1

Disconnect connector from electronic compass

 Only as of 01.09.00 and with code (245),

trip computer.

5

Install in the reverse order

Copyright DaimlerChrysler AG  17.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR68.30-P-4100GI

Remove/install door sill molding

20.4.01

MODEL

163.113 /128 /136 /154 /157 /172 /174 /175

Door sill molding in cargo space

P68.30-2393-11

1

Caps

2

Door sill molding



Remove/install

1

Remove cover caps (1)

 Do not scratch door sill molding.

2

Remove screws below caps

3

Remove door sill molding (2)



Installation: Ensure that sealing rubber is

positioned correctly.

4.1

Disconnect connector from electronic compass

 Only as of 01.09.00 and with code (245),

trip computer.

5

Install in the reverse order
