Fuel rail

Number

Designation

Engine
113.940/941/
942/943/944/
945/946/948/
960/961/962/
963/965/966/
967/968/969/
980/981/982/
984/986/988/

BA07.52-P-1001-01A

Fuel feed line to fuel distributor

Nm

38



Exhaust manifold

Number

Designation

Engine
112
except
112.951

Engine
113.940/941/
942/943/944/
945/946/948/
960/961/962/
963/965/966/
967/968/969/
980/981/982/
984/986/992/
993

BA14.10-P-1002-01B

Flange connection of exhaust manifold or front
exhaust pipes

Nm

20

20

112 589 00 32 00

112 589 01 32 00

001 589 76 09 00

000 589 01 10 00

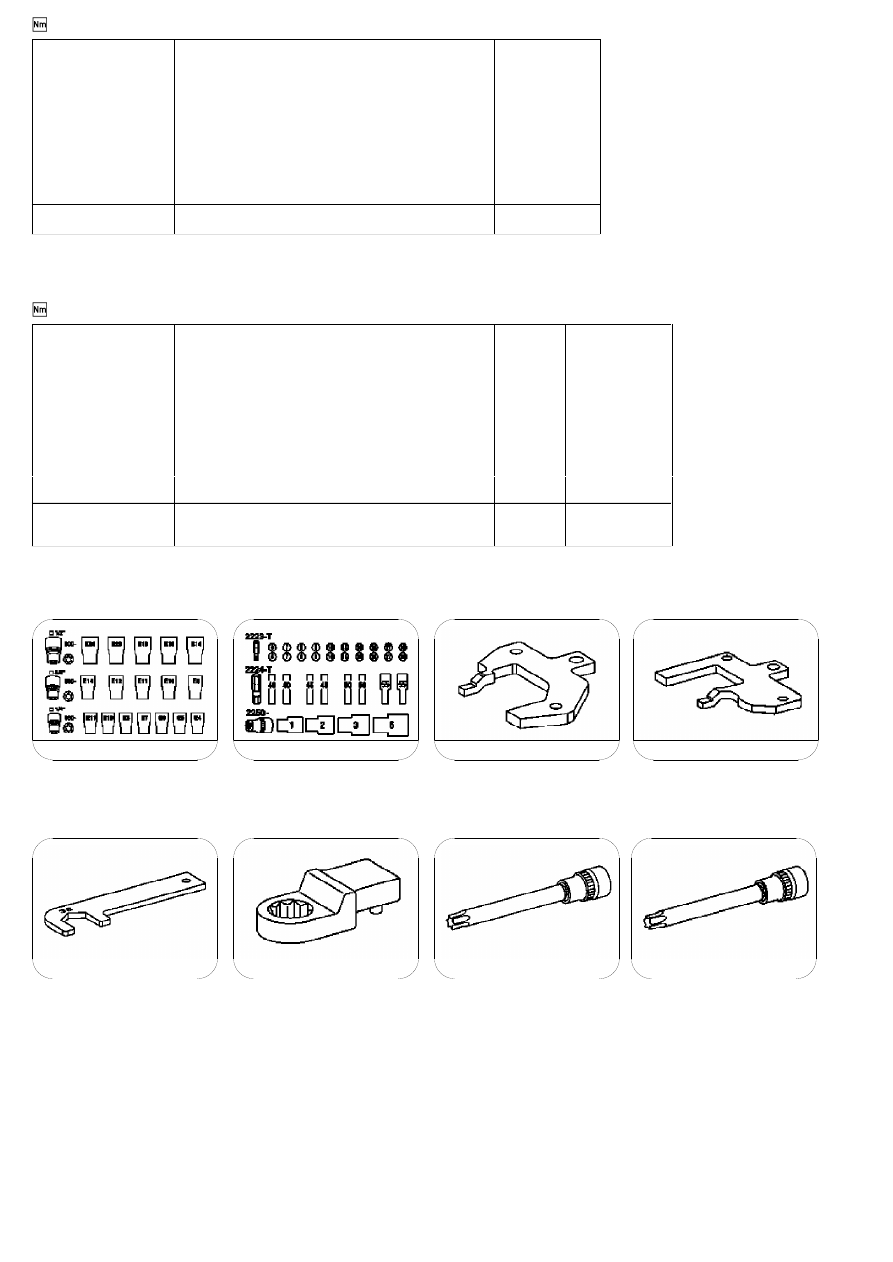

Locating plate

Torx bit set

External Torx set

Locating plate

112 589 01 03 00

Screwdriver insert

Insertion tool

Open-end wrench

Screwdriver insert

112 589 00 01 00

000 589 03 10 00

000 589 04 10 00

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 7

001 589 72 21 00

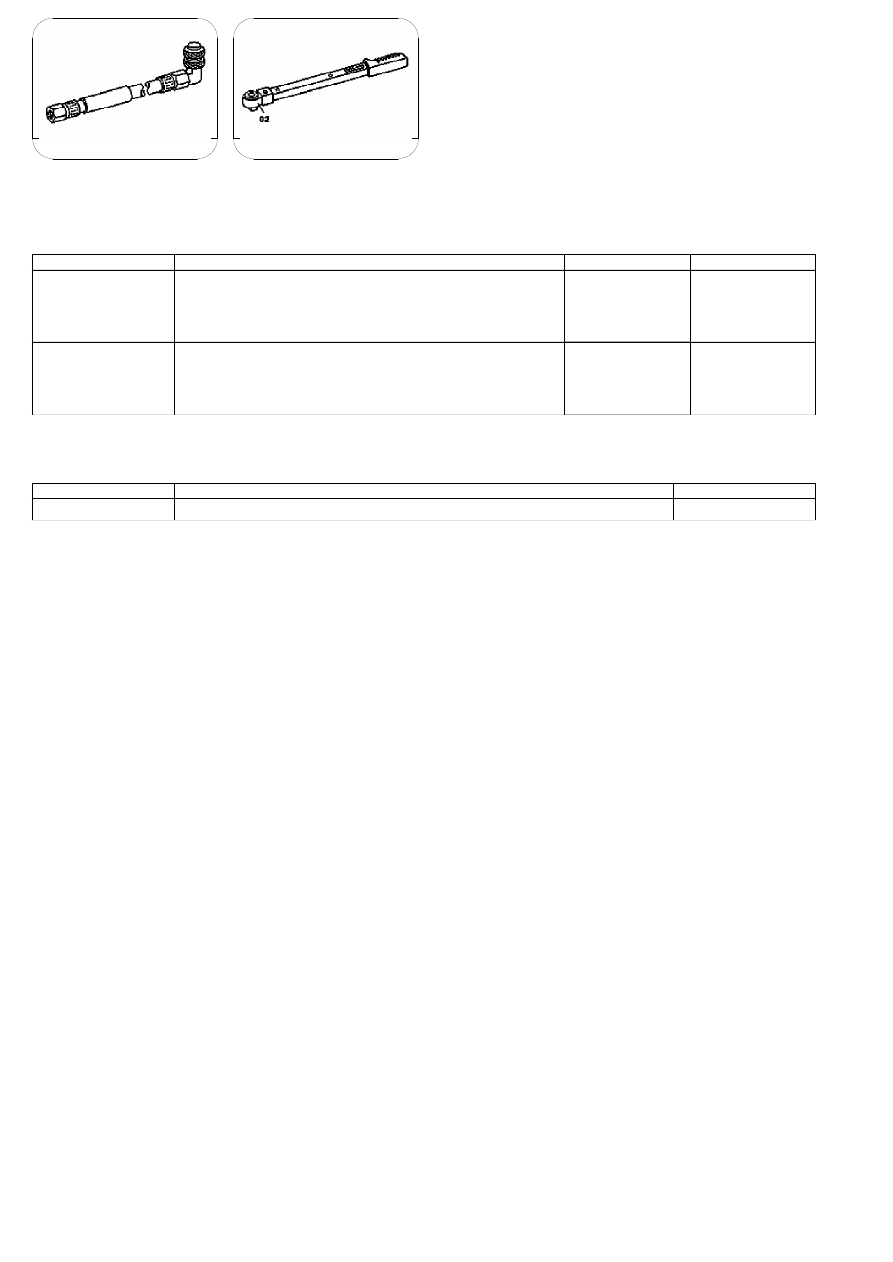

Torque wrench

Pressure hose

119 589 04 63 00

Commercially available tools (see Workshop Equipment Manual)

Number

Designation

Make (e. g.)

Order number

WH58.30-Z-1001-06A

6 mm socket hexagon on flexible shaft for hose clamps with worm drive

Hazet

Güldenwerther
Bahnhofstraße 25-28
D-42857 Remscheid

426-6

WH58.30-Z-1002-06A

7 mm hexagon socket wrench to flexible shaft for hose clips with worm
drive

Hazet

Güldenwerther
Bahnhofstraße 25-28
D-42857 Remscheid

426-7

Auxiliary repair materials

Number

Designation

Order number

BR00.45-Z-1015-01A

Loctite sealant 5970

A 003 989 98 20 10

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 8

AR01.20-P-5014-02B

Remove/install cylinder head cover trim

 Crankcase ventilation, cylinder head cover

Number

Designation

Engine
612.961/
962/967

Engine
612.963

Engine
612.965/
966

Engine
612.990

BA01.20-P-1002-01A

Screw of trim panel of cylinder head cover
to cylinder head cover

NM

10

10

10

8

BA01.20-P-1003-01A

Screw attaching cover panel to charge air
distribution pipe

NM

10

10

10

-

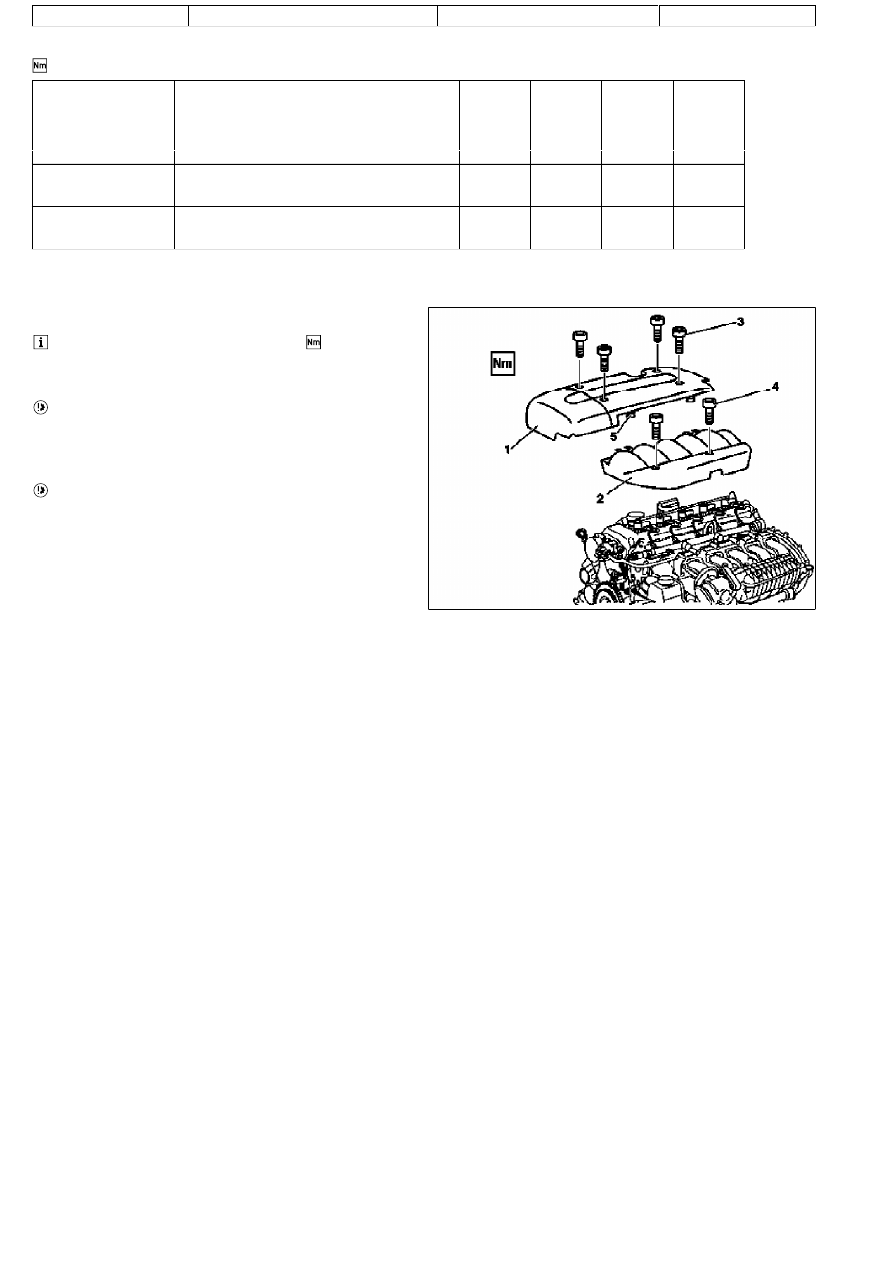

P01.20-2018-11

1

Unscrew bolts (3, 4).



Installation: Pay attention to tightening torques

.

2

Pull out trim panel (2) of charge air distribution pipe to the side.



Installation: Insert shackles of trim panel (2) into the rubber

mounts (5), so that the trim panel (2) is not damaged.

3

Take off trim panel (1) of cylinder head cover.

 Installation: Ensure the trim panel is correctly installed; ensure

no lines are trapped.

4

Install in reverse sequence.

Illustrated on Engine 612.961

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

BT27.60-P-0003-01A

Deletion of lever for shift lock cable ignition
lock at transmission

k

TRANSMISSION 722.700 ## as of 0129631 as of 24.1.01,
722.701 ## as of 0132072 as of 8.2.01

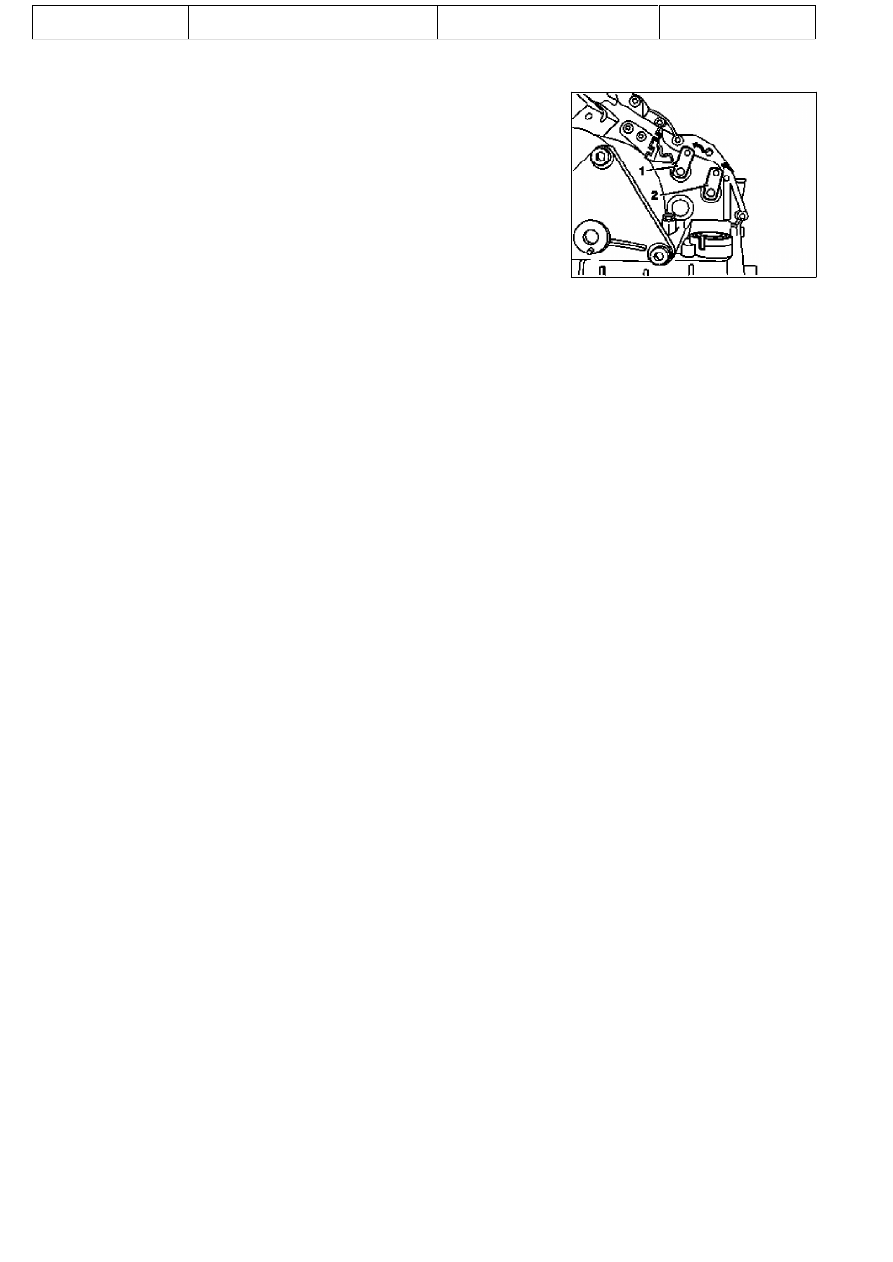

P27.60-0421-01

1

Shift lock lever ignition lock

2

Shift lock lever brake pedal

Because of the deletion of the shift lock cable ignition lock the lever for the shift lock cable ignition
lock (1) at the transmission is likewise deleted.

Copyright DaimlerChrysler AG  28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
