Mercedes-Benz ML320. Service manual - part 368





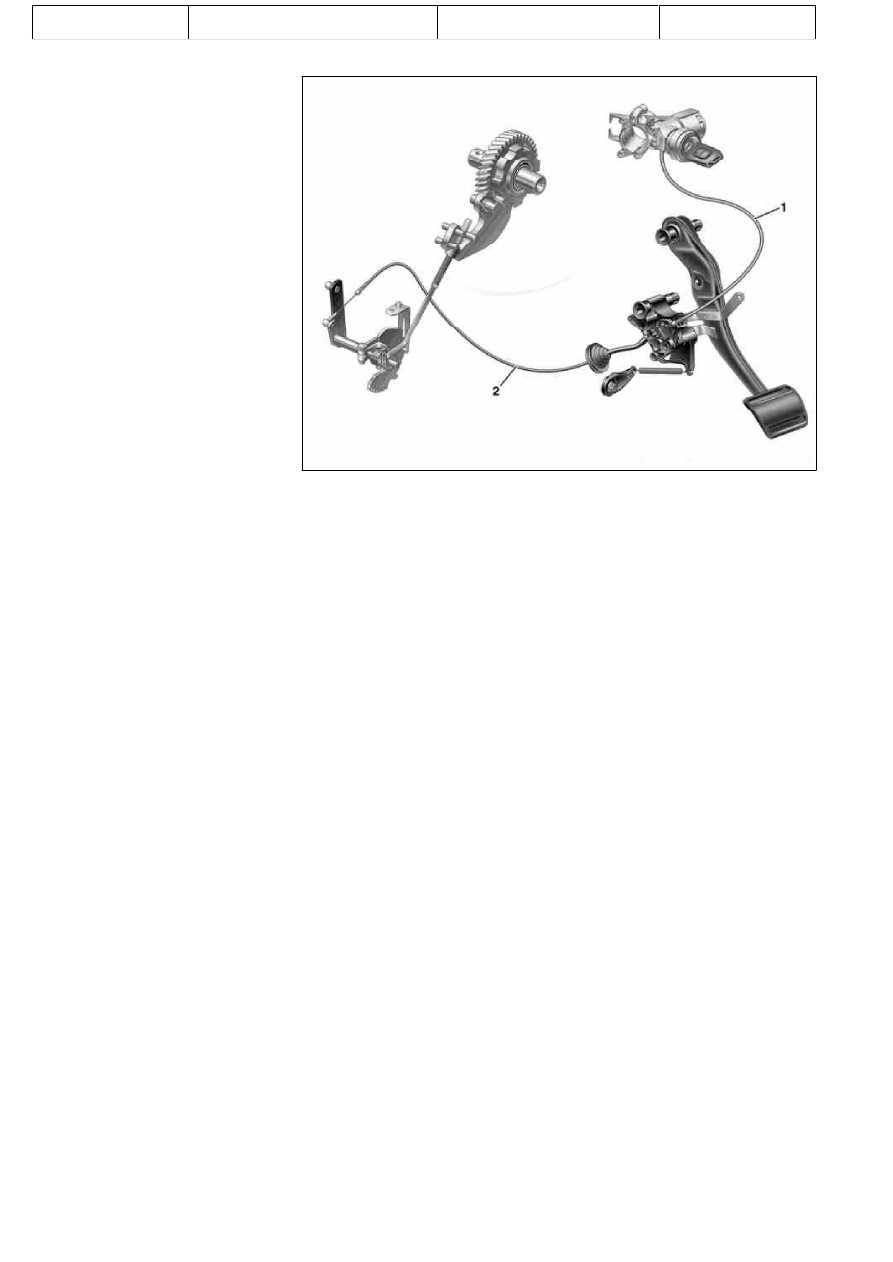

BT27.60-P-0001-02A

Deletion shift lock cable ignition lock to
transmission

k

TRANSMISSION 722.7 in MODEL WDB168.### ## as of 548031 as of 10.1.01

P27.60-2187-06

1

New ignition lock cable

2

Shift lock cable

For cost-saving reasons the shift lock cable of
the ignition lock to transmission is
discontinued. A cable from the ignition lock to
the brake pedal is used in its place.
Consequently, it is only possible to
withdraw the ignition key when the brake
pedal is depressed
.
The  new ignition lock cable (1) does no
longer require to be adjusted.

Copyright DaimlerChrysler AG  28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

OF91.60-P-1000-01A

Disconnecting airbag, certificate



After the front passenger airbag or emergency tensioning retractor
has been deactivated it must be ensured that the declaration is
signed by the customer.
Reconnection should be stamped and signed on the declaration by
the Mercedes-Benz service station performing the work.

a m b

Declaration

after disconnecting front passenger airbag on request by customer

I have explicitly requested the operation of the passenger airbag and
the passenger emergency tensioning retractor with belt force limiter
to be deactivated.
I have been informed that due to this measure the additional passive
safety guaranteed by the front passenger airbag as well as the front
passenger emergency tensioning retractor with belt force limiter is no
longer available and thereby increases the injury hazard for the
passenger.
Particularly body regions such as head, neck and chest can be
affected by reduced restraint. Direct contact with passenger
compartment components can occur more probably.
I hereby forego all claims against DaimlerChrysler AG that arise from
the deactivation of the passenger airbag and the passenger
emergency tensioning retractor with belt force limiter, whatever the
legal reason for the claim.
Moreover, I acknowledge that I am obligated to indicate to
passengers, any subsequent owner of the vehicle or any person
using the vehicle that this protective function has been deactivated
as well as the associated hazards.

A sticker has been attached to the passenger airbag which may be
removed only when the passenger airbag is reactivated by a
Mercedes-Benz service station.
Disconnection is to be noted in the registration papers.

......................................................................
Date/signature of customer

.....................................................................
Date/stamp/signature/Mercedes-Benz service station

Customer address:

...........................................................................

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chassis ident no.:....................................................................
Reactivation of the passenger airbag should be accomplished only by
a Mercedes-Benz service station.

Reactivation:....................................................................
Date/stamp/signature/Mercedes-Benz service station

s

Copyright DaimlerChrysler AG  14.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

GF54.30-P-2002A

Display instruments, location / task / function

24.10.96

MODEL

129, 140 as of 1.6.96,

163, 168, 170,
202 as of 1.8.96,
208 up to 31.7.99,
210 as of 1.6.96 up to 30.6.99

Display

Type of data transmission

D Outside temperature indicator (A1p4)

D Fuel level gauge (A1p2)

D Engine oil pressure gauge (A1p3), only

model 129 and model 140

D  Low windshield washer fluid level

indicator lamp (A1e13), model 163 as of
01.09.01

Direct lines

GF54.30-P-3004A

D Total mileage odometer (A1h4)

D Electronic speedometer (A1p8)

D Tachometer (A1p5)

D Coolant temperature gauge (A1p1)

D Active service system (ASSYST)

D Gear indicator (A1p12), only model 168

CAN data lines

GF54.30-P-3005A

D Electronic clock

Internal

GF54.30-P-3011A

Copyright DaimlerChrysler AG  04.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AD54.30-P-3000-03A

Display instruments/multi-function display
function check IC

Display instruments
The display instruments must indicate according to operating
conditions.

Phototransistor (models 202, 208, 210)
Point a beam of light at the phototransistor with a pocket lamp, the
display illumination of the LCD displays (outside temperature, trip
odometer, total mileage recorder and electronic clock) must get
brighter.

Instrument cluster with multi-function display
If there are malfunctions (e.g. brake linings worn, coolant level too
low, exterior lamp failure etc.) or system faults (anti-lock brake
system faulty, supplemental restraint system faulty) the warning
display with warning information is inserted in place of outside
temperature, odometer, total mileage recorder and electronic clock.
The warning information is displayed in yellow or red depending on
the fault and a warning tone also sounds.

Copyright DaimlerChrysler AG  05.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
