Mercedes-Benz ML320. Service manual - part 345





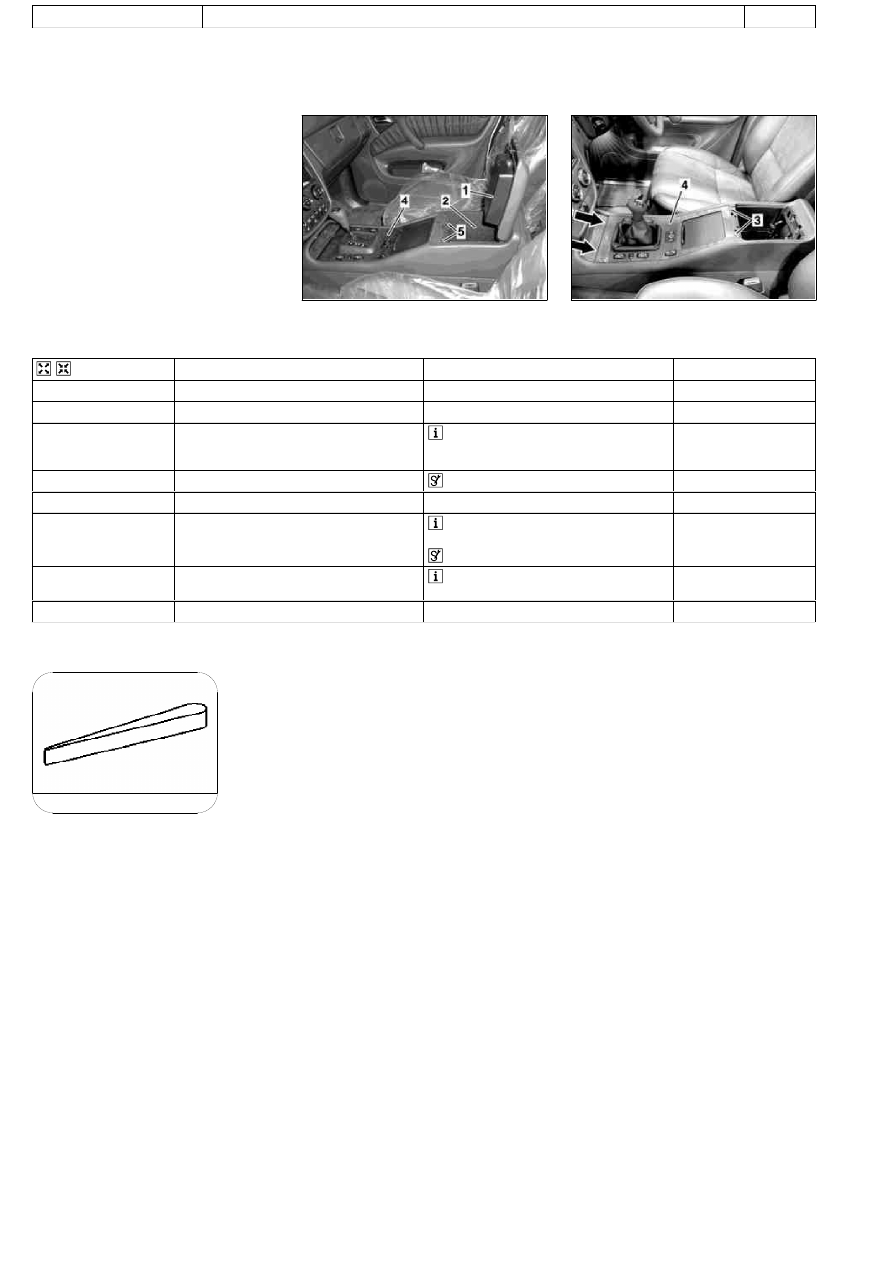

AR68.20-P-2310GI

Remove/install cover on gearshift lever

26.2.01

MODEL

163.113 /154 /174 #A as of 289565,

163.113 #X as of 754620,
163.128 /157 /175

P68.20-2545-01

1

Armrest cover

2

Stowage box

3

Bolts

4

Cover on shift lever

5

Plastic screws

P68.20-2456-01



Remove/install

1

Remove armrest lid (1)

AR68.20-P-2370GH

2

Remove plastic screws (5)

3

Remove stowage box (2)

 Press the pin in the center of the rivet

downwards for about 4 mm; then remove the
rivet from above.

4

Remove selector lever paneling

 Long wedge

*115589035900

5

Unscrew bolts (3)

6

Remove cover (4) from above

 Carefully prize open at front (arrows) and

at the sides.

 Long wedge

*115589035900

7

Detach connector from lower control panel
control module

 3 connector.

8

Install in the reverse order

Assembly wedge

115 589 03 59 00

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

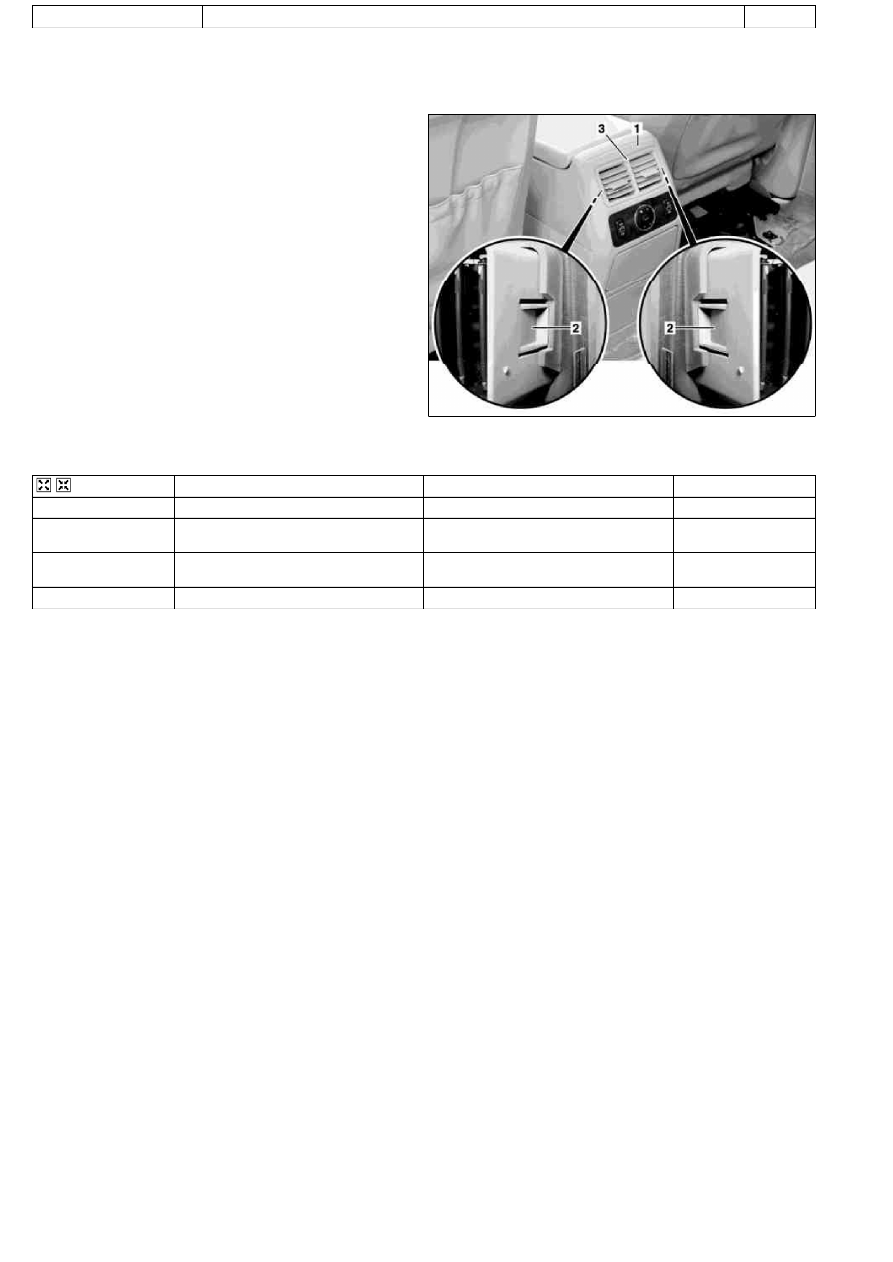

AR83.10-P-4800GH

Removing and installing rear air nozzle

30.5.01

MODEL

163.113 /154 /174 #A as of 289565,

163.113 #X as of 754620,
163.128 /157 /175

P68.20-2494-11

1

Rear center console.

2

Retaining clips

3

Air nozzle



Remove/install

1

Remove rear center console (1)

AR68.20-P-2020GI

2

Loosen retaining clamps (2) on the sides of
the air nozzle (3)

3

Remove air nozzle (3) from the rear center
console

4

Install in the reverse order

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

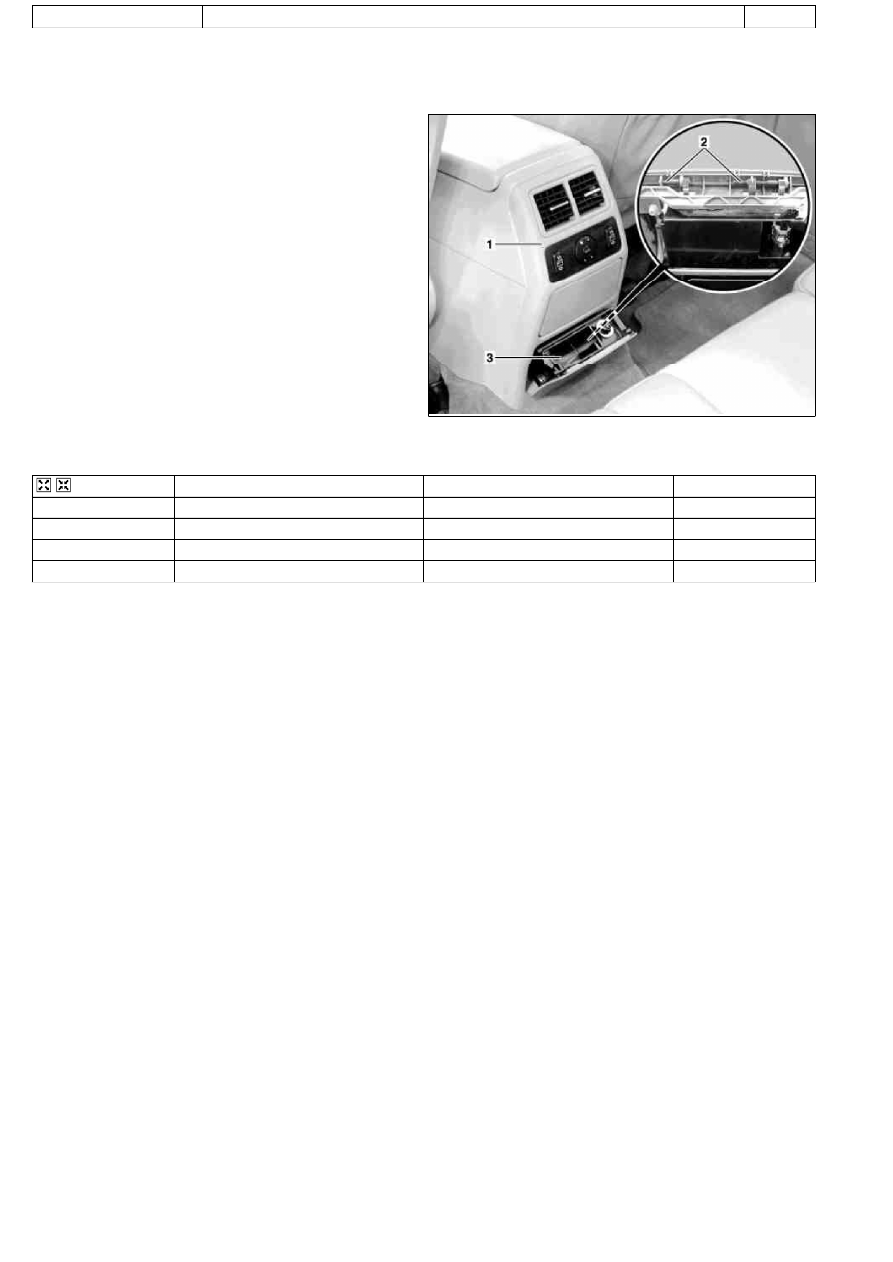

AR68.20-P-2230GH

Remove/install rear ashtray

9.5.01

MODEL

163.113 /154 /174 #A as of 289565,

163.113 #X as of 754620,
163.128 /157 /175

P68.20-2498-11

1

Rear center console.

2

Locking pin

3

Ashtray



Remove/install

1

Remove rear center console (1)

AR68.20-P-2020GI

2

Remove locking pin (2) from ashtray hinge

3

Remove ashtray (3)

4

Install in the reverse order

Copyright DaimlerChrysler AG  10.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

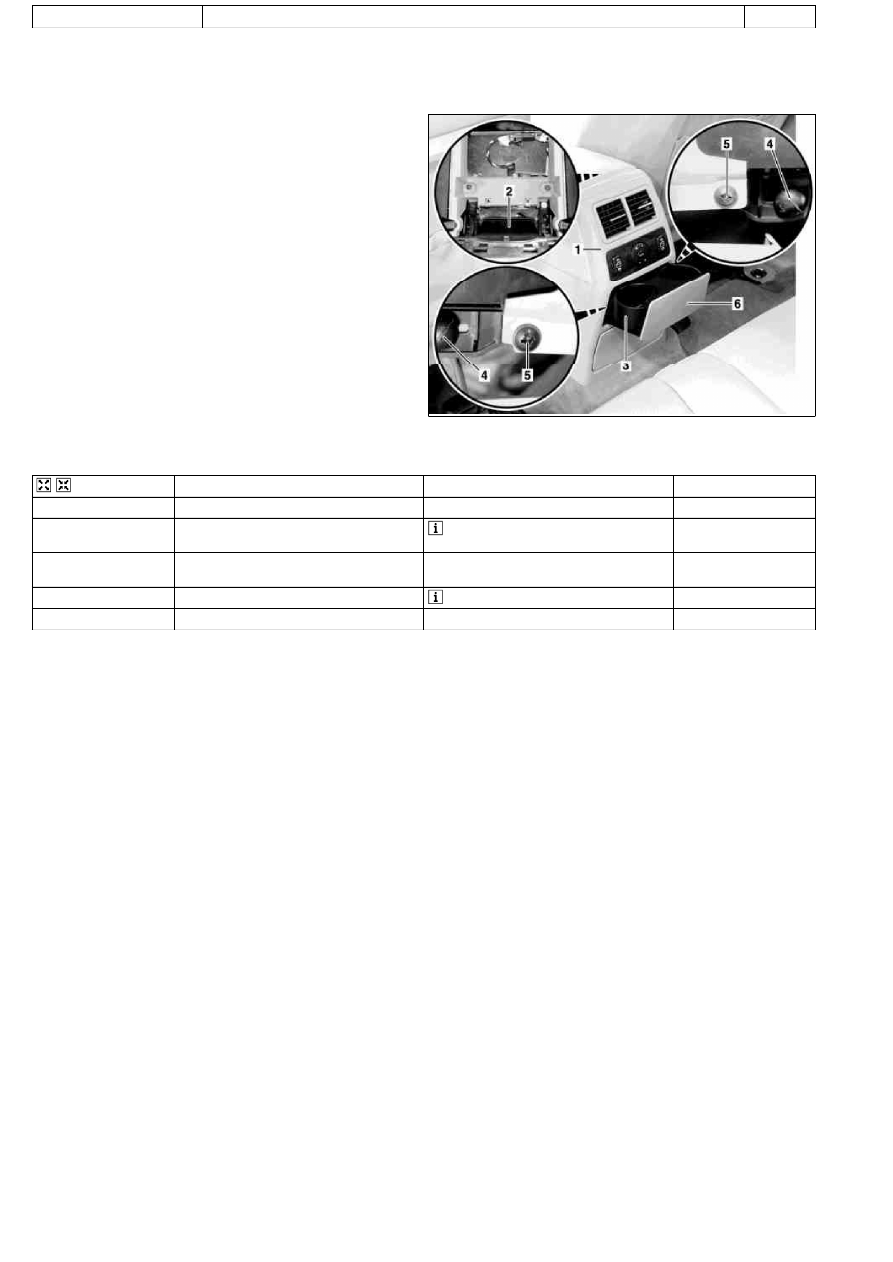

AR68.20-P-2220GI

Remove/install rear beverage holder

9.5.01

MODEL

163.113 /154 /174 #A as of 289565,

163.113 #X as of 754620,
163.128 /157 /175

P68.20-2497-11

1

Rear center console.

2

Air nozzle

3

Beverage holder

4

Ball joint

5

Bolts

6

Paneling



Remove/install

1

Remove rear center console (1)

AR68.20-P-2020GI

2

Separate air nozzle (2) from beverage holder
(3)

 Loosen ball joint (4) from bottom of

beverage holder.

3

Unscrew bolts (5) from sides of beverage
holder

4

Remove beverage holder (3)

 Press onto paneling (6).

5

Install in the reverse order

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
