Mercedes-Benz ML320. Service manual - part 343





11.1

Remove rubber seal for E-call emergency call
system antenna from body at right



Only with emergency call system E-Call,

code 349.

12

Install in the reverse order



Bumper

Number

Designation

Model 163

BA88.20-P-1006-01B

Nuts for rear bumper on cross member

Nm

8

BA88.20-P-1007-01B

Screws for rear bumper on cross member,
rear

Nm

8



Detachable body components, underride guard

Number

Designation

Model 163
up to
31.8.01

BA88.30-P-1004-01A

Nut for retaining strap on mud guard on vehicle
underbody

Nm

6

Long wedge

115 589 03 59 00

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

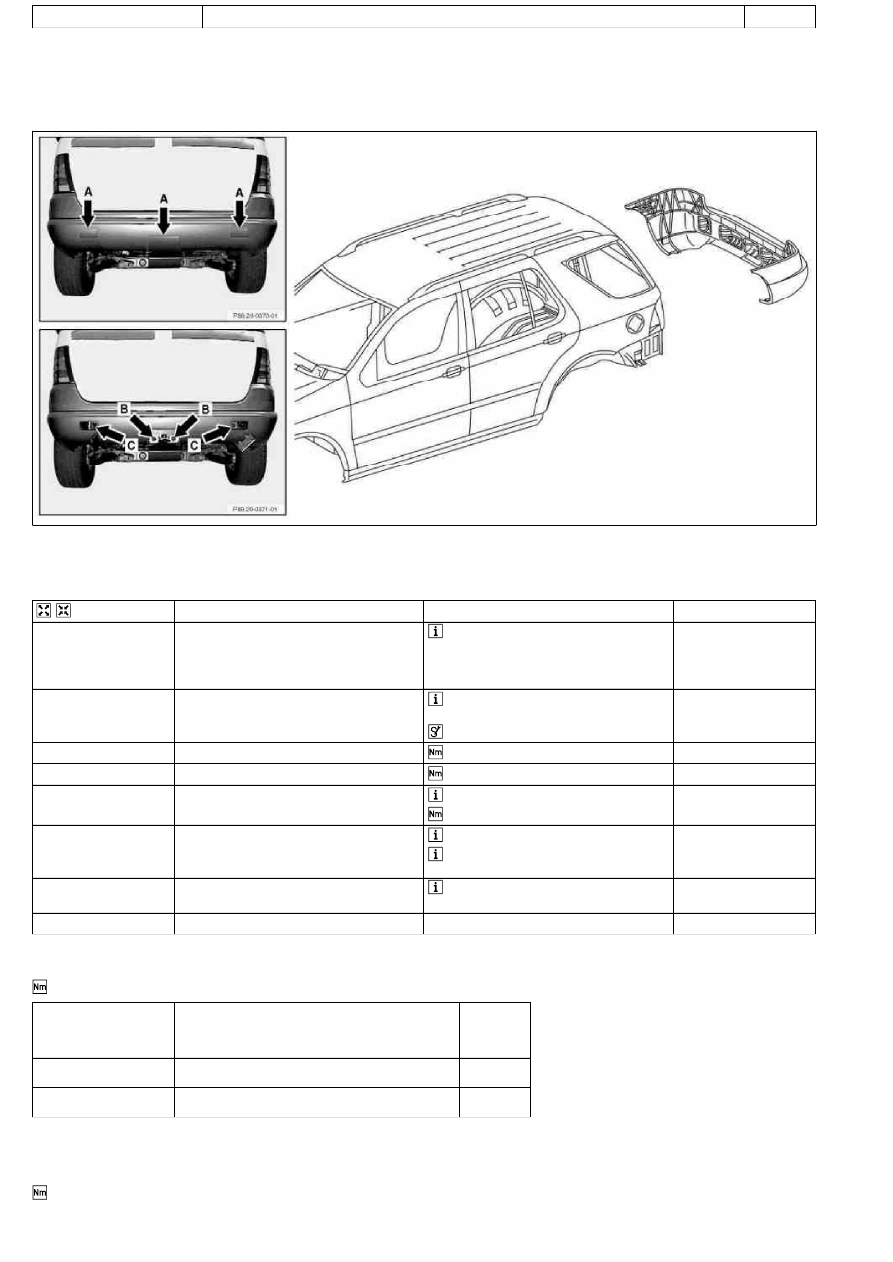

AR88.20-P-2200GH

Remove/install rear bumper

6.4.99

MODEL

163.113 #A up to 289564,

163.154 #X up to 754619,
163.154 #A up to 289564,
163.136 /172

P88.20-0372-09

A

Covers

C

Screws

B

Nuts



Remove/install

1.1

Disconnect antenna connector of E-call
emergency call system



Only with emergency call system E-Call,

code 349.

Connector is located behind side flap of right
C-pillar paneling at jack mounting point.

2

Remove covers (A)

 Do not damage paint. Do not break off

clips.

 Installation wedge

*115589035900

3

Unscrew mounting nuts (B) from bumper



*BA88.20-P-1004-01B

4

Unscrew screws (C)



*BA88.20-P-1005-01B

5.1

Remove nut from rear mud guard

 Only if present



*BA88.30-P-1004-01A

6

Remove bumper toward rear

 Do not damage paint.



Installation: Align bumper at tailgate and

at taillamps

7.1

Remove rubber seal for E-call emergency call
system antenna from body at right



Only with emergency call system E-Call,

code 349.

8

Install in the reverse order



Bumper

Number

Designation

Model 163

BA88.20-P-1004-01B

Nut, rear bumper to frame

Nm

8

BA88.20-P-1005-01B

Screws, rear bumper on frame

Nm

8



Detachable body components, underride guard

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

Number

Designation

Model 163
up to
31.8.01

Model 163
as of
1.9.01

BA88.30-P-1004-01A

Nut for retaining strap on mud guard on vehicle
underbody

Nm

6

6

Long wedge

115 589 03 59 00

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

AD54.30-P-6000-04GH

CAN data lines test electrics IC

Model 163

t

A

Scope of test

Measuring instrument/

Test connection

Operation/

Requirement

Specified value D Possible cause/

Remedy

1.0

CAN data buses

Resistance

w

(B.9)

A1

b

10

(B.10)

Ignition: OFF

Coupling "B" (12-pin)

disconnected

(N3 is connected to CAN)

approx.

120 W

D CAN: -//-,

d e

D N3

Value in order:

#

t

 1.1

1.1

CAN data buses

Voltages, low line

o

c

A1

L



10

(B.10)

Ignition: ON

approx. 2.3 V

D N3

Value in order:

#

t

 1.2

1.2

CAN data buses

Voltages, high line

o

c

A1

L

 9

(B.9)

Ignition: ON

approx. 2.6 V

D N3

Copyright DaimlerChrysler AG  05.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
