Mercedes-Benz ML320. Service manual - part 344





AD54.30-P-6000-05GH

CAN input resistance, testing electrical
system of IC

Model 163

t

A

Scope of test

Measuring instrument/

Test connection

Operation/

Requirement

Specified value D Possible cause/

Remedy

1.0

Instrument cluster (A1)

CAN input resistance

v

(B.9)

A1

b

K

 10

(B.10)

Ignition: OFF

Coupling "B" (12-pin)

disconnected

approx.

120 W

D A1

Copyright DaimlerChrysler AG  05.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

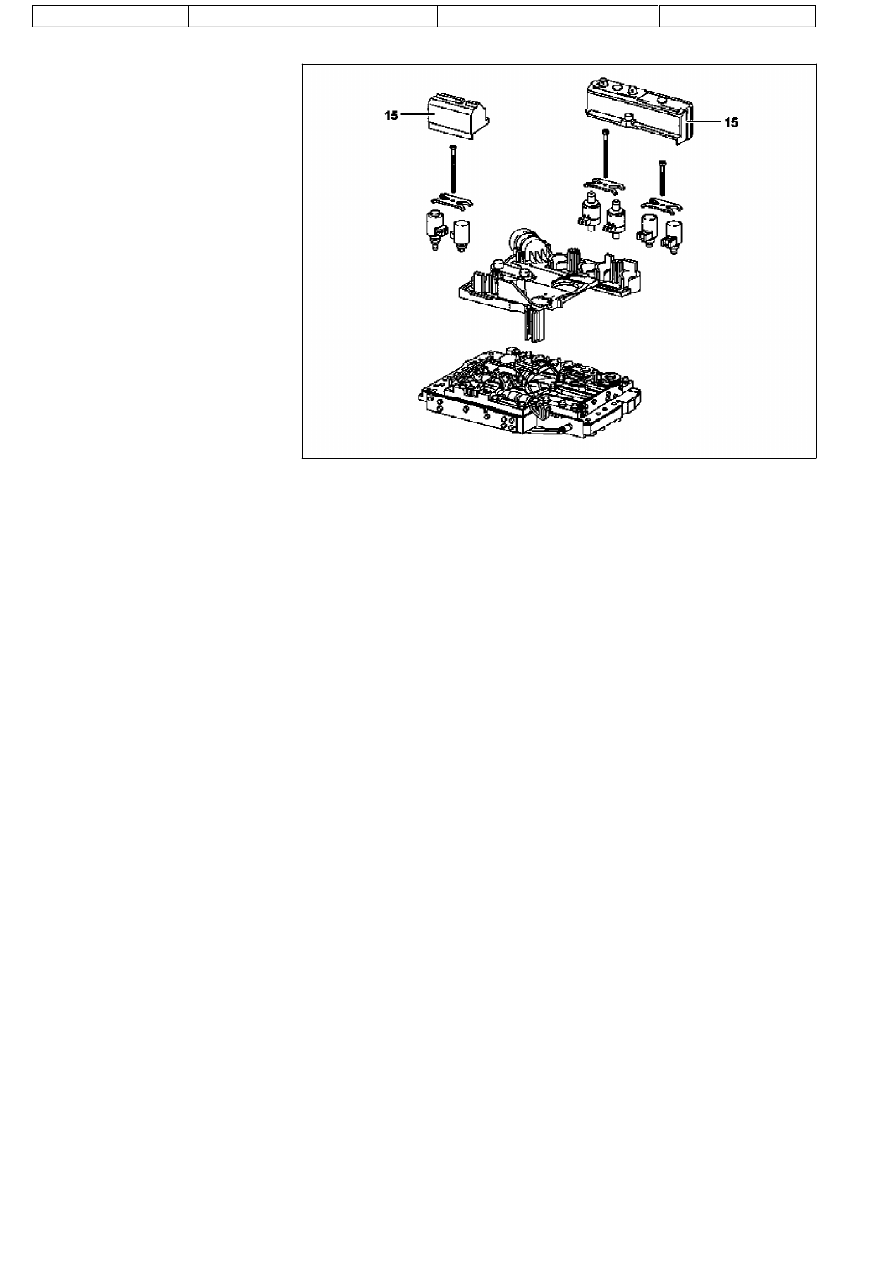

BT27.19-P-0003-01A

Caps for solenoid valve, new

Transmission 722.6

k

TRANSMISSION

722.6 as of 1.8.97

P27.19-0321-06

15

Caps

To prevent a short-circuit due to metal
abrasion or metal shavings on the contact
tongues of the solenoid valves, all solenoid
valves are covered with caps.

Copyright DaimlerChrysler AG  28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

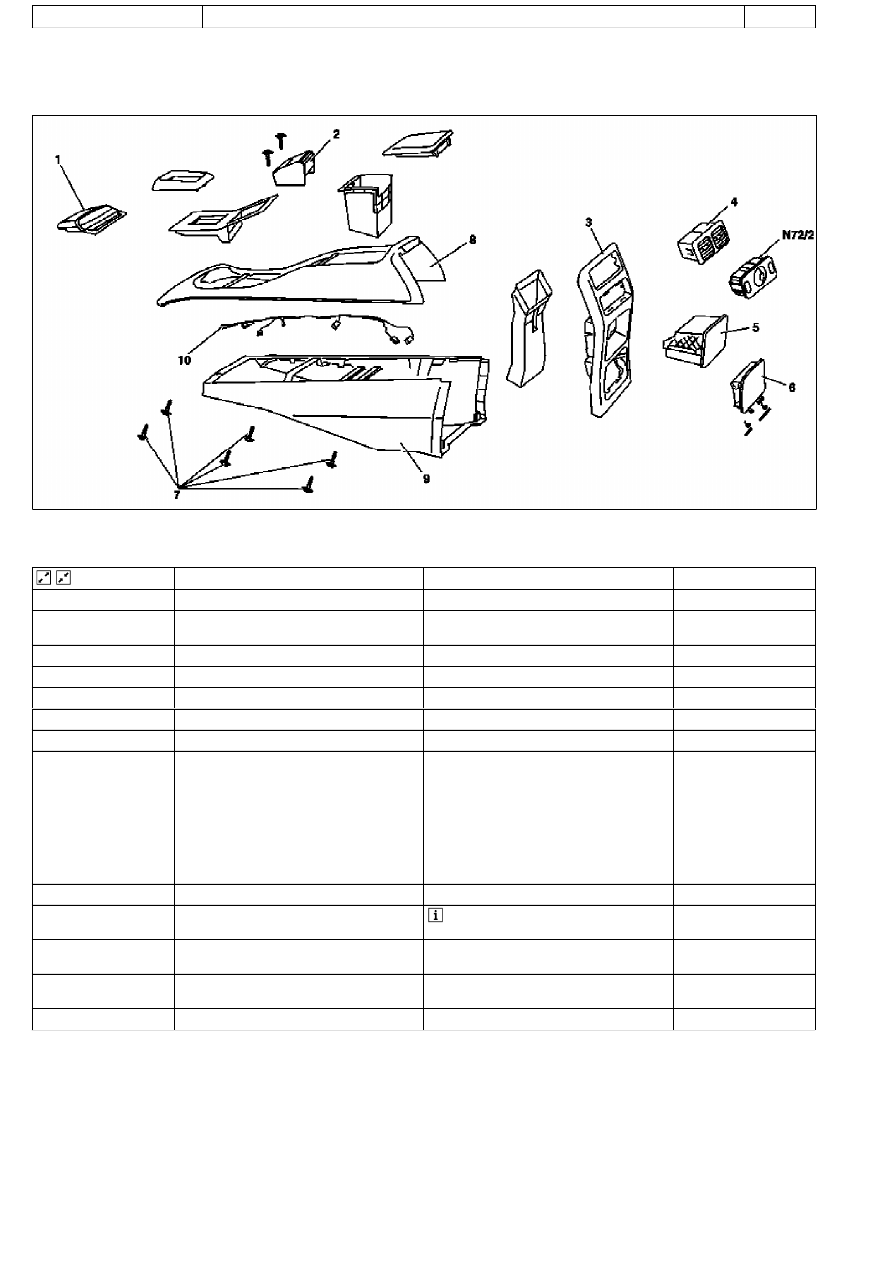

AR68.20-P-2150GI

Disassemble/assemble center console

20.4.01

MODEL

163.113 /154 /174 #A as of 289565,

163.113 #X as of 754620,
163.128 /157 /175

P68.20-2513-09



Disassemble/assemble

1

Remove center console

AR68.20-P-2000GH

2

Lay center console down on suitable
subsurface

3

Remove front ashtray (1)

AR68.20-P-2400GI

4

Remove storage compartment (2)

5

Remove rear center console (3)

AR68.20-P-2020GI

6

Remove rear air nozzle (4)

AR83.10-P-4800GH

7

Remove RCP console module (N72/2)

AR68.20-P-2210GH

8.1

Remove rear beverage holder (5)

Model 163.154 #A as of VIN 145273 up to
VIN 289564, model 163.172 #A as of VIN
145273, model 163.113 /174 #A up to VIN
289564, model 163.136 /154 /172 #X as of
VIN 708319, model 163.113 #X up to VIN
754619

AR68.20-P-2220GH

Model 163.113 /154 /174 #A as of VIN
289565, model 163.113 #X as of VIN 754620
model 163.128 /157 /175

AR68.20-P-2220GI

9

Remove rear ashtray (6)

AR68.20-P-2230GH

10

Remove bolts (7) for center console from top
and bottom section

 6 bolts.

11

Remove top section (8) and bottom section
(9) from center console

12

Remove interior wiring harness (10) from
center console

13

Assemble in reverse order

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

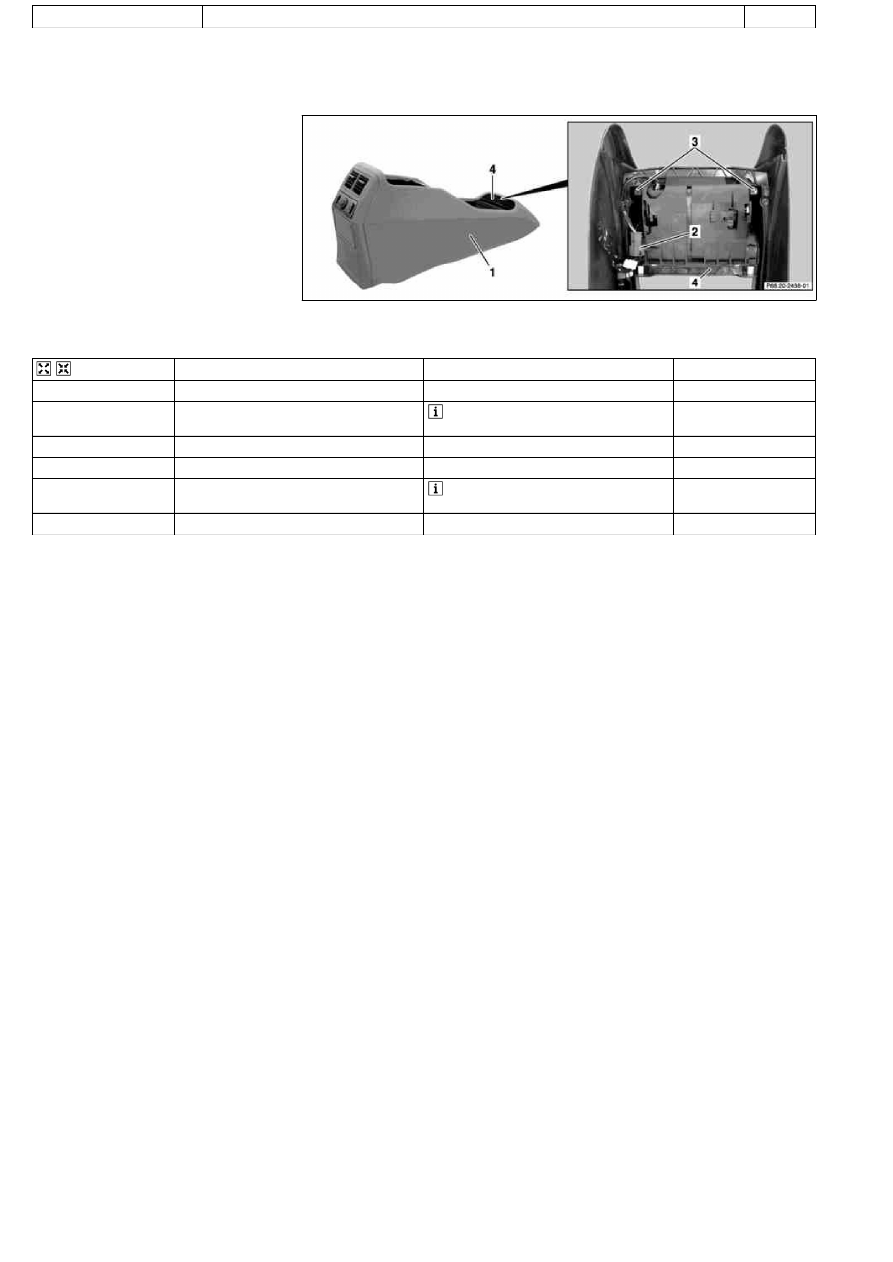

AR68.20-P-2400GI

Remove/install ashtray housing in front center console

20.4.01

MODEL

163.113 /154 /174 #A as of 289565,

163.113 #X as of 754620,
163.128 /157 /175

P68.20-2459-04

1

Center console

2

Plug

3

Bolts

4

Front ashtray



Remove/install

1

Remove center console (1)

AR68.20-P-2000GH

2

Lay center console down on suitable
subsurface

 Do not damage center console

3

Disconnect plug (2)

4

Remove bolts (3)

5

Remove front ashtray (4)



Installation: Ensure that ashtray is

seated correctly in center console.

6

Install in the reverse order

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
