Mercedes-Benz ML320. Service manual - part 341





Number

Designation

Model 163
as of
1.9.01

BA88.30-P-1003-01A

Screw, mount on brush guard

Nm

25

BA88.30-P-1015-01A

Nut, underride guard to bracket

Nm

49

BA88.30-P-1016-01A

Bolt, front section of underride guard to rear
section of underride guard

Nm

49



Bumper

Number

Designation

Model 163

BA88.20-P-1001-01B

Nut, front bumper on outer mount

Nm

8

BA88.20-P-1002-01B

Screw for front bumper on inner mount

Nm

1.5

BA88.20-P-1009-01B

Screw for front bumper on mount

Nm

8

Pulling hook

140 589 02 33 00

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

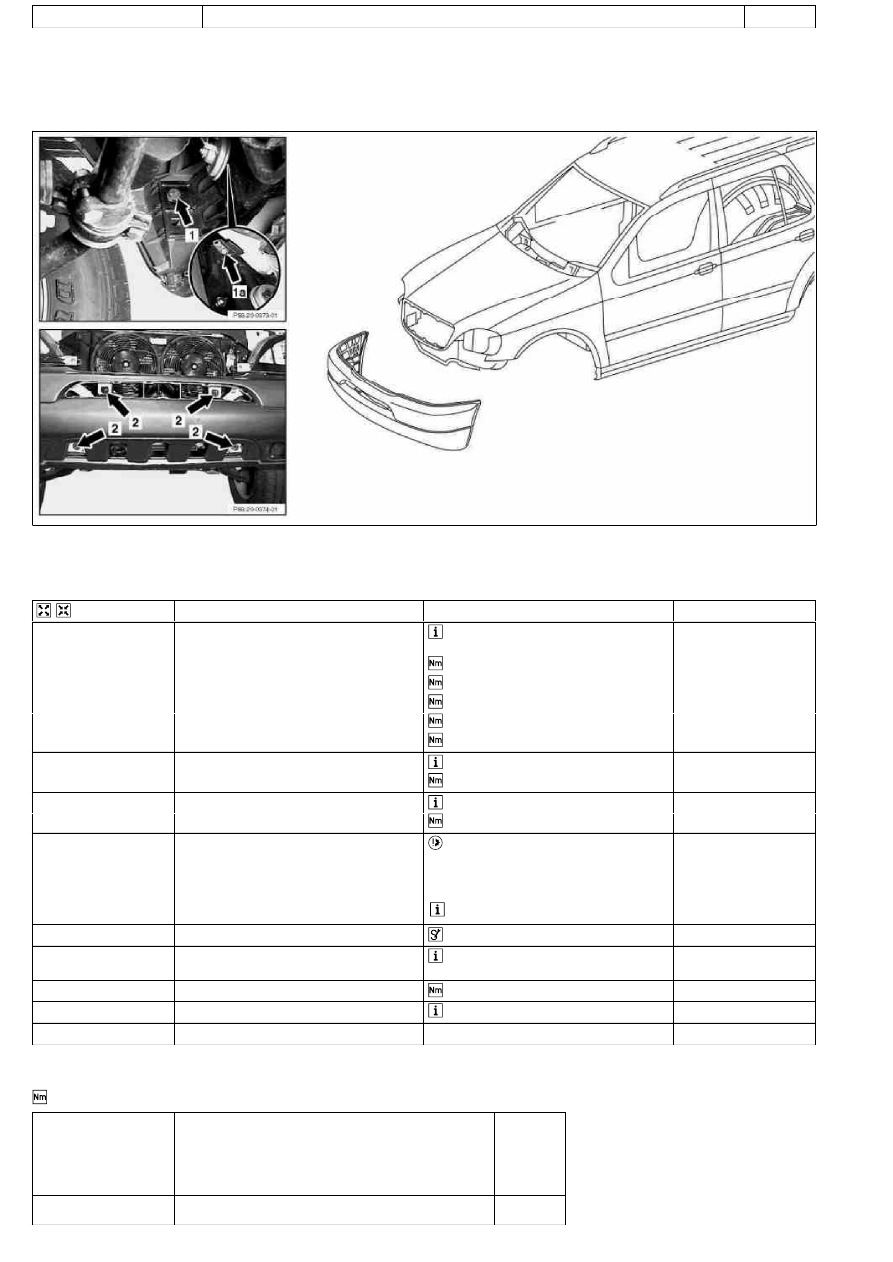

AR88.20-P-2000GH

Remove/install front bumper

14.3.97

MODEL

163.113 /154 #A up to 289564,

163.113 #X up to 754619,
163.154 #X up to 716524,
163.136 /172 except CODE (U49) Styling package

P88.20-0375-09

1

Nut

2

Nuts

1a

Screw



Remove/Install

1.1

Remove brush guard together with underride
guard

 If installed.

AR88.30-P-2000-01GH



*BA88.30-P-1002-01A



*BA88.30-P-1003-01A



*BA88.30-P-1011-01A



*BA88.30-P-1015-01A



*BA88.30-P-1016-01A

2

Unscrew nut (1)

 Left and right at inside.



*BA88.20-P-1001-01B

3

Unscrew bolt (1a)

 Left and right at inside.



*BA88.20-P-1002-01B

4

Remove front bumper grille.



Carefully remove front bumper grille so

that bumper grille and bumper grille mount
cannot be damaged.

 Loosen retainers and pull to outside

 Pulling hook

*140589023300

5.1

Remove outside temperature sensor from
front bumper.

 If installed.

6

Unscrew nuts (2)



*BA88.20-P-1003-01B

7

Remove bumper toward front.



Do not damage paint.

8

Install in the reverse order



Detachable body components, underride guard

Number

Designation

Model 163
up to
31.8.01

BA88.30-P-1002-01A

Nut, spacer tube on brush guard

Nm

86

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

BA88.30-P-1003-01A

Screw, mount on brush guard

Nm

49

BA88.30-P-1011-01A

Bolt, underride guard to brush guard

Nm

25

BA88.30-P-1015-01A

Nut, underride guard to bracket

Nm

49

BA88.30-P-1016-01A

Bolt, front section of underride guard to rear
section of underride guard

Nm

49



Bumper

Number

Designation

Model 163

BA88.20-P-1001-01B

Nut, front bumper on outer mount

Nm

8

BA88.20-P-1002-01B

Screw for front bumper on inner mount

Nm

1.5

BA88.20-P-1003-01B

Nut, front bumper on frame

Nm

8

Pulling hook

140 589 02 33 00

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

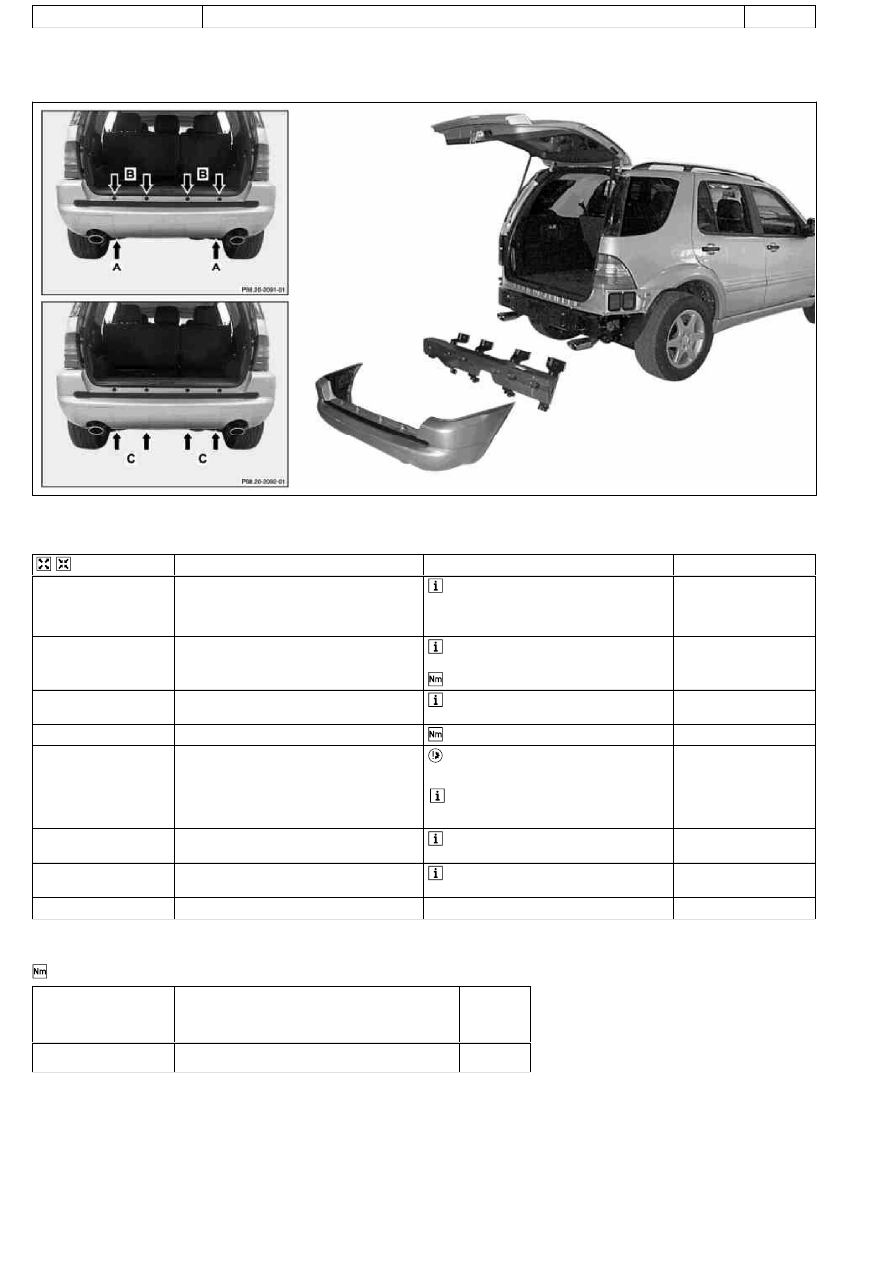

AR88.20-P-2200GJ

Remove/install rear bumper

6.4.99

MODEL

163.113 /128 /136 /154 /157 /172 /175 with CODE (U49) Styling package

MODEL

163.174

P88.20-2090-09



Remove/install

1.1

Separate antenna of emergency call system
E-Call connector

 Only with E-call emergency call system,

code 349. The connector is located behind
the side flap of the right C-pillar paneling at
the jack socket point.

2

Unscrew screws (A) on energy absorber
retaining straps at bottom of cross member

 2 each.



*BA88.20-P-1005-01B

3

Pull cover strip off of screws (B) at top of
bumper

 Velcro strips

4

Unscrew screws (B) at top of bumper



*BA88.20-P-1005-01B

5

Pull bumper to the rear and remove

 Do not damage paintwork/wiring harness.



Installation: Align bumper at tailgate and

at taillamps.

6.1

Remove rubber seal of antenna of emergency
call system E-Call on right at body

 Only with emergency call system E-Call,

Code 349.

7.1

Disconnect connector from Parktronic system

 Only with Parktronic system (PTS), code

220a. Remove left rubber seal at body.

8

Install in the reverse order



Bumper

Number

Designation

Model 163

BA88.20-P-1005-01B

Screws, rear bumper to frame

Nm

8

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
