Mercedes-Benz ML320. Service manual - part 339





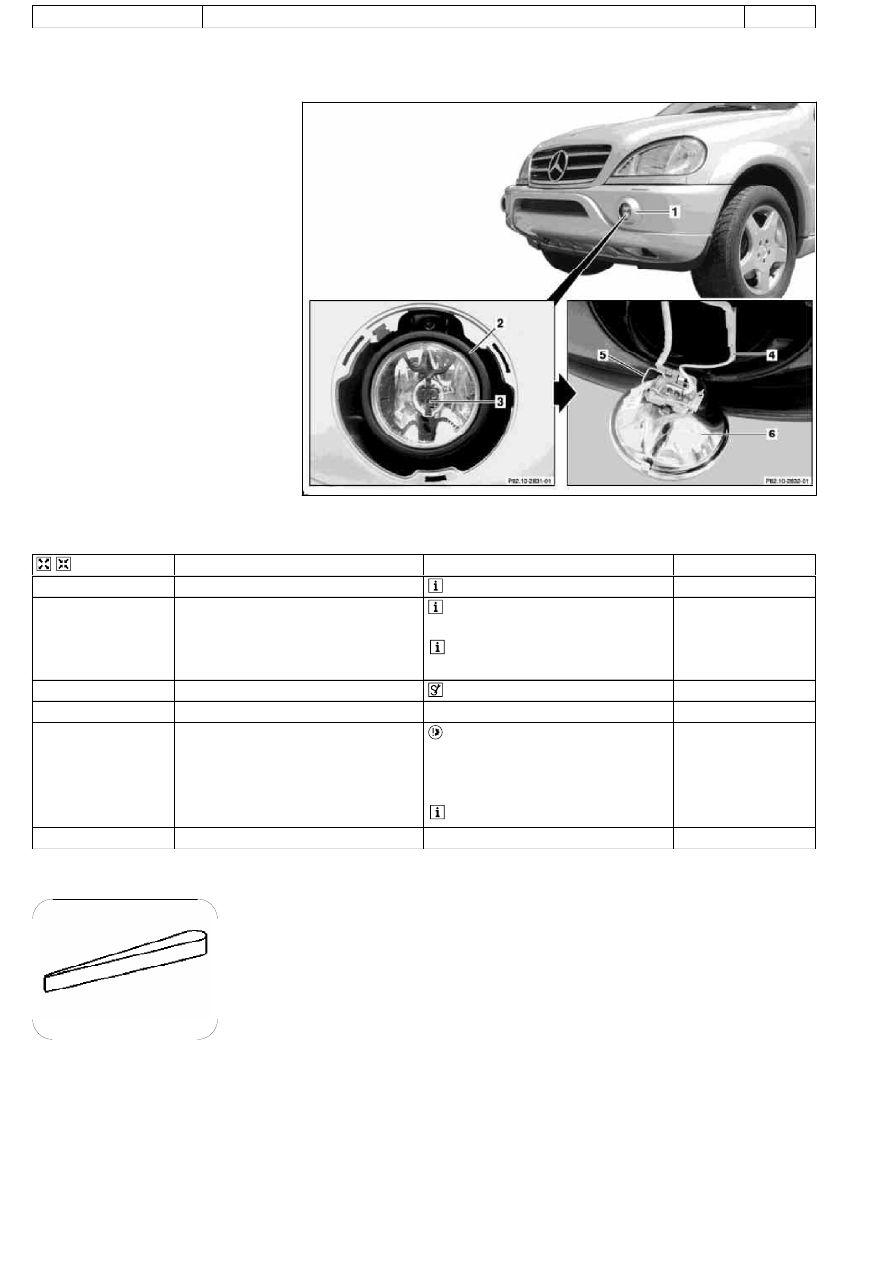

AR82.10-P-1825GH

Remove/install fog lamp bulb

23.4.01

MODEL

163.113 /128 /136 /154 /157 /172 /175 with CODE (U49) Styling package

MODEL

163.174

P82.10-2833-06

1

Cover

2

Bulb housing

3

Bulb

4

Connector

5

Locking mechanism

6

Fog lamp insert



Remove/install

1

Remove cover (1) from bumper

 Do not break retaining lugs.

2

Remove bulb housing (2)

 To unlock, rotate counterclockwise.



Installation: Ensure that the locking

device has locked securely.

3

Remove fog lamp insert (6) from housing

 Installation wedge

*115589035900

4

Disconnect connector (4)

5

Remove bulb on the back of the fog lamp
insert (6)

 Do not hold the bulb with bare fingers, as

fingerprints bake and leave behind
opaqueness on the bulb. Use a soft, lint-free
cloth.

 Lock securely.

6

Install in the reverse order

Longitudinal wedge

115 589 03 59 00

Copyright DaimlerChrysler AG  17.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

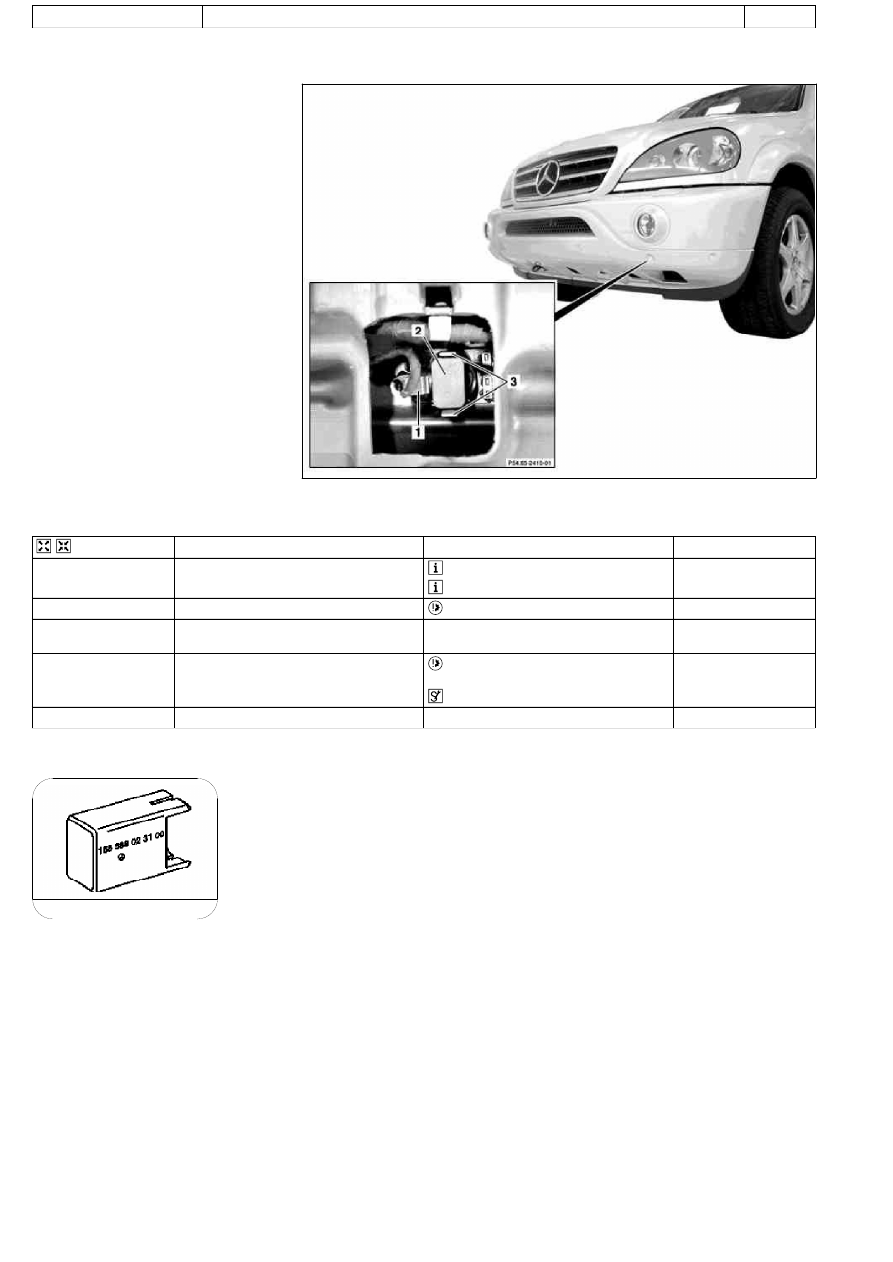

AR54.65-P-0001GH

Remove/install Parktronic system (PTS) sensors in front bumper

19.4.01

MODEL

163.113 /128 /154 /157 /174 /175 with CODE (220a) Parktronic System (PTS)

P54.65-2411-06

1

Plug connection

2

Parktronic system sensor

3

Retaining clamps



Remove/install

1

Remove front bumper

 with styling package, code U49.

AR88.20-P-2000GI

As of 01.09.01.

AR88.20-P-2000GJ

2

Put down bumper safely in a suitable place

 Do not damage paintwork.

3

Disconnect connector (1) from Parktronic
system sensor(2)

4

Remove Parktronic system sensor (2) from
the bumper

 Bo not brake off the retaining clamps (3).

 Release tool

*168589023100

5

Install in the reverse order

Release tool

168 589 02 31 00

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

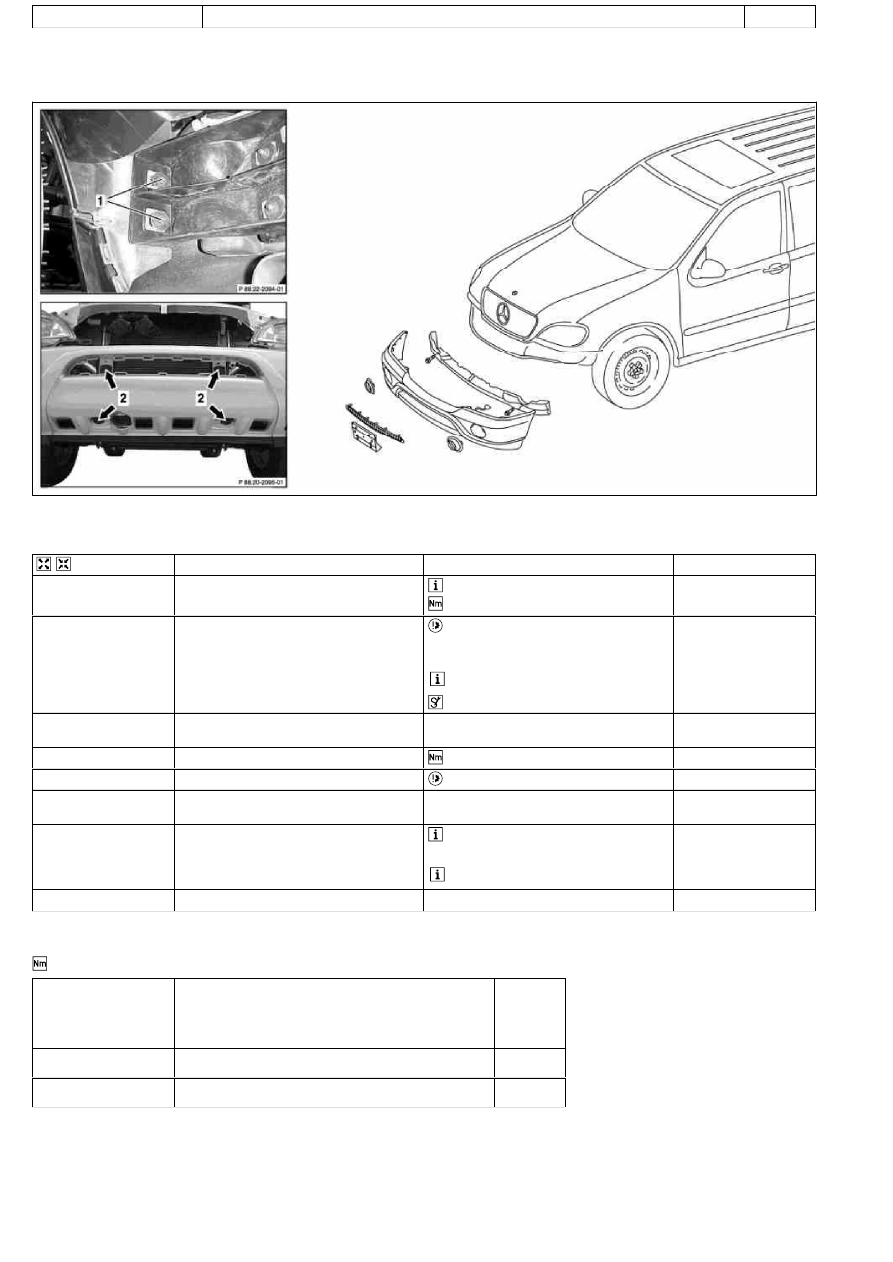

AR88.20-P-2000GI

Remove/install front bumper

5.4.99

MODEL

163.113 /128 /136 /154 /157 /172 /175 with CODE (U49) Styling package

MODEL

163.174

P88.20-2093-09



Remove, Install

1

Unscrew nuts (1)

 On left and right inside of bumper.



*BA88.20-P-1001-01B

2

Remove bumper grill



Do not damage bumper, bumper grate

and grate mounts

 Loosen retainers and pull to outside

 Pulling hook

*140589023300

3

Remove outside temperature sensor from
bumper

4

Unscrew screw (2)



*BA88.20-P-1003-01B

5

Remove bumper toward front



Do not damage paint.

6

Disconnect electrical connector from fog
lamp/Parktronic

7

Disconnect splash water hose

 Plug splash water hose.



Installation: Fill water reservoir.

8

Install in the reverse order



Bumper

Number

Designation

Model
Series 163

BA88.20-P-1001-01B

Nut, front bumper on outer mount

Nm

8

BA88.20-P-1003-01B

Nut, front bumper on frame

Nm

8

Copyright DaimlerChrysler AG  17.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

Hooked extraction tool

140 589 02 33 00

Copyright DaimlerChrysler AG  17.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2
