AR88.30-P-2000-01GH

Remove brush guard

Modification notes

10.8.01

Value modified from 25 Nm to 49 Nm

Value modified in BA88.30-P-1003-01A for
model 163 up to 31.8.01

*BA88.30-P-1003-01A



Detachable body components, underride guard

Number

Designation

Model 163
up to
31.8.01

BA88.30-P-1002-01A

Nut, spacer tube on brush guard

Nm

86

BA88.30-P-1003-01A

Screw, mount on brush guard

Nm

49

BA88.30-P-1011-01A

Bolt, underride guard to brush guard

Nm

25

BA88.30-P-1015-01A

Nut, underride guard to bracket

Nm

49

BA88.30-P-1016-01A

Bolt, front section of underride guard to rear
section of underride guard

Nm

49

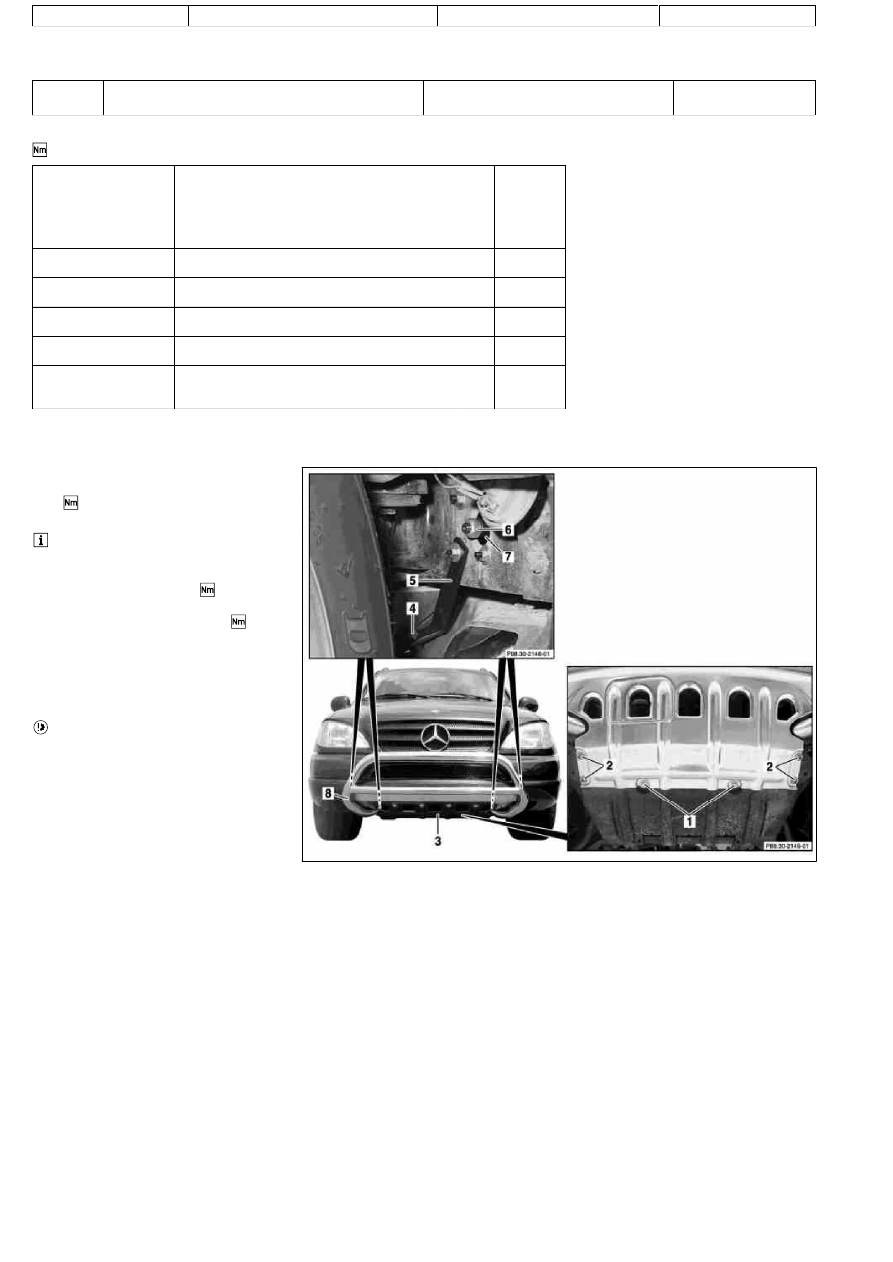

P88.30-2150-06

1.1

Remove screws (1) and nuts (2) from

underride guard (3) at bottom of vehicle

 .

 Only if available.

2

Remove screw for brush guard (4) from

inner mount at bottom (5)



3

Remove nut for spacer tube (6)



4

Remove spacer sleeve (7) from spacer
tube nut (6).

5

Remove brush guard (8) toward front.

 Carefully move out brush guard so that

paint is not damaged.

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR88.20-P-2000GH

Remove/install front bumper

14.3.97

MODEL

163.113 /154 #A up to 289564,

163.113 #X up to 754619,
163.154 #X up to 716524,
163.136 /172 except CODE (U49) Styling package

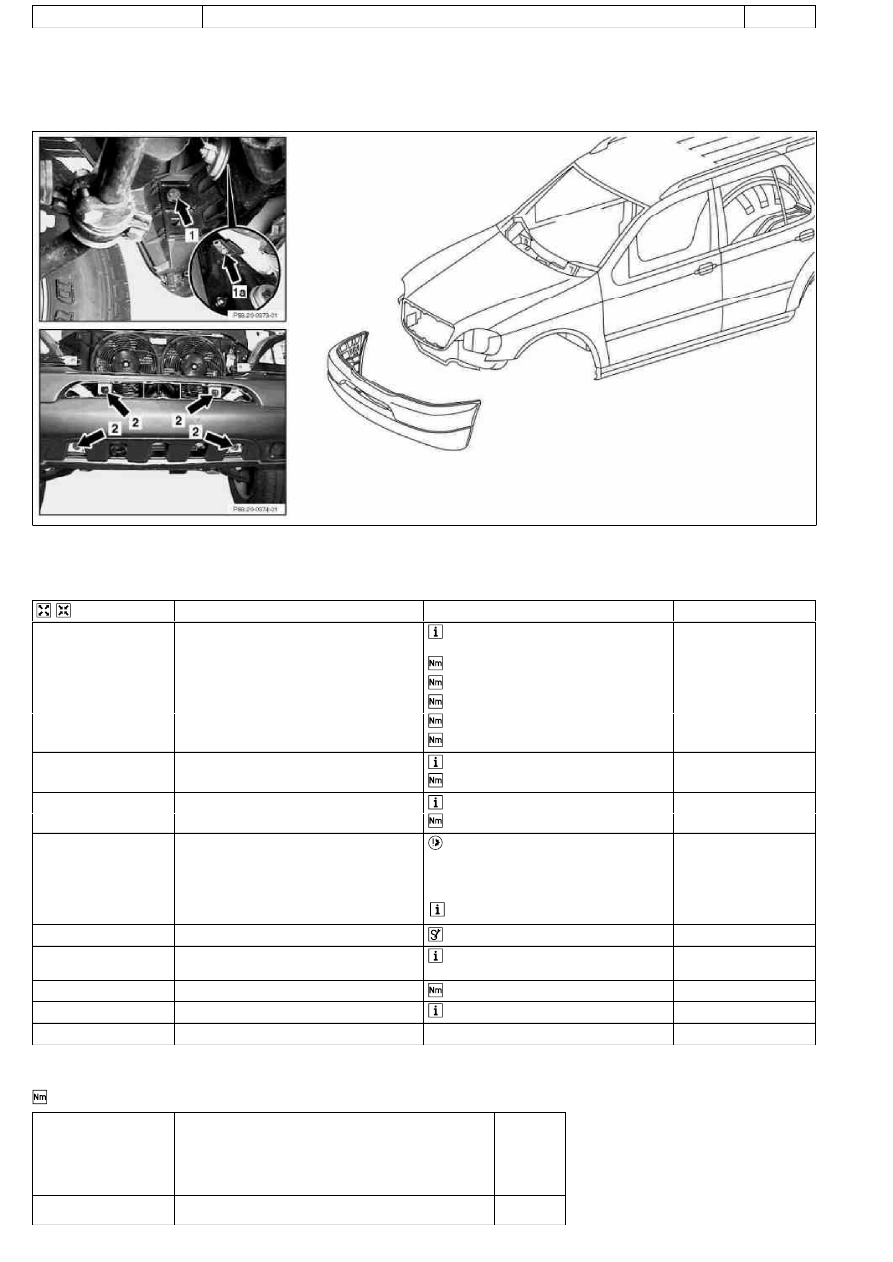

P88.20-0375-09

1

Nut

2

Nuts

1a

Screw



Remove/Install

1.1

Remove brush guard together with underride
guard

 If installed.

AR88.30-P-2000-01GH



*BA88.30-P-1002-01A



*BA88.30-P-1003-01A



*BA88.30-P-1011-01A



*BA88.30-P-1015-01A



*BA88.30-P-1016-01A

2

Unscrew nut (1)

 Left and right at inside.



*BA88.20-P-1001-01B

3

Unscrew bolt (1a)

 Left and right at inside.



*BA88.20-P-1002-01B

4

Remove front bumper grille.



Carefully remove front bumper grille so

that bumper grille and bumper grille mount
cannot be damaged.

 Loosen retainers and pull to outside

 Pulling hook

*140589023300

5.1

Remove outside temperature sensor from
front bumper.

 If installed.

6

Unscrew nuts (2)



*BA88.20-P-1003-01B

7

Remove bumper toward front.



Do not damage paint.

8

Install in the reverse order



Detachable body components, underride guard

Number

Designation

Model 163
up to
31.8.01

BA88.30-P-1002-01A

Nut, spacer tube on brush guard

Nm

86

Copyright DaimlerChrysler AG  17.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

BA88.30-P-1003-01A

Screw, mount on brush guard

Nm

49

BA88.30-P-1011-01A

Bolt, underride guard to brush guard

Nm

25

BA88.30-P-1015-01A

Nut, underride guard to bracket

Nm

49

BA88.30-P-1016-01A

Bolt, front section of underride guard to rear
section of underride guard

Nm

49



Bumper

Number

Designation

Model 163

BA88.20-P-1001-01B

Nut, front bumper on outer mount

Nm

8

BA88.20-P-1002-01B

Screw for front bumper on inner mount

Nm

1.5

BA88.20-P-1003-01B

Nut, front bumper on frame

Nm

8

Pulling hook

140 589 02 33 00

Copyright DaimlerChrysler AG  17.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

AR88.20-P-2200GH

Remove/install rear bumper

6.4.99

MODEL

163.113 #A up to 289564,

163.154 #X up to 754619,
163.154 #A up to 289564,
163.136 /172

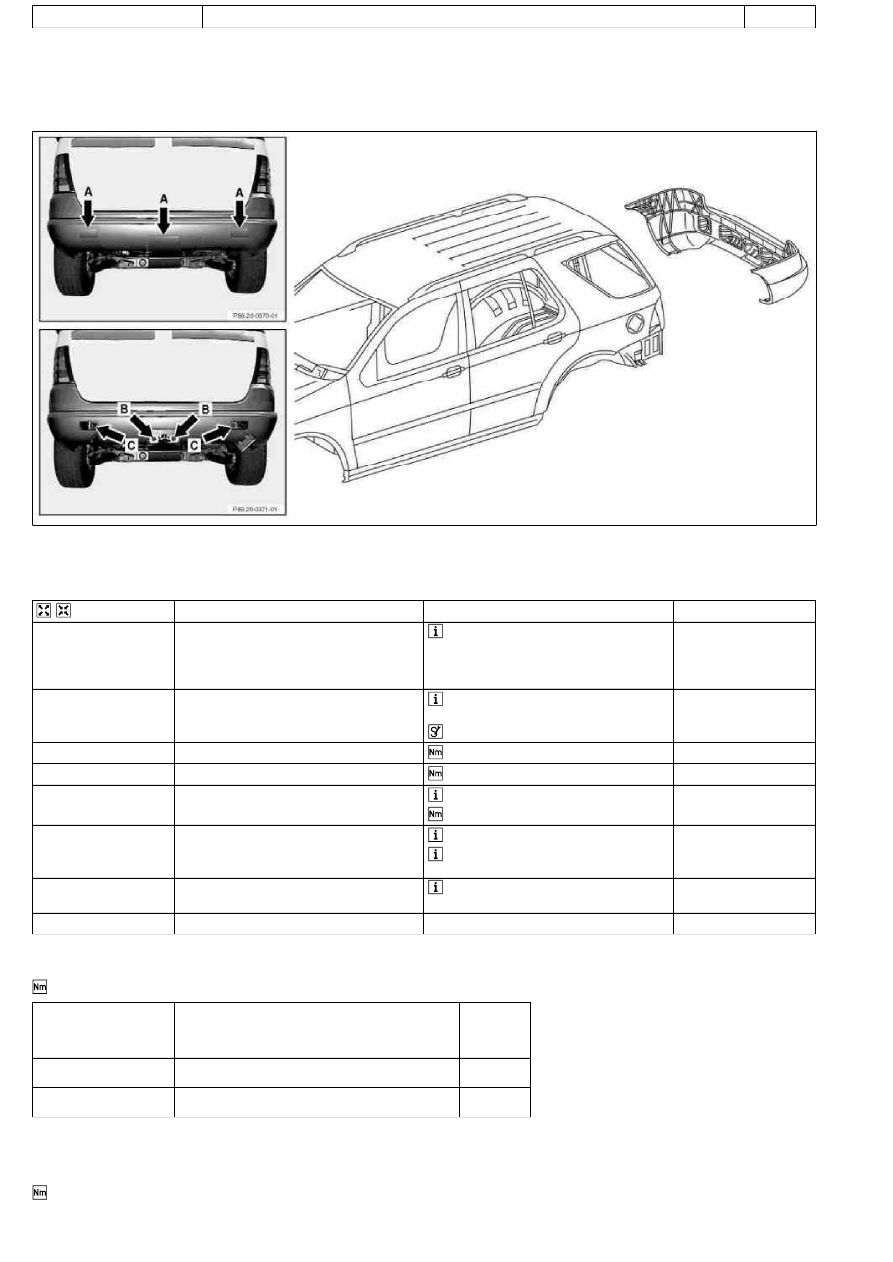

P88.20-0372-09

A

Covers

C

Screws

B

Nuts



Remove/install

1.1

Disconnect antenna connector of E-call
emergency call system



Only with emergency call system E-Call,

code 349.

Connector is located behind side flap of right
C-pillar paneling at jack mounting point.

2

Remove covers (A)

 Do not damage paint. Do not break off

clips.

 Installation wedge

*115589035900

3

Unscrew mounting nuts (B) from bumper



*BA88.20-P-1004-01B

4

Unscrew screws (C)



*BA88.20-P-1005-01B

5.1

Remove nut from rear mud guard

 Only if present



*BA88.30-P-1004-01A

6

Remove bumper toward rear

 Do not damage paint.



Installation: Align bumper at tailgate and

at taillamps

7.1

Remove rubber seal for E-call emergency call
system antenna from body at right



Only with emergency call system E-Call,

code 349.

8

Install in the reverse order



Bumper

Number

Designation

Model 163

BA88.20-P-1004-01B

Nut, rear bumper to frame

Nm

8

BA88.20-P-1005-01B

Screws, rear bumper on frame

Nm

8



Detachable body components, underride guard

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
