Mercedes-Benz ML320. Service manual - part 336





GF82.15-P-0002-03GH

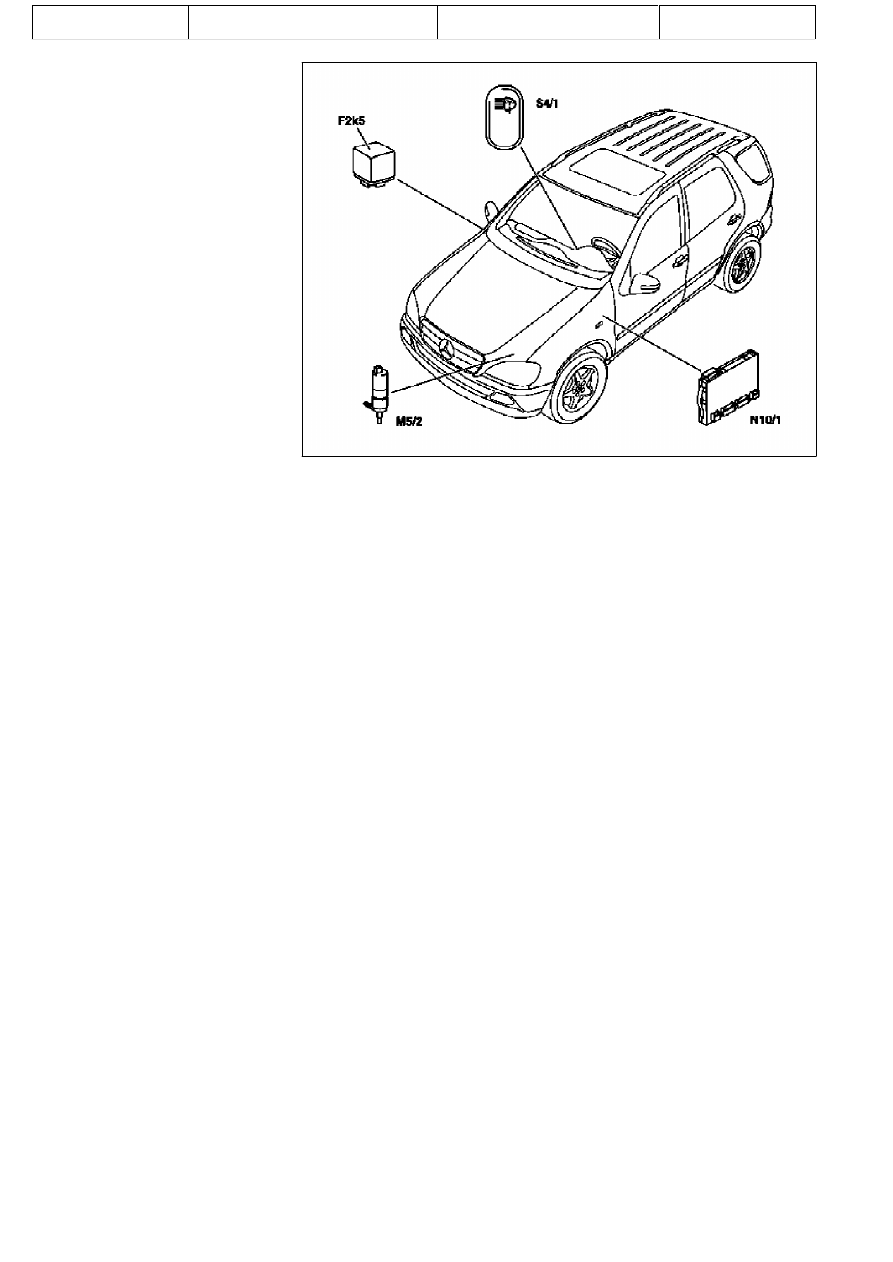

Headlamp cleaning system (HCS), location of
components

n



P82.15-2083-06

F2k5

Relay 5

M5/2

HCS pump

N10/1

Extended activity module (EAM)

S4/1

HCS [SRA] switch

Copyright DaimlerChrysler AG  17.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

GF82.15-P-9998GHZ

Survey of system components for headlamp cleaning system (HCS),
location/task/design/function

30.3.01

MODEL

163 as of 01.9.01 with CODE (600a) headlamp cleaning system

Headlamp cleaning system (HCS), location of
components

GF82.15-P-0002-03GH

Telescopic nozzle for headlamp cleaning
system, location/task/design/function

GF82.15-P-2100GH

Table of contents, function description for
headlamp cleaning system (HCS)

GF82.15-P-0998GHZ

Copyright DaimlerChrysler AG  17.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

GF82.15-P-2100-04GH

Function of headlamp cleaning system
telescopic nozzles

n



After the HCS pump (M5/2) has started to operate, pressure builds
up in the washing water line for approx. 1 second. Driven by the
water pressure, the nozzles first move telescopically into the cleaning
position. Then as a result of a further pressure rise, a valve at each
telescopic nozzle opens and an exactly metered quantity of washing
water is sprayed onto the headlamp lenses.

Swirl chambers are provided at the tips of the telescoping sections
and these ensure controlled propagation of the water jet, even when
traveling fast. After the cleaning process, the telescoping sections
are retracted back into the starting position with the aid of return
springs.

Copyright DaimlerChrysler AG  17.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR82.15-P-6100GH

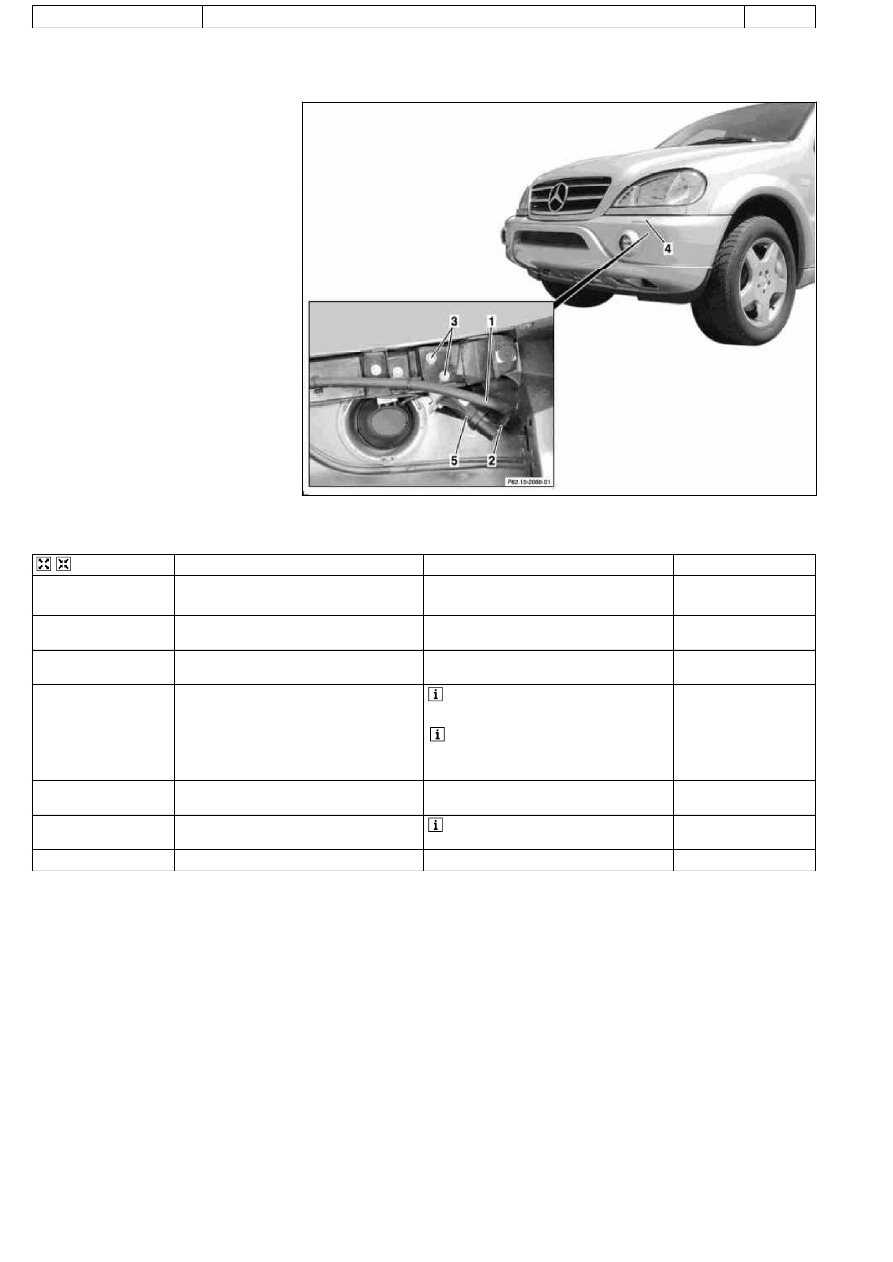

Remove/install telescoping nozzle for headlamp cleaning system

9.5.00

MODELS  163.113 /128 /154 /157 /172 /175 with CODE (600a) Headlamp cleaning system
MODEL

163.174

P82.15-2067-06

1

Water hose

2

Retaining clip

3

Screws

4

Cover

5

Telescopic nozzle



Remove/Install

1

Remove the front bumper

with visual enhancement package, code U49. AR88.20-P-2000GI

As of VIN A289565, X754620.

AR88.20-P-2000GJ

2

Remove retaining clip (2) and water hose (1)
from telescopic nozzle

3

Unscrew screws (3) from mount of telescopic
nozzle

4

Remove cover (4) from telescopic nozzle

 Risk of breakage!



Press telescopic nozzle upward to obtain

access to the retaining lugs for the cover from
above

5

Remove telescopic nozzle (5) together with
mount

6.1

Remove mount from telescoping nozzle

 Only when the telescopic nozzle is

replaced.

7

Install in the reverse order

Copyright DaimlerChrysler AG  17.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
