Mercedes-Benz ML320. Service manual - part 334





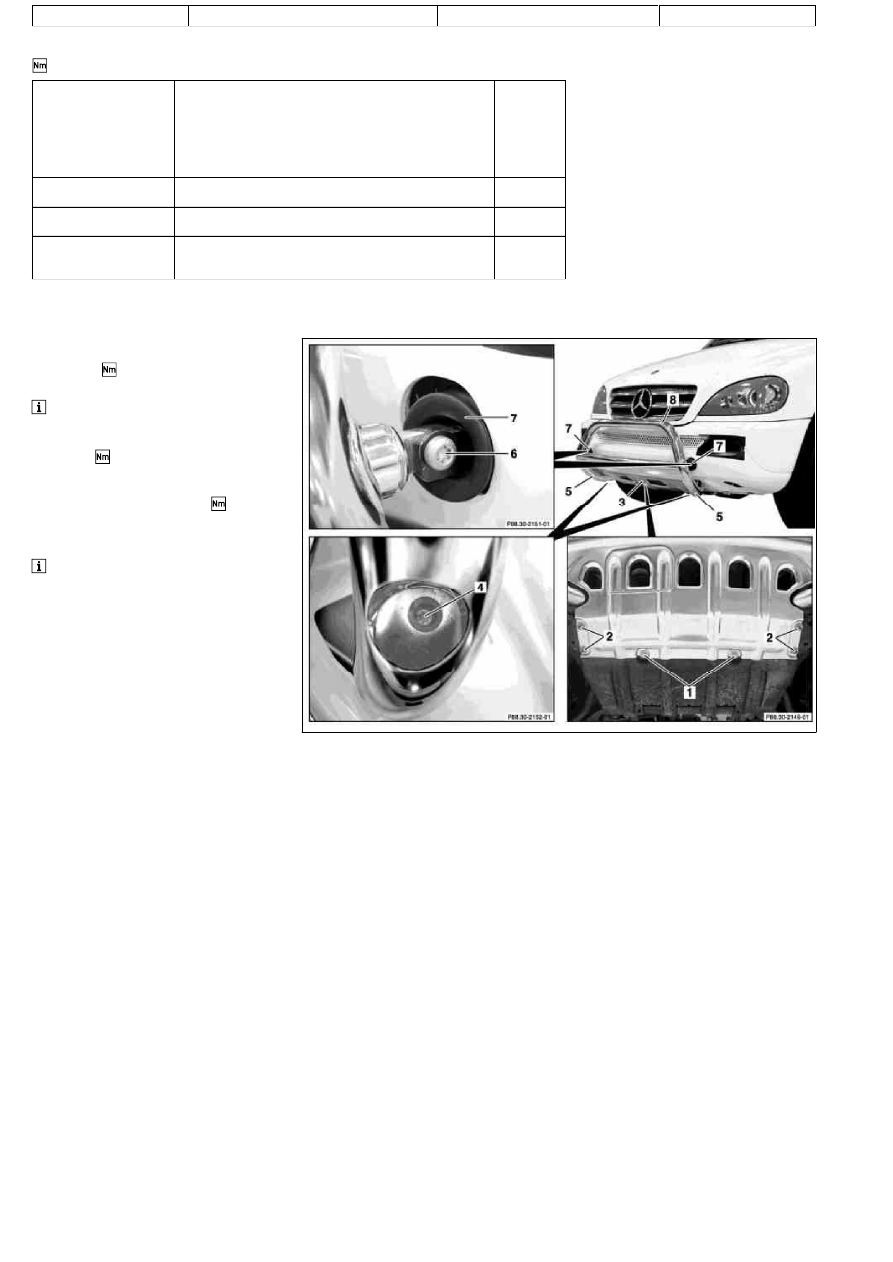

AR88.30-P-2000-01GI

Remove brush guard



Detachable body components, underride guard

Number

Designation

Model
163
as of
1.9.01

BA88.30-P-1003-01A

Screw of mount on brush guard

Nm

25

BA88.30-P-1015-01A

Nut of underride guard to bracket

Nm

49

BA88.30-P-1016-01A

Bolt of front section of underride guard to rear
section of underride guard

Nm

49

P88.30-2153-06

1.1

Remove screws (1) and nuts (2) of
underride guard (3) on bottom side of

vehicle

.

 Only if available.

2

Remove screws (4) of bracket on brush

guard

.

3

Remove screws (6) of bracket on brush

guard behind grommets (7).

.

4

Remove brush guard (8).

 Do not damage paintwork.

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

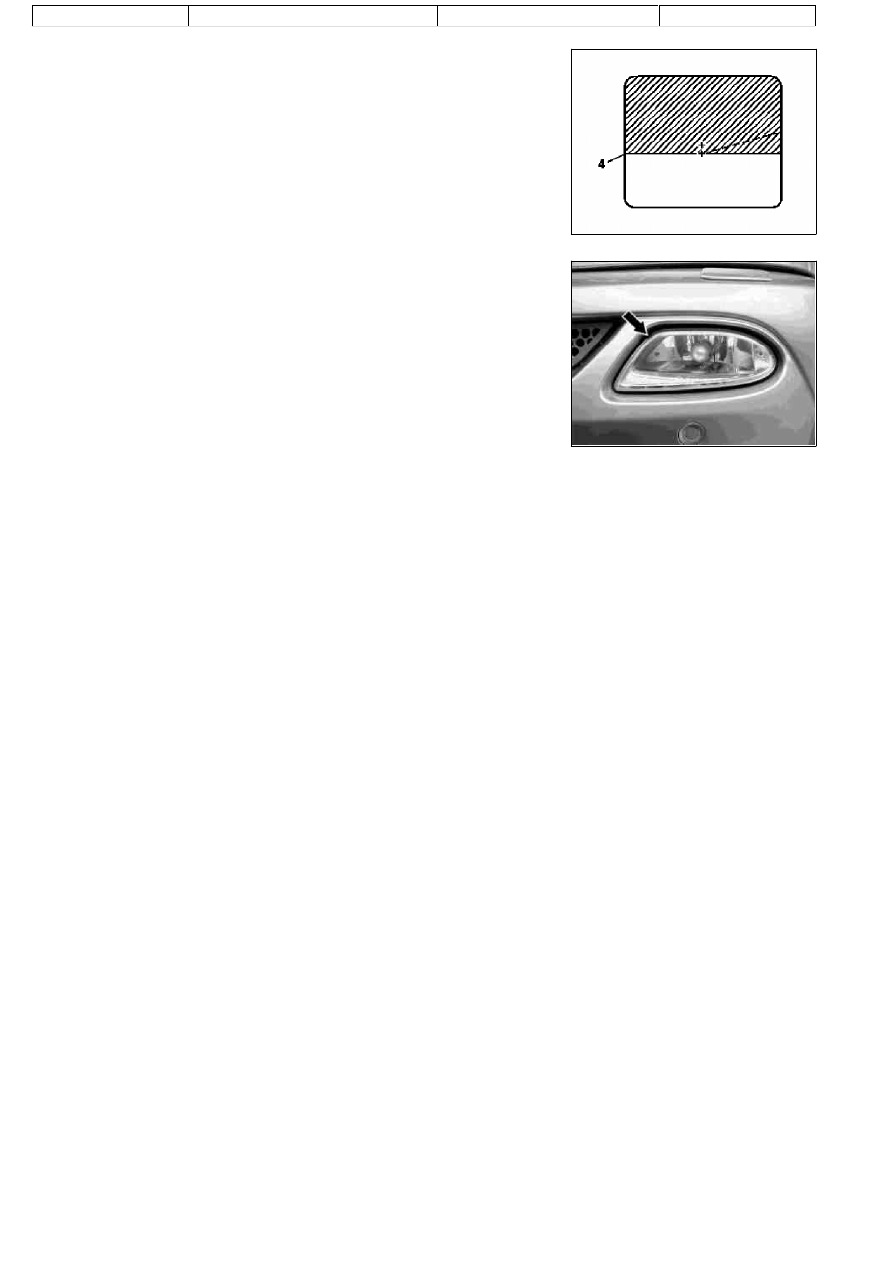

AP82.10-P-8260-04A

Set or inspect fog lamps

P82.10-0205-01

1

The light-dark boundary must be as horizontal as possible at the height of the appropriate
dividing line (4), correct if necessary.

2

For model 140 sedan as of approx. 03.94, 168 and 202: Check seat of bulb.

P82.10-3633-01

Model 163.113 /154 #A as of 289565,
163.113 #X as of 754620,
163.128 /154 /157 /175 except CODE (U49) Styling package

Arrow:

Position of adjusting screw

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

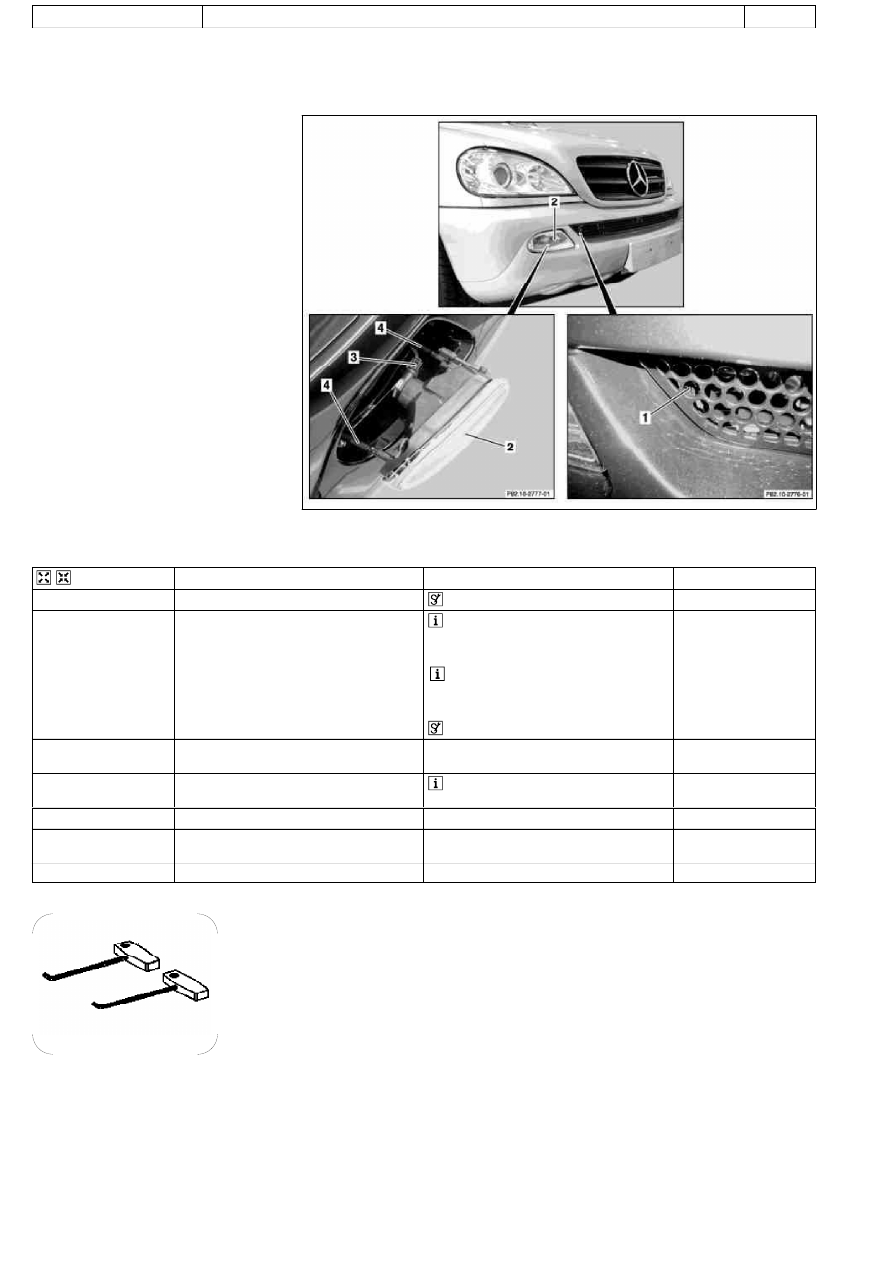

AR82.10-P-5103GI

Remove/install fog lamp

27.2.01

MODELS

163.113 /154 #A as of 289565,

163.113 /154 #X as of 754620,
163.128 /157 /175

P82.10-2778-06

1

Lever

2

Fog lamp

3

Electrical connector

4

Grommets



Remove/install

1

Press lever (1) to release the fog lamp (2)

 Pulling hook

*140589023300

2

Disconnect fog lamp (2) from front bumper

 Exercise caution when pulling at the

edges of the fog lamp.



Installation: First notch in the fog lamp at

the edges. Ensure that the lever (1) securely
holds the fog lamp in place.

 Pulling hook

*140589023300

3

Disconnect electrical connector (3) from fog
lamp

4

Pull off grommets (4)



Installation: Ensure that the grommets

are installed loosely and without kinks.

5

Install in the reverse order

6

Check fog lamp adjustment and adjust if
necessary

e



Check and correct headlamp adjustment

AP82.10-P-8260GH

Pulling hooks

140 589 02 33 00

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

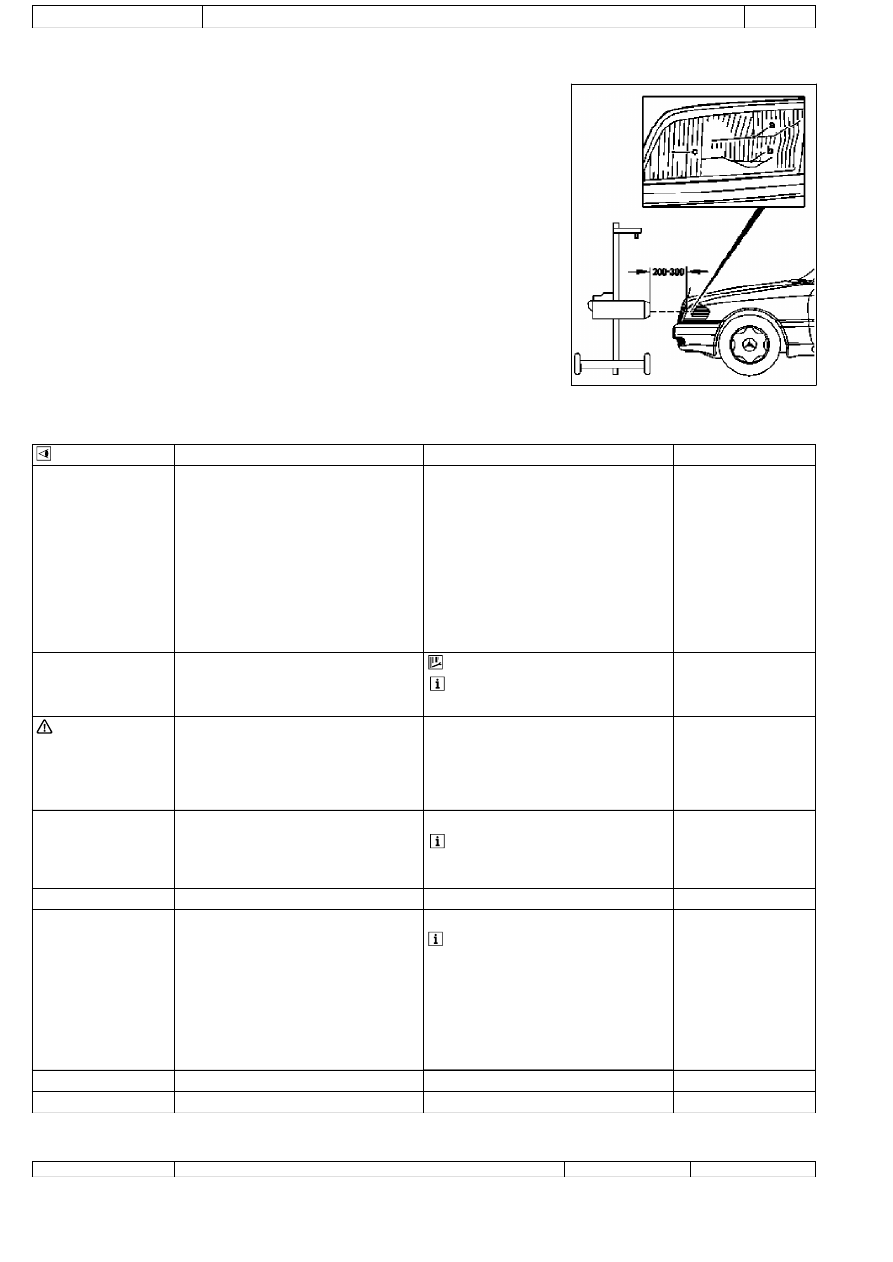

AP82.10-P-8260GH

Check and correct headlamp adjustment

2.7.97

MODEL

163

a=Marking for low beams
b=Marking for high beams
c=Marking for fog lamps

P82.10-0212-02



Check

1

Drive vehicle to level surface

The vehicle level must not change when the
brakes are applied.

Vehicle must be in ready-for-the-road
condition (unladen weight, fuel tank full or
proper additional weight).

Correctly adjust tire pressure.

Load driver's seat with 75 kg or a person
(except USA)

2

Align headlamp adjustment tester to vehicle
and adjust height according to marking in lens

 Follow the operating instructions for

headlamp beam setting equipment exactly

*WH58.30-Z-1002-09A



Danger!

Risk of accident from vehicle starting off by
itself when engine running. Risk of injury
suffered in the form of bruises or burns to the
hands when reaching in while the engine
cranks or runs

Secure vehicle to prevent it from moving off
by itself.
Wear closed and close-fitting work clothes.
Do not touch hot or rotating parts.

AS00.00-Z-0005-01A

3

Run engine and switch on low beam

4

Check headlamp range control for proper
function

(except USA)



The light beams from both headlamps should
change uniformly

5

Set headlamp range control switch to position 0

6

Check low beams

Adjust if necessary (except USA)

AP82.10-P-8260-01A



Due to the common reflector unit, the low
beams, high beams and fog lamps are
adjusted simultaneously.

US version:

#

See "Owner's Manual"

7

Check high beam adjustment

AP82.10-P-8260-02A

8

Check fog lamps

AP82.10-P-8260-04A

Commercially available tools (see Workshop Equipment Manual)

Number

Designation

Make (e.g.)

Order number

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
