163 869 00 14

Clip

1



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



AR61.20-P-1105GH

Remove/install bottom engine compartment paneling

22.6.00

MODEL

163.172 with ENGINE 113.942

MODEL

163.174 with ENGINE 113.981

MODEL

163.175 with ENGINE 113.965

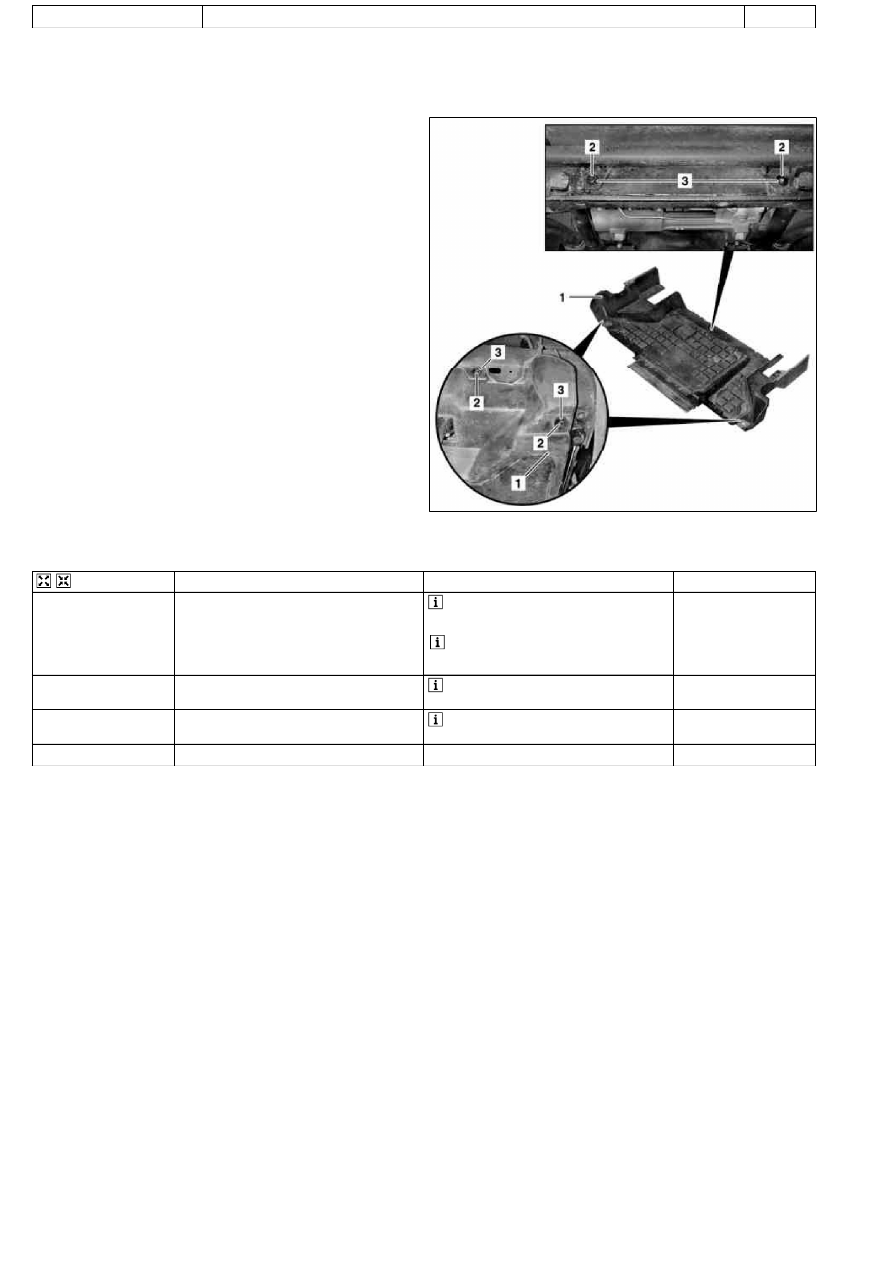

P61.20-2017-12

1

Engine compartment paneling

2

Grub screw

3

Plastic clips



Remove/Install

1

Remove grub screws (2) of plastic clips (3)

 6 grub screws pins.



Installation: Check grub screws, replace

if necessary.

2

Pull out plastic clips (3)



Installation: Check plastic clips, replace

if necessary.

3

Remove engine compartment panel (1)



Installation: Ensure that engine

compartment panel is positioned correctly.

4

Install in the reverse order

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR88.30-P-2000-01GI

Remove brush guard



Detachable body components, underride guard

Number

Designation

Model
163
as of
1.9.01

BA88.30-P-1003-01A

Screw of mount on brush guard

Nm

25

BA88.30-P-1015-01A

Nut of underride guard to bracket

Nm

49

BA88.30-P-1016-01A

Bolt of front section of underride guard to rear
section of underride guard

Nm

49

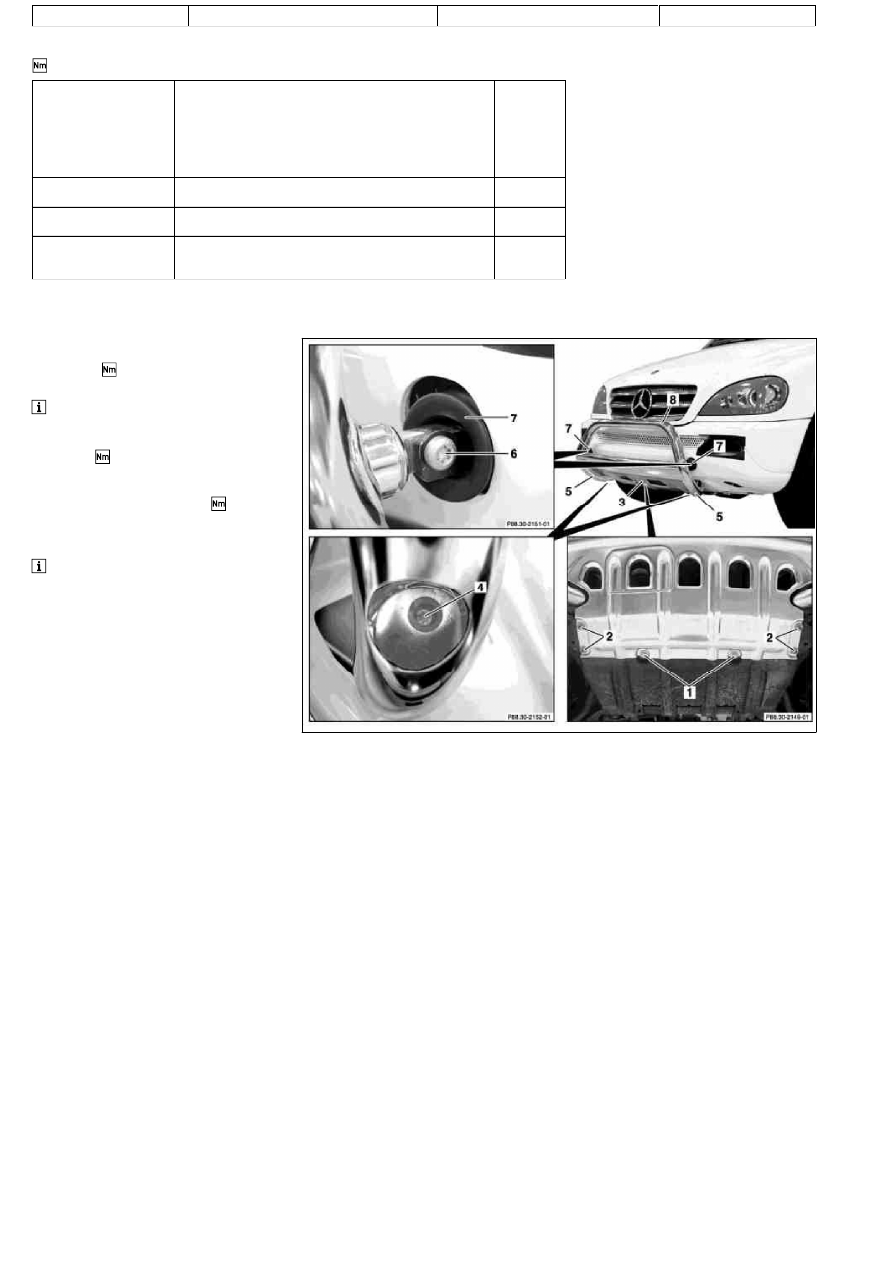

P88.30-2153-06

1.1

Remove screws (1) and nuts (2) of
underride guard (3) on bottom side of

vehicle

.

 Only if available.

2

Remove screws (4) of bracket on brush

guard

.

3

Remove screws (6) of bracket on brush

guard behind grommets (7).

.

4

Remove brush guard (8).

 Do not damage paintwork.

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR88.30-P-2000-01GH

Remove brush guard

Modification notes

10.8.01

Value modified from 25 Nm to 49 Nm

Value modified in BA88.30-P-1003-01A for
model 163 up to 31.8.01

*BA88.30-P-1003-01A



Detachable body components, underride guard

Number

Designation

Model 163
up to
31.8.01

BA88.30-P-1002-01A

Nut, spacer tube on brush guard

Nm

86

BA88.30-P-1003-01A

Screw, mount on brush guard

Nm

49

BA88.30-P-1011-01A

Bolt, underride guard to brush guard

Nm

25

BA88.30-P-1015-01A

Nut, underride guard to bracket

Nm

49

BA88.30-P-1016-01A

Bolt, front section of underride guard to rear
section of underride guard

Nm

49

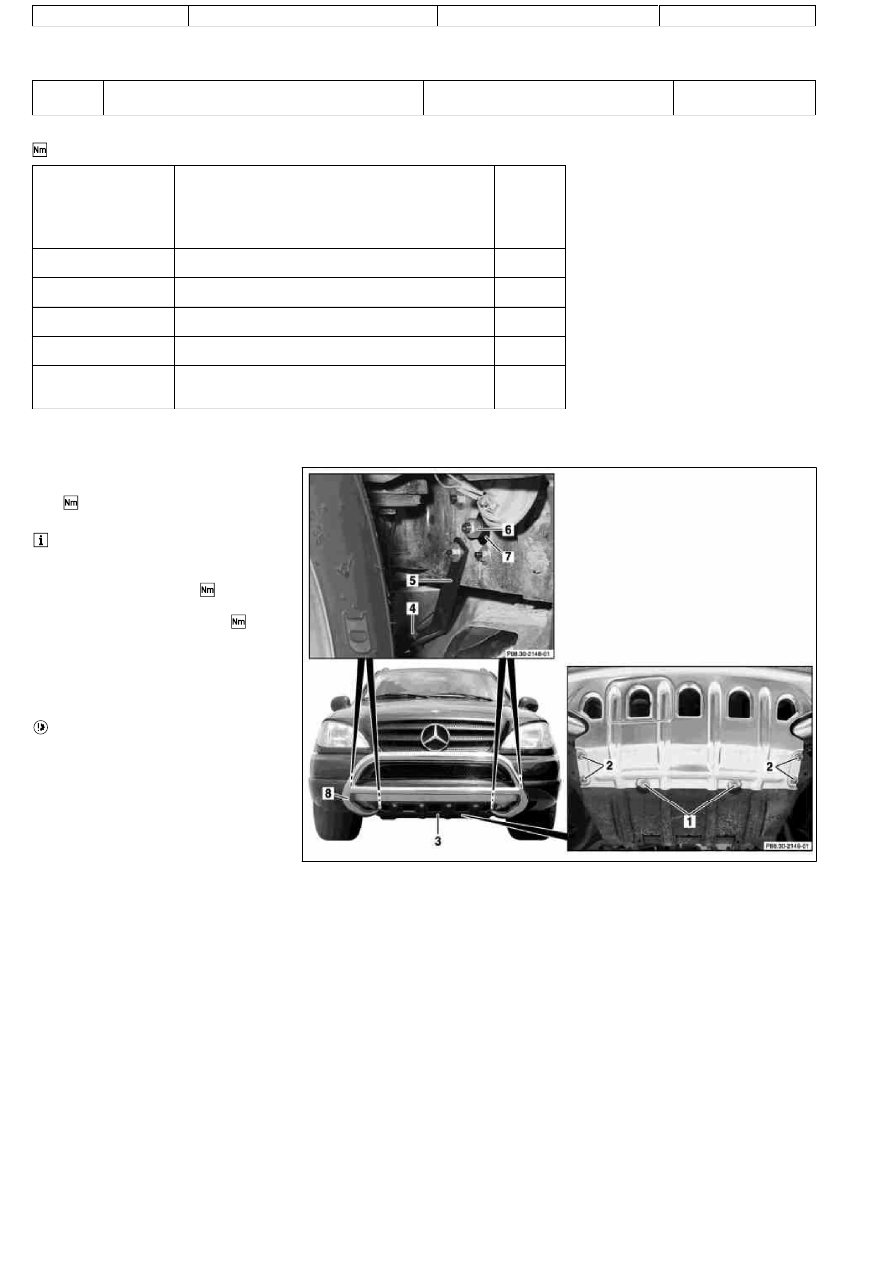

P88.30-2150-06

1.1

Remove screws (1) and nuts (2) from

underride guard (3) at bottom of vehicle

 .

 Only if available.

2

Remove screw for brush guard (4) from

inner mount at bottom (5)



3

Remove nut for spacer tube (6)



4

Remove spacer sleeve (7) from spacer
tube nut (6).

5

Remove brush guard (8) toward front.

 Carefully move out brush guard so that

paint is not damaged.

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
