Mercedes-Benz ML320. Service manual - part 331





gas. Risk of poisoning
and caustic burns
 from
swallowing battery
electrolyte. Risk of
injury
 from caustic burns
to eyes and skin from
battery electrolyte or
from handling damaged
lead-acid batteries

flames or smoking. Wear
acid-resistant gloves,
clothing and glasses. Pour
battery electrolyte only
into suitable and
appropriately marked
containers.

2

Disconnect ground cable
of battery











AR54.10-P-0003A



Notes on battery

All models.

AH54.10-P-0001-01A

3

Remove overhead control
panel





4

Remove radio or
COMAND





5

Remove stowage
compartment below radio





6

Remove cover from radio



7

Remove air conditioning
pushbutton control
module







Installation





8

Retrofitting portable
cellular telephone mount
for hands-free system



AZ82.70-P-0005-01GH

9

Retrofitting hands-free
system wiring harness



AZ82.70-P-0005-02GH

10

Install D-net antenna on
roof

 See installation

instructions from the
Kathrein company.
Install antenna without
modification.



11

Retrofit antenna lead

 Only on vehicles with

Audio 30 APS radio

AZ82.70-P-0002-01A

12

Retrofitting telephone
console

 Is fastened to center

console with mount (15)
and with screw (13).



13

Reassemble vehicle 7-1





14

Carry out start-up and
function test

Check telephone for
proper functioning
according to operating
instructions.





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



Commercially available tools

Parts Ordering notes

RETROFITTING PORTABLE CTEL - AZ82.70-P-0006GH

MODEL 163 as of 1.9.00 up to 30.9.01

Nokia 51 xx and 61 xx portable cellular telephone

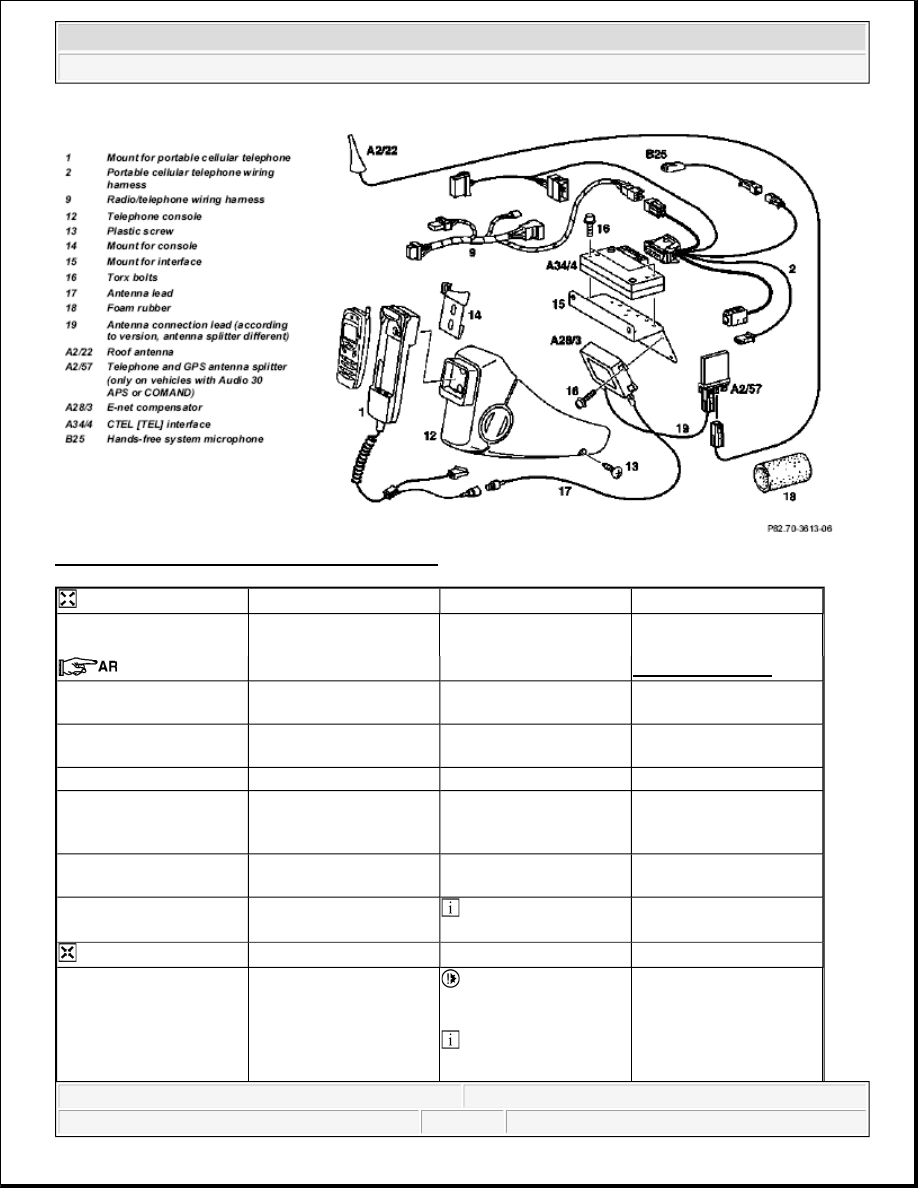

System illustration for installing telephone and GPS

Number

Designation

WH58.30-Z-1012-09A

Quiescent current retention unit

Part no.

Designation

Quantity

B6 787 58 07

Siemens S10D portable cellular
telephone mount

as required

B6 787 58 06

Siemens S25 portable cellular
telephone mount

as required

B6 787 58 05

Nokia 5110, 6110, 6130, 6150
portable cellular telephone mount

as required

B6 787 58 04

Nokia 3110, portable cellular
telephone mount

as required

B6 787 58 08

Nokia 7110 portable cellular
telephone mount

as required

B6 787 58 09

Nokia 6210 portable cellular
telephone mount

as required

B6 787 58 10

Siemens S/C/M35 portable
cellular telephone mount

as required

B6 682 86 16

Antenna adapter (only if required) 1

B6 787 58 02

Basic set without VDA

1

Accessories

Telephone side (order according to
vehicle equipment)

1

A000 989 92 71

Special glue

1

B6 788 01 28

Kathrein radiator-type antenna

as required



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



Fig. 409: Identifying Portable CTEL Components



Removal





1

Disconnect ground cable
of battery











AR54.10-P-0003A

2

Remove radio or
COMAND





3

Remove stowage
compartment below radio





4

Remove cover from radio



5

Remove air conditioning
pushbutton control
module





6

Remove overhead control
panel





7

Tie antenna lead

 Tied back in radio

shaft





Install





8

Covering fiber optic
cable

 Do not kink or

stretch D2B fiber optic
cable.


 Install caps on fiber

optic cable connector and





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



Parts ordering notes

equipment connection.







AR82.95-P-0005-01A

9

Retrofit fiber optic cable
wiring harness

Vehicles without CD
player with changer (code
819).

AN82.70-P-0002-01GH





Vehicles with CD player
with changer (code 819).

AN82.70-P-0002-
01GHH

10

Retrofit telephone cable
harness



AZ82.70-P-0001-04GH

11

Installing hands-free
system microphone

Vehicles up to 31.12.00. AZ82.70-P-0001-02E





Vehicles as of 1.1.01.

AZ82.70-P-0001-02GH

12

Retrofitting telephone
console



AZ82.70-P-0001-01GH

13

Install antenna on roof

 See assembly

instructions from
Kathrein company
Install antenna without
modifying.



14

Retrofit antenna lead

 Only on vehicles with

Audio 30 APS radio

AZ82.70-P-0002-01A

15

Check portable cellular
telephone for proper
function

 Perform version

coding (telephone) with
STAR DIAGNOSIS.



16

Reassemble vehicle 6-1





Part no.

Designation

Quantity

B6 682 94 19

Telephone (portable cellular
telephone), Nokia 6150

1

MA203 820 04 51

Mount (portable cellular
telephone)

1

A203 820 32 26

Control module (portable cellular
telephone)

1

A203 820 39 26

Compensator

1

B6 682 86 00

Mount (compensator)

1

N000 000 000 521

Screw (St 4.2x13)

4

B6 682 86 01

Wiring harness (portable cellular
telephone)

1

B6 682 86 02

Wiring harness (LWL1 without
CD player)

1

B6 682 86 03

Wiring harness (LWL2 with CD
changer)

1



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
