WH58.30-Z-1002-09A

Headlamp adjuster

Robert Bosch GmbH

Franz Oechsle Str. 4

D-73207 Plochingen,
Germany

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

AR88.20-P-2200GK

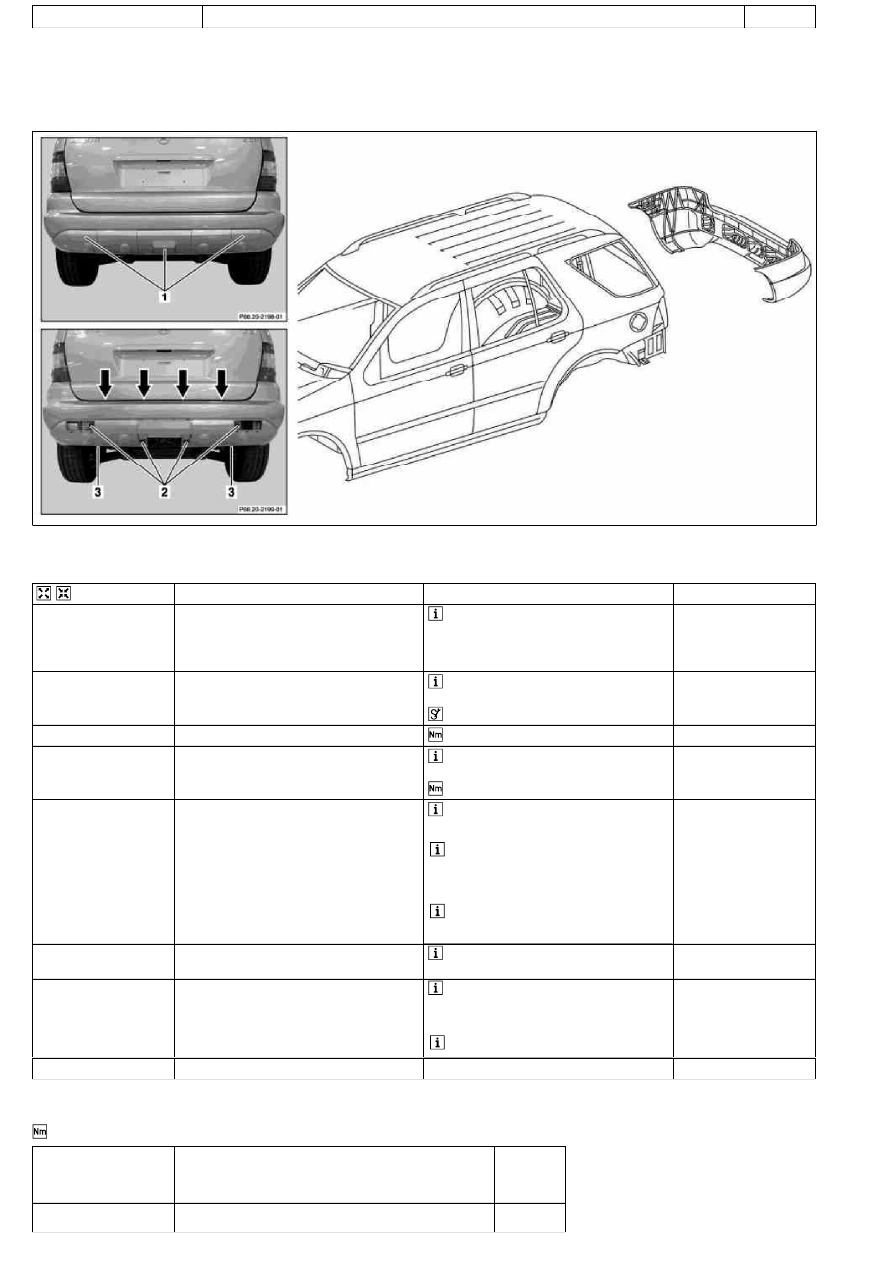

Remove/install rear bumper

26.2.01

MODEL

163.113 #A as of 289565,

163.113 #X as of 754620,
163.154 #A as of 289565,
163.128 /157 /175

P88.20-2200-09



Remove/Install

1.1

Disconnect antenna connector of E-call
emergency call system



Only with emergency call system E-Call,

code 349.

The connector is located behind side flap on
right C-pillar paneling at vehicle jacking point.

2

Remove panelings (1)

 Do not damage paint. Do not break off

clips.

 Installation wedge

*115589035900

3

Remove screws (2)



*BA88.20-P-1008-01B

4.1

Remove nut for dirt trap retaining strap from
vehicle underbody

 Only if present



*BA88.30-P-1004-01A

5

Pull bumper toward rear and remove

 Do not damage paint/wiring harness.

 Pull directly over clips (arrows) and

detach from bracket.



Installation: Align bumper at tailgate and

at taillamps

6.1

Remove rubber seal for E-call emergency call
system antenna from body at right



Only with emergency call system E-Call,

code 349.

7.1

Detach connector from Parktronic system



Only with Parktronic system (PTS), code

220a.



Remove left rubber seal from body.

8

Install in the reverse order



Bumper

Number

Designation

Model 163

BA88.20-P-1008-01B

Screw for rear bumper on mount

Nm

8

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1



Detachable body components, underride guard

Number

Designation

Model 163
as of
1.9.01

BA88.30-P-1004-01A

Nut for retaining strap on mud guard on vehicle
underbody

Nm

6

Long wedge

115 589 03 59 00

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

GF82.15-P-2100GH

Telescopic nozzle for headlamp cleaning system, location/task/design/function

26.3.01

MODEL

163 as of 01.09.01 with CODE (600a) headlamp cleaning system

P82.15-2084-06

1

Telescopic nozzles

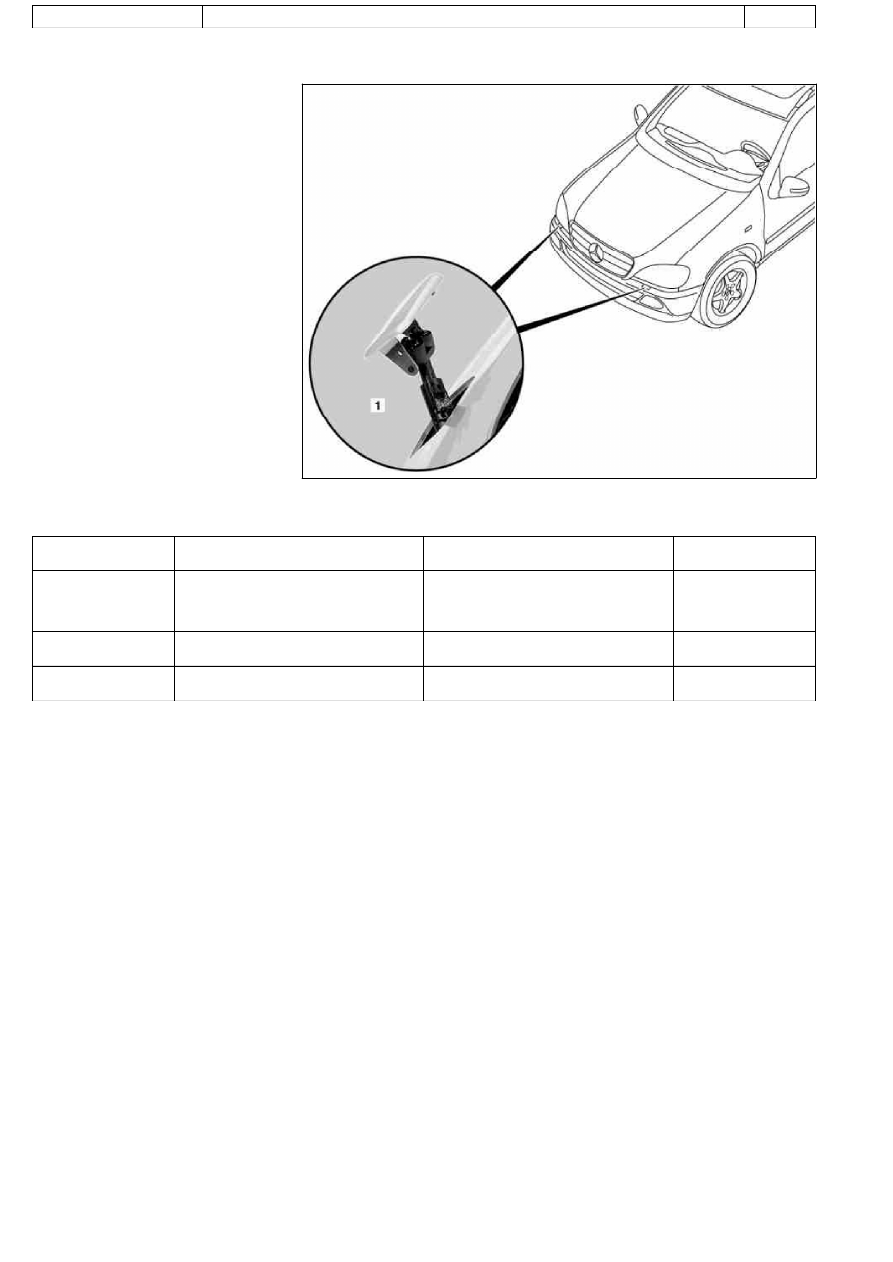

Telescopic nozzle for headlamp cleaning
system, location

The two telescopic nozzles are both arranged
in the front bumper, under the headlamps.

Telescopic nozzle for headlamp cleaning
system, design

The telescopic nozzle is a hydraulically
extendable telescoping section with
integrated return springs and has no electrical
connection.

Telescopic nozzle for headlamp cleaning
system, task

Cleaning of headlamp glass

Function of headlamp cleaning system
telescopic nozzles

GF82.15-P-2100-04GH

Copyright DaimlerChrysler AG  17.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
