Number

Designation

Model 163
up to
31.8.01

Model 163
as of
1.9.01

BA88.30-P-1004-01A

Nut for retaining strap on mud guard on vehicle
underbody

Nm

6

6

Long wedge

115 589 03 59 00

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

AR88.20-P-2200GI

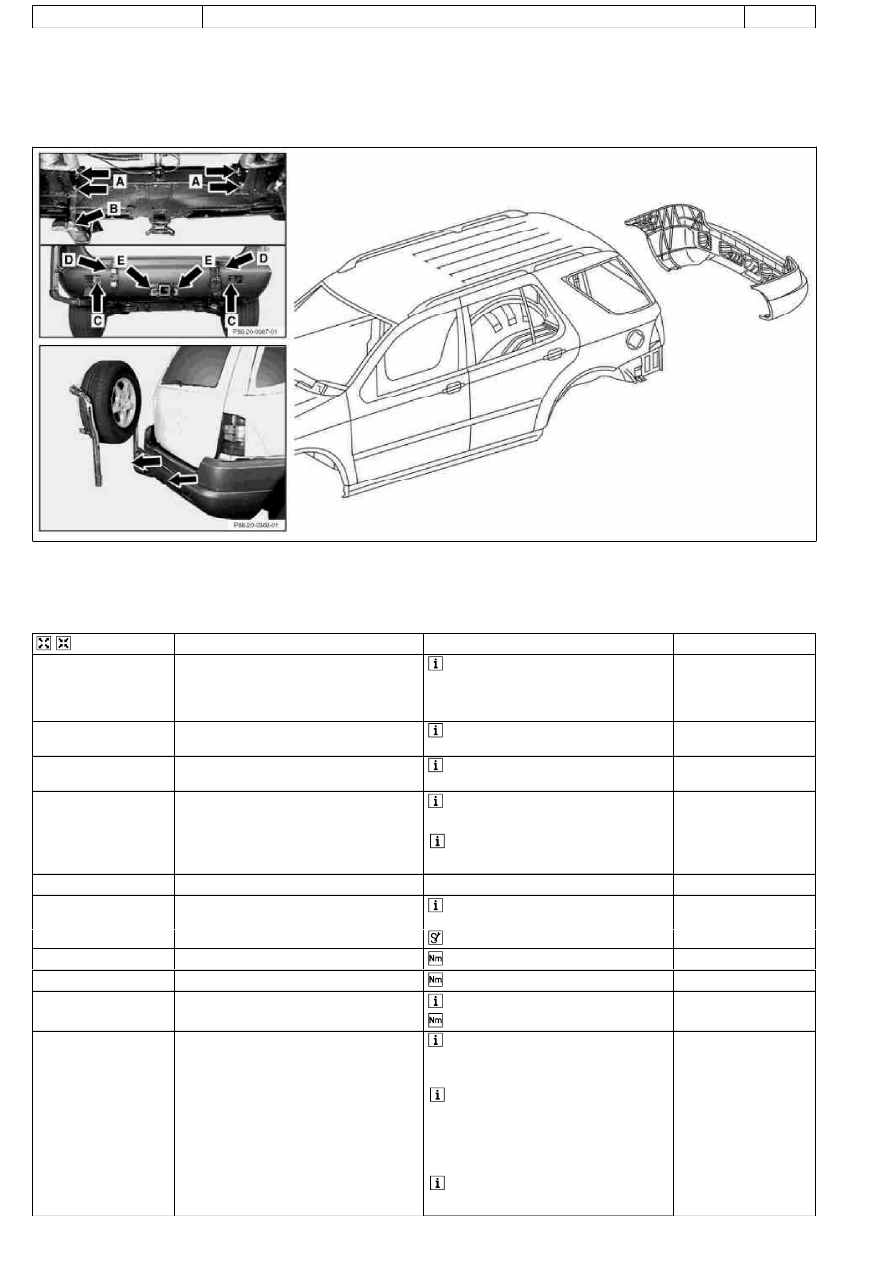

Remove/install rear bumper

11.4.97

MODEL

163.113 #A up to 289564,

163.113 #X up to 754619,
163.154 #A up to 289564,
163.154 #X up to 716524,
163.136 /172 with CODE (849) Spare wheel carrier/spare wheel

P88.20-0369-09

A

Nuts

B

Nut

E

Nuts

C

Screws

D

Spare wheel carrier consoles



Remove/Install

1.1

Disconnect antenna connector of E-call
emergency call system



Only with emergency call system E-Call,

code 349.

Connector is located behind side flap of right
C-pillar paneling at jack mounting point.

2

Unscrew nuts (A)



On vehicle underbody behind cross

member

3

Unscrew nut (B)



On vehicle underbody behind cross

member

4

Unscrew bolts from spare wheel carrier
console

 Do not damage bolt thread



Bolts fastened with nuts (A) can be driven

out from the rear of the cross member.

5

Remove spare wheel carrier consoles (D)

6

Remove 3 panels from bumper

 Do not damage paint. Do not break off

clips.

 Long wedge

*115589035900

7

Unscrew bolts (C) from bumper



*BA88.20-P-1007-01B

8

Unscrew nuts (E) from bumper



*BA88.20-P-1006-01B

9.1

Remove nut from rear mud guard

 Only if present



*BA88.30-P-1004-01A

10

Remove bumper



Do not damage paintwork on vehicle and

bumper.



Completely turn spare wheel carrier to

rear (maximum clearance for bumper). Pull
bumper to rear and then lift out upward
between spare wheel carrier and vehicle.



Installation: Align bumper at tailgate and

at taillamps

Copyright DaimlerChrysler AG  17.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

11.1

Remove rubber seal for E-call emergency call
system antenna from body at right



Only with emergency call system E-Call,

code 349.

12

Install in the reverse order



Bumper

Number

Designation

Model 163

BA88.20-P-1006-01B

Nuts for rear bumper on cross member

Nm

8

BA88.20-P-1007-01B

Screws for rear bumper on cross member,
rear

Nm

8



Detachable body components, underride guard

Number

Designation

Model 163
up to
31.8.01

BA88.30-P-1004-01A

Nut for retaining strap on mud guard on vehicle
underbody

Nm

6

Long wedge

115 589 03 59 00

Copyright DaimlerChrysler AG  17.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

AR82.10-P-5103GH

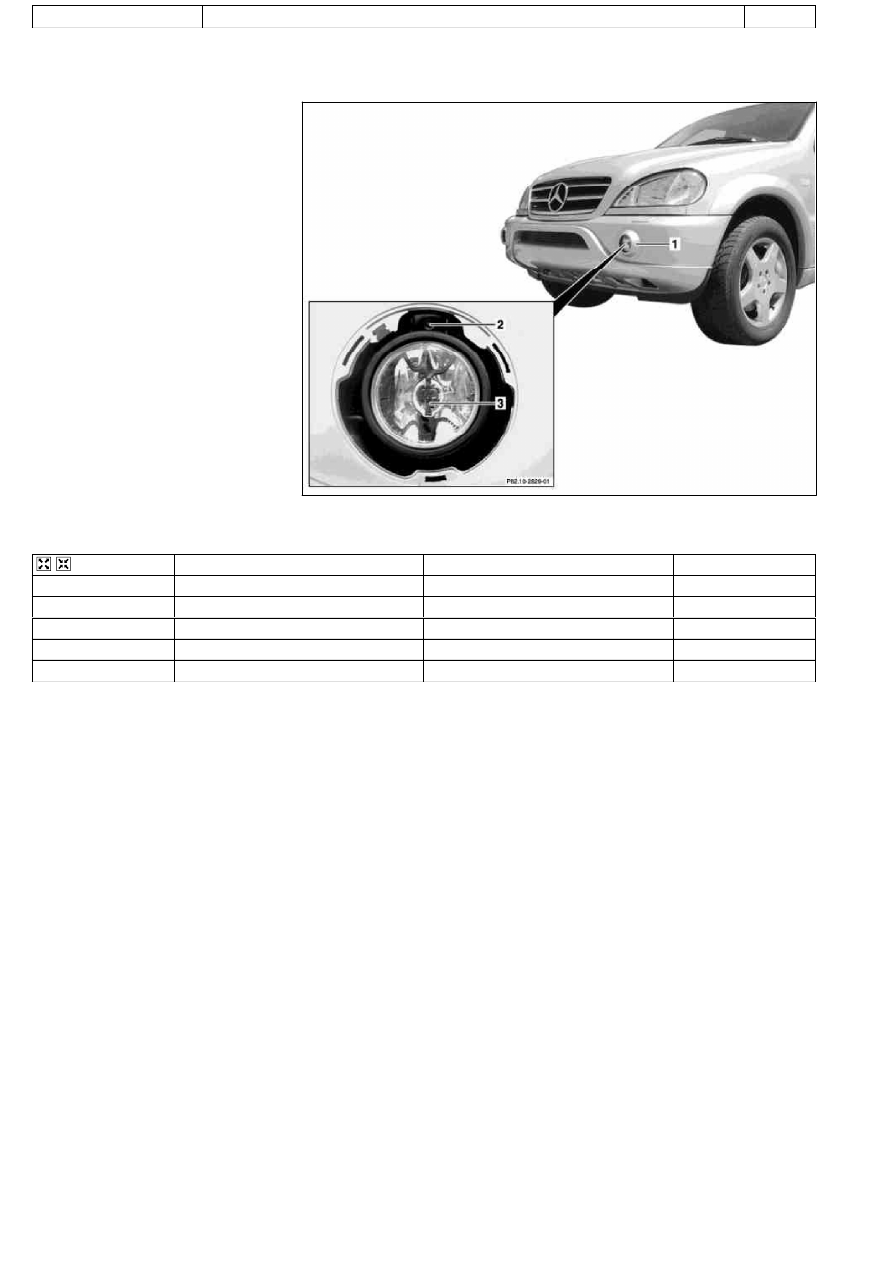

Remove/install fog lamp

5.5.00

MODEL

163.113 /128 /136 /154 /157 /172 /175 with CODE (U49) Styling package

MODEL

163.174

P82.10-2830-06

1

Cover

2

Bolt

3

Fog lamp



Remove/Install

1

Remove cover (1)

2

Unscrew bolt (2)

3

Remove fog lamp (3) from bumper

4

Disconnect connector

5

Install in the reverse order
